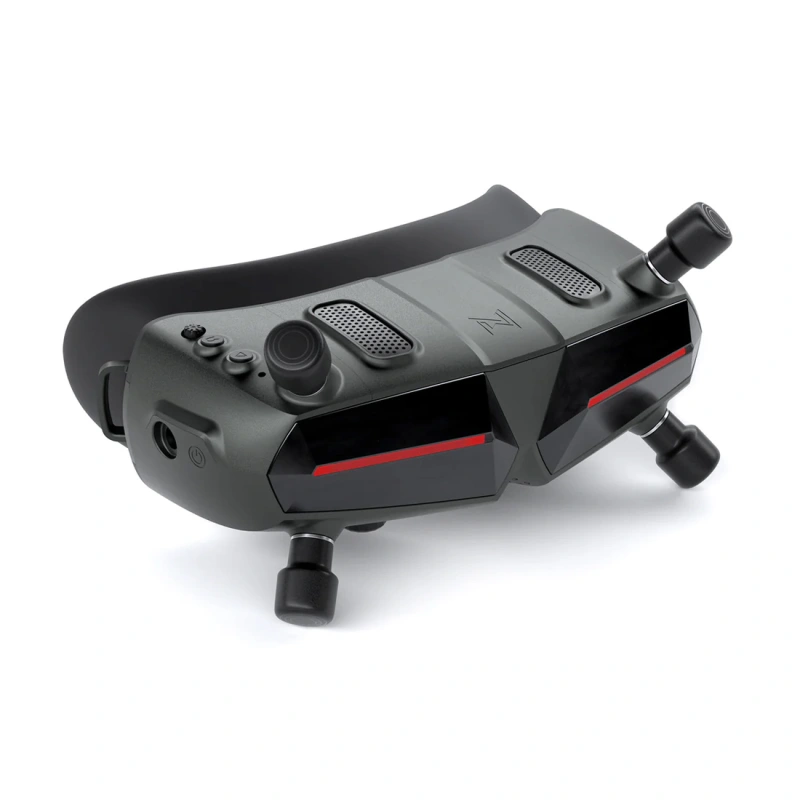

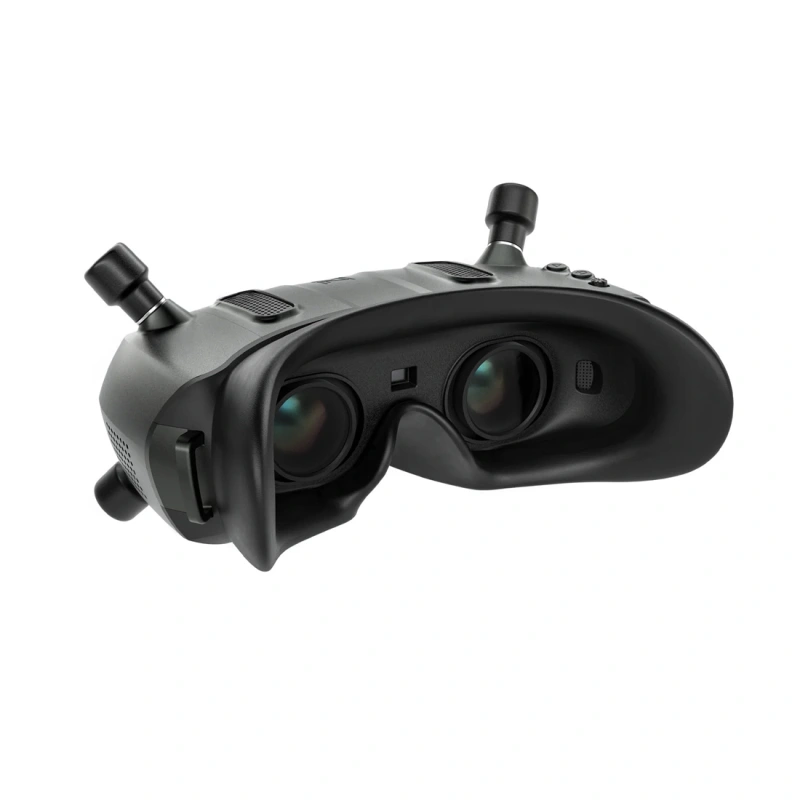

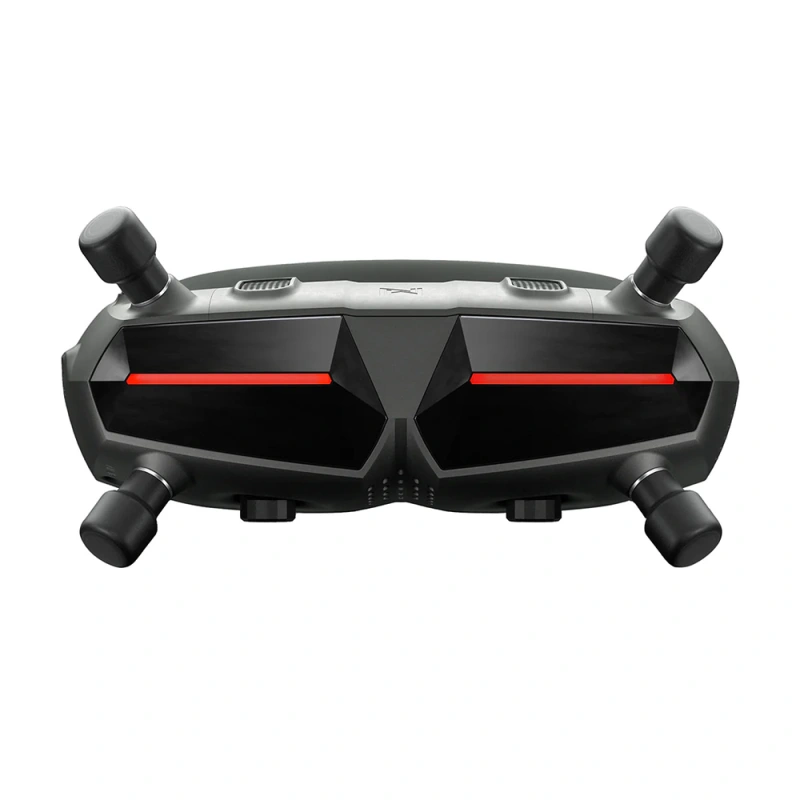

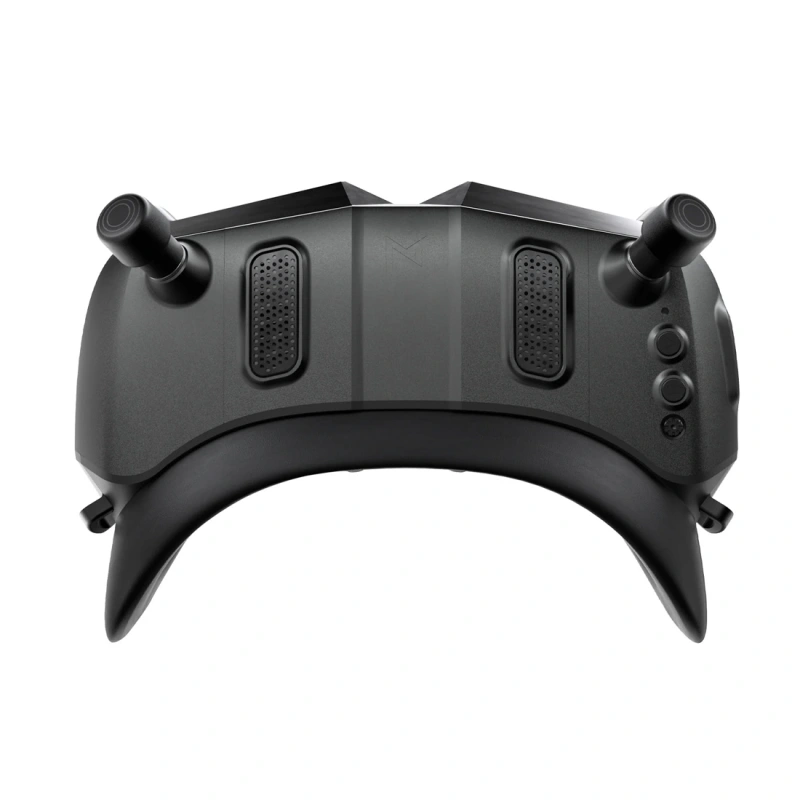

Walksnail Avatar HD Goggles X

Name: Walksnail Avatar HD Goggles X
Brand: ARRISHOBBY
SKU: BA0069
Price: 459 USD
Availability: InStock

SKU: BA0069

0.0 (0)

$459.00

FOV 50°
HDMI input/Output
Replace VRX
+2 to-6 diopter
200g light weight

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description

Walksnail Avatar HD Goggles X is a 1080P HD digital goggle that support both HDMI IN and HDMI OUT. Meanwhile, the goggles have an AV IN interface and support analog signals. The cover above the goggles can be opened for easy replacement of new receiver modules, providing pilots with a cost-effective way to upgrade their goggles. Walksnail Avatar HD Goggles X are designed to be lightweight, mini, small and carry 50°FOV, making more comfortable for pilots while giving them a more immersive FPV experience.

Product Features:
●Weight 290g
●+2 to-6 diopter
●FOV 50°
●Lenses can be replaced
●7-26V
●1PD57~72mm
●Front cover DIY
●Infrared Sensing
●1080P/100FPS
●Sharing mode
●HDMI input
●Replace VRX
●HDMI output
●Built-in Gyro (in development)
●AV in
●Built-in Bluetooth Wi-Fi module (in development）

Bullet Points for Walksnail Avatar HD Goggles X

The Avatar HD system utilizes industry-leading H.265 encoding technology to provide 1080p/100FPS FPV video quality with low latency, providing an immersive and responsive experience.

The goggles have an AV IN interface and support analog signals, support a versatile solution for FPV pilots.

The HDMI input expands the range of devices that can be used with the goggles, providing more flexibility and convenience. The HDMI OUT interface can be connected to other display devices to share your flight footage with pilots in real time.

The front cover of the goggles can be removed and replaced with new antenna, replacing the two antennas located under the goggles, which provides pilots with more options to optimize their FPV experience.
The cover above the goggles can be opened for easy replacement of new receiver modules, providing pilots with a cost-effective way to upgrade their goggles. Meanwhile, we are developing the next generation receiving module, which can achieve a breakthrough in flight distance, expected to reach 20 kilometers, and develop a sustainable development strategy.

The front cover of the goggles adds a light function, add a touch of style to your gear.

100% optical improvement, experience a clearer picture.

Adjustable from +2.0 to -6.0 via diopter knob to personalize the viewing experience and easily go glasses-free.
The goggles use infrared sensing technology to provide pilots with a convenient and energy-efficient way to turn the screen on and off without manually pressing any buttons. This feature helping to extend the life of the screen.

Lenses for astigmatism, myopia and blue light-blocking glasses can be replaced to meet different vision needs.

The front cover of the goggles can be DIY, allowing pilots to use their imagination to customize interesting looks for the goggles.

The goggles feature wide foam to provide pilots with a comfortable and secure fit regardless of different facial features, fits the face to reduce light leakage.

The goggles are designed to be lightweight, mini, small and carry 50°FOV, making more comfortable for pilots while giving them a more immersive FPV experience.

The goggles have built-in gyro hardware, which can be used to develop Fixed-wing, RC cars and other scenarios.

The built-in Bluetooth Wi-Fi module allows pilots to connect their goggles to an app and access a range of features, including sharing their FPV experience on social media, wireless upgrading firmware, map mode for locating the drone, and live viewing goggles screen. This feature is around the corner.

Specifications:

Avatar HD Goggles X	Avatar HD Goggles X
Communication Frequency	5.725-5.850GHz
Transmitter Power(EIRP)	FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
I/O Interface	HDMI Out, HDMI Input, 5Pin 3.5mm Audio Port, DC5.5*2.1mm Port, Micro SD Card Slot
Transmission Resolution	1080p 100fps, 1080p 60fps, 720p 100fps, 720p 60fps
Code Rate	Max 50 Mbps
Min. Latency	Average 22ms
Average Gain	2dBi
Polarization	LHCP
Transmission Distance	＞4km
Channel	8
Screen Resolution	1920*1080/100Hz
Screen Material	OLED
IPD Mechanical Range	57mm-72mm
Adjustable Focus Range	＋2.0 to－6.0 Diopter
FOV	50°
Power Input	7-26V(2S-6S)
SD card	Support 256G
System	Avatar HD system
Wide Foam material	PU
Built-in WIFI	Yes
Built-in Gyro	Yes
Built-in Bluetooth	Yes

Package Included：
Walksnail Avatar HD Goggles X x 1　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　
Wide Foam (PU) x 1
Lens cleaning cloth x 1
XT60 to DC 5.5*2.1mm power cord x 1
Storage Box x 1
