Tarot TL65B01 Fully Foldable Carbon Fiber Quadcopter Super Combo (Not Assembled)

SKU: CA0083
0.0 (0)
$234.00 $0.00
Received successfully
Coupon Code
    Please select the information you want X
  • Ships From:
    Please select the information you wantX
  • Tarot TL65B01 Fully Foldable Carbon Fiber Quadcopter Super Combo (Not Assembled)
Frequently Bought Together
Frequently Bought Together
  • Description

Tarot TL65B01 Fully Foldable Carbon Fiber Quadcopter Super Combo (Not Assembled)

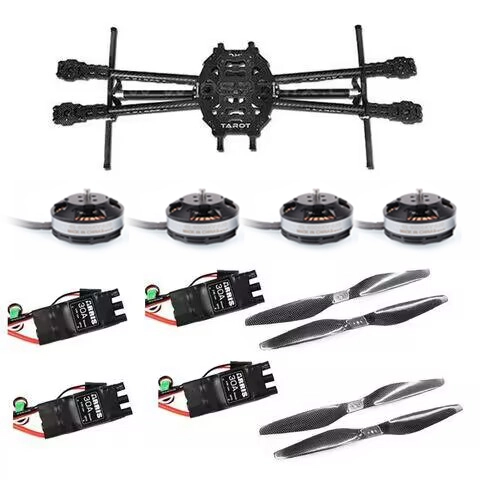

Package Includes:
1 x TL65B01 Quadcopter Frame
4 x Tarot 4006/620KV Motor TL68P02
4 x ARRIS Simonk 30A 2-6S OPTO Brushless ESC
4 x Tarot T series 1355 Propellers TL2829 (2 pairs)

- Tarot Iron Man 650 Rack adopts Toray 3K carbon fiber cloth woven carbon fiber board with 3K hollow twill pure carbon fiber carbon fiber tube (non-3K glassy carbon tube) CNC machining,design standards higher than similar products, the full set of rack weighs only 476 grams. Full folding design, installation designed for users with high portability requirements,the user can flexibly according to the weight of the loaded photographic equipment adjust the center of gravity. Particularly suited to do surveillance, remote sensing, mapping, aerial reconnaissance, fire observed explore life cable line patrol, farm monitoring, and other the mobile performance requirements equipment. You may need other Tarot Quadcopter for your other options and comparison

Diagonal wheelbase: 650mm
Frame weight: 450g

Tarot 4006/620 kv Motor
Tarot 4006/620 kv efficient multiple brushless motor designed for four axis and six axis rotor aircraft /hexacopter, using the high precision CNC processing production, shaped flat table is smooth and flawless, excellent balance to the new design of efficient turbofan cover, provide a powerful cooling airflow, the rotor using high ndfeb magnetic material and fine
Motor diameter: 46MM
stator dia:40.6M
Stator thickness: 6MM
stator terminal:24
Motor pole: 22P
Gear install diameter: ¢4MM
Motor height: :22.0MM
Motor shaft legth : 30.50MM
KV: 620 RPM / Volt
Net weight : 82G
Impedence:126 mΩ
14.8V no load current:0.8A
14.8 load current:14A
4006 installation size::27.7MMequilateral triangle
Prop installation : Main hole dia:4mm.size hole 3mm,pitch between each hole:12mm

ARRIS Simonk 30A brushless ESC

The most significant feature of ARRIS Simonk 30A brushless ESC is that it has 400mm singnal wire and power cord, no need to add extra wires, which greatly reduce the triviality in wiring.

- Weight: 25g
- Size: 55 * 19 * 10mm
- Continuous Current: 30A
- Burst current: 45A
- BEC Mode: OPTO
- The applicable number of battery cells :2-6S

Tarot T series 1355 Carbon Fiber High Efficient Propeller CW/CCW TL2829
Carbon fiber propeller (CW) x1
Carbon fiber propeller (CCW) x1
Laser sticker x1
Weight: 14g/PCS
Hole diameter: 4mm (middle), 3mm (side)
Distance from hole to hole: 12mm
