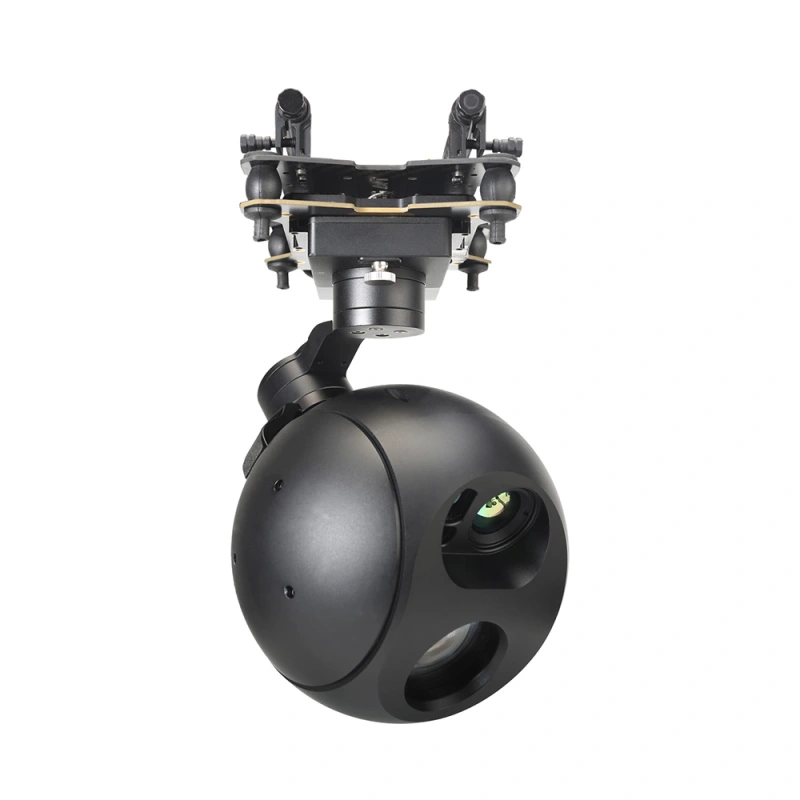

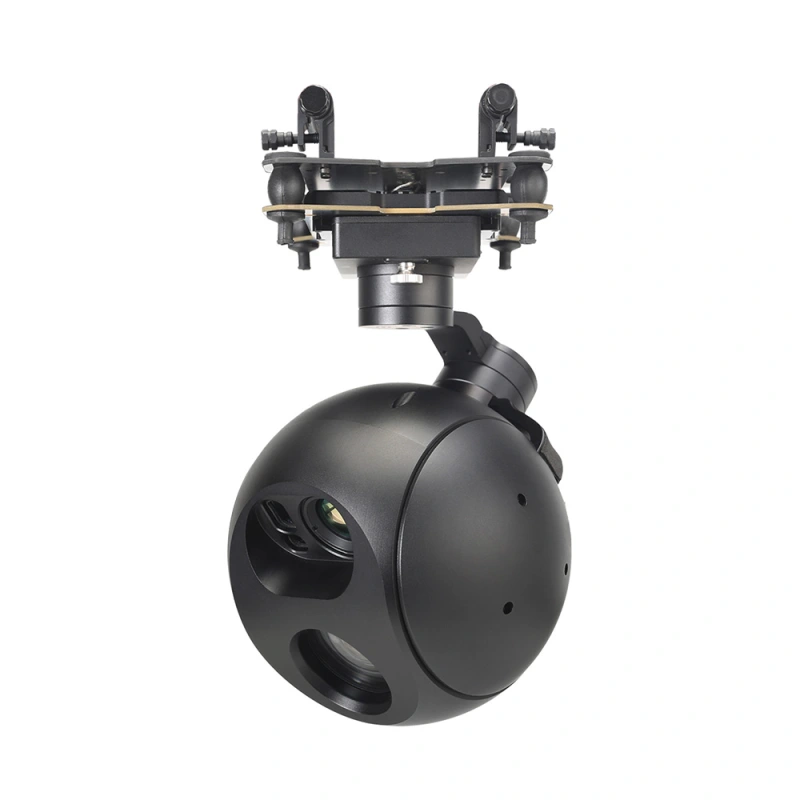

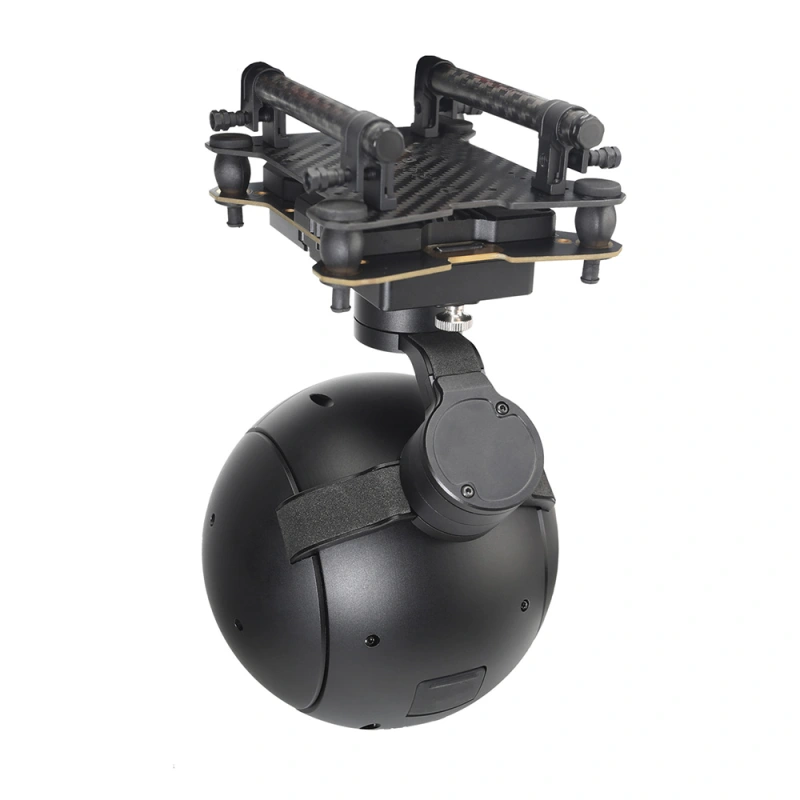

The Tarot T30X-3ATL is a three-axis zoom camera gimbal designed specifically for industrial applications. It features a 30x optical zoom visible light camera with a 1/2.8 CMOS sensor and an effective pixel count of 2.13 million. This allows for clear imaging of objects several hundred meters away. The gimbal is equipped with a 19mm 640*480 resolution thermal imaging camera and integrates a laser ranging module with a range of 2000 meters. It supports person and vehicle recognition, target positioning, ranging, and target tracking functionalities. The gimbal employs professional three-axis mechanical stabilization technology, making it suitable for various industries such as firefighting, forest public security, law enforcement monitoring, search and rescue, and environmental law enforcement.
Key Features:
- Weight: 910g
- Visible Light Camera: 30x optical zoom, 2.13 million effective pixels
- Visible Light Camera: Field of view range from 63.7° to 2.3°, optical zoom range f: 4.3 to 129mm
- Visible Light Camera: Video resolution of 1080P@30fps; photo resolution of 1920*1080
- Visible Light Camera: Color minimum illumination of 0.01Lux/f1.6
- Thermal Imaging Camera: 19mm; 640*512 resolution
- Supports picture-in-picture display of visible light and thermal imaging
- Supports person and vehicle recognition, target positioning, ranging, and target tracking
- Highly optimized servo motor vector control algorithm
- Mechanical three-axis stabilization with a stability accuracy of ±0.01°
- Aluminum alloy structure for lightweight, robust design, and efficient heat dissipation
- Pan axis supports ±360° unlimited rotation
- Supports one-key operation for a 90-degree downward view
- Control interfaces include S.BUS, UART serial protocol, TCP protocol over Ethernet, and CAN protocol feedback
- Supports automatic/manual focus
- Customized ground station PC/Android TCA software for display and control
Control Software TCA:
- Android version supports display and touchscreen control of the gimbal
- Windows version supports display, mouse, and peripheral game controller control
Compatibility:
- Compatible with popular ground station software (such as CloudZoo FPV, Siyi FPV, QGC, Zidao ground station, Jiyi ground station, Hankun ground station, etc.)
- Supports video display with RTSP streaming capabilities in playback software (such as VLC)
- Compatible with MAVlink2 communication protocol, allowing integration with open-source flight controllers like QGC or Mission Planner for video overlay of coordinates, altitude, and other information.
Specifications:
Package Included:
- T30X-3ATL Gimbal Body ×1
- Gimbal Power Cable/XT30-2P ×1
- S.Bus Receiver and Avionics Control Cable/6P ×1
- ETH Output and Debugging Cable/4P-RJ45 ×1
- ETH Connection Cable/4P-5P ×1
- UART Serial Control and CAN Cable/5P ×1
- Micro-SD Storage Card/64G ×1
