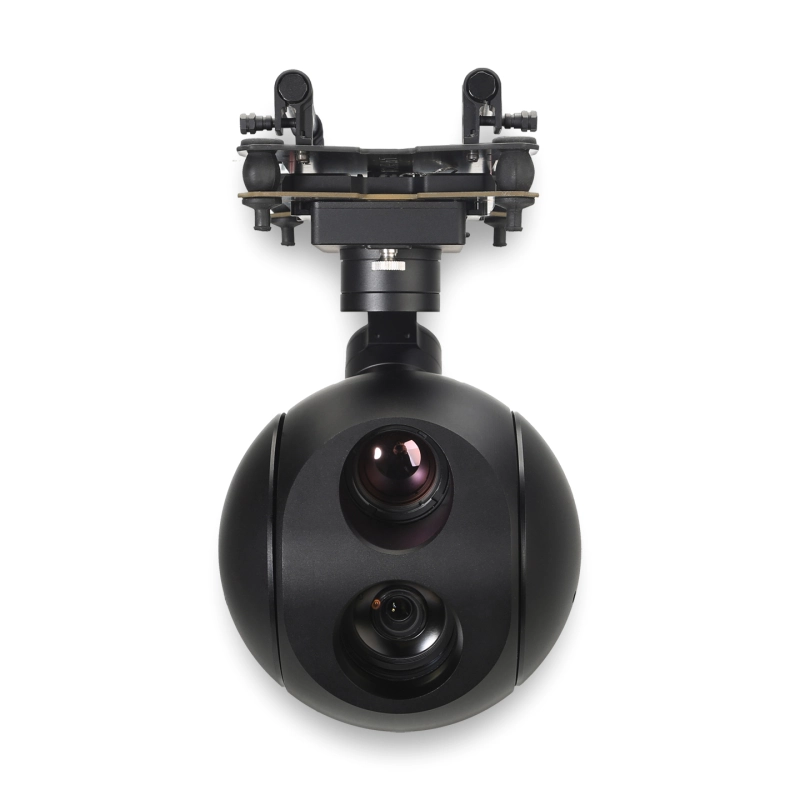

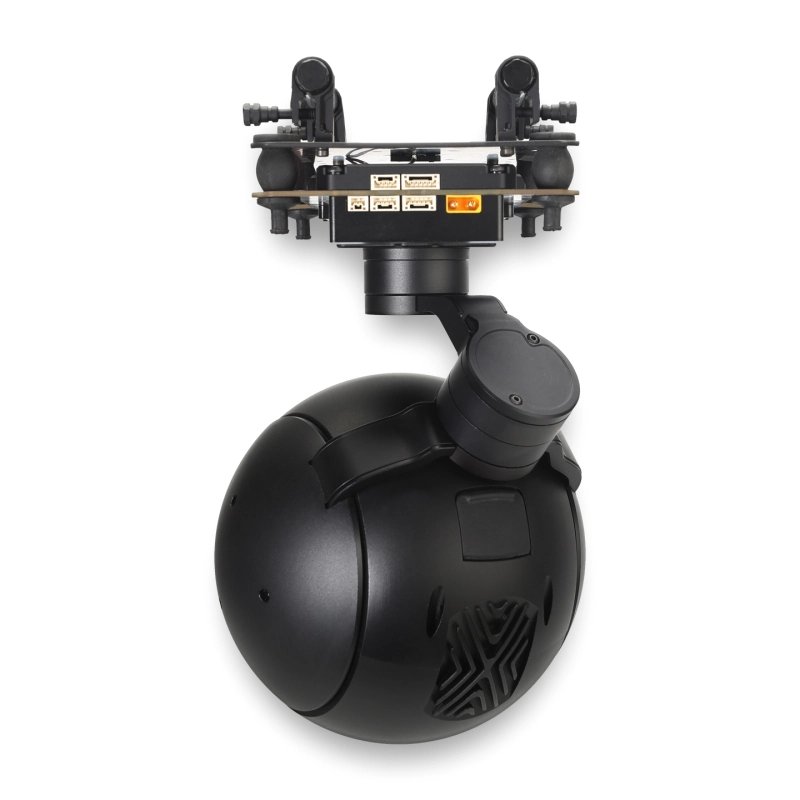

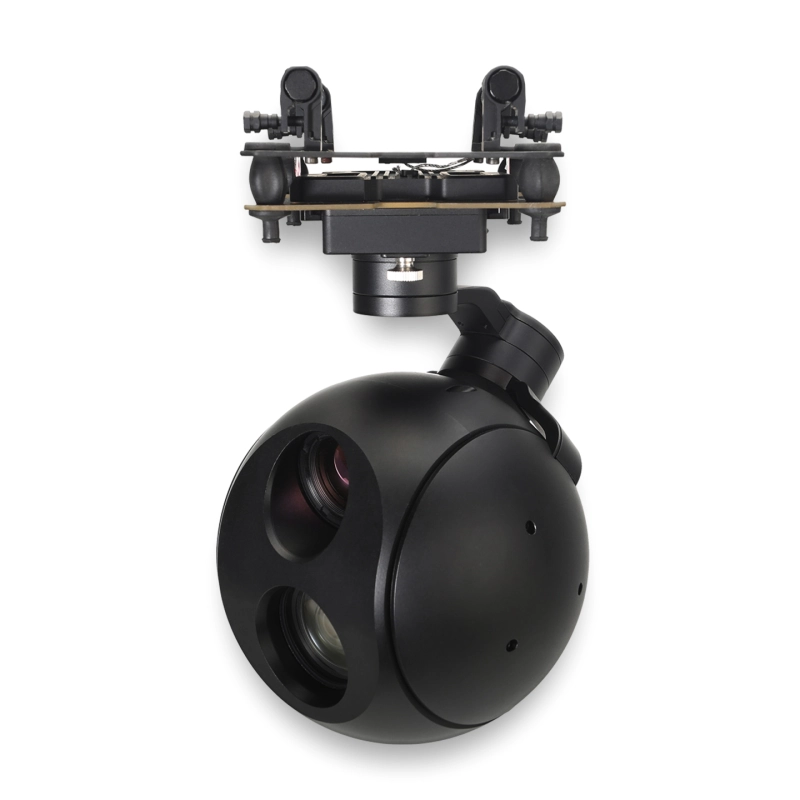

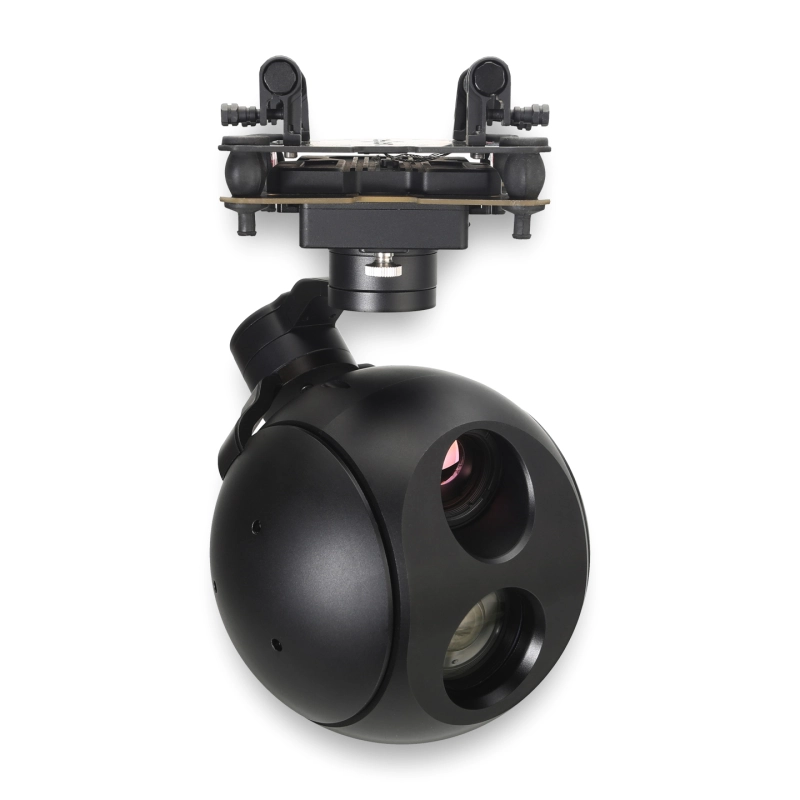

Tarot T30X-3AT is a three-axis zoom camera gimbal designed for industrial applications. It supports 30x optical zoom in visible light, with a 1/2.8 CMOS sensor and an effective pixel count of 2.13 million, capable of presenting objects several hundred meters away clearly. Equipped with a 25mm 640*512 resolution thermal imaging camera, it supports human and vehicle recognition as well as target tracking. The gimbal employs professional three-axis mechanical stabilization technology, suitable for various industries such as firefighting, forestry public security, law enforcement monitoring, search and rescue, and environmental law enforcement.
Product Features:
- Weight: 910g
- Visible Light:
- 30x optical zoom, effective pixel count of 2.13 million
- Field of view: 63.7° to 2.3°, optical zoom range f: 4.3 to 129mm
- Video resolution: 1080P@30fps; Photo resolution: 1920*1080
- Minimum color illumination: 0.01Lux/f1.6
- Thermal Imaging:
- Supports Picture-in-Picture display of visible light and thermal imaging
- Supports human and vehicle recognition as well as target tracking
- Highly optimized servo motor vector control algorithm
- Mechanical three-axis stabilization with stabilization accuracy of ±0.01°
- Aluminum alloy structure design, lightweight, sturdy, and good heat dissipation
- Pan axis supports ±360° infinite rotation
- Supports one-key execute for 90-degree downward viewing operation
- Supports S.BUS, UART protocol, Ethernet TCP protocol control, CAN protocol information feedback
- Supports automatic/manual image focusing
- Customized ground station PC/Android TCA software for visible control operation
- Compatible with mainstream ground station software (such as Cloud Wing FPV software, Siyi FPV software, QGC, Zhidao ground station, Jiyi ground station, Hankun ground station, etc.) for screen display, and also supports playback software (such as VLC) with RTSP video streaming playback function
- Compatible with MAVlink2 communication protocol, compatible with open-source flight control QGC or mission planner to realize the display of gimbal camera images, and overlay of coordinates, altitude, and other information from open-source flight control.
- Specifications:
Package Included:
- TAROT T30X-3AT gimbal main body ×1
- Gimbal power cord/XT30-2P ×1
- S.Bus receiver and navigation control line/6P ×1
- ETH output and debugging line/4P-RJ45 ×1
- ETH connection line/4P-5P x1
- UART serial control and CAN line/5P x1
- Micro-SD storage card/64G x1
