Description:

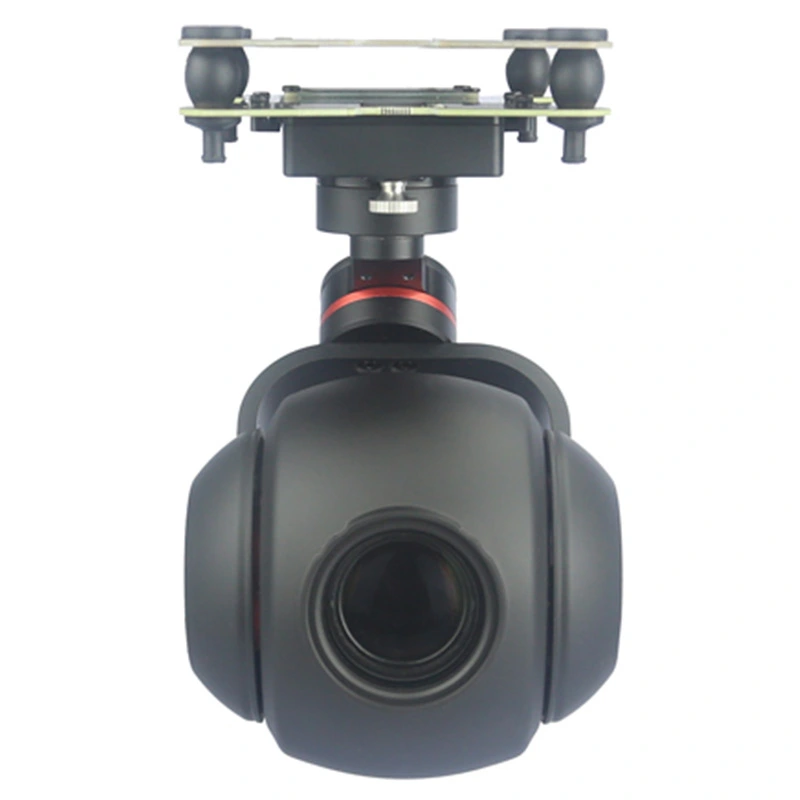

Tarot T26X is a 3-axis zoom camera gimbal developed for industrial applications.Support 26x optical zoom with 1/2.8 CMOS sensor,
effective pixels 2 million, can be hundreds of meters away from the scene clearly in front of the eyes.
The pod adopts professional three-axis mechanical stabilization technology, with a stabilization accuracy of ±0.01°Supports connection with unmanned aerial vehicles via quick release interface.The gimbal is applied to firefighting, forest security, public security monitoring, search and rescue, environmental law enforcement and many other industries.
Main Features:
1.Weight only 630g
2.Optical zoom camera supports 26x optical zoom, field of view range of 56.94° ~ 2.88°,optical zoom range f:5 ~ 130mm
3.Video resolution 1080P@25fps; photo resolution 1920*1080
4.Color mode with minimum illumination up to 0.001 Lux/F1.5
5.Highly optimized servo motor vector control algorithm
6.Mechanical three-axis image stabilization,±0.01°image stabilization accuracy
7.Aluminum alloy structure design,light and strong,good heat dissipation performance
8.SD data special software encryption settings to prevent the risk of data leakage
9.One click to perform one click downward 90 degree look-down operation
10.Supports connection with unmanned aerial vehicles via quick release interface
11. Support SBUS, serial protocol, CAN protocol control, TCP protocol control
12. Supporting Windows software Tarot Gimbal Assistant can directly control the head and display the screen
13.Compatible with the screen display of mainstream software in the market(such as Skydroid FPV software,SiYi FPV software,QGC,AheadX ground station,JiYi ground station,RoFlying ground station,etc.),and also supports playback software with RTSP video streaming function(such as VLC,etc.)
14.Adopt MAVlink2 communication protocol,compatible with Pixhawk flight control QGC or missionplanner to realize the image display of gimbal camera,and realize the video overlay of coordinates,altitude and other information of Pixhawk flight control
Details:
Input power: 16-60V
Average Consumption: 6.0W
Working Enviroment: -5 to 45℃
Size: 125 x 104 x 185mm
Weight: 630g
Camera
Sensor: 1/2.8" CMOS
Total pixels：2 million
Video resolution: 1080P@25fps
Photo resolution: 1920*1080
Optical zoom: f:5-130mm
Optical zoom:26X
Field of view (horizontal)：56.94°-2.88°
Focus speed：<1s
Min. Lux: 0.01Lux/F1.5 (Color)
Video Compression: H.265/H.264
Storage: TF Card (256G max)
Network protocol: ONVIF, GB/T28181,TCP,
Gimbal
Max Controllable Rotation Speed:
Pan: 5-60°/s
Tilt: 5-60°/s
Controllable Rotation Range:
Pan: ±360°
Tilt: -130° to 60°
stabilization accuracy: ±0.01°
Package Includes:
T26X gimbal(630g) ×1
Network port cable/4P-5P ×1
Can-serial port adapter cable ×1
Gimbal power cable/XT30-2P ×1
S.Bus receiver connection cable/2P ×1
Network output and debugging cable/4P-RJ45 ×1
