Tarot 256 Infrared Thermal Imaging Camera/External Visible Light/AV Dual Light Camera TL300M8

Tarot 256 Infrared Thermal Imaging Camera/External Visible Light/AV Dual Light Camera TL300M8

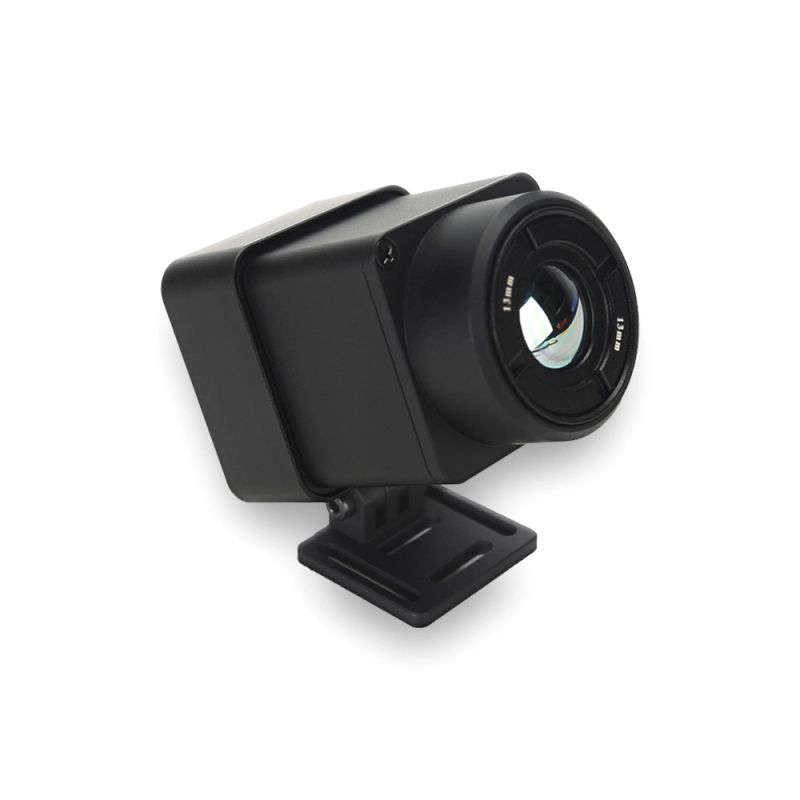

Tarot's latest mini-sized 256 infrared thermal imaging camera features a rugged and durable all-aluminum alloy body design. Its ultra-small size and lightweight make it perfectly compatible with various types of multi-axis, fixed-wing, unmanned vehicles, unmanned boats, and cross-machine use. With a 50Hz frame rate, it offers clear and smooth video output without lag via AV, allowing external AV camera connection to the product module for thermal imaging/visible light, with dual-light switching output. It is suitable for various fields such as search and rescue, power inspection, agriculture, and security. Main Features:
1. Provides one-way support for 5V AV analog visible light camera input;
2. Supports two-way output of thermal imaging/visible light AV analog format;
3. Supports ordinary PWM signal switching of thermal imaging/visible light as video output sources;
4. Supports 20 pseudo-color switching options;
5. Two physical buttons for intuitive and convenient switching between pseudo-colors;
6. Long press the pseudo-color switch button "-", to quickly reset to iron red;
7. Adjustable pitch angle, supporting -29° to 90°;
8. Waterproof and dustproof design, IP54 rating;
9. Supports wide voltage input of 5-55V;
10. Weighs only 29.5g.

Package Included:
TAROT 256 Thermal Imaging Camera (29.5g) × 1
Wiring package × 1
