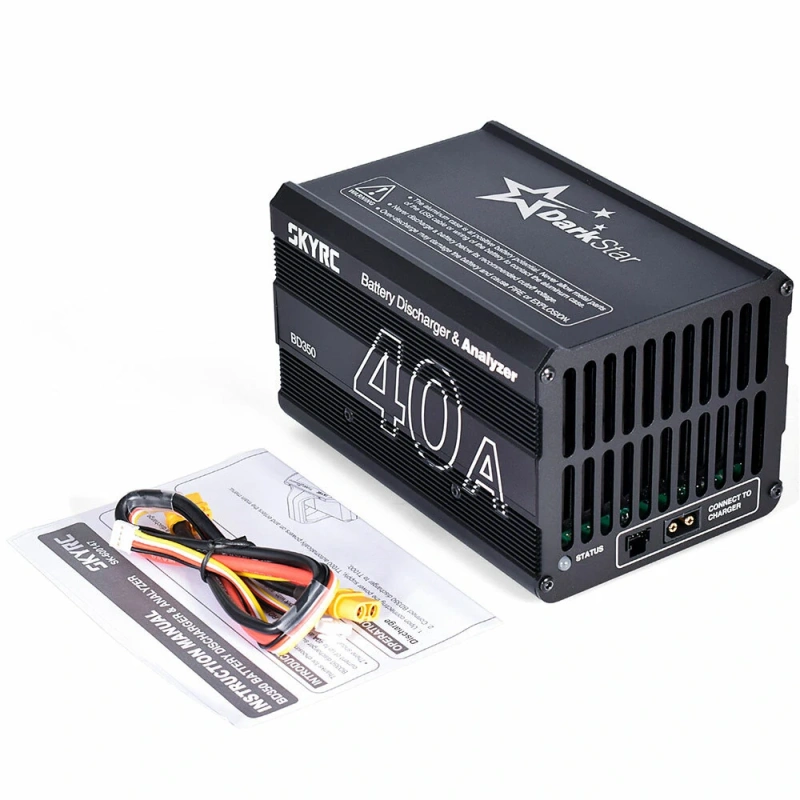

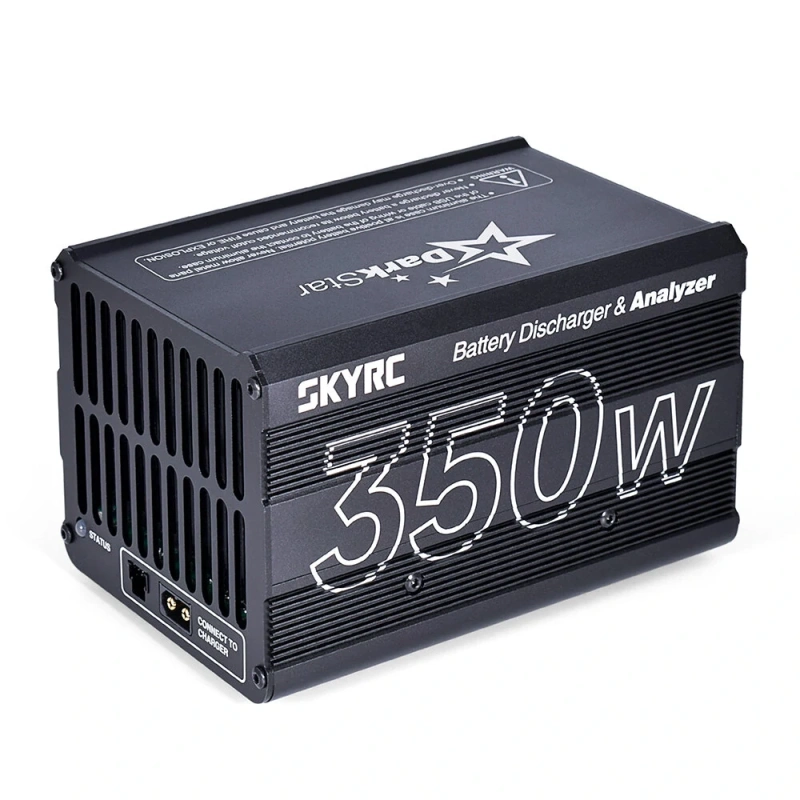

SkyRC BD350 40A 350W Battery Discharger Analyzer for T1000 Charger NiMH LiHV Battery

Name: SkyRC BD350 40A 350W Battery Discharger Analyzer for T1000 Charger NiMH LiHV Battery
Brand: ARRISHOBBY
SKU: RA0116
Price: 135.99 USD
Availability: InStock

SKU: RA0116

0.0 (0)

$135.99

BD350 discharger supports most RC batteries and works with SkyRC T1000 or D200 neo charger with a discharge current of up to 40A and discharge power of 350W.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Frequently Bought Together

T1000

Description

BD350 discharger supports most RC batteries and works with SkyRC T1000 or D200 neo charger with a discharge current of up to 40A and discharge power of 350W.

BD350 is more than a simple battery discharger. It is a powerful test instrument that measures, graphs, and compares the parameters of various batteries. It allows for the precise measuring of battery capacity and performance. No more guesswork anymore when choosing the best battery for RC racing!

When the SKY RC discharger & charger are working together, they can use the adapted Charger Master3 program to view or export the battery discharge curve in real time.
Various batteries' discharging curves can be plotted for precise comparison and analysis, so defective batteries have nowhere to hide.

Features:
1.Works perfectly with the SkyRC (T1000 & D200 NEO - sold separately) chargers to boost the discharging capabilities
2.Advanced multi-protection from high voltage, low voltage, over-current and thermal protection
3.Designed, tested and approved to meet worldwide standards for product safety, electromagnetic compatibility and other regulatory compulsory requirements, when used for their intended purpose
4.Multi-color LED status indicator that features red and green lights to identify the status of the battery with ease!
5.Powerful fan for excellent heat dissipation
6.Compatible with the SkyRC's Charger Master software that allows you to view and export your battery's discharge curve in real time on the fly with the ability to compare various battery discharging curves, you can quickly identify defective batteries and ensure peak performance from your packs
7.To complement the BD350, SkyRC is rolling out more professional chargers that work seamlessly together

Specification:
Brand: SKYRC
Model: SkyRC BD350
Item: BD350 Battery Discharger Analyzer
Opertion Voltage: 5V±0.5V
Discharge Voltage: 3.0V-28.0V
Low Voltage Alert: ＜3.0V±0.5V
High Voltage Alert: ＞28V±1V
Discharge Power: 350W±5%
Discharge Current: 0.1-2A±0.1A, 2.1-20±5%, 0-40±6%
Standby Current: ≤100mA(Fan doesn't run and discharging doesn't begin)
Voltage Tolerance: 3-10V±8.mV, 10-28v±160mV
Capacity Tolerance: ±3%
LED:
Stays Green: Standby
Stays Red: Discharging
Flashes Red: Error
Size: 157 * 105 * 93mm
Net Weight: 1224g

Packaging included:
1XSkyrc BD350 Charger
