Your position: Home > Radio & Receiver > SIYI MK15 HD Handheld Enterprise Standard Combo Smart Controller with 5.5 Inch LCD Touchscreen + SIYI A8 mini Gimbal Camera

1/1

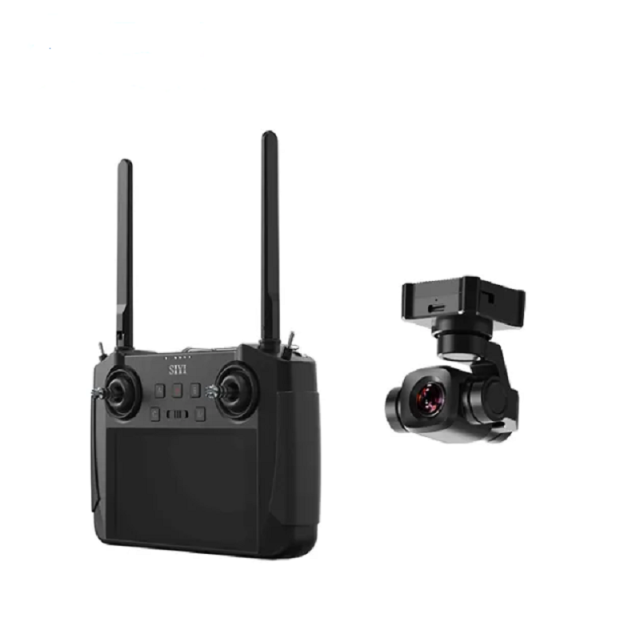

SIYI MK15 HD Handheld Enterprise Standard Combo Smart Controller with 5.5 Inch LCD Touchscreen + SIYI A8 mini Gimbal Camera

Name: SIYI MK15 HD Handheld Enterprise Standard Combo Smart Controller with 5.5 Inch LCD Touchscreen + SIYI A8 mini Gimbal Camera
Brand: ARRISHOBBY
SKU: JA0058
Price: 764.9 USD
Availability: InStock

SKU: JA0058

0.0 (0)

$764.90

15 KM 1080p Digital Image Transmission
long range remote controller
5.5" 1000 cd/m2 High Brightness HD screen

AI Smart Identify Tracking
1/1.7 Inch Sony CMOS
4K Ultra HD Photo & Video Recording
6X Digital Zoom
Upside Down Mode
Starlight Night Vision Camera

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description
Downloads

Package Includes:
1 x A8 mini Gimbal Camera
1 x MK15 Enterprise Standard Combo(Dual Version)

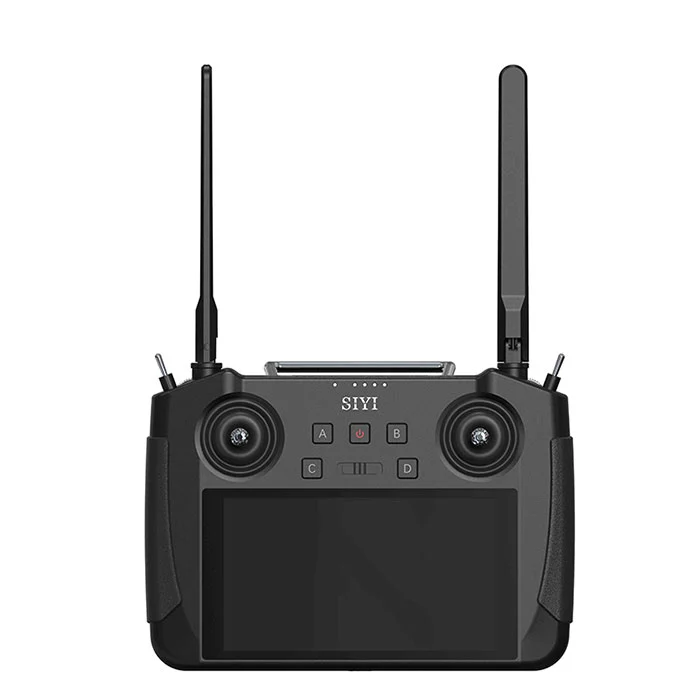

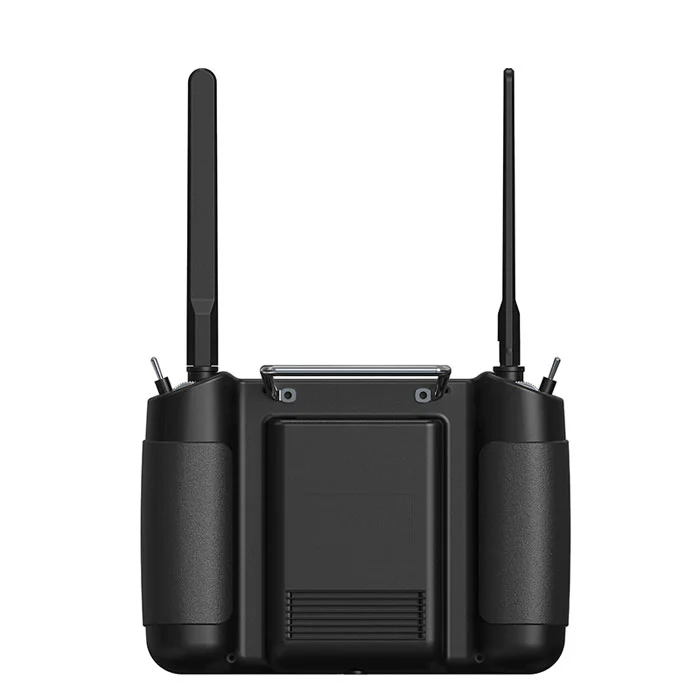

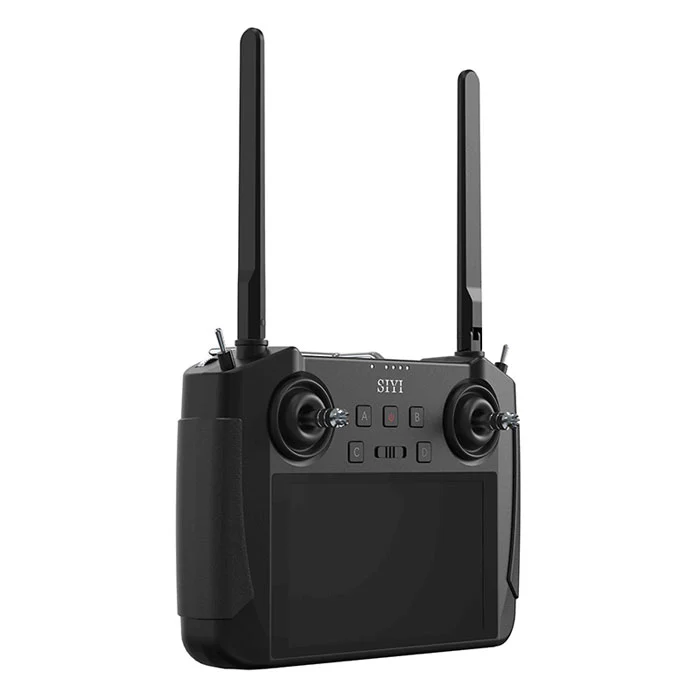

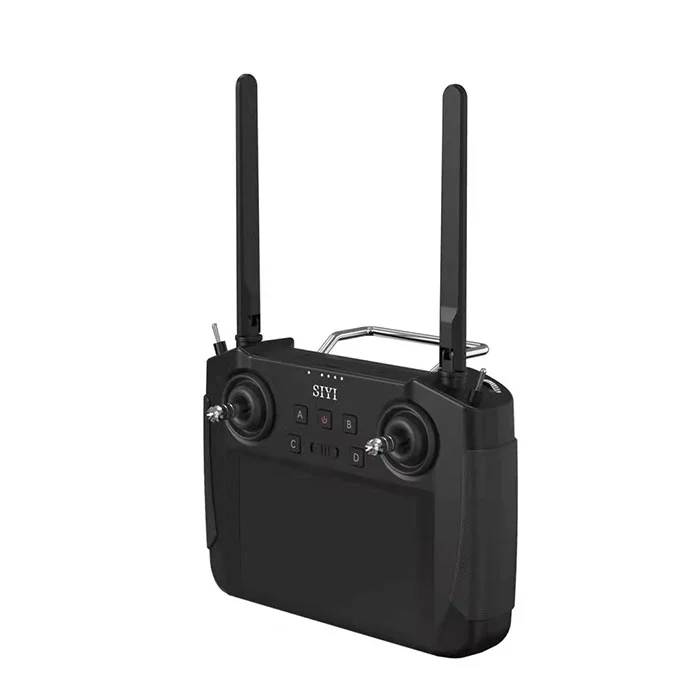

SIYI just release one mini handheld remote controller with 15KM long range 1080P digital image transmission with 5'5" HD high brightness screen. There are 5 versions, suitable for both agriculture drones and other industrial applications drone or normal UAV multi-rotor drones.

15KM Long Range Test

Main Features:
--15 KM 1080p Digital Image Transmission, 1080P@60fps Video
-- Android 9.0 OS for UAV
-- 8-Core CPU, 2G RAM, 16G ROM
-- IP53 Waterproof/Dustproof
-- 5.8G ISM Band
-- 5.5" 1000 cd/m2 High Brightness HD screen
-- Radio and Datalink
-- IP67 Camera and LED
-- 24000mah Built-in Battery-15H long working life-3H fast charging
-- Support Dual FPV for Front & Back camera
-- 180ms Low Latency
-- Support dual RTK Mapping Module

SIYI MK15 Long Range HDMI Transmission Radio SIYI MK15 Long Range HD image Transmission Radio

SIYI MK15 Long Range remote controller

SIYI MK15 Long Range HDMI Transmission Radio

NOTE:
1. Please write the flight controller you use in the comment bar, we will send the radio with compaitble video transmission cables.
2. Due to the built-in battery in it, the shipping time is longer than usual.

SIYI MK15 User Manual

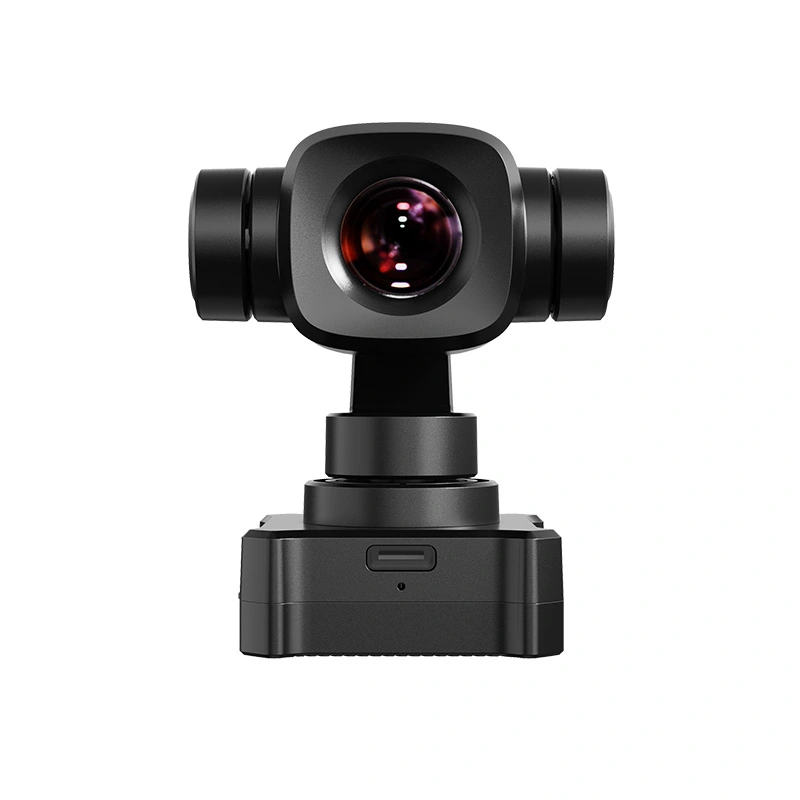

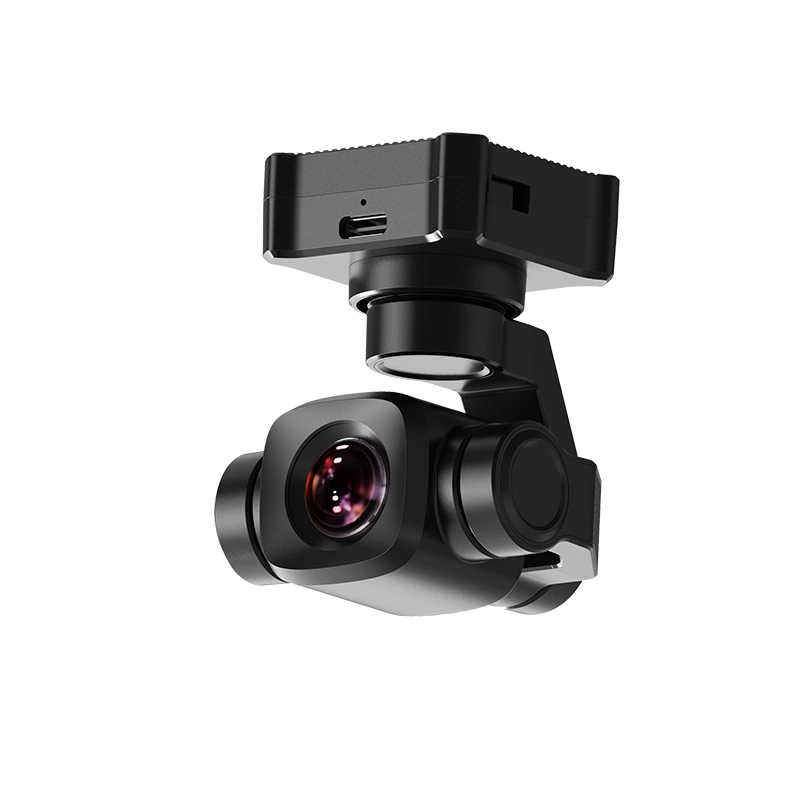

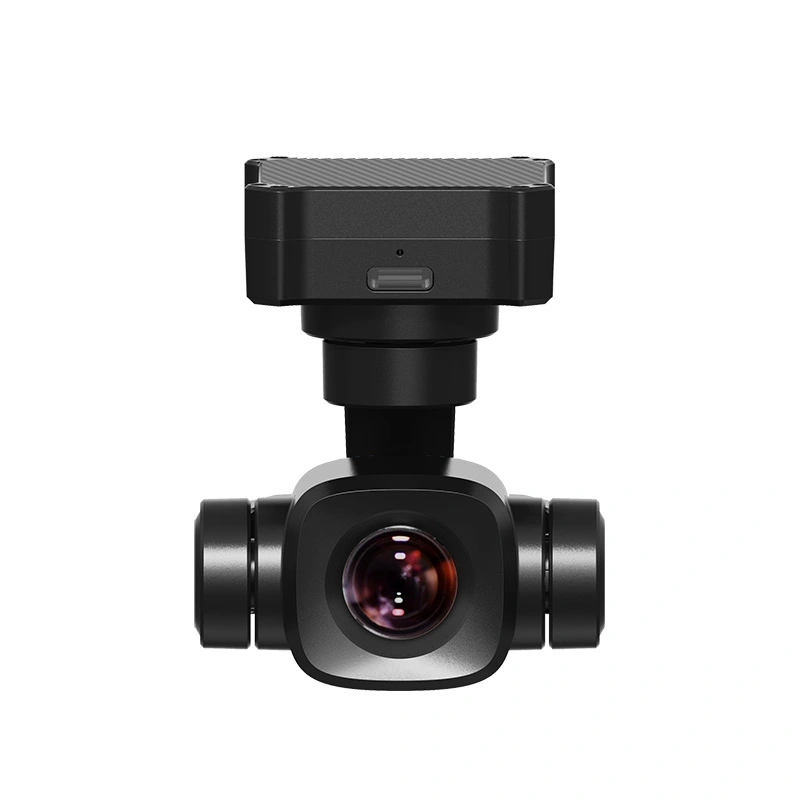

SIYI A8 Mini 4K 6X Digital zoom camera with 3 axis gimbal is great for fpv drones, industrial UAV drones, UGV, USV, Robotics and other applications. With 1/1.7-inch Sony image sensor, it can provide impressive 4K video recording, and smooth 6X digital zooming, it can also keep the image bright even in low light enviroment. What's more, the SIYI A8 mini gimbal camera can support upside down mode too, which can be widely used on vehicles.

Specifications:
Item Brand: SIYI
Model: A8 mini
Video Output Port: Ethernet, HDMI, CVBS (AV)
Control Signal Input Port: S.Bus / UART / UDP
Control Signal Output Port: S.Bus
Working Voltage: 11 ~ 25.2 V
Power Consumption: Summit 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 55*55*70 mm
Weight: Approx. 95 g

Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Controllable Roll Angle: -30° ~ +30°

Camera
Lens: 6X Digital
Focal Length: 21 mm
Image Sensor: Sony 1/1.7-inch, 8 MP effective resolution
Aperture: F2.8
FOV: 93°

TF Recording Resolution:
4K (4096 x 2160) @ 25 fps
2K (2560 x 1440) @ 30 fps
1080p (1920 x 1080) @ 30 fps
720p (1280 x 720) @ 30 fps

Supported File System: FAT32 (exFAT will be supported later by firmware update)
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10, max 128 GB
White Balance: Auto
