RUSH BLADE F722 V2 Flight Controller+60A Sport F4 3-6S ESC For Analog FPV System

Name: RUSH BLADE F722 V2 Flight Controller+60A Sport F4 3-6S ESC For Analog FPV System
Brand: ARRISHOBBY
SKU: F722-V2-Stack-A
Price: 139.99 USD
Availability: InStock

SKU: F722-V2-Stack-A

0.0 (0)

$139.99

30.5x30.5mm mounting holes

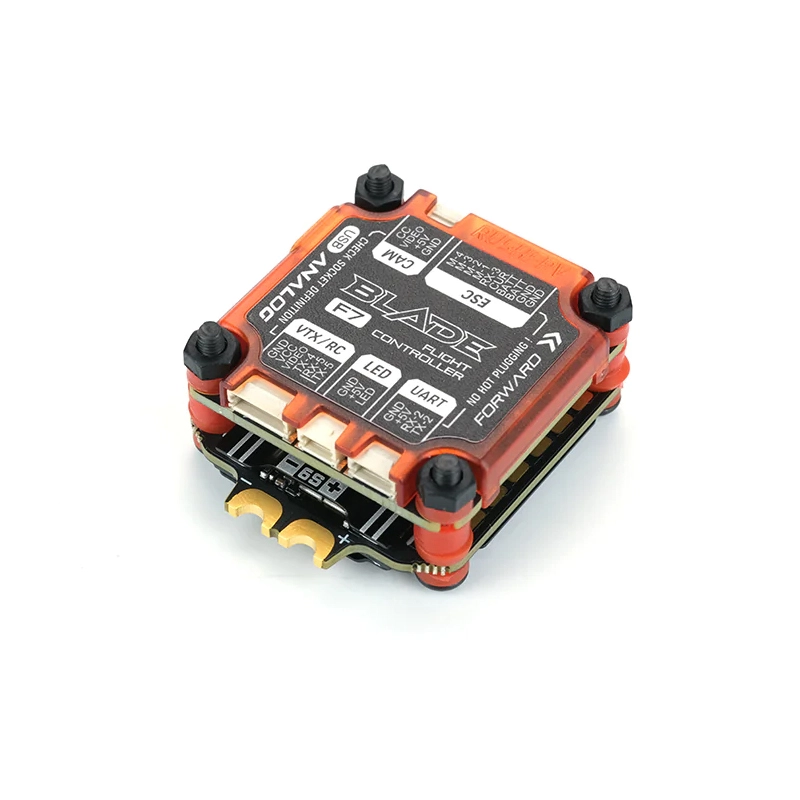

F722 V2 FC+ 60A ESC flight controller stack

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description

RUSH BLADE F722 V2 Flight Controller+60A ESC For Analog FPV System

Main Features:
●High-performance STM32 F722 MCU with speeds up to 216MHz.
●ICM42688P gyroscope, independent low-noise power supply.
●16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 12C port, 1
camera control port.
●High power synchronous rectifler BEC, supports up to 36V Input and provides stable 5V 3A output.
●Modular cable design, with reliable locking structure, can be installed quickly, while retaining
full-featured pads on the back, providing more expansion support.
●Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
●PC case Is impact resistant and easy to disassemble, isolated from dust and grass clippings.

Specifications:
Item Brand: RUSHFPV
MCU: STM32F722RET6
GYRO: ICM42688P
INPUT: 7-36V / 3-6S LIPO
OUTPUT: 5V 3A
BLACKBOX: 16MB FLASH
TARGET: RUSH BLADE F7
PORT: 8x PWM
5xUART
1xI2C
ADC: V-BATT / CURR-ESC
BARO: BMP280
LED: WS2812 LED STRIP
Mounting holes: 30.5*30.5mm
Size: 36.5mm*37 mm*5.2mm
Weight: 11g(without cable)
