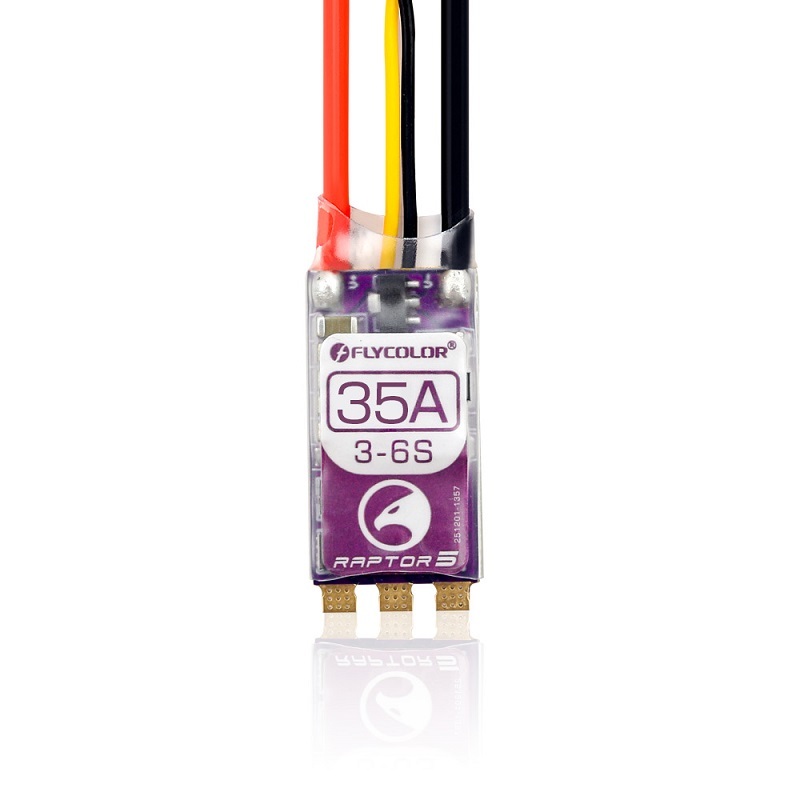

Flycolor Raptor 5 BL-32 35A esc adopts ARM 32-bit Cortex MCU and it’s supported by BLHeli_32 firmware. It supports PWM, Oneshot 125, Oneshot 42, Multishot and all Dshot signals up to Dshot1200. With the untra small size and light weight --only 6g, it is one of the best esc for fpv racing quads.
Main Features:
ARM 32-bit Cortex MCU, frequency up to 48 MHZ.
BLHeli_32 firmware,which is designed for superior functionality and performance.
Supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multshot (5- 25us). The input signal is automatically detected by the ESC upon power up.
Dshot signal is supported at any rate up to at least Dshot1200.
Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling.
Supports higher KV motor and more power load, more suitable for violent flight of racing drone .

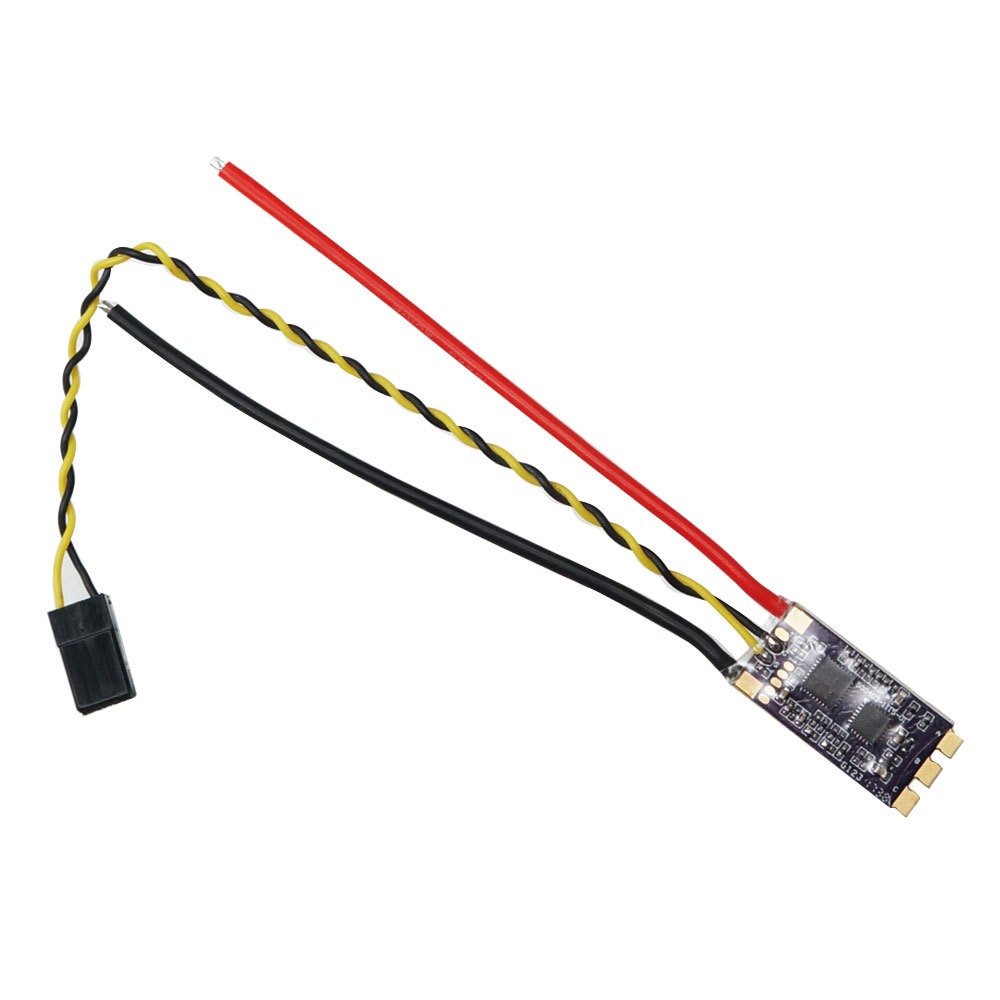

The silicone twisted-pair of the throttle signal cable effectively reduces the crosstalk caused by signal transmission, and makes flight more stable.
Aluminum heat sink effectively slow down the temperature rise.
RGB 3 color LED is adjuatable
Specifications:
Con. Current:35A
Burst Current (10S):45A
LiPo cells:3-6S
Weight:6g
Size:29x14x6mm
Firmware: Flycolor_Raptor 5_BL_32_Multi firmware
Package Included:
Flycolor Raptor 5 BL-32 35A Brushless ESC x 1
