Main Features:
1. Flydragon V3 ESC use STM32F051 MCU,ARM 32-bit Cortex Core with 48 MHz frequency.
2. Optimized firmware is specialized for disc motor, excellent compatibility.
3. The firmware is specialized for multi-rotor , uses ASCF technology (Active Switch Continued Flow),higher efficiency, significantly reduce the heat when ESC’s working.
4. Splash-proof, corrosion resistant, especially suitable for agricultural plant protection multi-rotor;
5. Strong self-adaptable firmware, 4 timing options, very simple to use.
6. Supports frequency of throttle signal to 500Hz max , compatible with various kinds of flight control.( ≥500Hz throttle signal is nonstandard signal )
7. Maximum supports 12S LiPo battery, supports for single LiPo battery voltage up to 4.35V.
8. Aluminum cover, significantly improving heat dissipation. （Differences between V3 and V4 ESC）
Specifications:

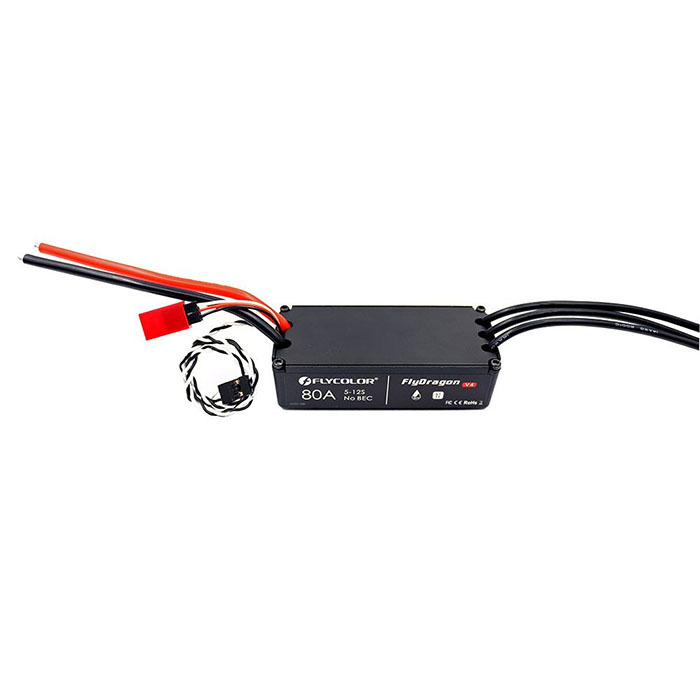

Model: FlyDragon V4-80A
Battery: 5-12s
Con. Current: 80A
Burst Current(10S): 120A
BEC: No
Weight: 215g
Size: 86.6 x 37.8 x 26mm
Package Included:
Flycolor Flydragon V4 80A 5-12s 32bit HV ESC x 1
User Manual x 1
