Main Features:
1.ESC uses high performace MCU with 48 MHz frequency.
2.Optimized firmware is specialized for disc motor, excellent compatibility.
3. The firmware is specialized for multi-rotor , uses ASCF technology (Active Switch Continued Flow),higher efficiency, significantly reduce the heat when ESC’s working.
4. Smaller volume; Nano coating, splash waterproof.
5. Strong self-adaptable firmware, 4 timing options, very simple to use.
6. Supports frequency of throttle signal to 500Hz max , compatible with various kinds of flight control.( ≥500Hz throttle signal is nonstandard signal )
7. Supports single LiPo battery voltage up to 4.35V.
8. Switches on the bottom Support ：1.Motor rotation change .2. ASCF function on/off .
Specifications:
Model: FlyDragon Slim-60A
Battery: 2-6s
Con. Current: 60A
Burst Current(10S): 80A
BEC: No
Weight: 56g
Size: 64.6×29.5×11.7mm
Package Included:

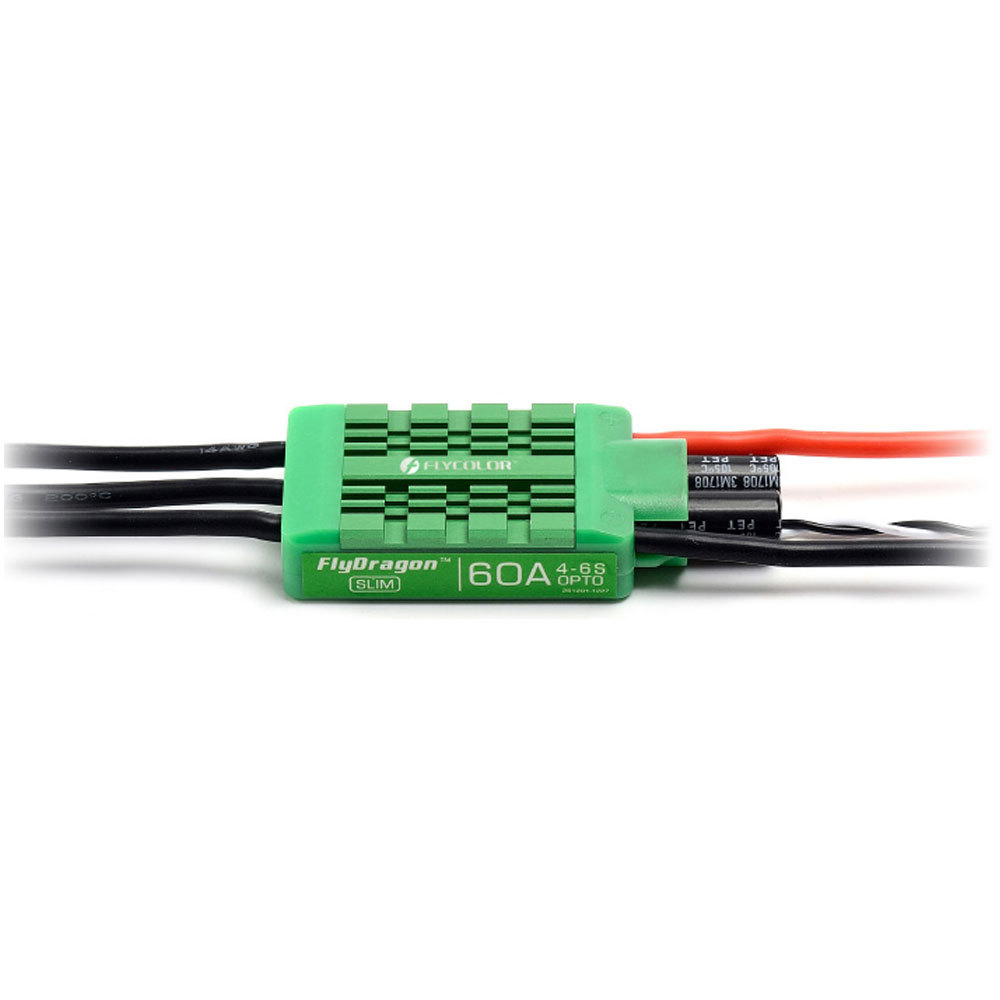

Flycolor Flydragon Slim 60A 2-6S Brushless ESC x1
User Manual x 1
