Specifications:
Input Voltage:2-6S
Con. Current: 40A
Max. Current (10s): 50A
BEC: No
Dimension: 45 x 27 x 10mm
Suitable for: Quadcopters, Hexacopter and other Drones
Main Features:
Small size, the esc can install in the 22mm diameter arms
It can resist high temperature to 100 degree
Didicated electrical path design, it has strong anti-interference
Quick throttle response,super smooth and accurate throttle linearity
Simplify function setting, the default settings is suitable for most of the brushless motors for multirotors
The working frequency is 450Hz, when the Throttle in the middle, the frequency can reach to 600Hz
Signal lost protection
Great security performance. No matter where the radio throttle stick is when power on , the motor will not start immediately.
Remain the throttle range settings, easy to operate, compatible with all the radio operation settings.
Package Included:

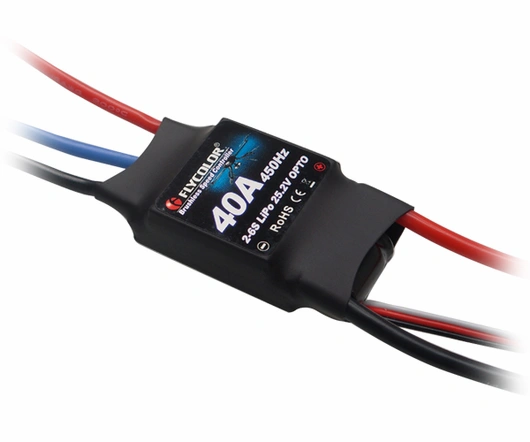

Flycolor 40A OPTO 2-6S ESC x 1
