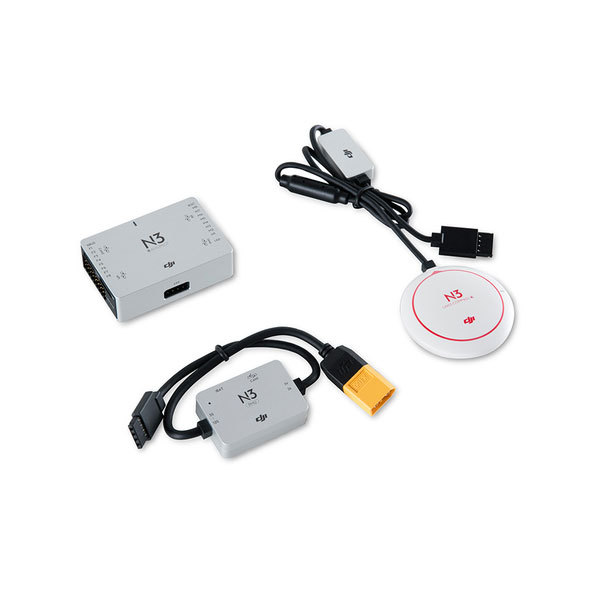

DJI’s latest generation of the NAZA series, the N3 flight controller, is tailor-made for a multitude of hobbyist and industrial applications. Its robust flight control algorithm is ideal for controlling a broad range of industrial and DIY multirotor aircraft, providing professional stability.
The N3 flight controller is compatible with professional remote controllers and receivers, DJI’s Intelligent ESC, DJI GO, Lightbridge 2, Datalink Pro and iOSD. It also integrates seamlessly with DJI’s Zenmuse series of gimbals and cameras, providing instant access to a whole host of flight applications. Compatibility with DJI Assistant 2 provides more possibilities for a multitude of industrial applications. With DJI’s Onboard and Mobile SDK, the N3 is ideal for hobbyists and professionals looking to create custom software solutions quickly and easily.
Specifications:
| Supported Multi-rotor |
Quadcopter: I4，X4;
Hexacopter: I6，X6，Y6，IY6
Octocopter: X8，I8，V8 |
| Supported ESC |
400Hz frequency, DJI Intelligent ESC with feedback |
| Recommended Battery |
3S to 12S LiPo or DJI Smart Battery |
| Recommended Radio |
Lightbridge 2, S-BUS or D-BUS |
| Other DJI Products Supported |
DJI GO, iOSD, DATALINK PRO, Zenmuse series, Ronin series, X3, X5, X5R, Z15, Ronin-MX, DJI propulsion systems, S900, S1000, S1000+, etc. |
| Assistant Software System Requirement |
Windows 7 /8 /10 (32 or 64 bit)
Mac OS |
| Built-in Functions |

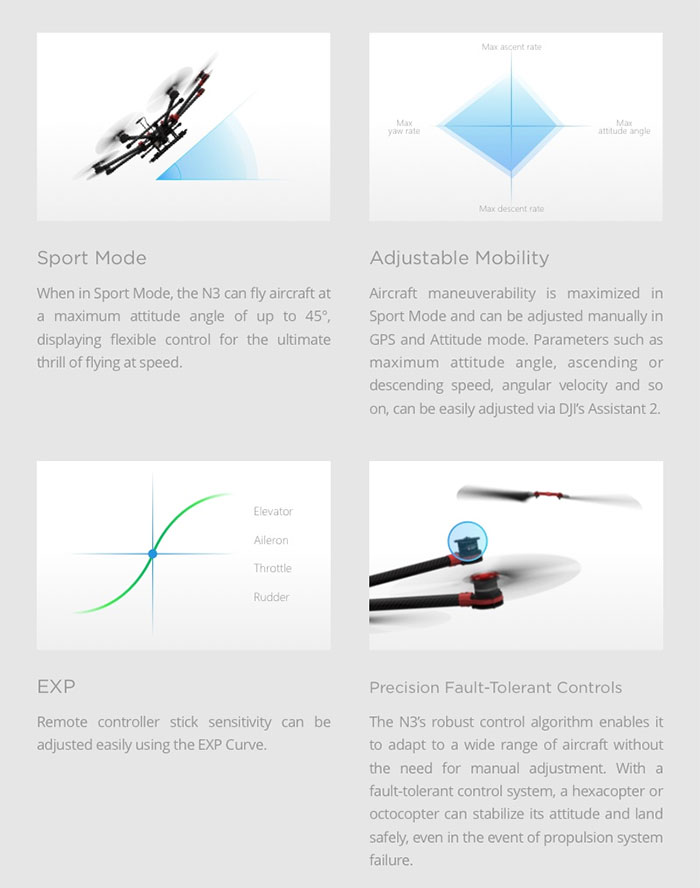

- Sport mode, with adjustable maneuverability
- Intelligent Flight Mode

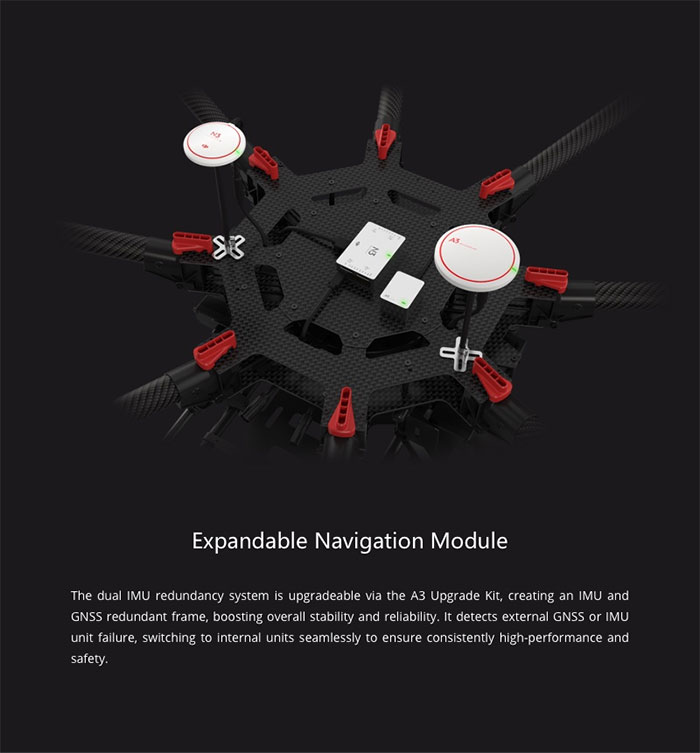

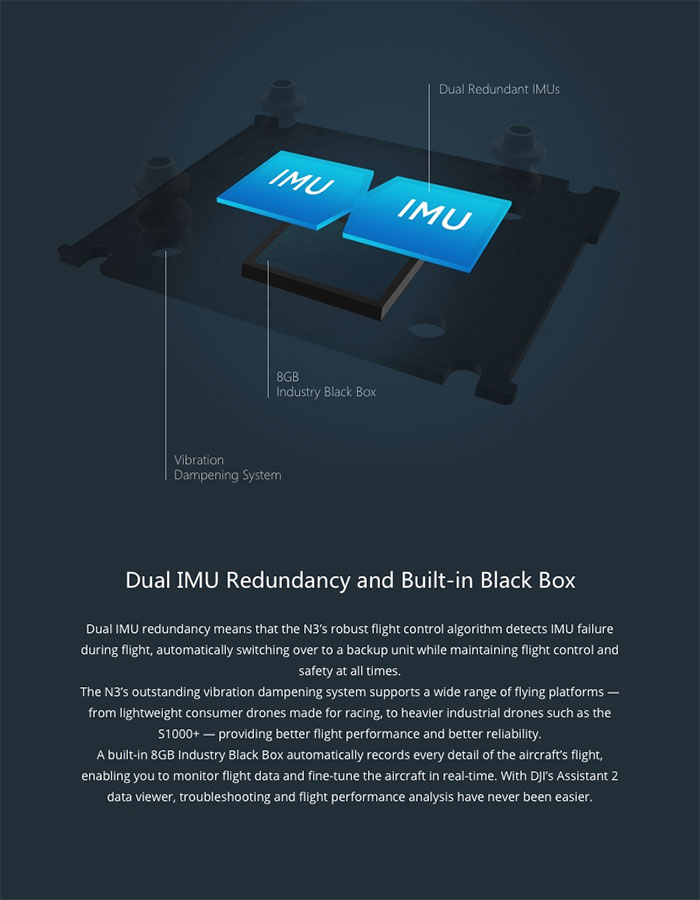

Dual IMU redundancy
- Built-in 8GB Sdcard for data recorder as Blockbox
- External SBUS receiver
- Lightbridge 2 receiver
- 8 function channels (including 4 configurable direction channels)
- SDK
|
| Protection Function |
- Motor Fail Protection(Minimum 6 axis)

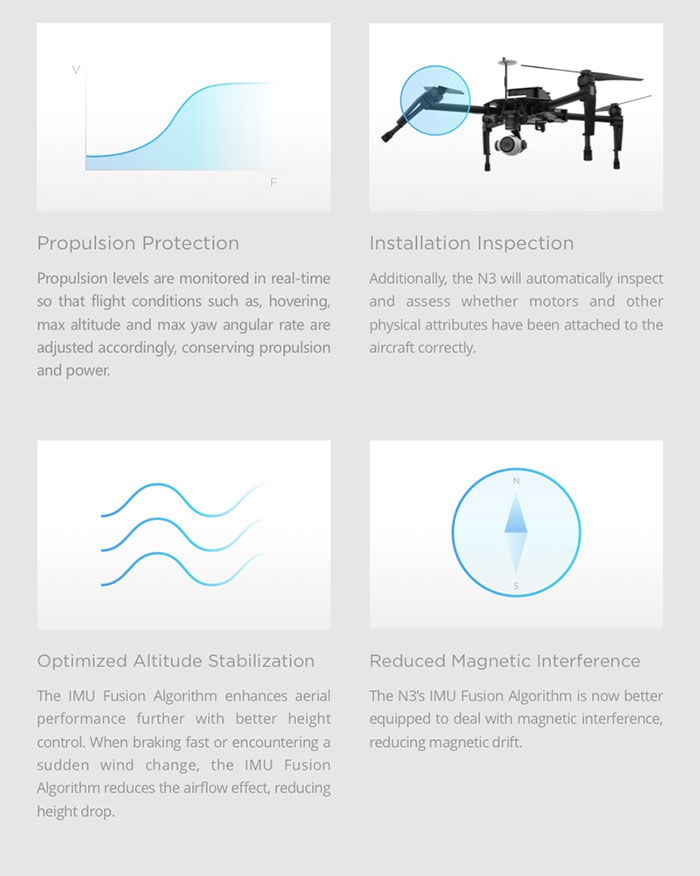

- Propulsion system Protection(Motor Overload)
- Smart Return To Home(RTH)
- Low Battery Protection, support Smart RTH(only for DJI Smart Battery)
- Low Battery Voltage Protection
- No Fly Zones
|
FLIGHT PERFORMANCE
|
Hovering Accuracy |
Vertical: �0.5m
Horizontal: �1.5m |
| Maximum Wind Resistance |
<10m/s |
| Max Yaw Angular Velocity |
150 deg/s |
| Max Pitch Angle |
45� |
| Max Ascending Velocity |
5m/s? |
| Max Decending Velocity |
4m/s |
EXTENDING FUNCTION
|
| PWM I/O Ports |
F1-F4 ports for output F5-F8 ports for I/O function |
| Data Storage |
Built-in data recorder |
| Intelligent Flight Modes |
Home Lock and Course Lock. (with Lightbridge 2) Point of Interest, Waypoints, |
| Remote Parameter Adjustment |
Knob with sbus Receiver enabled by DJI ASSISTANT2 It can be realized in DJI GO APP With Lightbridge 2 |

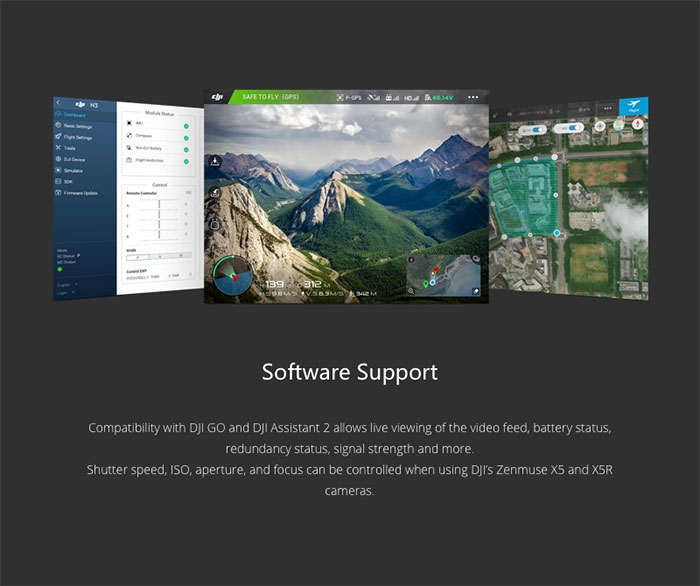

| Assistant software |
DJI ASSISTANT 2, support simulator
support MAC OS & windows |
| iOSD |
iOSD Mark II, iOSD mini |
| Zenmuse Gimbal&Camera |
Z15, Ronin-MX, X3, X5,X5R |
| Propulsion systems |
all |
SDK
|
| SDK |
Mobile SDK
Onboard SDK |
| SDK Port |
API/CAN2 |
HARDWARE
|
| Weight |
Total： 132g
MC： 46g
GPS-Compass：37g
PMU：36g
LED：13g |
| Power Consumption |
Normal 3.3W
Max 4.8W |
| Size |
Controller: 57.9mm x 39mm x 17mm
PMU: 40mm x 28.2mm x 11.2mm
LED: 25mm x 25mm x 6.3mm
GPS-Compass: 50mm (diameter) x 12.2mm |
| Operating Temperature |
-10°C to +55°C |
