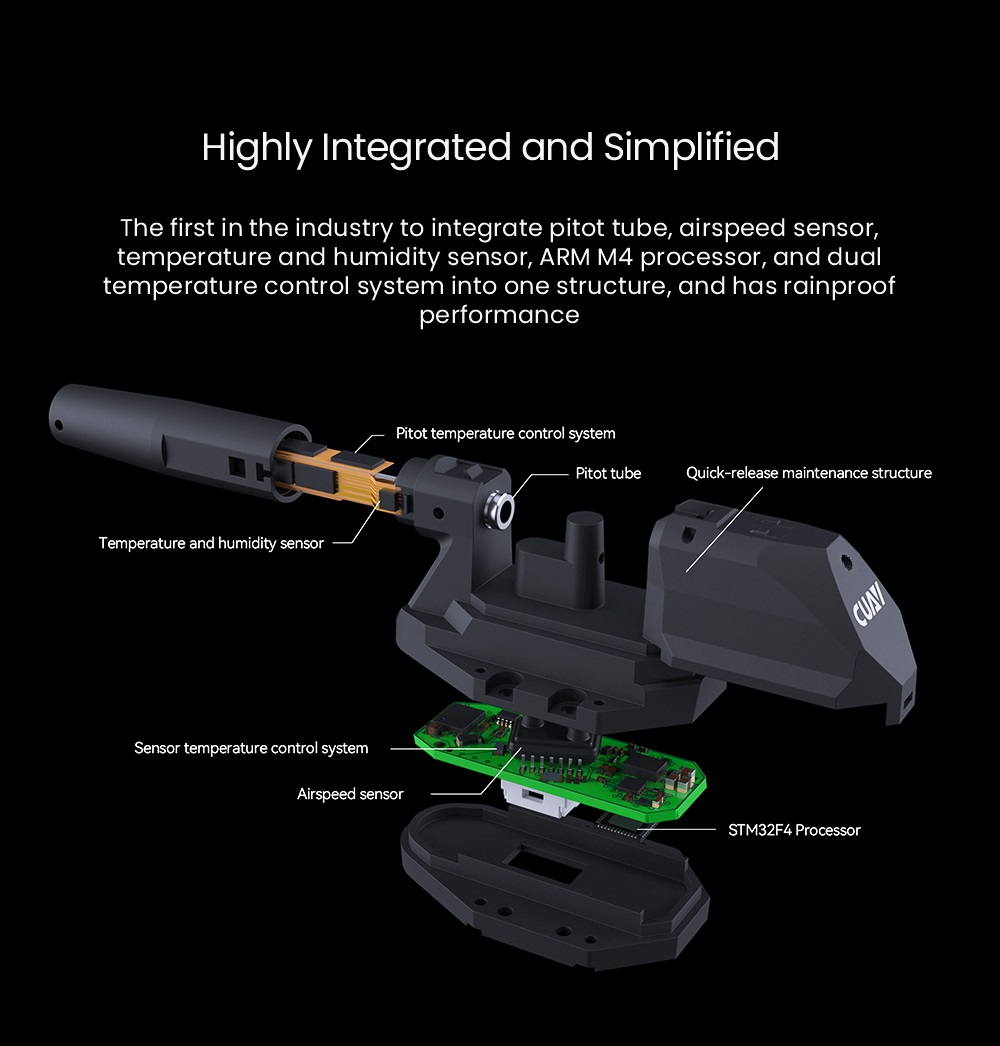

SKYE intelligent airspeed is highly integrated with STM32F4 processor, MS5525 pressure sensor, temperature and humidity sensor, and dual temperature compensation system. It has IP44 protection performance. The new high-power heating system innovatively improves the heating function of manned aircraft pitot tube. Introduce the field of drones; realize autonomous de-icing of water, effectively reduce the probability of data errors, and greatly improve the safety of drones.
Specification
|
Main Parameter |
|
|---|---|
|
Processor |
STM32F4 |
|
Protocol |
DroneCAN |
|
Pitot tube temperature control type |
Resistance heating |
|
Airspeed sensor |
MS5525 |
|
Sensor performance |
|
|
Airspeed measurement range |
±500km/h |
|
Airspeed accuracy |
±0.69Pa |
|
Total Error Band |
±2.5%FS |
|
Temperature measurement range |
-15℃-150℃ |
|
Humidity measurement range |
0-100% |
|
Pysical characteristics |
|
|
Pitot tube heating power |
35W |
|
DC IN |
Default 12-36V |
|
Operating Temperature |
-20℃±75℃ |
|
Size |
82.5*30.4*28.2mm |
|
Weight |
22g |
|
Protection Level |
IP44（To be installed on request） |
