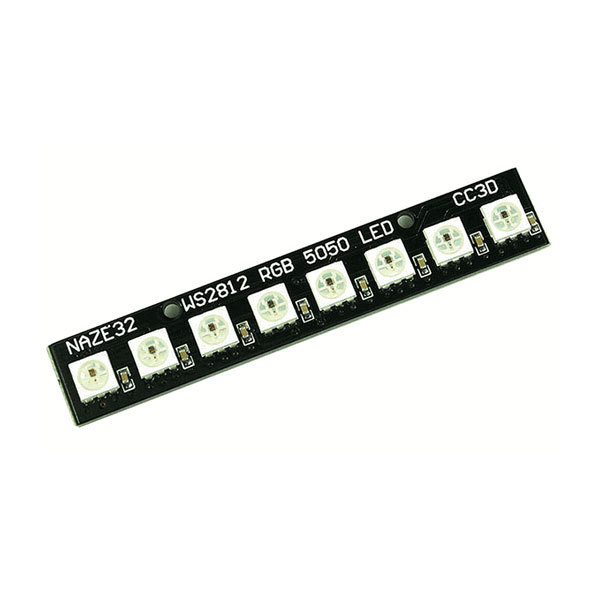

This WS2812B full-color LED lighting board is specially designed for ZMR250, QAV250 and ARRIS 250 quadcopter. It can be used on Naze32 and CC3D flight controller to show some working status, such as lock/unlock, left aileron, brake, throttle, alarm, etc.
It can be used for Naze32, CC3D flight control, can show the flight control lock / unlock, left aileron, brake, throttle, alarm and other status.
LED: 5050 RGB lamp beads highlight WS2812B bulbs x 8
Voltage: 5V (4 ~ 7V)
Size: 65 * 11mm
Ports: Digital
Platform: AVR, Arduino, Naze32 / CC3D Flight Control (need swiping CleanFlight)
Features:
5050 highlight LED, built-in control chip, only an IO port to control multiple LED.
Chip built-shaping circuit, signal distortion is not cumulative, stable display.
Tricolor 256 brightness adjustment, 160,000 color TFT display, scanning frequency of not less than 400Hz/S.
Serial connection-level interface, through a signal line finish receiving and decoding data.
Highlight LED, light color brightness consistency high.

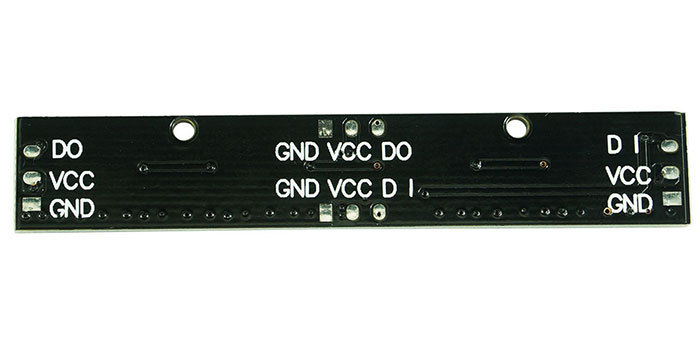

Both ends have interface (DIN DOUT), can be cascaded.
Package Includes:
1 x WS2812B LED Lighting Board
