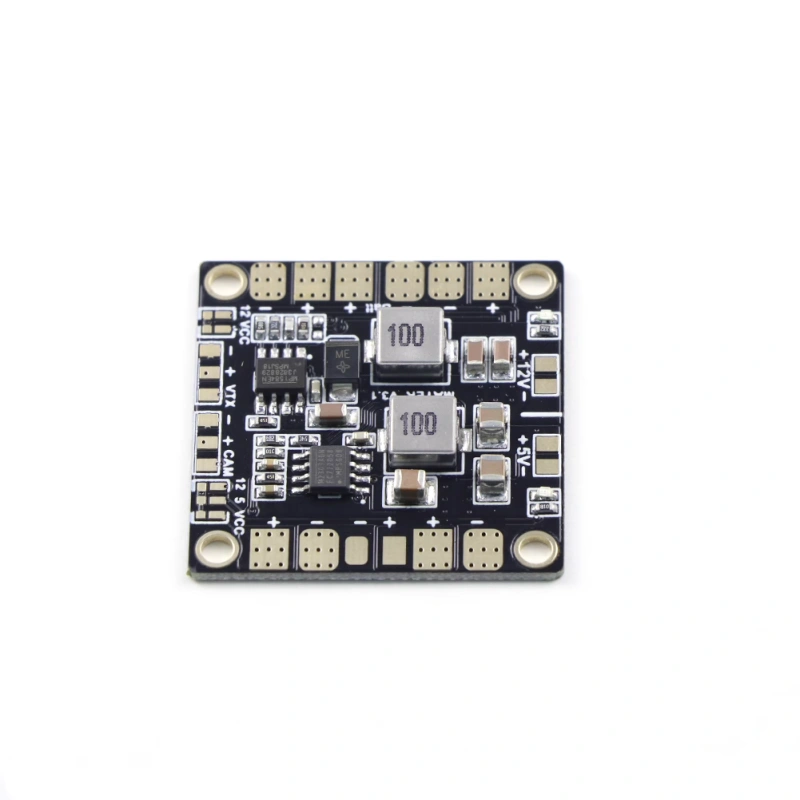

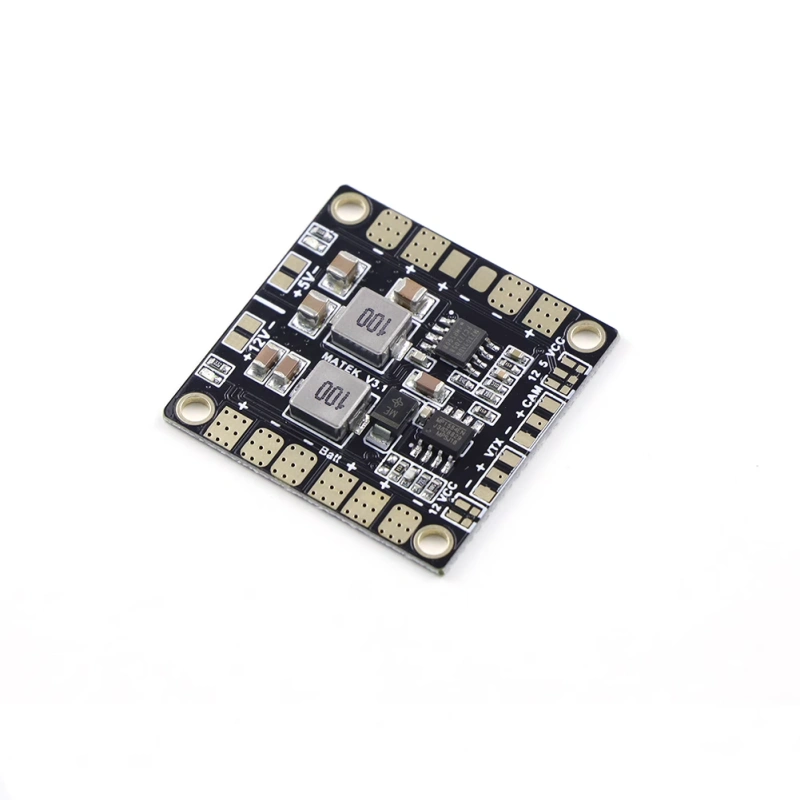

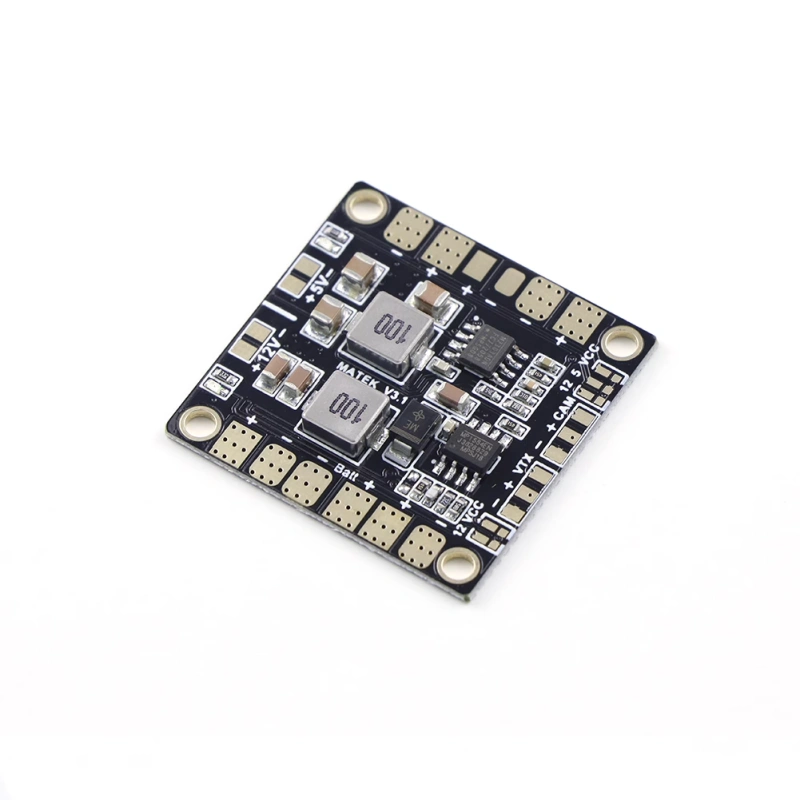

ARRIS 5V 12V 3A Power Distribution Board PDB with BEC  for CC3D NAZE32 F3 F4

Features:
1.2oz copper foil 4-layer PCB to ensure the passage of large current.
2.Synchronous rectification step-down 5V BEC, continuous 3A, 12V BEC continuous 2A (maximum 3A) output.
3.Battery ESC pads are arranged in pairs for easy wire soldering.

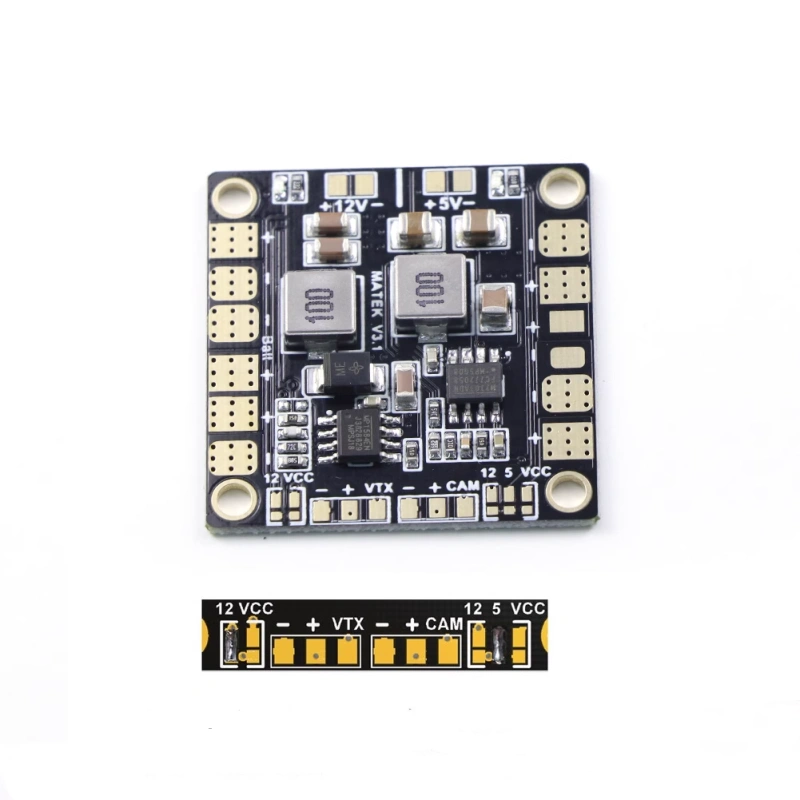

4.Multiple selection of image transmission and camera voltages, signal cable collection.
5.Same size as Naze32, CC3D flight controller, only weighs 6g.

Package Includes:
1x ARRIS 5V 12V 3A Power Distribution Board PDB with BEC


Notes:
Pay attention to the input polarity, do not reverse the input or short-circuit it!
To obtain a stable BEC 12V output, the input voltage must be higher than 12V (lower than 12V cannot be boosted).
When using 3S batteries, BEC 12V cannot regulate voltage normally, and inductive sound may occur.
Do not touch the carbon fiber board behind the distribution board as it may lead to short circuit. Please use nylon posts to isolate and install.
