ALZRC ALZRC Platinum 50A V4 Brushless ESC is compatible with Devil 450 Pro / Devil 450 RIGID / Devil 480 RIGID / Devil 480 FAST / Devil 380 FAST.
Main Features:
●Excellent Motor Governing Speed
●High Voltage Built-in BEC
●Rapider Throttle Response
●Higher Efficiency And Longer Flight Time
●Lower Temperature Rise
●Four Brake Modes
●Multiple Protections
●Other Features
Specification:
Item Brand: ALZRC
Item Model: Platinum 50A V4
Cont. Current：50A
Peak Current：80A
Lnput Voltage：3-6S LiPo
BEC Output：Switch Mode:5-8V,7A

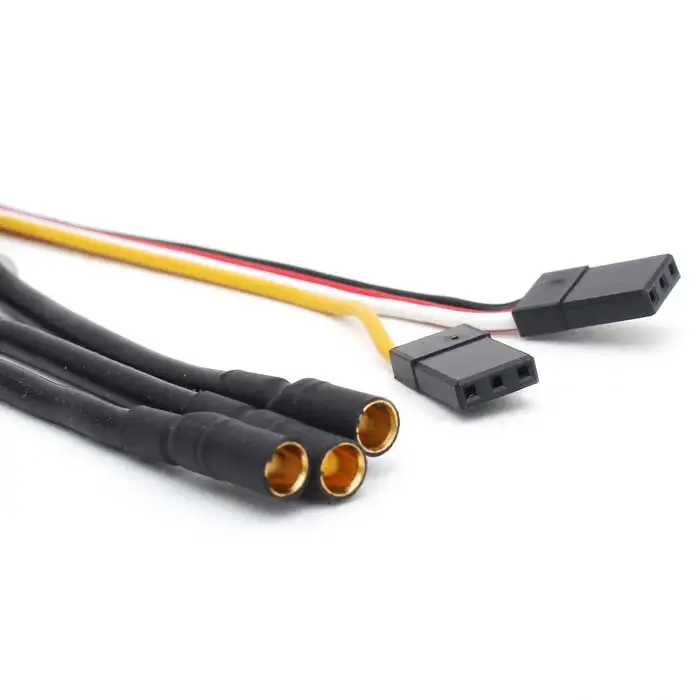

Wires & Plug：
- Lnput Wires：Red-14AWG-100mm x 1 / Black-14AWG-100mm x 1
- Output Wires：Black-14AWG-75mm x 3
- Signal Wires：400mm x 1
- Input Plug：XT60
- Output Plug：4mm Gold-plated Banana Plugs
ESC
Programing Via：
- Transmitter：Not Supported
- LED Program Card：Not Supported
- LED Program Box：Not Supported
- LCD Program Box：Supported
- WiFi Module：Not Supported
- Program Port：Program/Throttle Wire
Size & Weight：
- Size：48.0x30.0x15.5mm
- Weight：49g
Package Included:
ALZRC Platinum 50A V4 Brushless ESC x 1
