ALZRC 3120 PRO 1000KV Brushless Motor for Devil 380 420 RC Helicopter

Name: ALZRC 3120 PRO 1000KV Brushless Motor for Devil 380 420 RC Helicopter
Brand: ARRISHOBBY
SKU: GB0004
Price: 61.99 USD
Availability: InStock

SKU: GB0004

0.0 (0)

$61.99

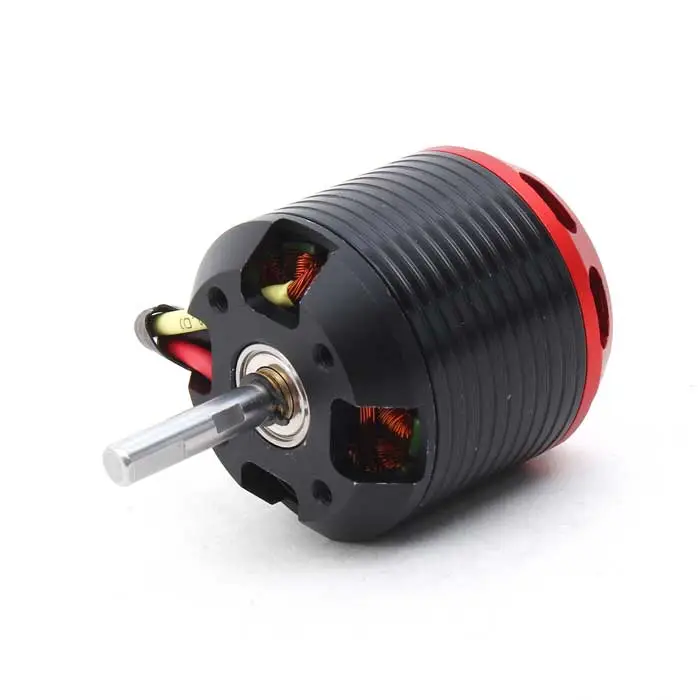

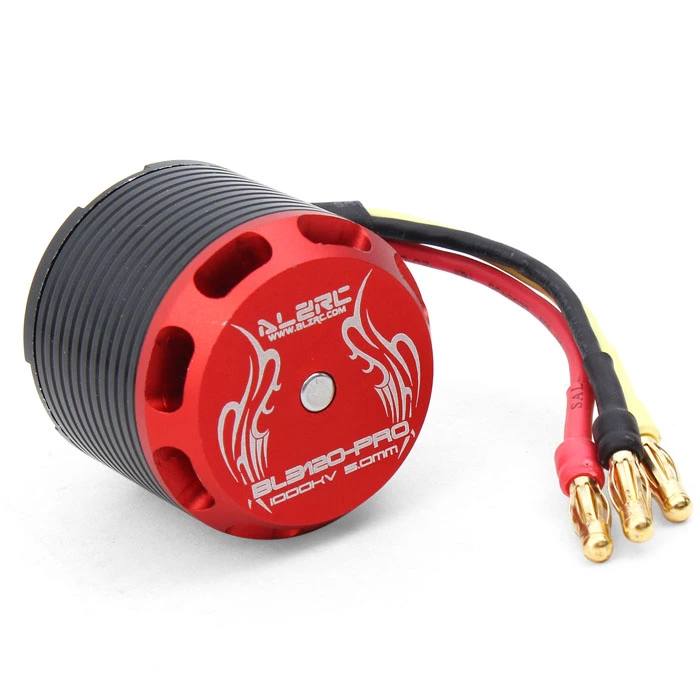

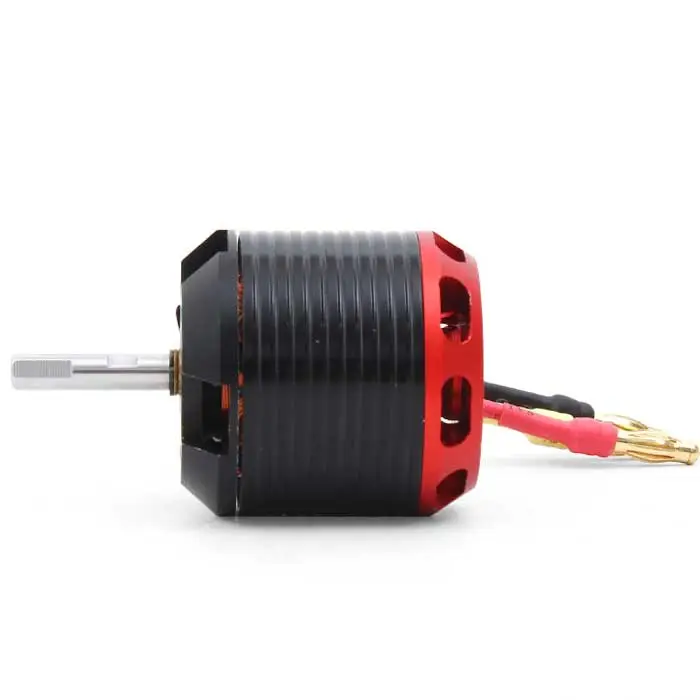

3120 PRO 1000KV brushless motor
suitable for alzrc devil 380 420 and similar helicopters

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description

ALZRC 3120 PRO 1000KV Brushless Motor is great for ALZRC Devil 380 Devil 420 and the similar size rc helicopters.

Specification:
- Item Brand: ALZRC
- Item Model: 3120 PRO 1000KV
- Stator Diameter: 30.0mm
- Stator Thickness: 20.0mm
- No. of Stator Arms: 12
- Magnet Poles: 10
- Motor Wire: Φ2.0/1.0 x 70mm
- Motor KV: 1000KV
- No-Load Current(IO/10V): 1.9A
- Motor Resistance(RM): 0.039
- Max Continuous Current: 50A
- Max Continuous Power: 1250W
- Max. Peak Current: 75A
- Max. Peak Power: 1700W
- Weight: 162g
- Outside Diameter: 39mm
- Body Length: 40.2mm
- Shaft Diameter: 5mm
- Overall Shaft Length: 63mm
- Max Lipo Cell: 6S
- Motor Timing: 15
- Drive Frequency: 8kHz

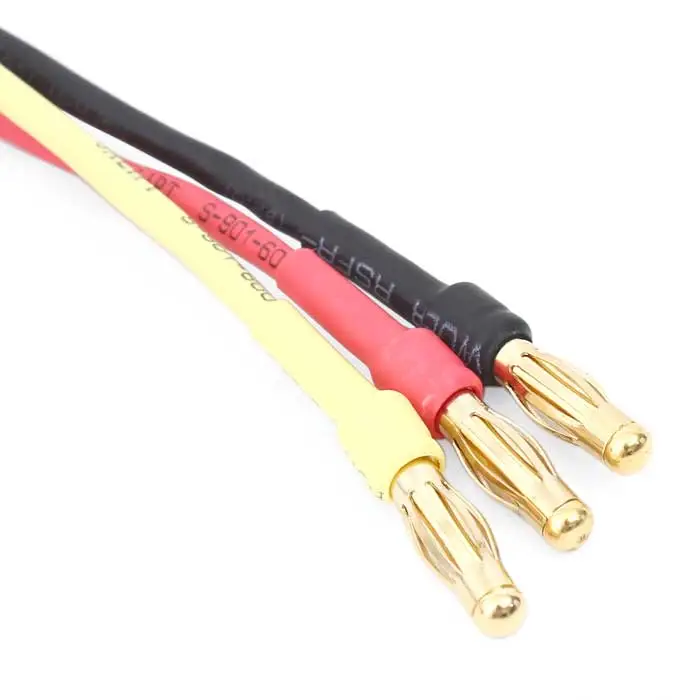

- Plug: 4mm Gold-plated Banana Plugs

Package Included:
ALZRC 3120 PRO 1000KV Brushless Motor x 1
