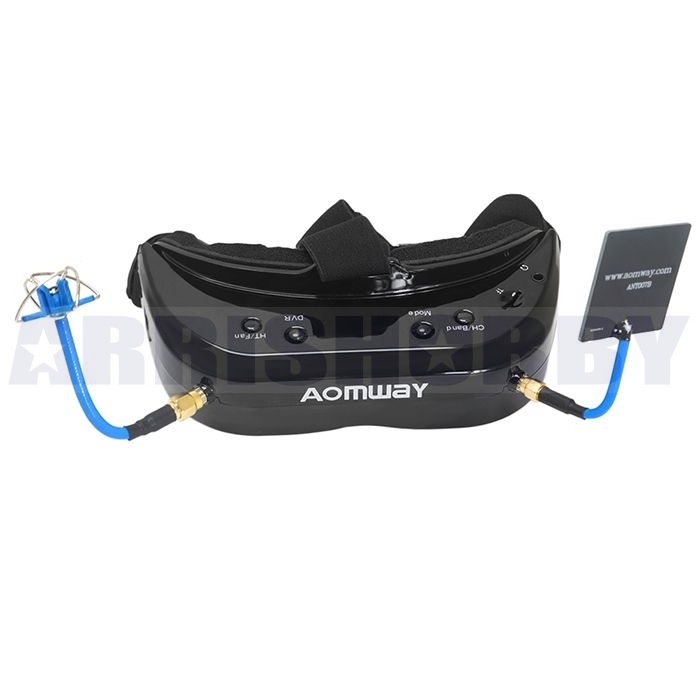

Aomway Commander V1S FPV goggles is well-equipped with a pair of 16 to 9 WVGA LCD micro displays (FOV as 32 degrees) for providing immersive FPV experience. Inside the goggles, it integrates dual high sensitivity diversity RF modules for optimal analog video signal reception, meanwhile the high definition multimedia interface port is available to support 720p HD input for use with a digital video downlink. Commander V1S allows auto switchPAL/NTSC and built‐in DVR seated on top for easy recording videofile. OSD menu already includes mode, brightness/contrast,channel/band, voltage and DVR status all that you need. Head tracker is optional which means you may choose to purchase depending on the need. A high‐speed ventilating fan installed to prevent fogging up on screens and a mask with soft foam attached on all these humanized designs are intended for ultimate wearing comfort.
Specifications:
Optical:
FOV: 32°
Lens: Glass optics (binocular)
Display:854x480(WVGA)LCD display, LED backlight
3D function:Side/Side 3D (include AV 3D and HD 3D mode)
Interpupillary Distance (IPD):59‐69mm (Adjustable)
Audio Output:Stereo
Operation:Brightness / contrast / channel selection / display mode/DVR recording / head tracker switch/ mini fan switch
Video Format: NTSC / PAL auto switch
HD Input:Support 720p, C‐type high definition multimedia interface
DVR Recording:
Only for RF and AV in mode
TF card support to 32GB
Video compression format: MJPG 30fps
Recording file resolution: D1 NTSC 720*480/ PAL 720*576
Head Tracker:Modular (purchase separately)
Built‐in Receiver:Dual 64CH high‐sensitivity diversity RF module, auto switch, channel display on screen
Auto Scan:One key starts auto search active channel within 6CH at high speed
Power Supply:
DC 7‐18V (2S‐4S)
OSD display voltage status (low voltage alarm)
Interface:
DC in: standard 5.5*2.1 (inner positive outer negative)
AV in: 3.5mm four‐pole AV jack port
Audio: 3.5mm three‐pole earphone jack port
Head tracker: PS2 data port
TF card slot for recording
Operating Environment:
0 ‐ 55°C
Weight: 172g
Package Size:230*165*77mm
Package Included:
1 x Aomway Commander V1S goggle
1 x Carry Case
1 x AV cable
1 x JR cable
1 x Futaba cable
1 x Filtered adapter
2 x Foam (thin and thick)
1 x User manual
2 x Antenna
