Tarot T15 1020MM Foldable Carbon Fiber Octo-copterSuper Combo

SKU: CA0102
0.0 (0)
$999.00 $0.00
Received successfully
Coupon Code
    Please select the information you want X
  • Ships From:
    Please select the information you wantX
  • Tarot T15 1020MM Foldable Carbon Fiber Octo-copterSuper Combo
Frequently Bought Together
Frequently Bought Together
  • Description

Tarot T15 foldable octa-copter is widely used in UAV aerial photography, remote sensing,mapping,airborne reconnaissance,disaster monitoring, cable transmission line, and other agricultural plant protection for mobile high performance requirements, equipment containing material and requires a longer endurance of blank applications.

Tarot T15 is specifically designed to meet 5DII, RED EPIC, C300, FS100, FS700 and large video equipment developed by professional aerial vehicle.

T15 eight-axis folding rack overall net imports of Toray carbon fiber 3K woven by high temperature and pressure prefabricated full CNC precision machining, pure carbon 2.5MM thick matte twill carbon fiber quality beyond conventional commercially available products, with flatness, weight light, creep resistance, high compressive strength and shock resistance and other characteristics, the overall performance beyond the state required standard level performance metrics. Full body matte finish to prevent sunlight reflecting the impact of camera effects. Folding lines can be directly equipped with safe, reliable, avoid the use of connectors to connect the circuit caused by an accident.

T15 eight-axis folding rack removable battery holder uses detachable design allows the battery when you receive a shock from the body , reducing the potential impact on the body damage. Bit -shaped design prevents the battery tie off . Multiaxial metal locking clip seat folded portion innovation adoption 40 Falcon riveted metal dovetail design, with a strong clamping force, its strength is higher than the transverse locking fixed carbon tube locking strength. Excellent damping slip feel unusual feeling when you bring quick fold.

Folding rack full thread structure using carbon nanotubes which have a unique design self-locking screw technology, with excellent resistance to lateral vibration .

Lightweight two-tone multi rotor motor mount CNC machining, the overall design has a strong perspective effect, providing a striking visual direction for the body in the air. Carbon nanotube metal bracket connecting point damping design dovetail groove metal hook thread with full carbon tube phase, with excellent adhesion.

Standard mount rod diameter 12MM, applicable to all mount rod center distance 155MM PTZ used.

Standard GPS antenna quick folding seat, folding carry more convenient.

Eight- standard high-current slip the lock gilded hub.

Standard multi-axis folding tripod more convenient to carry.

Parameter configuration requirements:
Tube diameter: 25MM
Wheelbase: 1020MM
Rack Diameter: 1070MM
Total height: 420CM
Center Cover Size: 301 x 209 x 2.5MM
Motor mounting pitch: 16MM/19MM/25MM/27MM equilateral triangle installation
Rotor Size: 15-inch carbon fiber propeller TL2831/TL2813/TL2812
Brushless Motor: 4114/320KV multiaxial brushless motor TL100B08-02/TL100B08-01
Battery Specifications: 6S 22.2V 10000-15000MHA
ESC:35-40A Brushless ESC

Standard mount rod diameter Φ12MM, applicable to all mount rod center distance 155MM PTZ Use
Effective allocation of the whole weight: 11KG
Eight fold axis rack Weight: 1.95KG

Parameter of Tarot 4114 Motor:
Outer diameter: 46mm
Stator diameter: 41mm
Stator thickness: 14mm
Stator number: 24N
Magnet Poles: 22P
Wire diameter: 0.31mm
Motor KV: 320RPM/Volt
22.2V No-load current: 0.5Amps
Resistance: 126mงู
Weight: 148g
Gear shaft diameter:กห4.0 mm
Motor length: 32mm
Motor shaft length: 37mm
Flycolor 40A ESC Specifications:
Input Voltage:2-6S
Con. Current: 40A
Max. Current (10s): 50A
Dimension: 45 x 27 x 10mm
Suitable for: Quadcopters, Hexacopter and other Drones

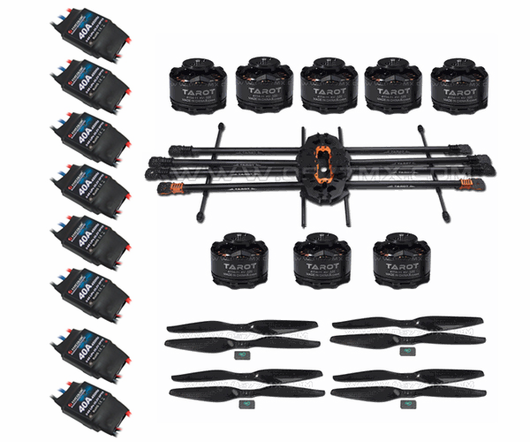

Package Includes:
1 x Tarot T15 Foldable Octocopter Frame
8 x Flycolor 40A OPTO 2-6S Brushelss ESC
8 x TAROT 15x5.5 High Efficient Carbon Fiber Propeller (4 pairs)
8 x Tarot 4114/320KV Brushless Motor
