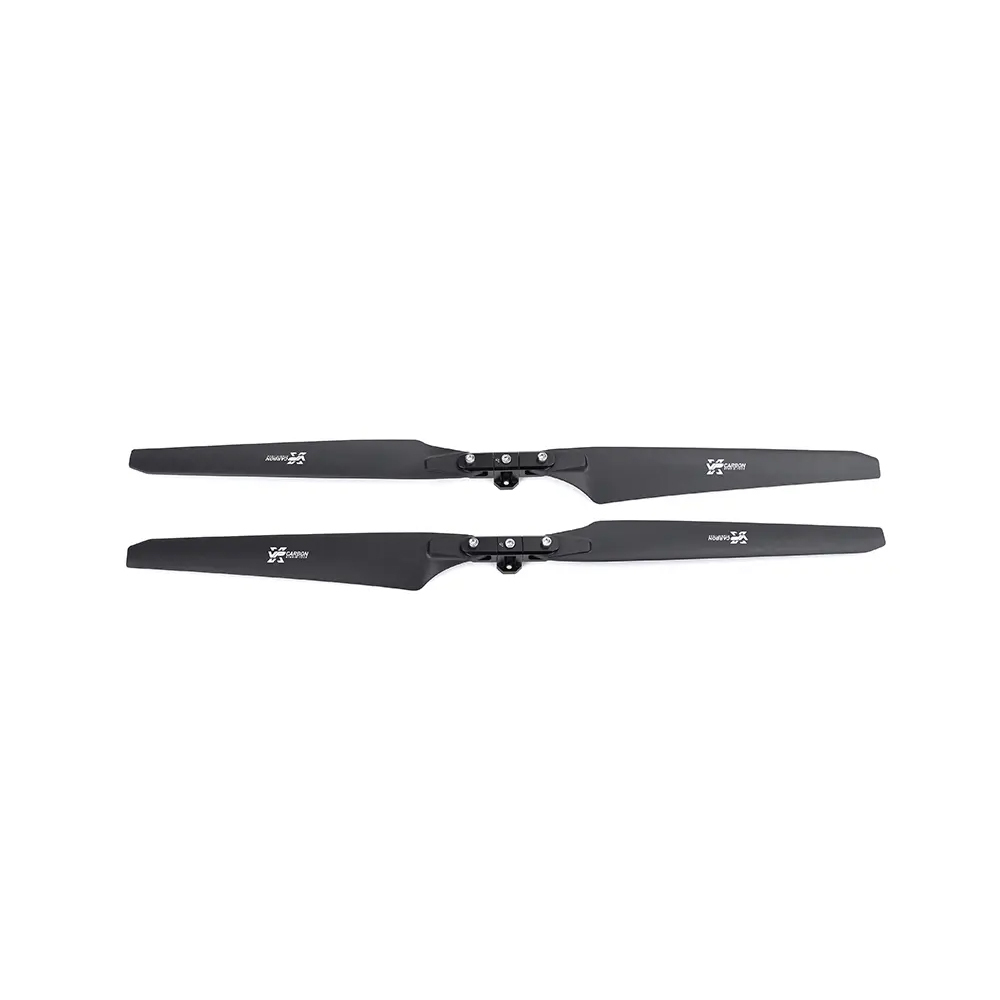

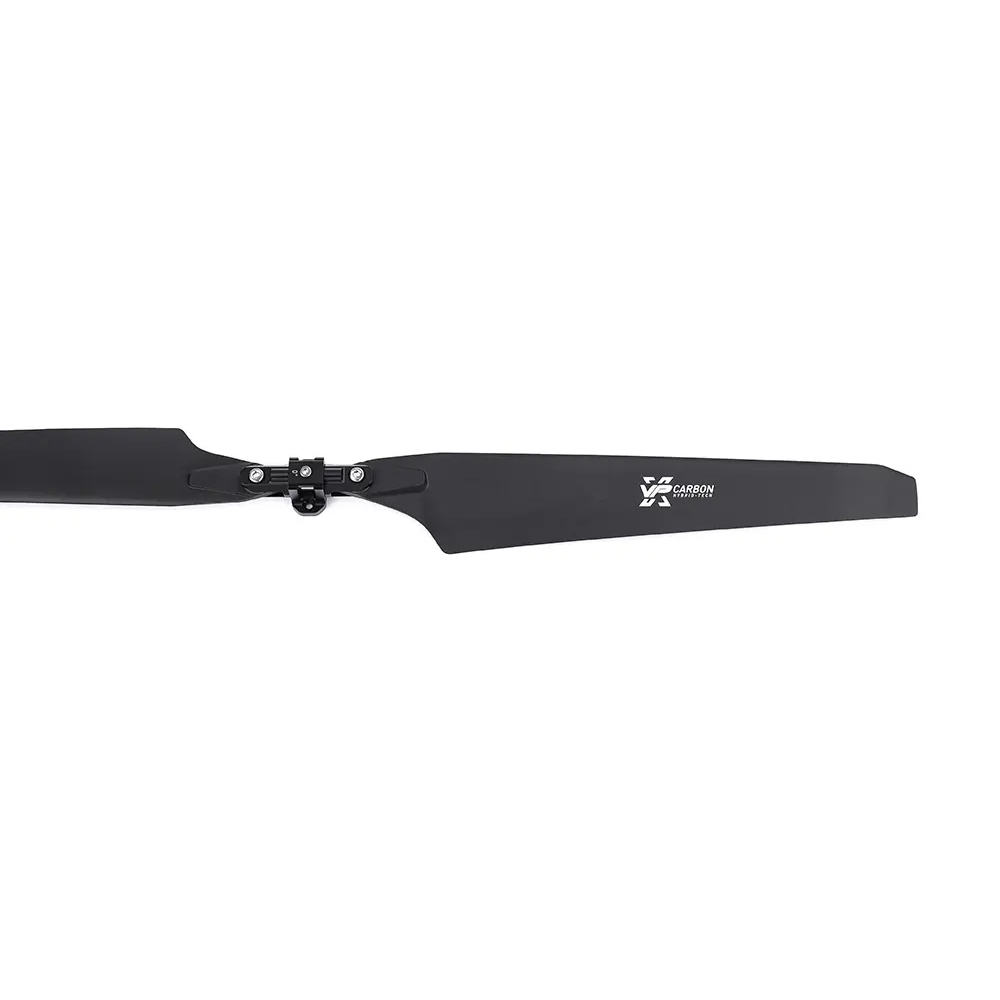

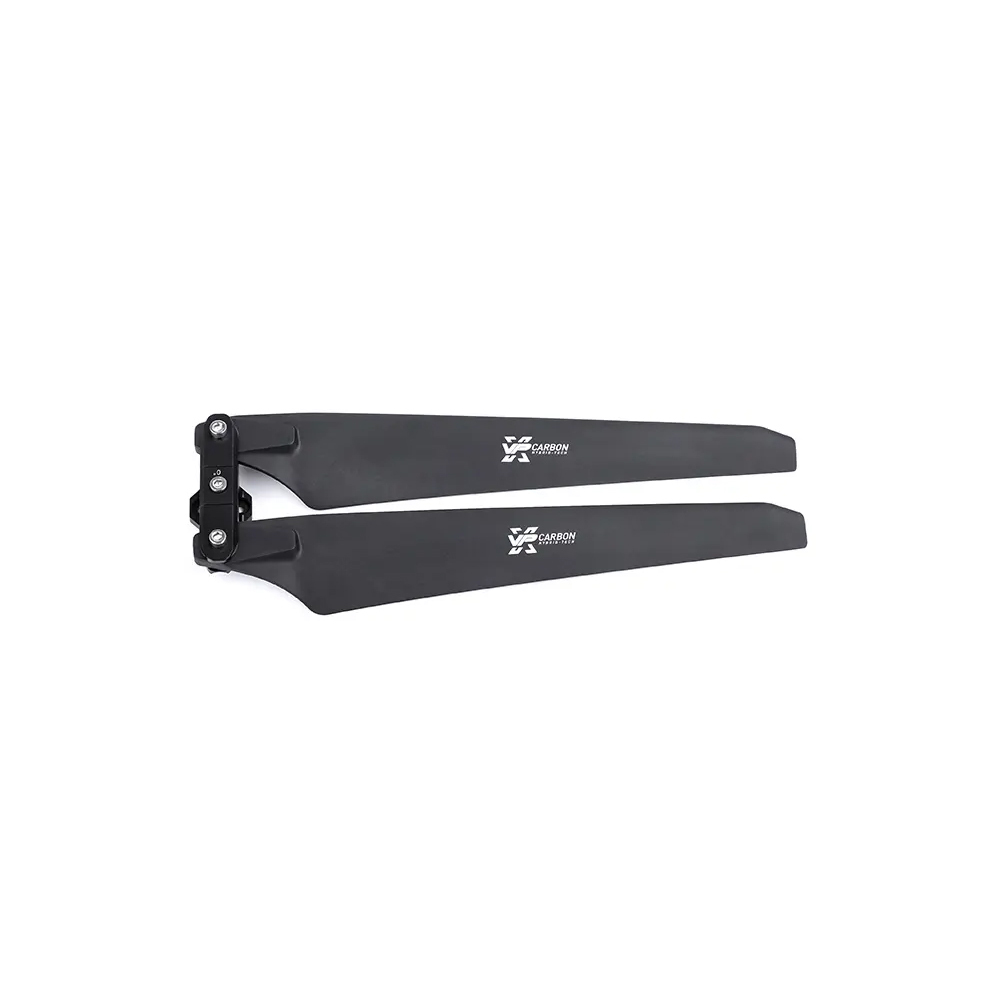

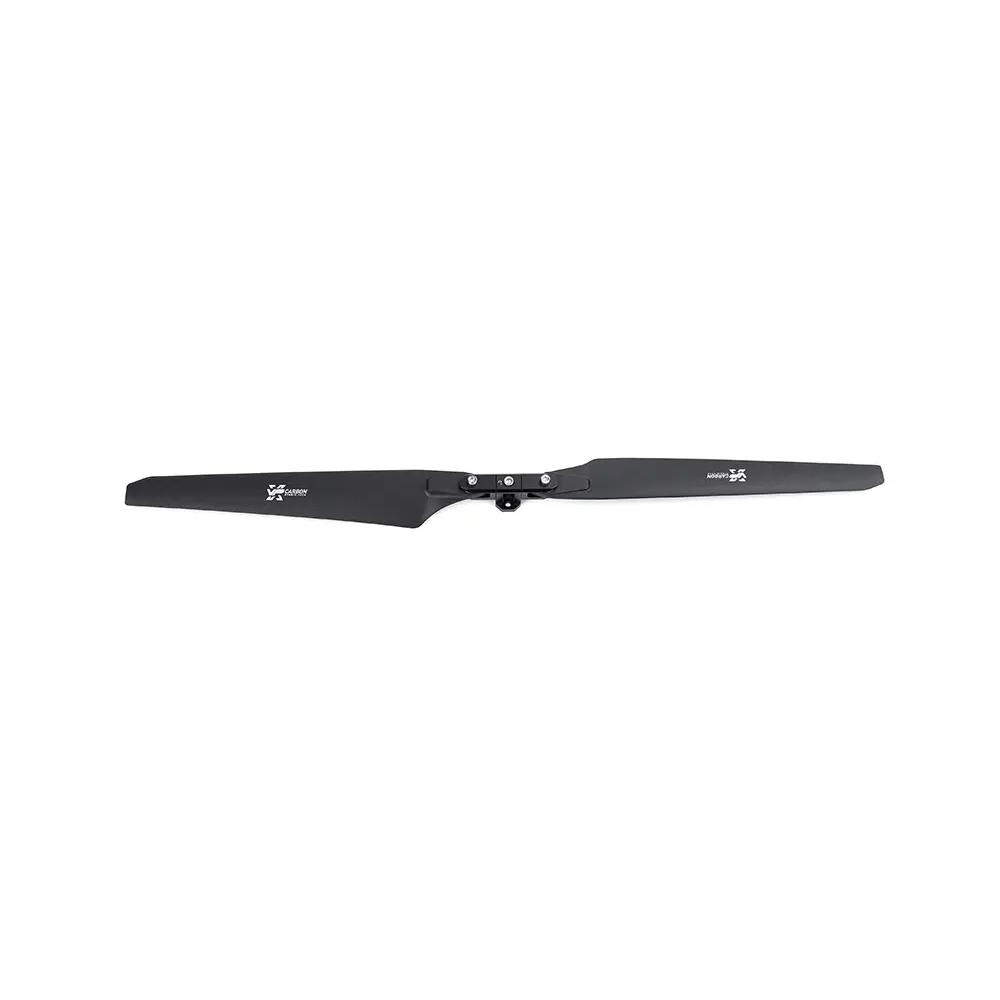

T-Motor MF2211VP Polymer Manual Variable Pitch Folding Propeller (1CW+1CCW)

Name: T-Motor MF2211VP Polymer Manual Variable Pitch Folding Propeller (1CW+1CCW)
Brand: ARRISHOBBY
SKU: SA0173
Price: 84.9 USD
Availability: OutOfStock

SKU: SA0173

0.0 (0)

$84.90

• Quick and flexible adjustment of the propeller pitch by changing the positioning block
• Advanced large swept-back tip and downward curved winglet design enhance vortex distribution, reduce blade vibration and improve efficiency.
• Enhanced blade root design, prolonging the service life of the propeller blades.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

MF2211VP Polymer Manual Pitch Folding Propeller
The MF2211VP is a cutting-edge 22.4*8 inch polymer manual pitch folding propeller, expertly designed by T-MOTOR for multi-rotor and VTOL drones. In comparison with conventional propellers, the MF2211VP is engineered to address complex and variable flight conditions and diverse power requirements. Its design facilitates manual pitch adjustment with a straightforward replacement of the positioning block, eliminating the need for additional tools. This feature enhances the efficiency of professional model development in dynamic, multi-scenario environments.

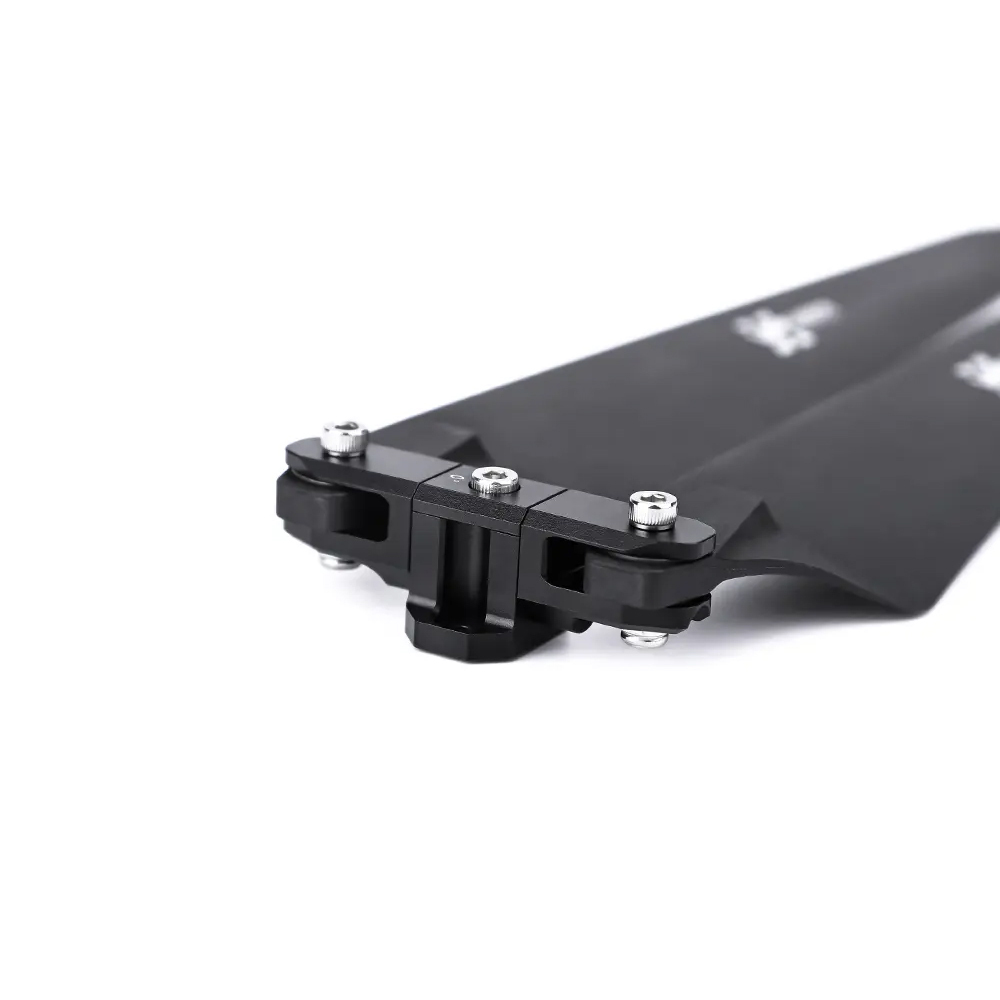

Quick Assembly and Disassembly Precise and Reliable
Quick to replace without requiring professional training—easy to learn and use. The pitch adjustment accuracy remains unaffected by manual operation errors with user-friendly operation.

Methodical Approach
Using calculation tables derived from extensive experimental data, users can quickly find the required pitch angle based on the operating scenario and simple parameters.
(7.5°, 10°, and other positioning blocks are available upon request for customization.)
T-Motor MF2211VP Polymer Manual Variable Pitch Folding Propeller

T-Motor MF2211VP Polymer Manual Variable Pitch Folding Propeller

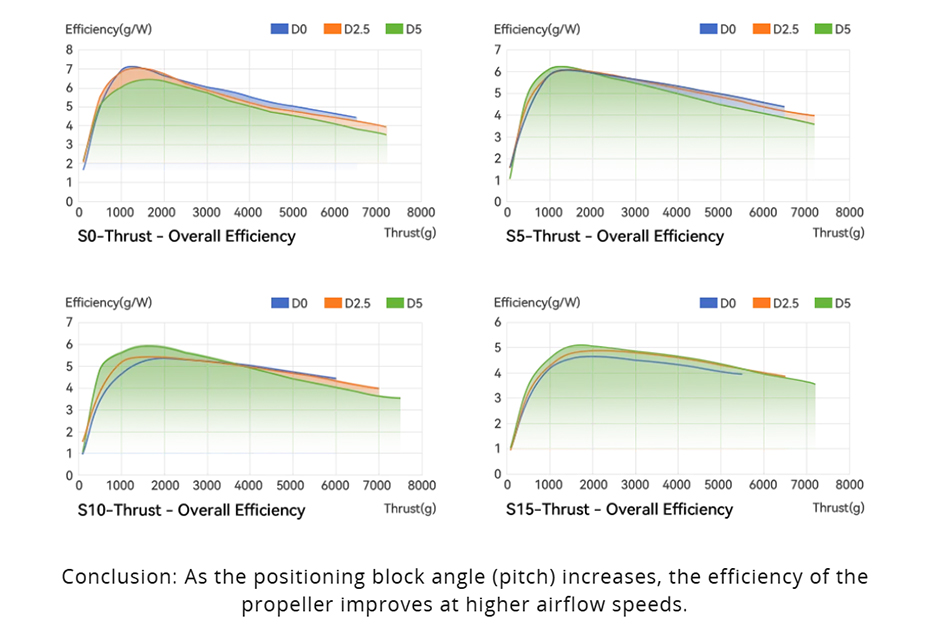

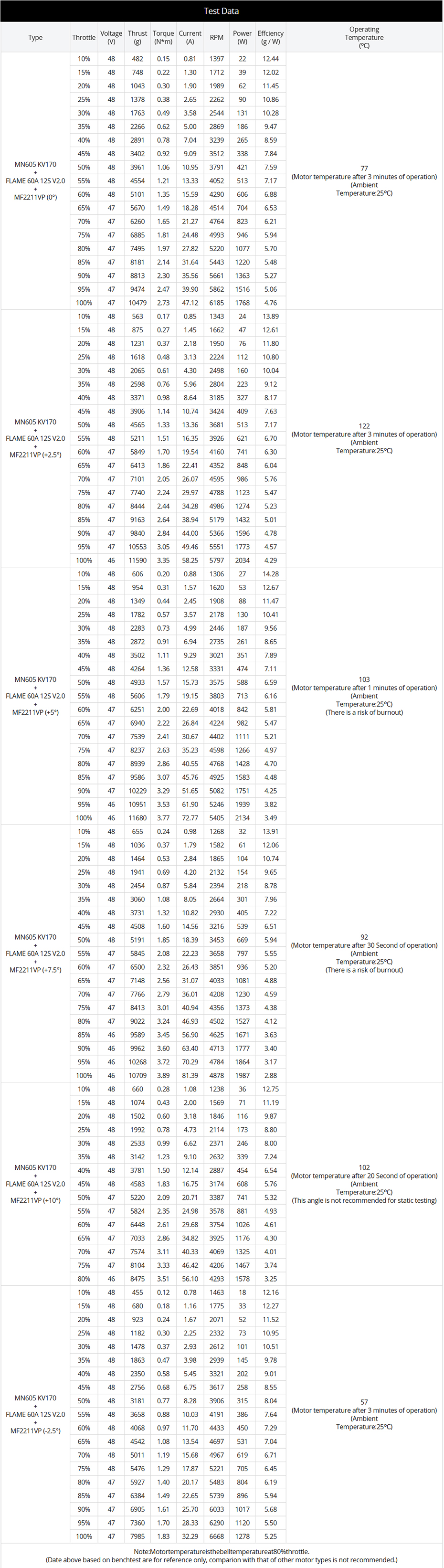

Performance Comparison
The efficiency curve of three positioning blocks (pitches) under different airflow speeds
(Example: MN605 KV170 + FLAME 180A 12S V2.0 + MF2211VP, Flight inclination 30°, S0, S5, S10, S15 respectively represents speed 0m/s, 5m/s, 10m/s, 15m/s, D0, D2.5, D5 respectively represents 0° positioning block, 2.5° positioning block, and 5° positioning block.)
T-Motor MF2211VP Polymer Manual Variable Pitch Folding Propeller

Multi-adaptability
The manual variable pitch propellers can not only support multi-rotor aircraft, but also effectively adapt to the needs of vertical take-off and landing aircraft, providing higher flexibility and performance to meet the requirements of different flight missions.

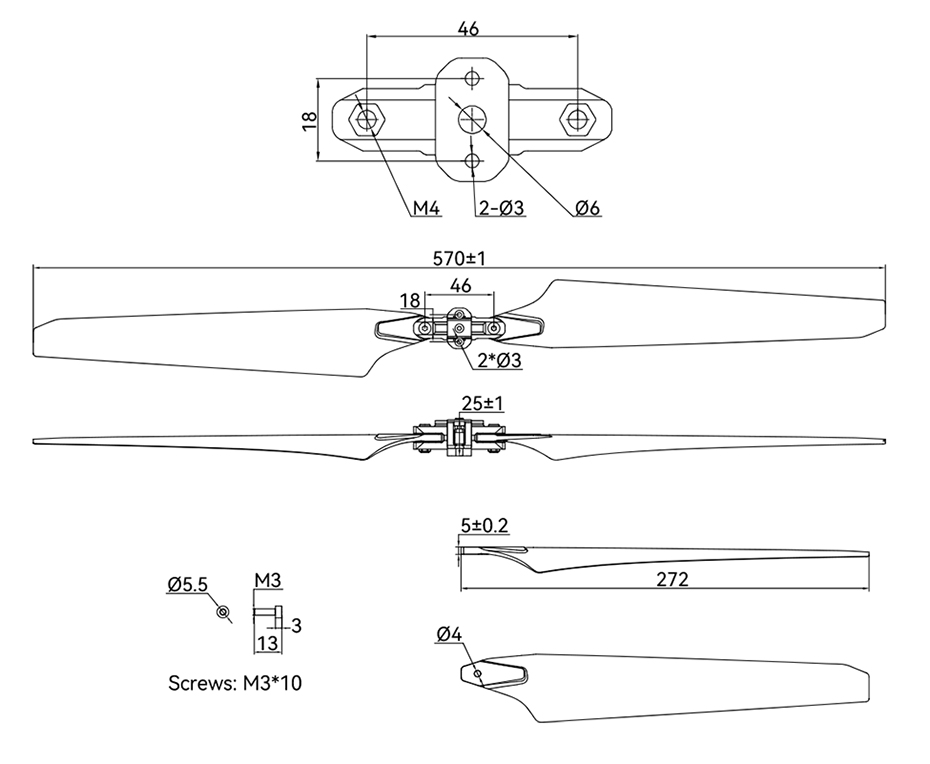

Specifications:
Item Brand: T-MOTOR
Model NO.: MF2211VP
T-MOTOR Series: Folding
Weight (Single Blade): 86.5g
Package Weight: 286g
Diameter: 22.4inch(568.96mm)
Package Size: 300*106*45mm
Pitch: 8inch(203.2mm)
Material: Polymer+CF
Recommended Thrust: 1.5~5kg
Recommended Max Thrust: 12kg
Ambient Temp: -40℃～65℃
Storage Temp/Humidity: -10℃～50℃/＜85%

Recommended ESC: FLAME 60A 12S V2.0/FLAME 180A 12S V2.0
Recommended Motor: MN605 KV170
T-Motor MF2211VP Polymer Manual Variable Pitch Folding Propeller

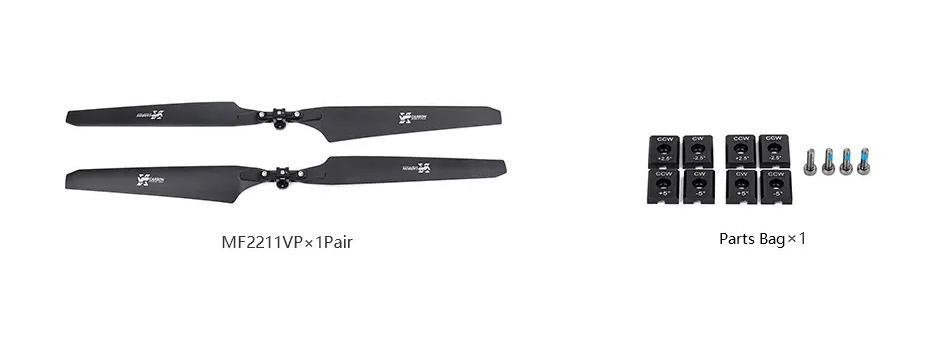

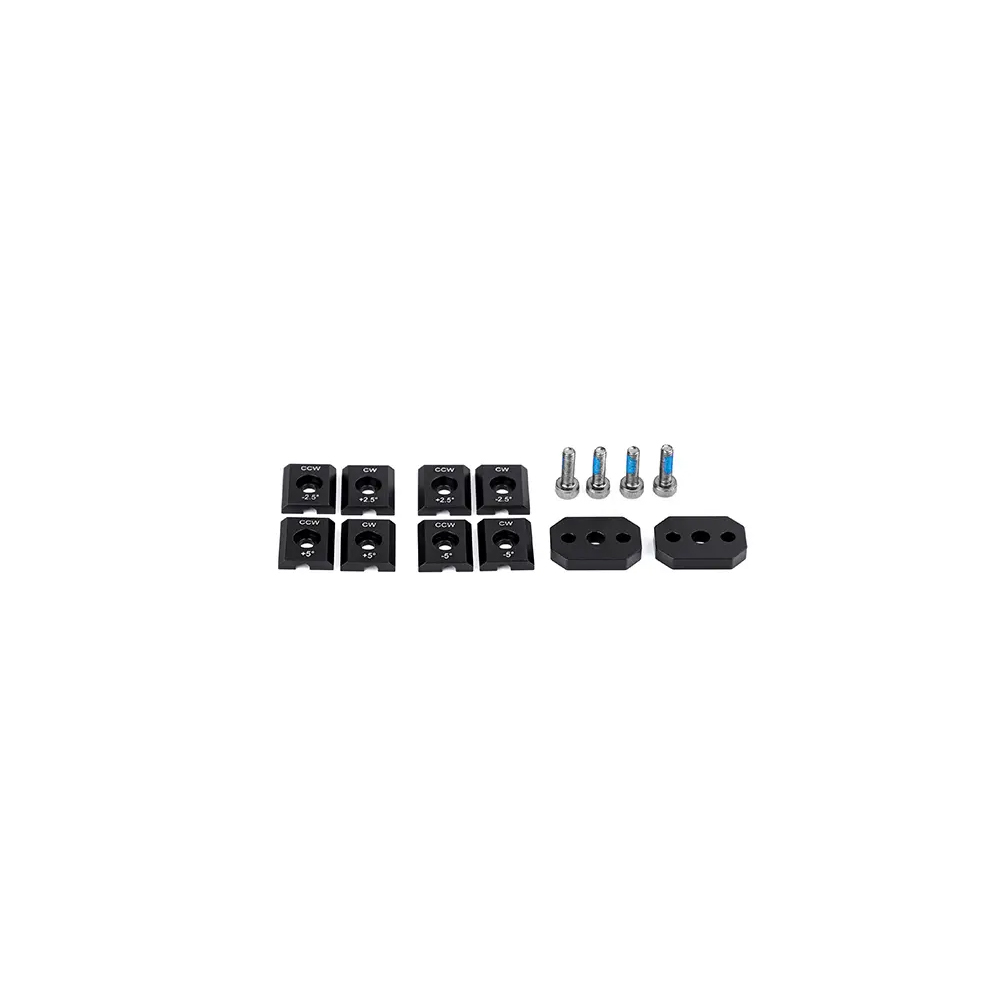

Packing List Includes:
Package size: 300*106*45mm
MF2211 center positioning block (+2.5°)-CCW*1
MF2211 Center Positioning Block (+2.5°)-CW*1
MF2211 Center Positioning Block (-2.5°)-CCW*1
MF2211 Center Positioning Block (-2.5°)-CW*1
MF2211 Center Positioning Block (+5°)-CCW*1
MF2211 center locating block (+5°)-CW*1
M3*10mm cup head socket head cap screws*4
