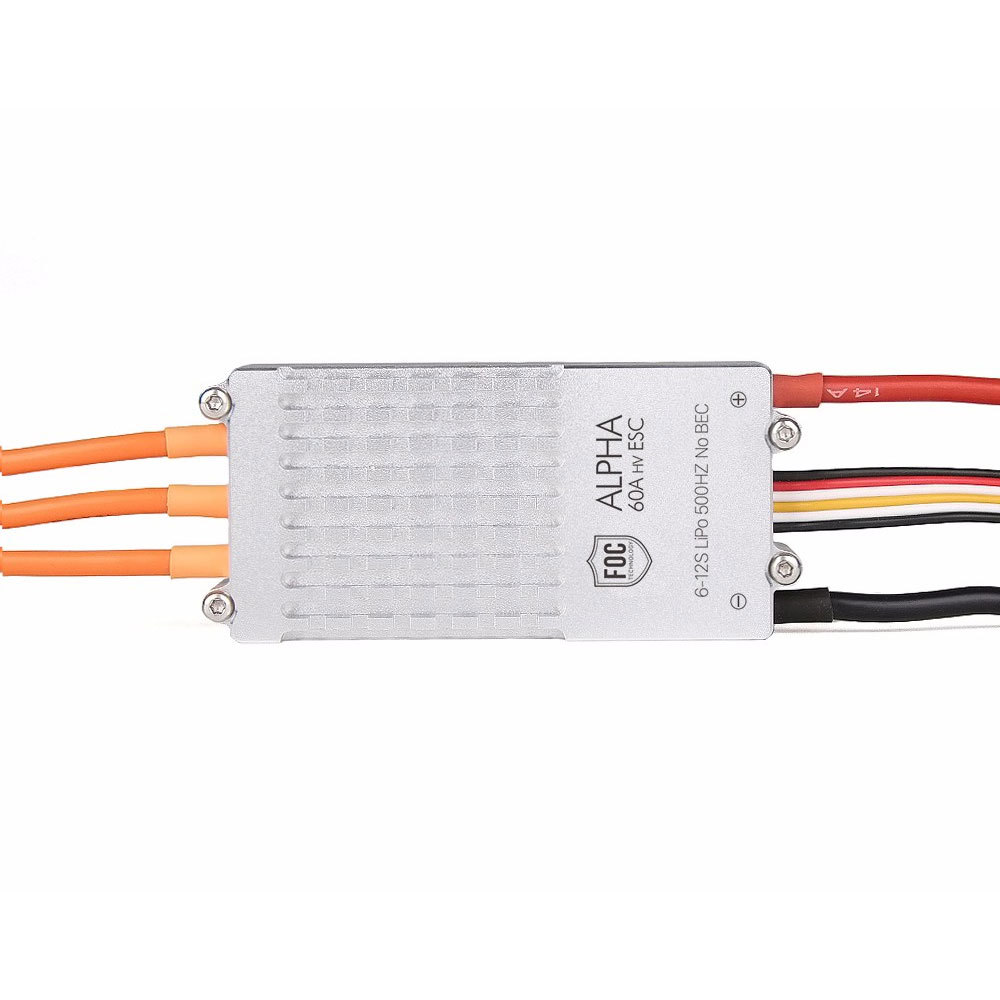

T-MOTOR Alpha 60A HVesc is low noise, low temperature and low interference. It has fast throttle response and high efficiency. It is compatible with MN501S KV240 , MN701S KV135 , MN705S KV125, MN601S KV170, MN605S KV170, MN7005 KV115, U8II/Lite KV100, U8II/Lite KV85, U10II KV100 and etc.
Specifications:
Item Brand: T-Motor
Item Model: Alpha 60A HV
Size: 75.7 x 32.5 x 16.2mm
Weight: 73g
Support Voltage: 18-50.4V
BEC: No
Con. Current: 60A
Peak Current: 80A
Standby Consumption: ≤50mA
Throttle Pos. Range: 1100-1940us
Throttle Refresh Frequency: 500Hz
Throttle Response Speed: 3000ms
Package Included:
T-MOTOR ALPHA 60A HV Brushless ESC x 1
User Manual x 1
Note: For Alpha series esc, the firmware need to flash to suit for different motor. When you order this, please write the motor type you use with this esc in the comment bar.
