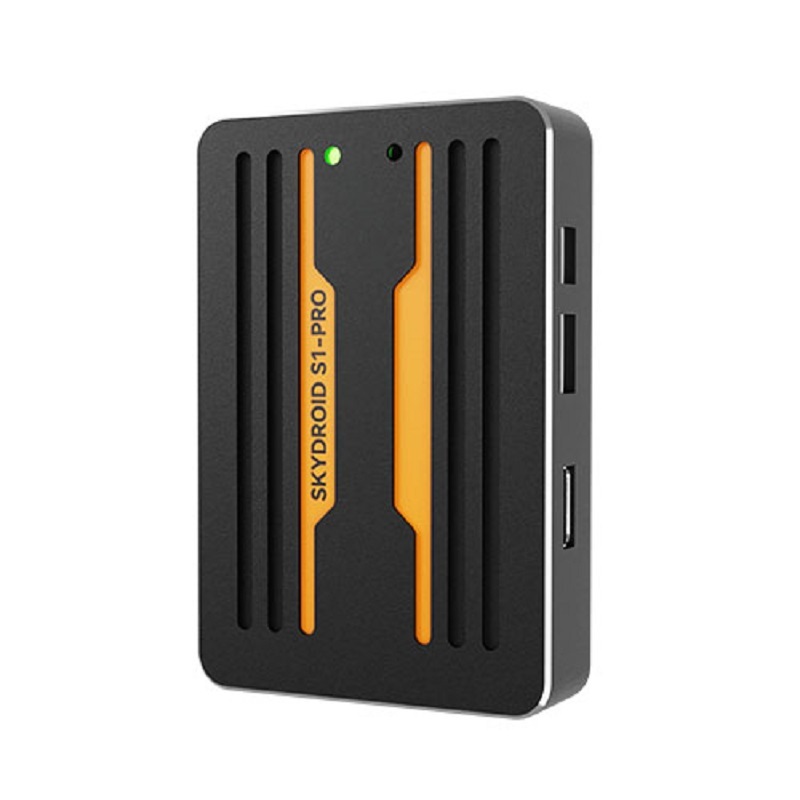

Name: Skydroid S1 PRO Flight Controller ECS for Skydroid H12 PRO
Brand: ARRISHOBBY
SKU: NA0200
Price: 189 USD
Availability: OutOfStock

SKU: NA0200

0.0 (0)

$189.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description
Downloads

Note:The S1 PRO can be only compatible with skydroid H12 PRO remote controller.

The Skydriod S1 PRO comes with automotive grade sensor and 1080P video Transmission.Skydroid S1 has PWM/CAN/SBUS/UART/camera network port and other interfaces. With its rich interfaces, it has strong expansion capabilities and can be used in different scenarios, devices with different functions and requirements.

Features:
1.Automotive Grade Sensor;
2.1080P Video Transmission;
3.Practical Network Port;
4.Rich Interface;
5.Support Multiple Models and Compatible with Multi Gimbal Camera;
6.Open Source Allows for Secondary Development;

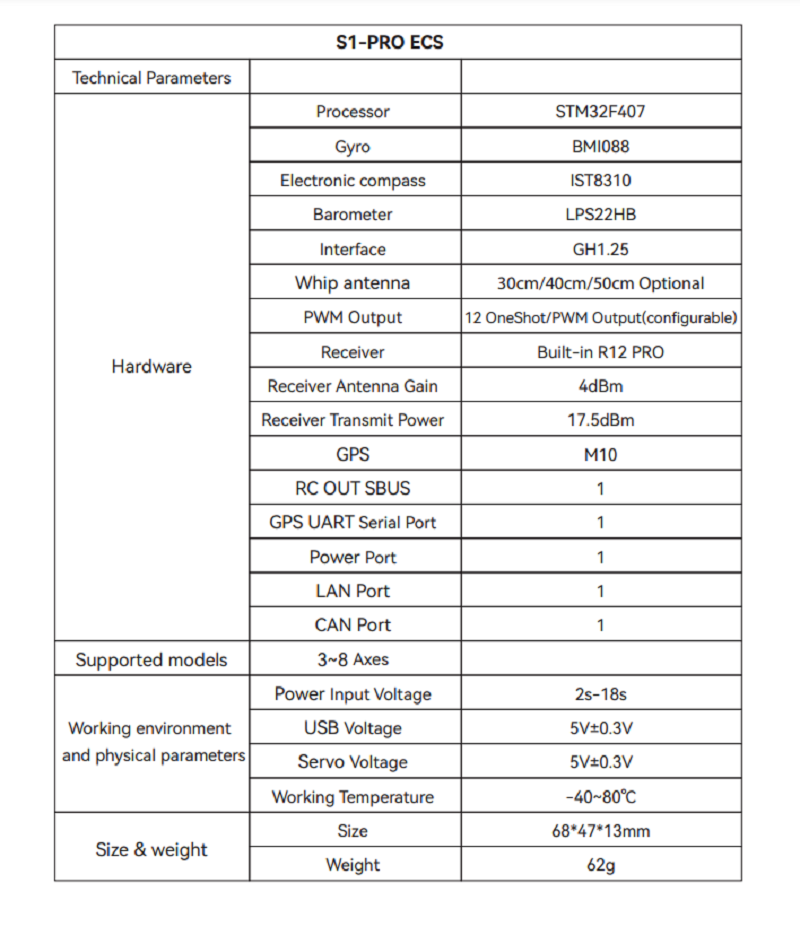

Specification:
Processor:STM32F407
Gyro:BMI088
Eletronic compass:IST8310
Barometer:LPS22HB
Interface:GH1.25
Whip antennna:30cm/40cm/50cm(Optional）
PWM Output:12 oneshot/PWM output
Receiver:Built-in R12 PRO
Receiver Antenna Gain:4dBm
Receiver Transmit Power:17.5dBm
GPS:M10
RC OUT SBUS:1
GPS UART Serial Port:1
Power Port:1
LAN Port:1
CAN Port:1
Power Input Voltage:2-18s
USB Voltage:5V±0.3V
Size:68x47x13MM
Weight:62g

Package Includes:
1x Skydroid S1 PRO Flight Controller ECS
