SIYI HM30 SE Long Range Full HD Digital Image Transmission FPV System SBUS PWM Mavlink Telemetry OSD

SKU:
0.0 (0)
$264.99 $0.00
30KM 1080P Dual-channel Digital Image Transmission
150 ms Low Latency
Remote Control, Telemetry, Video All-in-one
OLED Display Configuration
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
  • Versions:

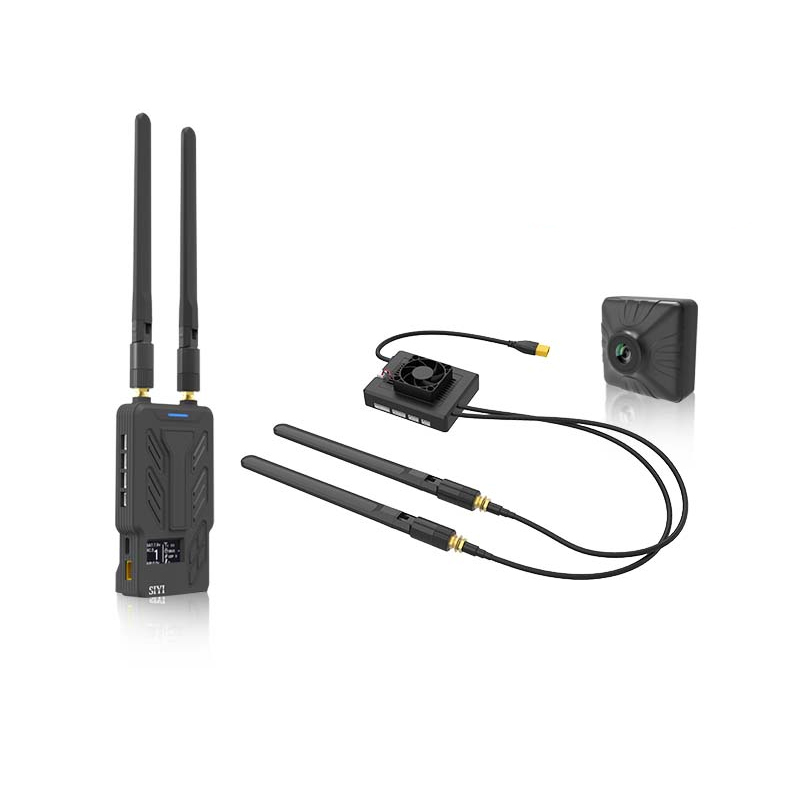

    Standard Combo

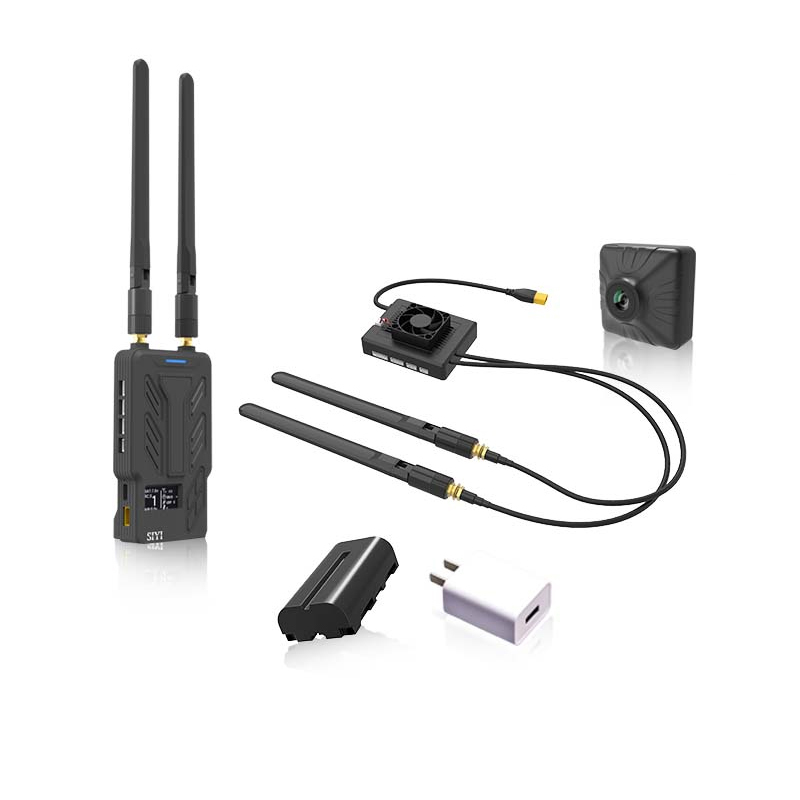

    Fly More Combo
    Please select the information you wantX
Quantity:
  • SIYI HM30 SE Long Range Full HD Digital Image Transmission FPV System SBUS PWM Mavlink Telemetry OSD
  • SIYI HM30 SE Long Range Full HD Digital Image Transmission FPV System SBUS PWM Mavlink Telemetry OSD
  • SIYI HM30 30KM Long Range 1080P Full HD Digital Wireless Transmission System
  • SIYI HM30 30KM Long Range 1080P Full HD Digital Wireless Transmission System
  • SIYI HM30 30KM Long Range 1080P Full HD Digital Wireless Transmission System
  • SIYI HM30 30KM Long Range 1080P Full HD Digital Wireless Transmission System
  • SIYI HM30 30KM Long Range 1080P Full HD Digital Wireless Transmission System
  • SIYI HM30 30KM Long Range 1080P Full HD Digital Wireless Transmission System
  • SIYI HM30 30KM Long Range 1080P Full HD Digital Wireless Transmission System
Frequently Bought Together
more
Frequently Bought Together
  • Description
The main difference of the SIYI HM30 SE and HM30 is the HM30 SE does not support WIFI function.

The link of HM30 SE is based on SIYI's independent wireless HD image transmission technology, which is an all-in-one link integrated with remote control, datalink, and video streaming. The technology has a smart feature that the transmission can automatically adapt to the frequency channel with least interference.

The SIYI HM30 SE link supports to display data telemetry and OSD information display based on the Mavlink protocol in SIYI FPV app. The OSD display style can be adjusted, and combined with high-definition image transmission, you can enjoy the endless fun of first- person view.


Specifications:
Max Transmission Range

30 km

(Unobstructed, free of interference)

Channels

16 communication channels

Datalink Compatible Flight Controllers

PX4 / ArduPilot Open-source Flight Controllers:

SIYI N7 Autopilot, etc.

INAV Open-source Flight Controllers

Video Stream Compatible Android GCS

SIYI Original App:

SIYI FPV Android



Open-source GCS:

QGroundControl

Mission Planner

Video Stream Compatible Windows GCS

SIYI Original App:

SIYI FPV Windows



Open-source GCS:

QGroundControl

Mission Planner (H264 only)

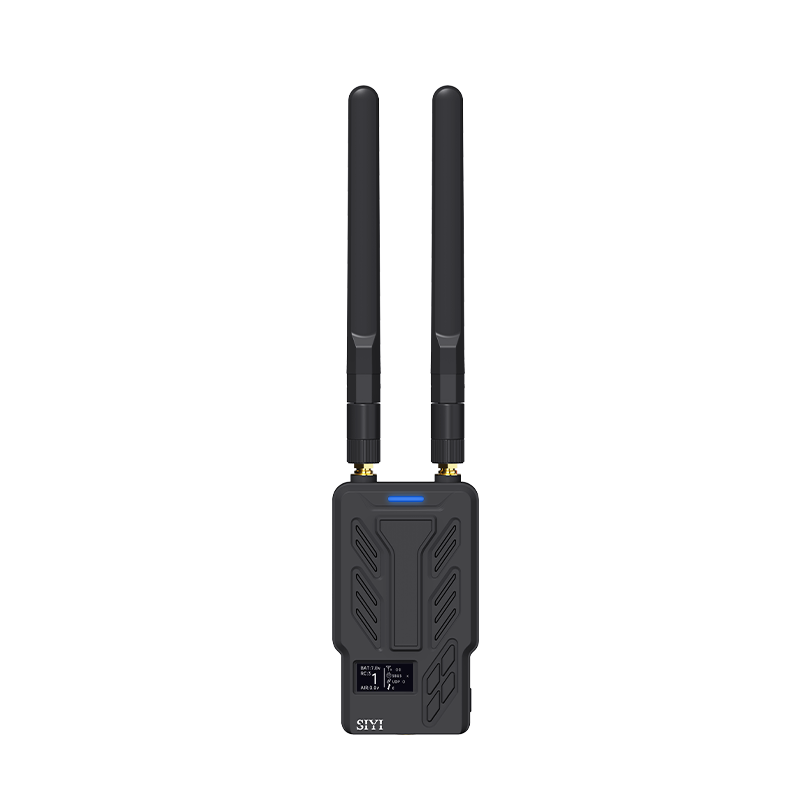

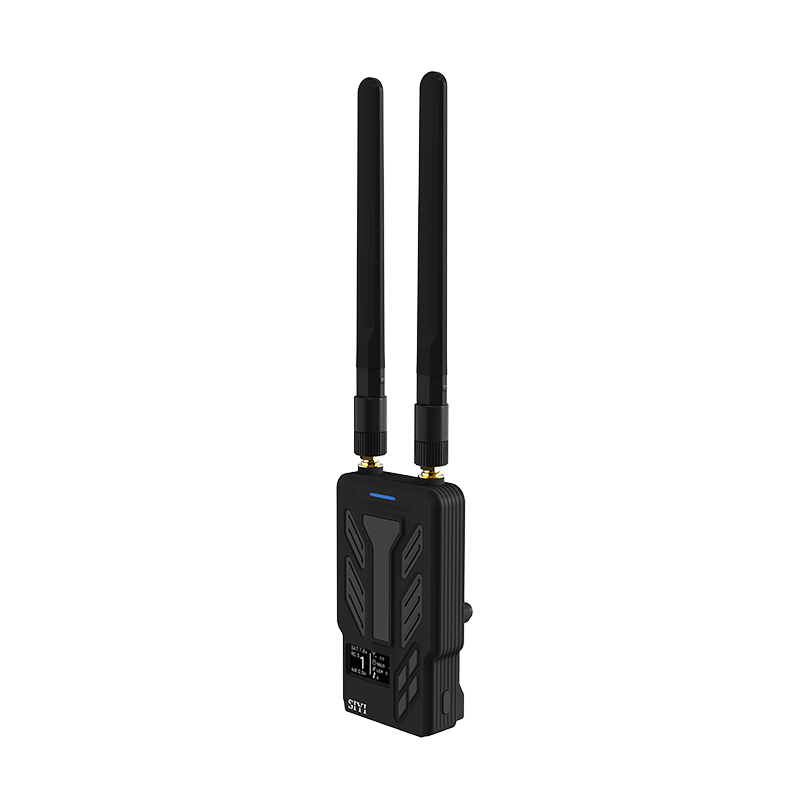

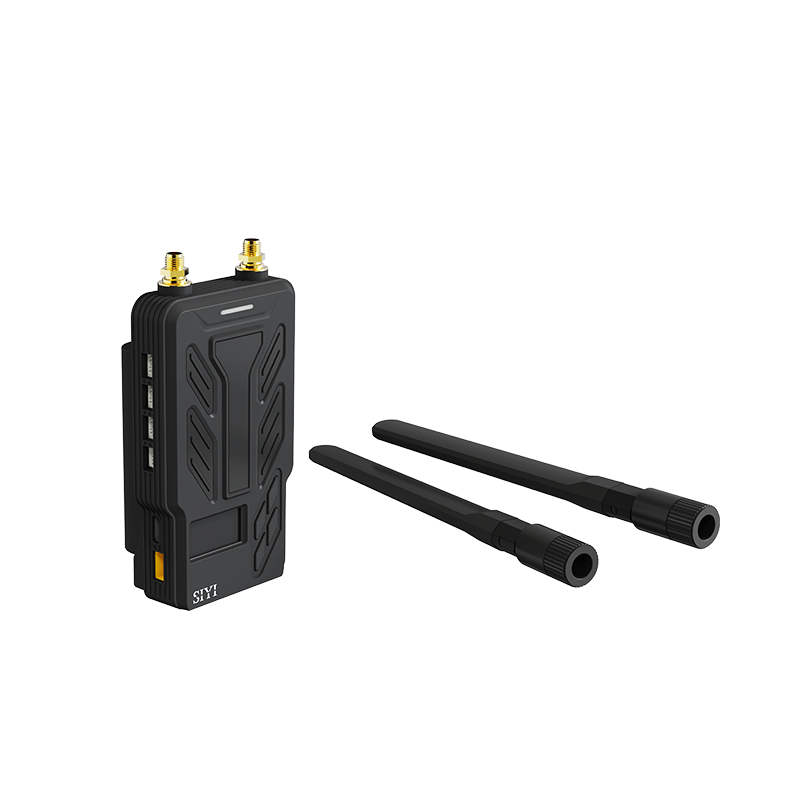

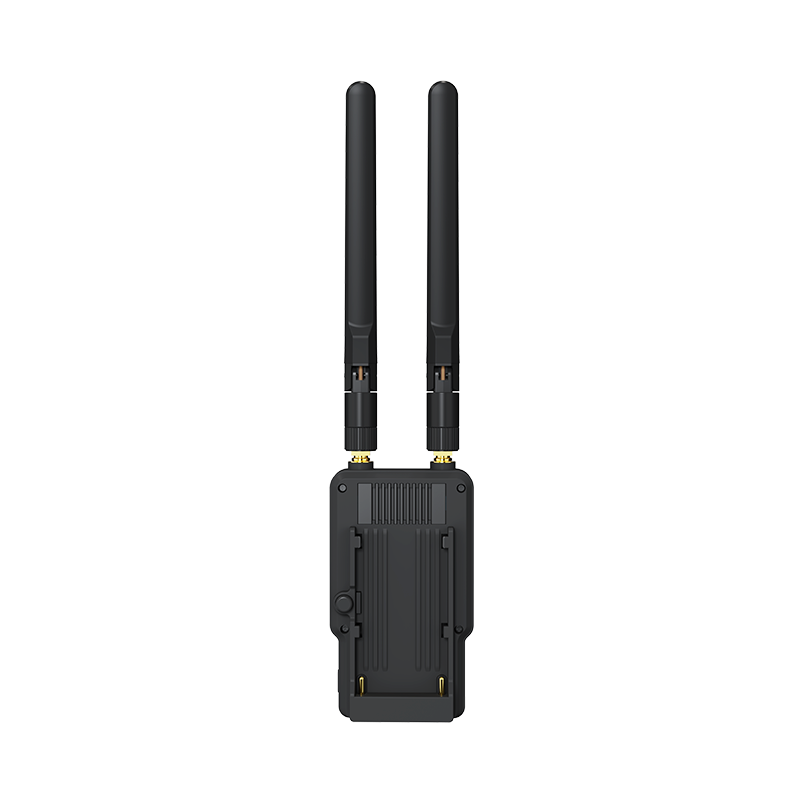

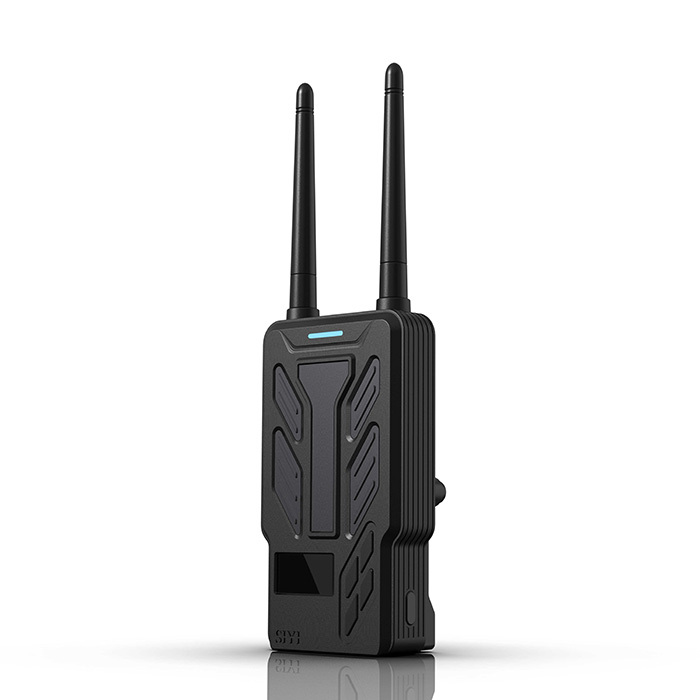

Ground Unit
Monitor Display

0.96-inch OLED Display

Compatible Battery Type

NP-F550 / F750 / F950 quick release battery

(The Fly More Combo comes with an NP-F750 battery)

Fast Charging Protocol

PD 30W

Antenna Gain

Standard Omni Antenna: 5 dBi

Standard Long-Range Antenna: 11 dBi

Lollipop Antenna: 5 dBi (optional)

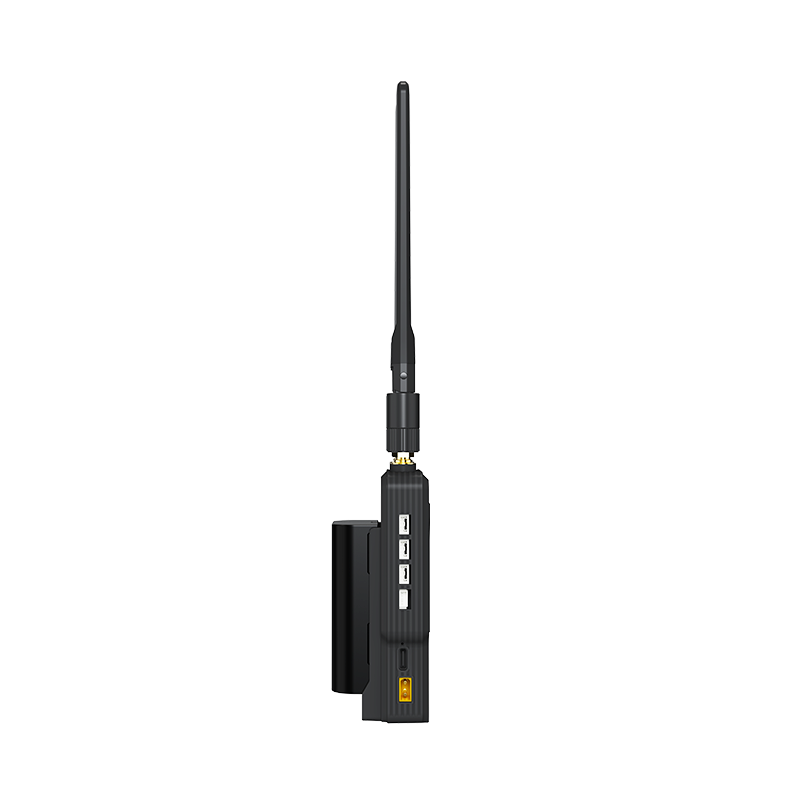

Interface & Ports

S.Bus / PPM RC Signal Input: RC (GH1.25 4-pin)

Datalink Output: UART (GH1.25 4-pin)

Ethernet Port: LAN (GH1.25 4-pin)

Power Output: VCC (GH1.25 4-pin)

Datalink Output to GCS: Type-C

Firmware Upgrade: Type-C

Charging to Quick Release Battery: Type-C

Power Input: PWR (XT30)

Tripod Connector: 1/4-inch Screw Hole

Power Consumption

5 W

Dimensions

109 x 61 x 28 mm

(Antenna and battery excluded)

Weight

132 g

(Antenna and battery excluded)

Waterproof Level

IP53

Working Temperature

-10 ~ 50℃

Air Unit
Signal Output

16 channels of SBUS

5 channels of PWM

Interface & Ports

S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin)

Datalink (to FC): UART (GH1.25 4-Pin)

PWM Channel 1 to 5: PWM (GH1.25 6-Pin)

Video Input / Network Communication: LAN & PWR (GH1.25 8-Pin)

Firmware Upgrade: Type-C

Antenna Gain

Omni Antenna: 5 dBi

Lollipop Antenna: 5 dBi (optional)

Working Voltage

HM30 Air Unit:

3S ~ 6S / 12.6 ~ 25.2 V



4S to 18S Power Module (optional):

16.8 ~ 75.6 V

Power Consumption

HM30 Air Unit:

-Average: 2.8 W

-Summit: 12 W



HM30 Air Unit + 4S to 18S Power Module:

-Average: 3.2 W

-Summit: 12 W

Dimensions (Antenna Excluded)

70 x 55 x 16 mm (fan included)

Weight (Antenna Excluded)

HM30 Air Unit:74 g



HM30 Air Unit + 4S to 18S Power Module:109 g

Working Temperature

-10 ~ 50℃

R1M Recording FPV Camera
Video Output

Ethernet

Image Sensor

1/2.9 Inch, 2 MP

FOV

Diagonal: 90°

Horizontal: 80°

Working Voltage

12 V

Power Consumption

2.5 W

Video Recording Resolution

1080p (1920*1080) @ 30 fps

720p (1280*720) @ 30 fps

Video Recording Bitrate

12 Mbps

Video Recording Format

MP4

Supported TF / SD Card Type

MicroSD Class10

Less than 32GB

Supported File System

FAT32

Dimensions

42 x 42 x 25 mm

Weight

23 g

Working Temperature

-10 ~ 50℃

Air Unit HDMI Input Converter (Optional)
Video Input

Micro HDMI

Video Output

Ethernet

Working Voltage

12 V

Power Consumption

3 W

Video Recording Resolution

1080p (1920*1080) @ 30 fps

720p (1280*720) @ 30 fps

Video Recording Bitrate

12 Mbps (H265 codec)

Supported File System

FAT32

Video Recording Format

H265

Supported TF / SD Card Type

MicroSD Class10

Less than 32GB

Dimensions

42 x 41 x 11 mm

Weight

26 g

Working Temperature

-10 ~ 50℃

Ethernet to HDMI Converter (Optional)
Video Input Port

Ethernet

Video Output Port

Micro-HDMI

Working Voltage

8.4 ~ 25.2 V

Power Consumption

Average: 1.5 W

Summit: 5 W

Video Recording Resolution

1080p (1920*1080) @ 30 fps

720p (1280*720) @ 30 fps

Video Recording Bitrate

12 Mbps (H265 codec)

Supported File System

FAT32

ExFAT

Video Recording Format

MP4

Supported TF / SD Card Type

MicroSD Class10, max 128 GB

Dimensions

42 x 37 x 13 mm

Weight

25 g

Working Temperature

-10 ~ 55℃
