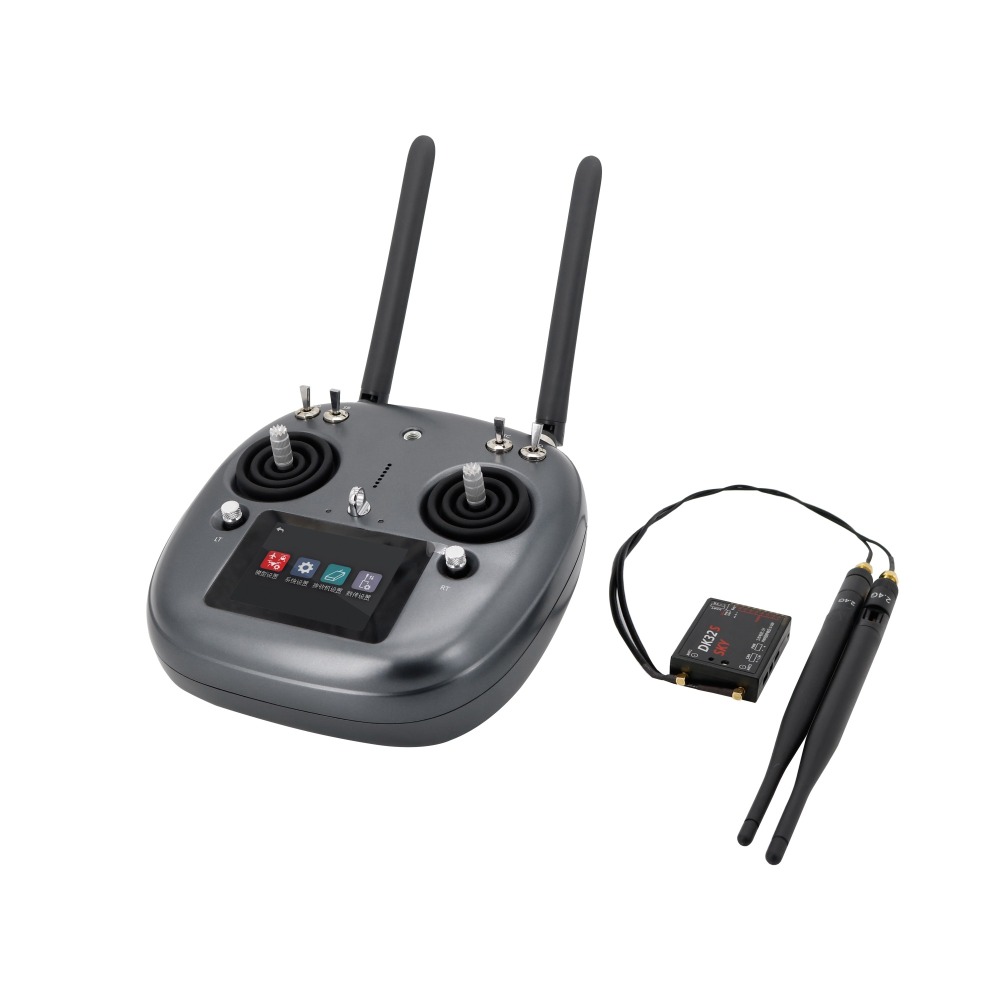

SIYI DK32S is a professional radio transmitting and receiving system for rc helicopter, airplane, multicopters, UAV agriculture drones and robotic applications. It is based on FHSS frequency hopping technology. The radio & datalink transmission distance is up to 20km. It is compatible with Topgun, Xaircraft, Boying, PIX, APM, Jiyi and other flight controller in the market.
Main Features:

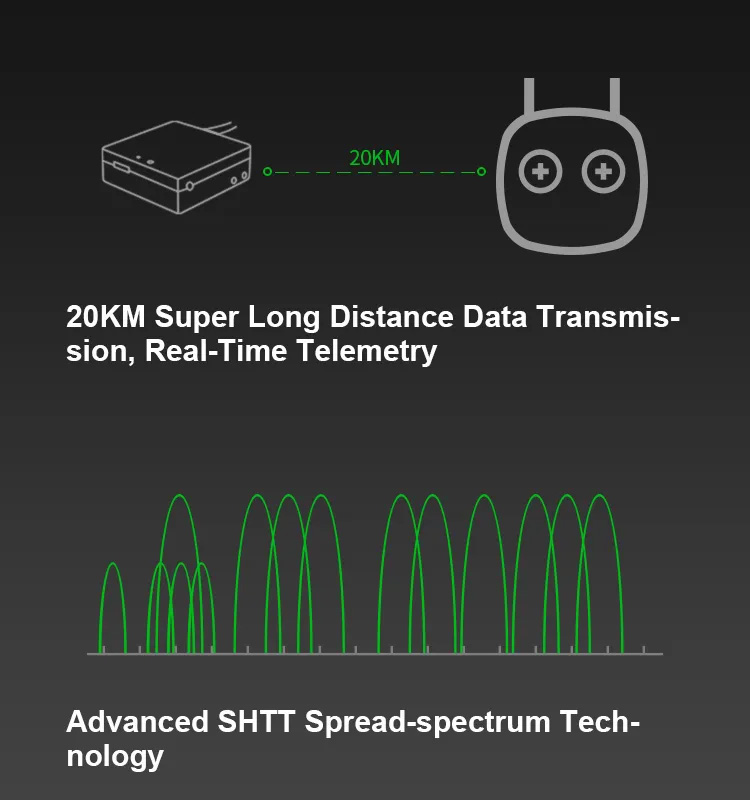

1. 20KM super long distance data transmission and real-time telemetry

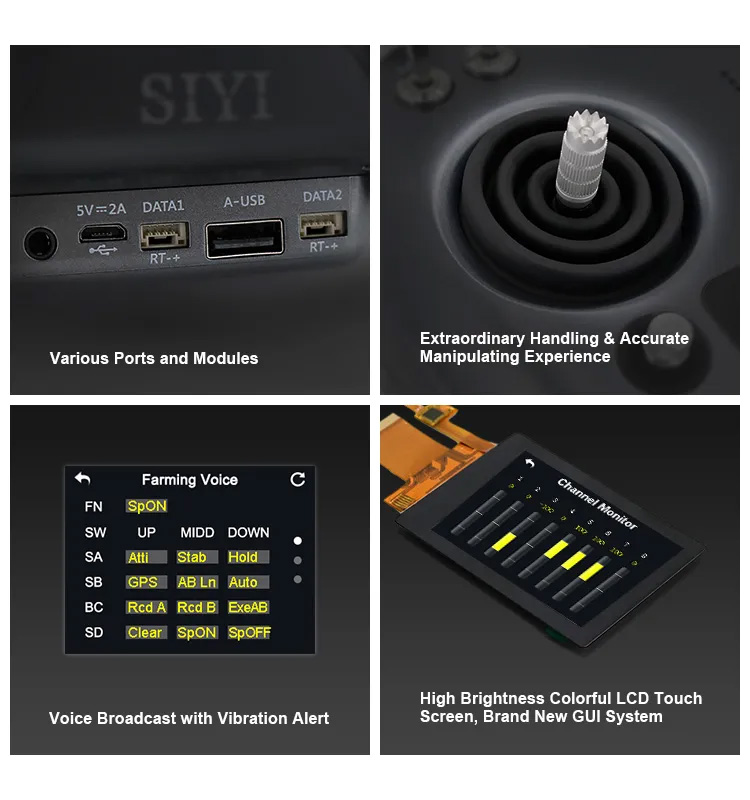

2. Extraordinary handling & accurate manipulating experience
3. Advanced SHTT spred-spectrum technology
4. 16-Channel multi-functional fast-response mode
5. Voice broadcast with vibration alert
6. High brightness colorful LCD touch screen, brand new GUI system
7. Fufills the requirements of complicated models or robots
8. Multi-drone control by one radio
Specifications:
Item Brand: SIYI
Item Model: SIYI DK32S
Transmission Range (Radio & Datalink): up to 20 km
Frequency Band: Radio & Datalink 2.400-2.483 GHz
Video: 5.8 Ghz
Channels: 26 physical channels, 16 transmitting channels
Applicable Models: Planes/Helicopters/Gliders/Quadcopters/Multi-rotors/Vehicles/Boat/Robotics

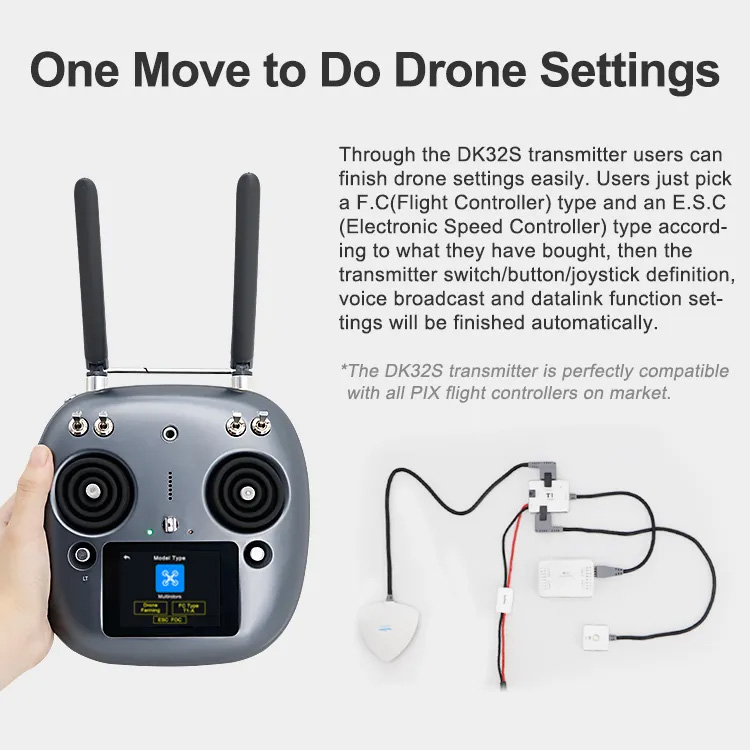

Compatible Flight Controllers: TOPXGUN T1-A, WOOZOOM THEONE-A – A, EFY FINIX200M, JIYI K3-A, BOYING PALADIN, CHIAO MATRIX, CFUAS C1-A, PIX, APM
GROUND STATION (TRANSMITTER)
Ports for Video Output: USB
Ports for PC, Tablets, and Smartphone: Micro-USB/Bluetooth
Touchscreen Language Display: Chinese/English
Dimensions: 194.5 x 172.5 x 114 mm
Item Weight: 942 g (with phone holder)
Operating Temperature: 0℃ ~ 55℃
Battery Built-in: 15000 mAh Li-Po 1S 3.7V
Charging Port: Micro-USB (5V/2A)

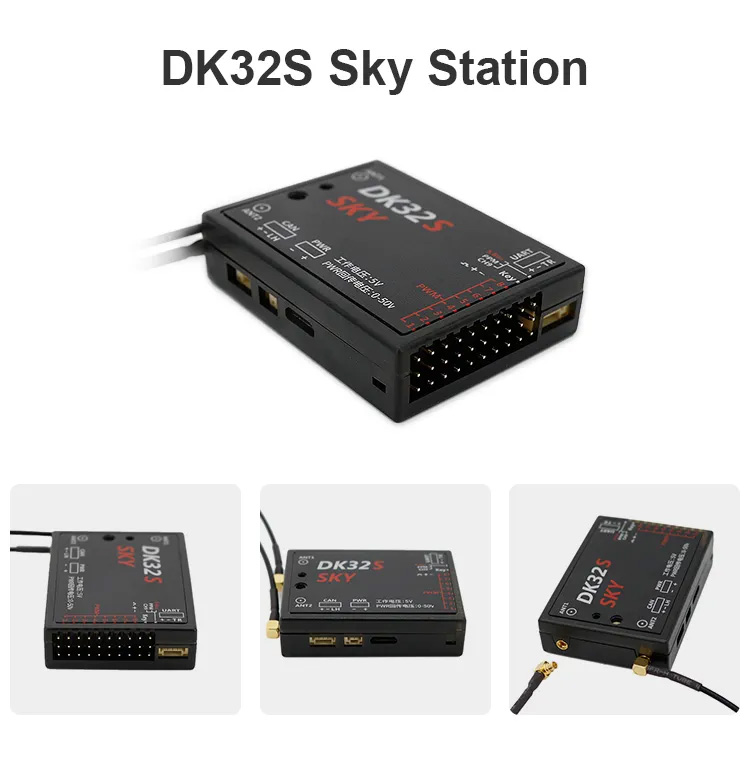

SKY STATION (RECEIVER)
Signal Output: 16 channels of S-Bus, 5 channels of PWM
Ports for Flight Controllers: UART
Dimensions (without antennas): 61 x 60 x 21 mm
Weight (without antennas): 82 g
Antenna Gain: 5 dBi
Working Voltage: 15 - 50 V
Telemetry Voltage: 15 - 50 V
Operating Temperature: -10℃ ~ 55℃
Note: Due to the built-in battery in the radio, the shipping time will be longer than usual.
Note: When you place the order, Plese leave the following information in the comment bar: 1. Will you use the radio on Multirotors, Agriculture drone or airplanes or other? 2. What flight controller do you use? (For different FC, we will send the proper compatible cables with the radio)
