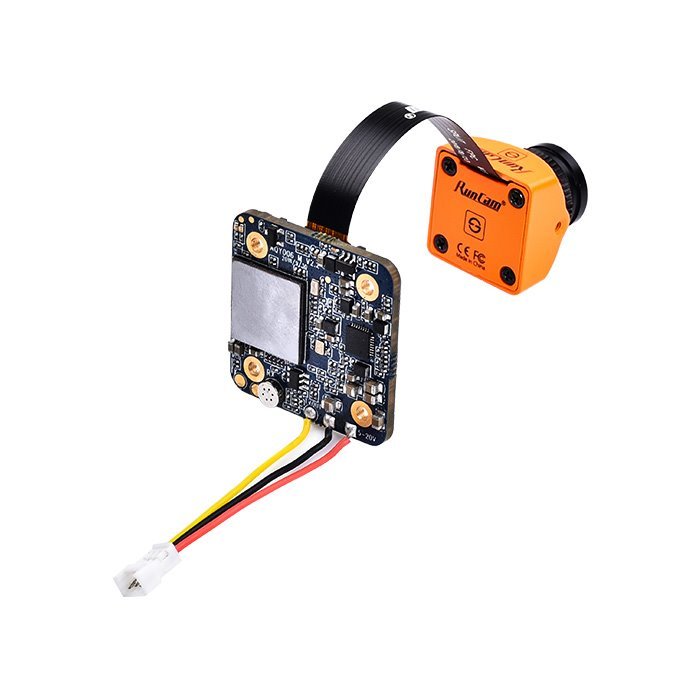

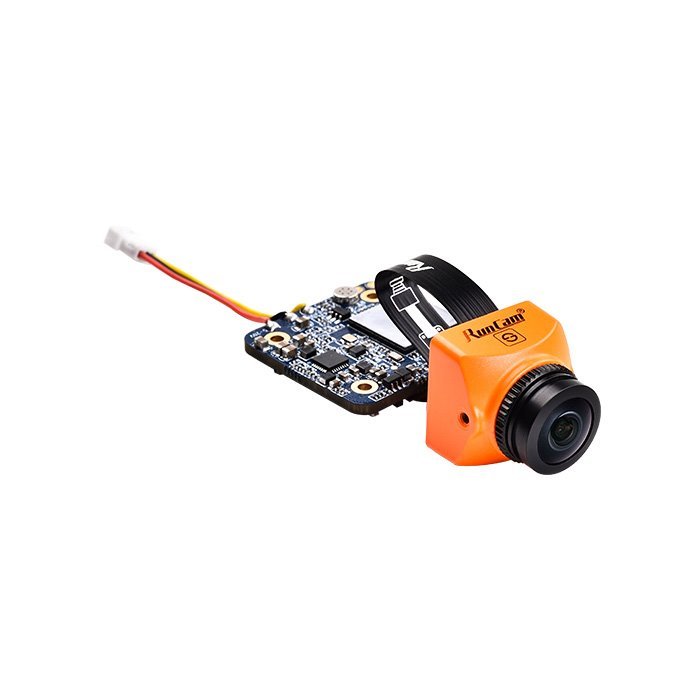

Runcam Split Mini FPV camera is the mini version of the pupular Runcam split 2, it has all the features as the Runcam split 2 (except the wifi module),smaller size,lighter weight and 20 x 20 mm mounting hole. It is perfectly suitable for mini size frames (90mm to 150mm).With it, you can capture the HD footage during our FPV on those small size racing quad.
Main Features:
1. The camera can be used as FPV camera during FPV flying while recording 1080p60fps footages.
2. Power-off protection for video files
3. Ultra light weight--15g
4. Low latency TV-OUT
5. Wide votage(5-17V)
6. Anti-drop SD Card
7. Modular design, lens is replaceable
Specifications:
FOV Angle of Field: FPV FOV 130°/ Recording FOV 165°
Video Resolution: 1080@60fps / 1080@30fps / 720@60fp
Video Files: MOV
Image Resolution: 2MP
TV Output: NTSC (720*480) / PAL (720*576) Switchable
Interface: Micro USB / UART
Max Micro SD Card Supported: 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II)
Hole Distance of Installation: 20*20mm
Dimensions: PCB 27*29mm / Lens Module 19*19mm
Power Input: DC 5-17V/DC 5V(USB)
Working Current: 650mA @5V / 270mA @12V
Weight: 15g
Package Included:
1xCamera
1x Metal Cover
1x SD card protector
1xBracket
1xTV-out and power cable
1x3pin FPV Silicone Cable (male)
1x3pin FPV Silicone Cable (female)
1xSet of screws
