Pixhawk 4 GPS Module

SKU: NA0301
0.0 (0)
$59.99 $0.00
UBLOX M8N GPS
GPS module for PIXHAWK 4
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
    Please select the information you wantX
Quantity:
  • Pixhawk 4 GPS Module
  • Pixhawk 4 GPS Module
  • Pixhawk 4 GPS Module
  • Pixhawk 4 GPS Module
Frequently Bought Together
more
Frequently Bought Together
  • Description

Holybro GPS module is specially designed for PIXHAWK4 flight controllers. It has UBLOX M8N module on it, as well as IST8310 compass and tri-colored LED indicator. Also the Safety switch on it will make the connection more convenient and simple.

This module ships with a baud rate of 38400 5Hz



Features and Specifications:

- Ublox Neo-M8N module
- Industry leading –167 dBm navigation sensitivity
- Cold starts: 26s
- LNA MAX2659ELT+
- 25 x 25 x 4 mm ceramic patch antenna
- Rechargeable Farah capacitance
- Low noise 3.3V regulator
- Fix indicator LEDs
- Protective case
- 26cm Pixhawk4 compatible 10-pin cable included
- Diameter 50mm total size, 32 grams with case.

pixhawk flight controller gps

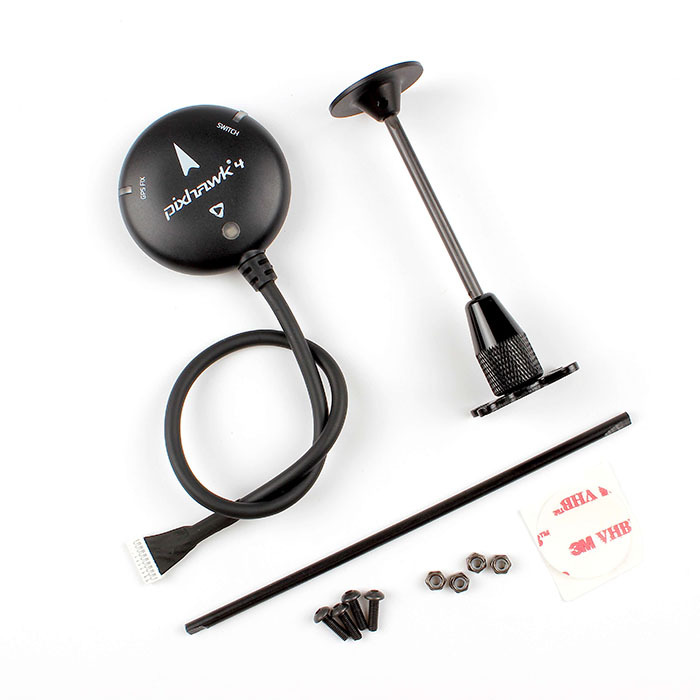

Package Included:

- NEO-M8 with compass module *1

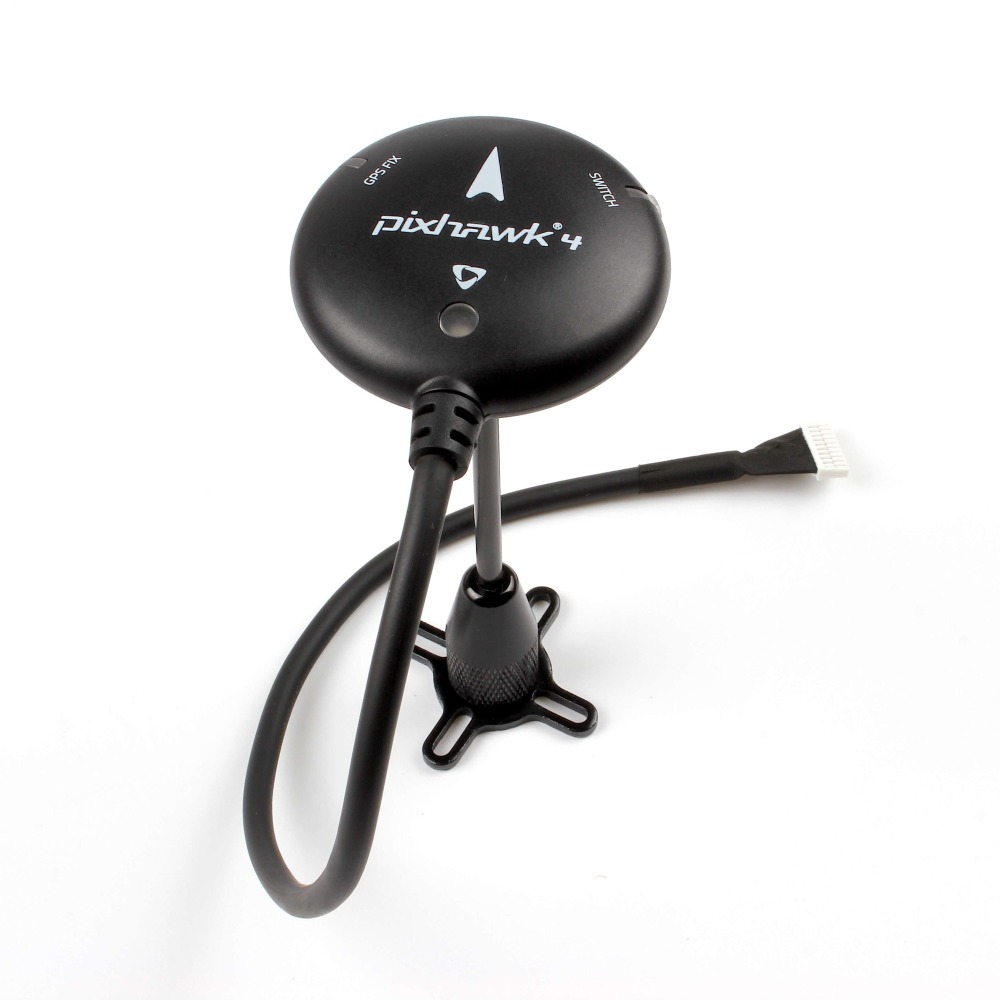

- ‘X’ type folding pedestal mount *1
- Carbon rod 70mm & 140mm *1
