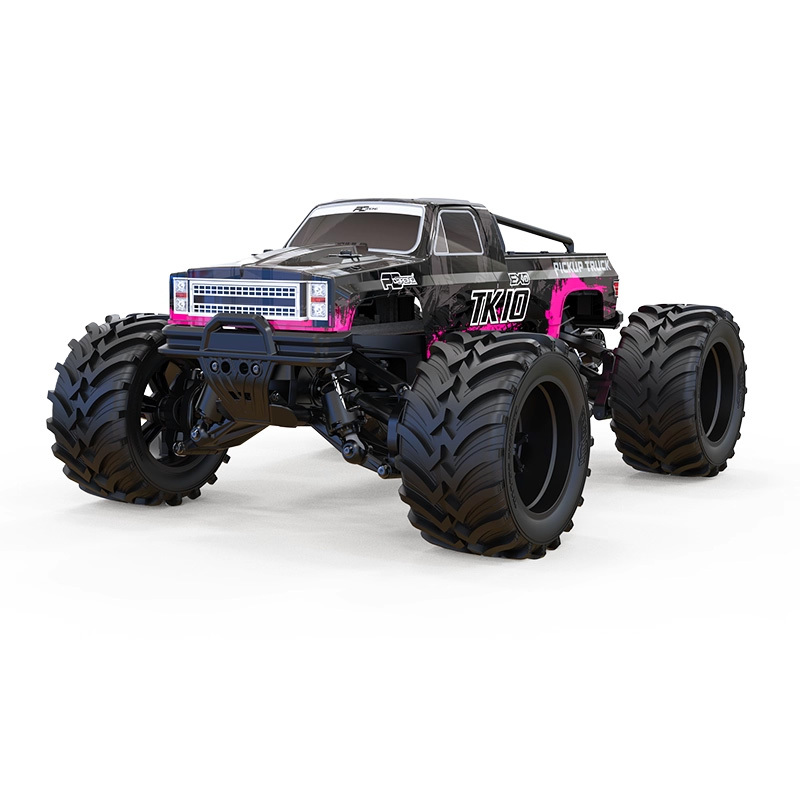

PD Racing TK10 V3 EXB 1/10 Brushless Off-Road RC Monster Truck

TK10 V3 Upgrade Parts

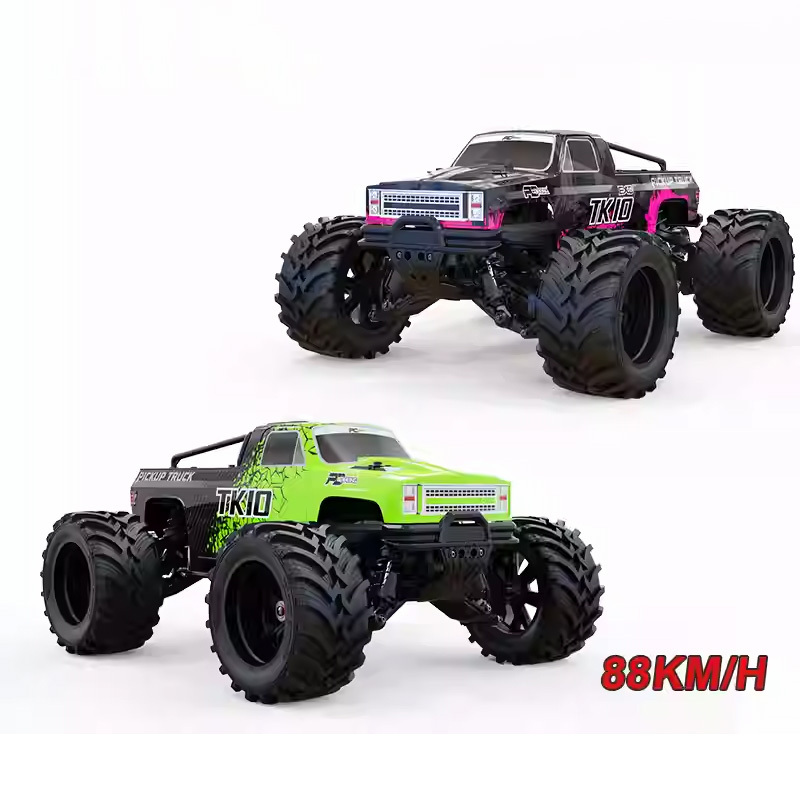

The PD Racing TK10 V3 EXB is a high-performance 1/10 scale brushless off-road RC car, engineered for extreme durability, precise control, and aggressive driving.

Powered by a 3670 KV1950 brushless motor and a 120A brushless two-in-one gyro ESC, the TK10 V3 EXB delivers explosive acceleration, high-speed stability, and a top speed of up to 88 km/h.

With EXB-level structural upgrades, reinforced driveline components, and extended oil-filled suspension, this platform is built to dominate rough terrain, high-speed runs, and hard landings.

Key Features

🔹 EXB Reinforced Body & Protection

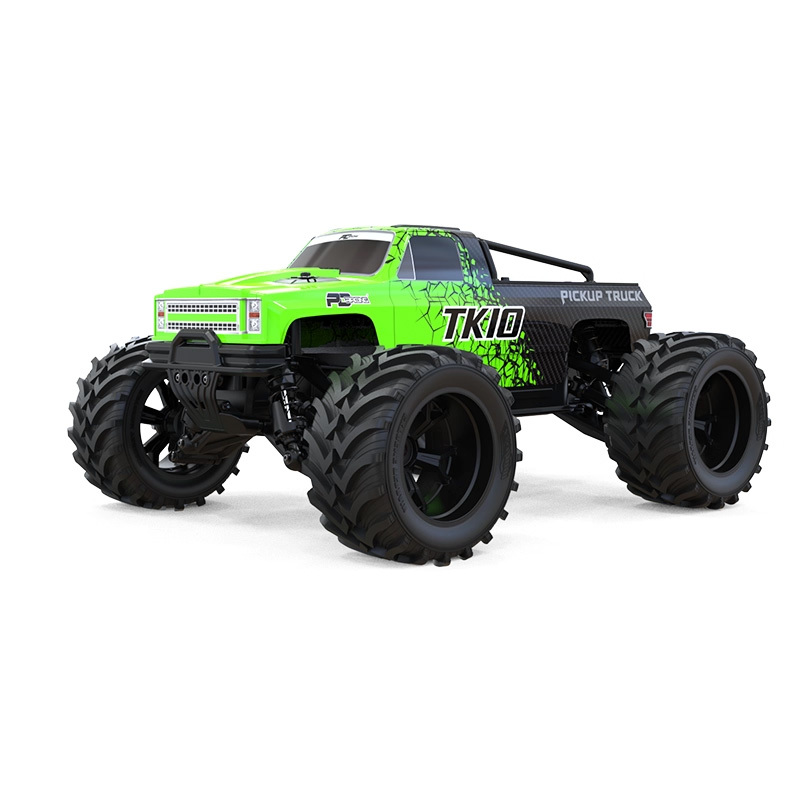

• PC body shell with 2 paint options, combining aggressive styling with durability

• External front & rear bumpers (upgraded from internal design) for stronger impact resistance

• Reduced body tearing during crashes and hard landings

🔹 Upgraded Tire Performance

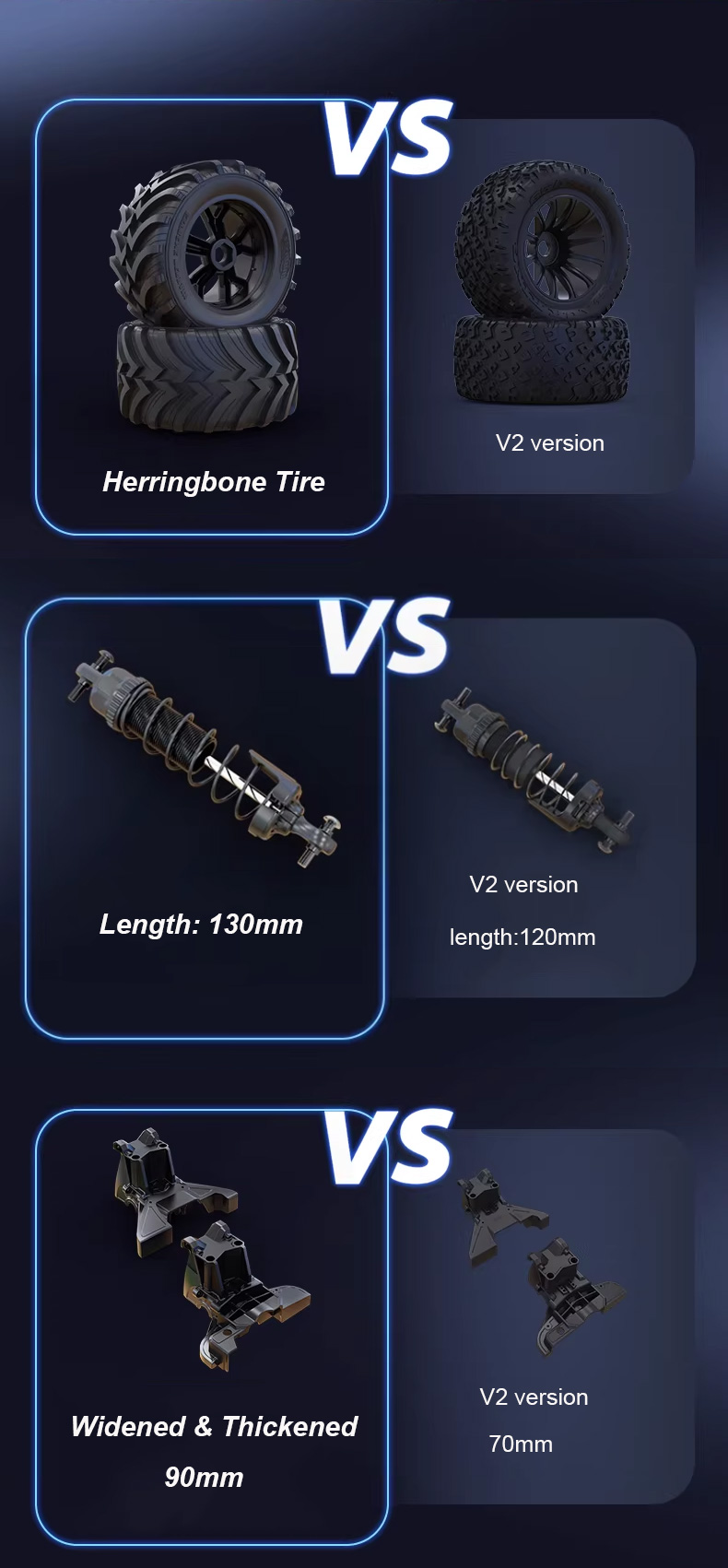

• New high-grip herringbone tires (145mm × 2.3mm)

• Improved traction and wear resistance compared to previous version

• Performs confidently across multiple terrain types

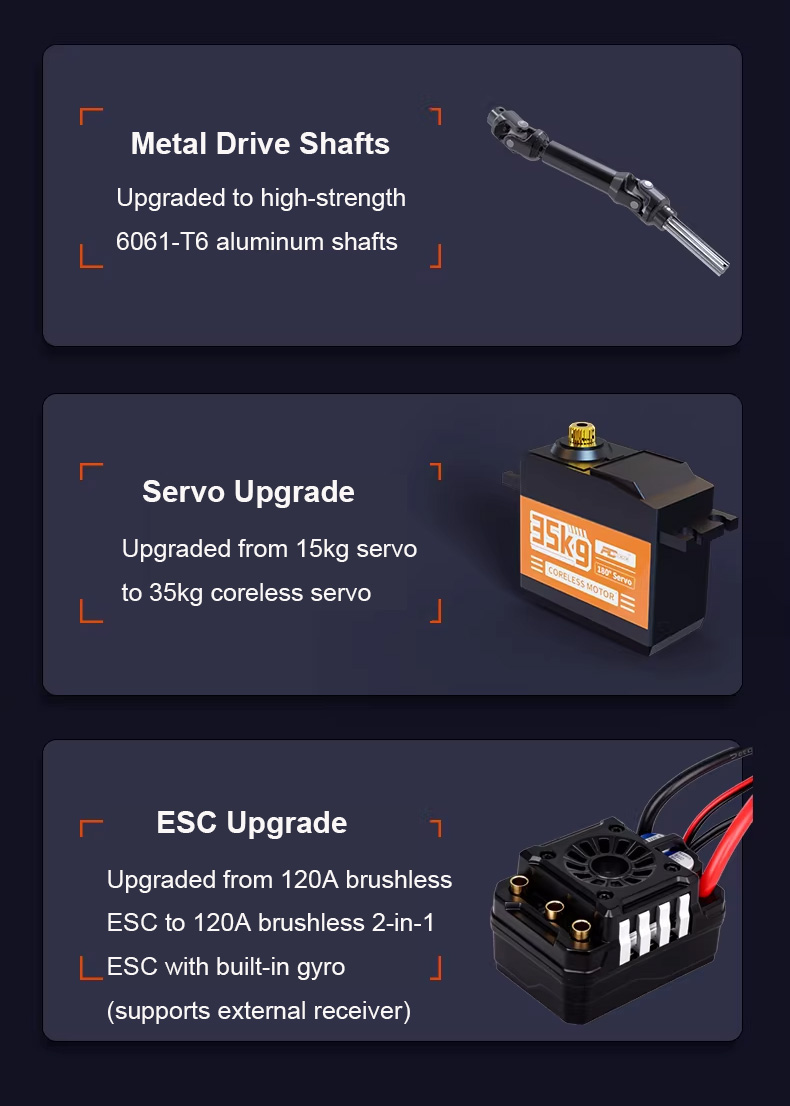

🔹 Strengthened Drivetrain

• Full 6061-T6 aluminum alloy drive shafts

• Increased torsional strength to handle higher brushless power output

🔹 Enhanced Suspension System

• 130mm oil-filled hydraulic shocks, extended by 10mm

• Better damping, improved wheel contact, and smoother handling on rough terrain

• Optimized front & rear body braces increase chassis rigidity and suspension travel

🔹 Precision Control & Stability

• 35KG coreless servo for faster steering response and higher precision

• Integrated gyro system enhances stability during high-speed runs and cornering


  Gyro System Overview

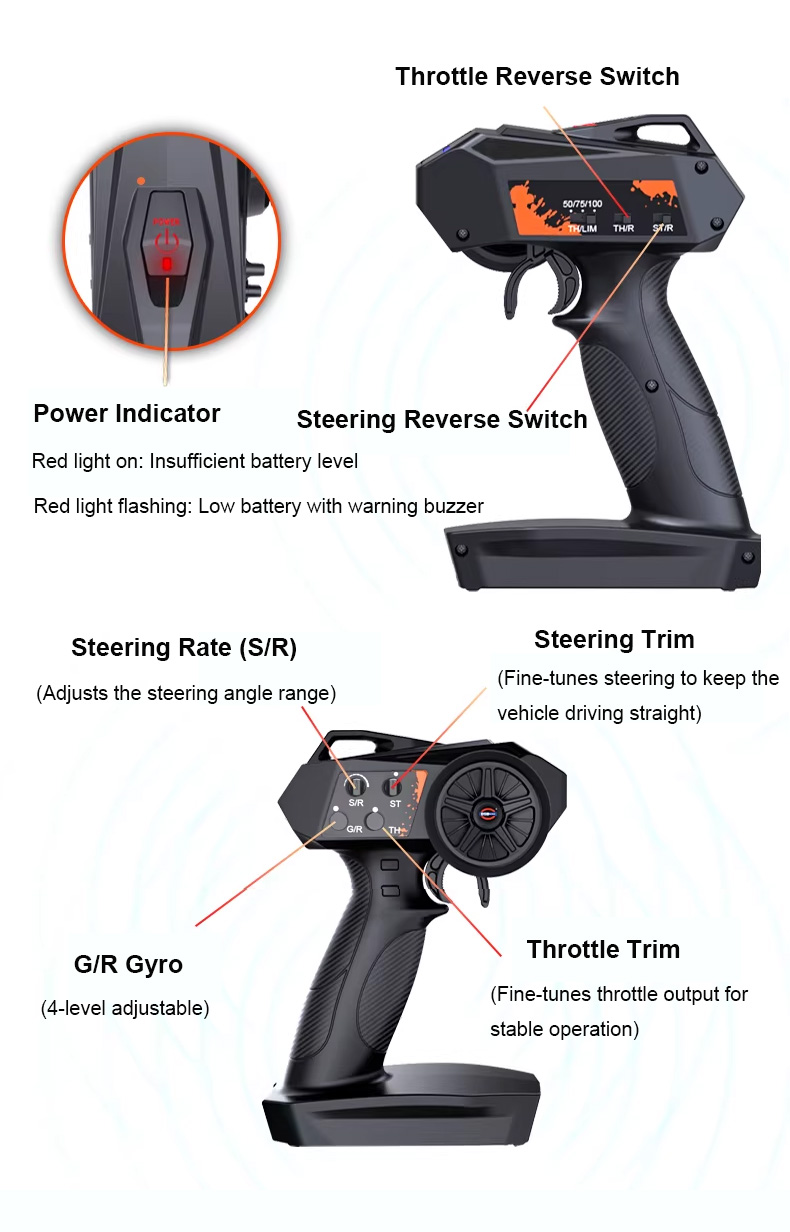

  The gyro sensitivity can be adjusted directly using the G/R button on the transmitter, providing quick, convenient, and efficient operation.

  While the vehicle is in motion, the system continuously monitors the vehicle’s attitude and automatically intervenes to correct steering based on the selected sensitivity level, enhancing overall control precision.

  Whether on low-traction surfaces or during high-speed cornering, the gyro system delivers intelligent assistance to improve stability and handling, allowing the vehicle to confidently tackle a wide range of challenging driving conditions.



  G/R Gyro Sensitivity Adjustment Guide

  The G/R gyro system supports four adjustable levels, which can be switched using the transmitter button.
  Each time the mode is changed, the buzzer will sound a corresponding number of beeps to indicate the current level.

  ● 1 Beep – OFF Mode

  Sensitivity: 0% | Priority: None
  The gyro system is completely disabled, and the vehicle receives no electronic steering assistance.

  ● 2 Beeps – Low Level

  Sensitivity: 40% | Priority: 100%
  Ideal for high-traction surfaces, providing subtle steering corrections with high system priority.

  ● 3 Beeps – Medium Level

  Sensitivity: 65% | Priority: 90%
  Suitable for low-traction surfaces, balancing responsiveness and stability.

  ● 4 Beeps – High Level

  Sensitivity: 90% | Priority: 80%
  Recommended for beginners, with the system prioritizing vehicle stability.



  Adjustment Method

  Press the G/R gyro button once to switch to the next sensitivity level.
  The number of buzzer beeps indicates the current level.

  When the system reaches Level 4, pressing the button again will return it to Level 1 (OFF).
  The settings cycle continuously in this order.





Specifications

Scale: 1/10
Model: TK10 V3 EXB

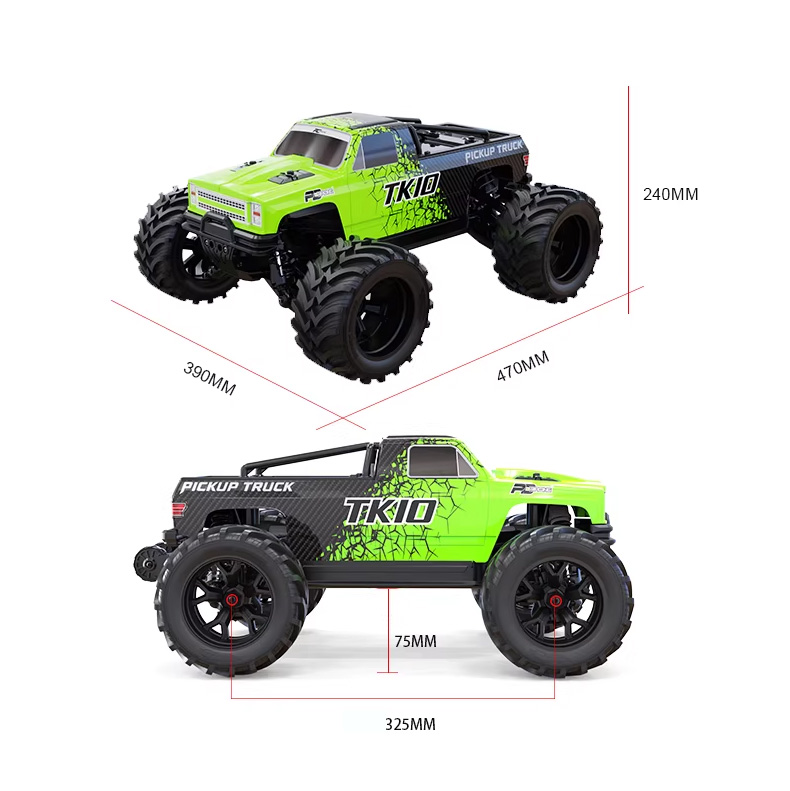

Dimensions: 47 × 39 × 24 cm

Motor: 3670 KV1950 Brushless Motor
ESC: 120A Brushless Two-in-One ESC with Gyro
(External receiver compatible)

Servo: 35KG Coreless (Hollow Cup) Servo
Body Shell: PC (Polycarbonate)
Tires: 145mm Diameter × 2.3mm Thickness
Drive Shafts: 6061-T6 Aluminum Alloy
Shock Absorbers: 130mm Oil-Filled Shocks (10mm longer than previous version)

Package Includes

• PD Racing TK10 V3 EXB RC Car (Battery not included)

• Transmitter

• User Manual

• Wheels

• Hex Wrench Set
