Specification
- Radio module:
- Espressif ESP-C3 module
- Bluetooth and WiFi 2.4GHz (ERP): + 20 dBm (100 mW)
- FCC & CE certified radio module
- Firmware:
- ArduRemoteID (https://github.com/ArduPilot/ArduRemoteID).
- Supports upgrading firmware via the web interface (“OTA”)
- Supported in PX4 & Ardupilot
- Protocol: CAN & Serial
- Interface:

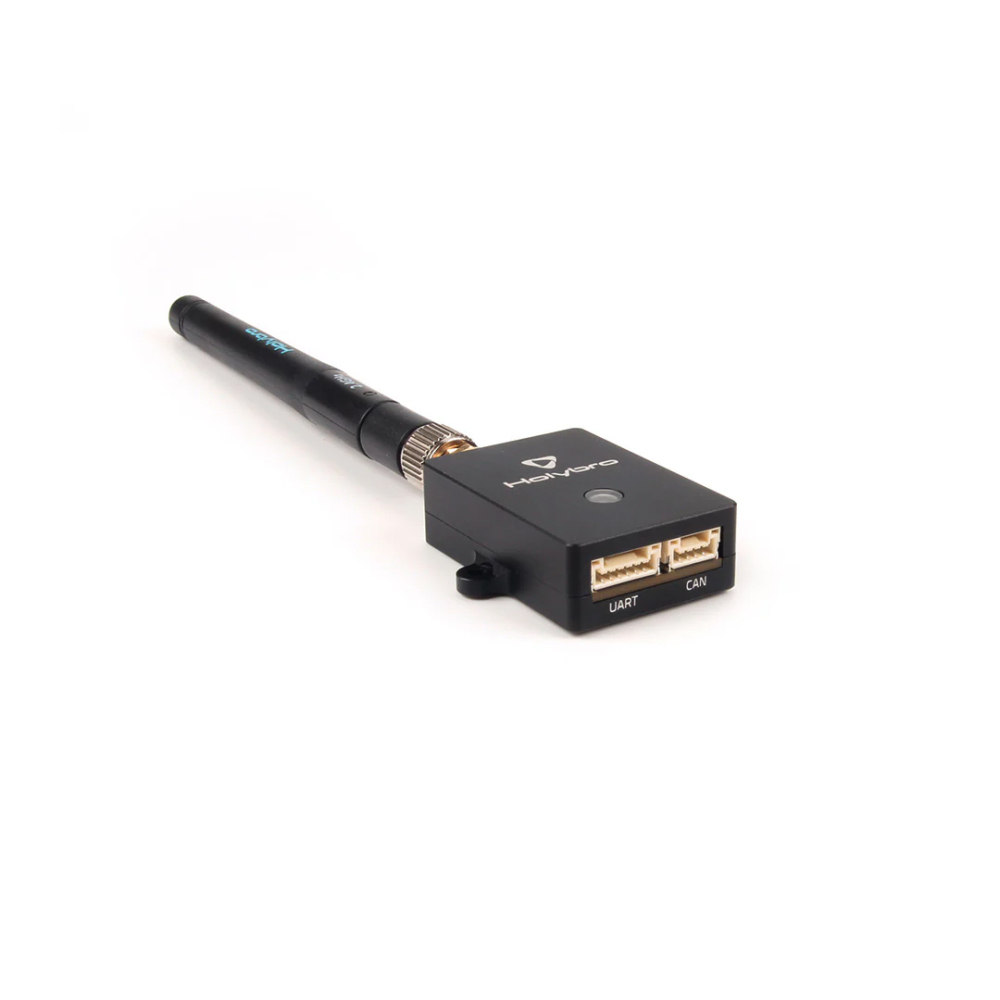

- 1x JST GH 4-pin CAN (CAN) port
- 1x JST GH 6-pin TELEM (UART) port
- Antenna Connector type:

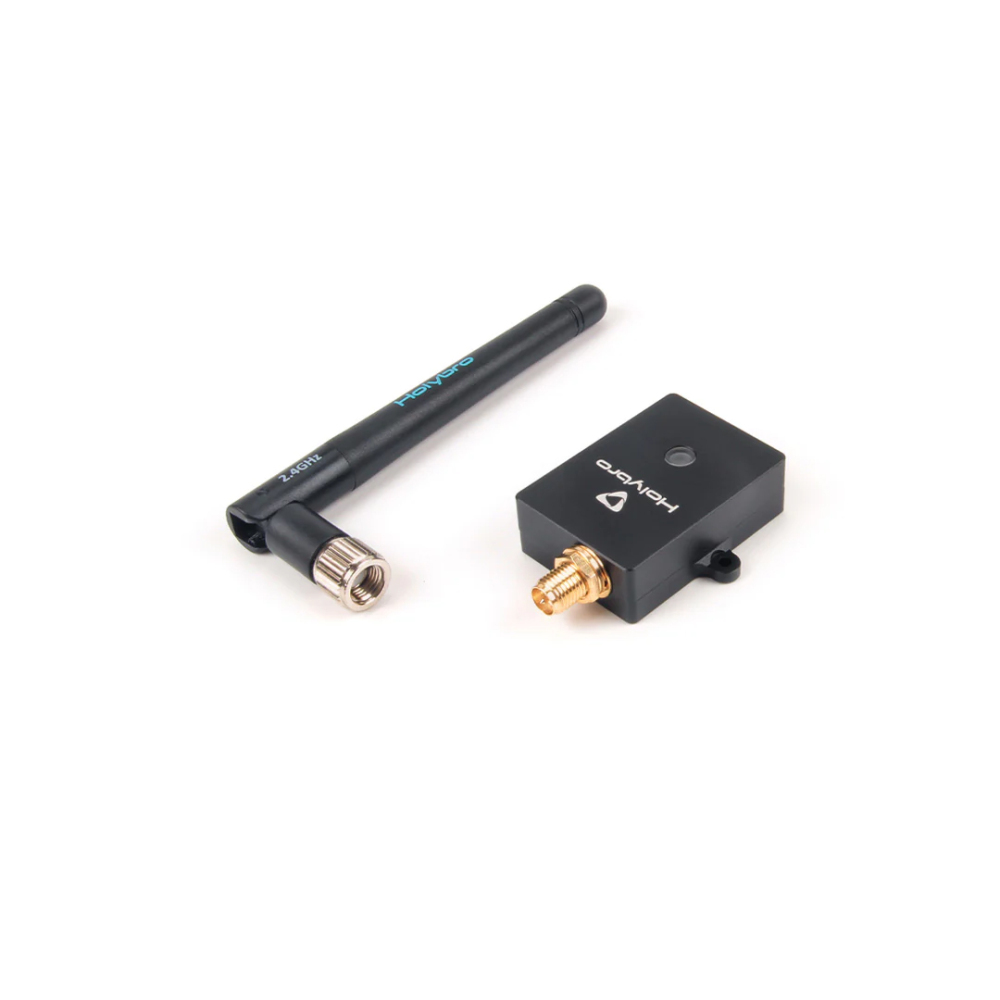

- On CNC Case: SMA connector
- On PCB: IPEX Connector
- Range: > 5km detection range*
- Power: 5V supplied from TELEM or CAN port
- LED lights: Bright RGB status LED
- Size:
- Without case: 35.3 x 23.5 mm (not including antenna)
- With CNC case: 38 x 26.5 x 11.5 mm (not including antenna)
- Mount: M2 screws
- Operating temperature: -40°C to +85°C
- Weight:
- PCB only: 4 g

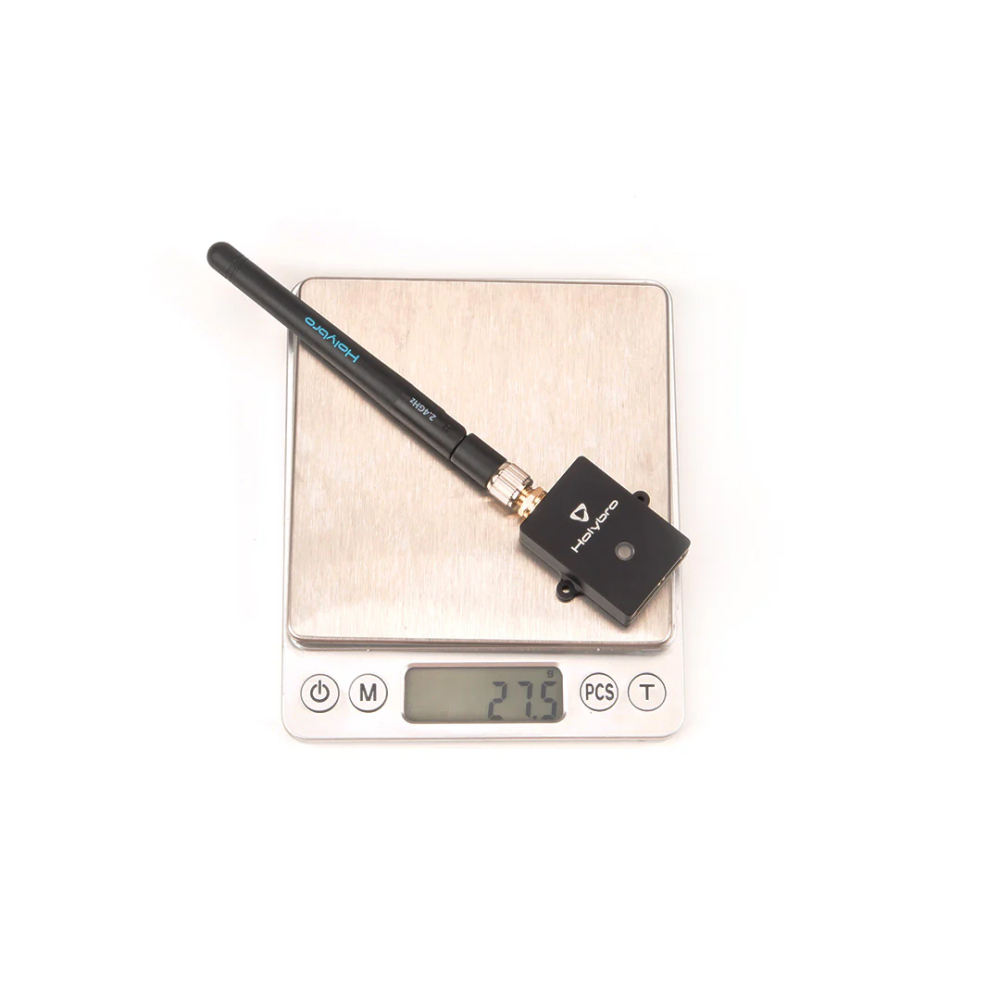

- With CNC case & Antenna: 27.5g
- Without case & Antenna: 16.5g (Cable 20cm)
- Certification: FCC& CE
* The detection range depends on many factors such as the receiver antenna gain, transmission protocol, weather conditions, flying height, receiver height line of sight etc. With professional receivers a range of 5 km and more is possible.
Guides & Reference Link
- Holybro Doc
- Ardupilot
- PX4
PINMAP
