Holybro PM07-12S Power Module Pixhawk 4 Power Module

SKU: NA0316
0.0 (0)
$45.99 $0.00
Pixhawk 4 Power Module(PM07). This PM is compatible with Pix32, Pix32 V5, Pixhawk4, Pixhawk4 mini, and Durandal and pixhawk 6C.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
    Please select the information you wantX
Quantity:
  • Holybro PM07-12S Power Module Pixhawk 4 Power Module
  • Holybro PM07-12S Power Module Pixhawk 4 Power Module
  • Holybro PM07-12S Power Module Pixhawk 4 Power Module
  • Holybro PM07-12S Power Module Pixhawk 4 Power Module
  • Holybro PM07-12S Power Module Pixhawk 4 Power Module
Frequently Bought Together
more
Frequently Bought Together
  • Description

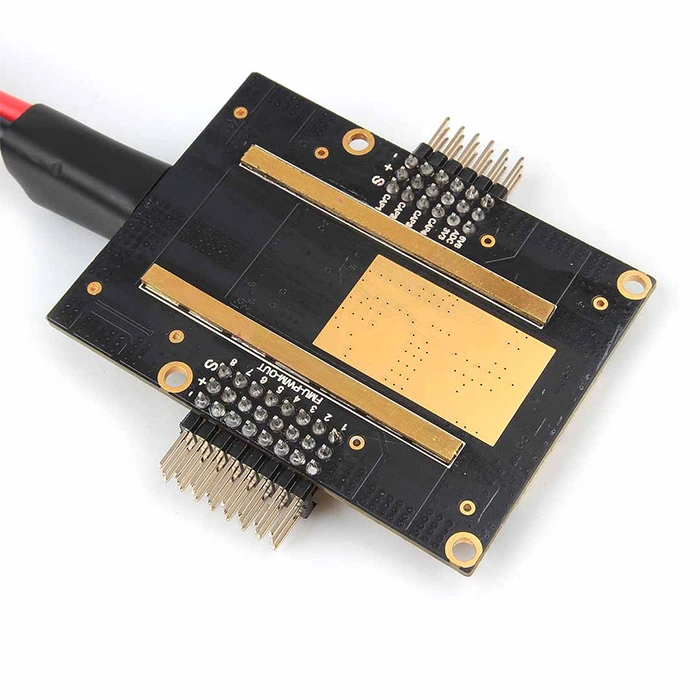

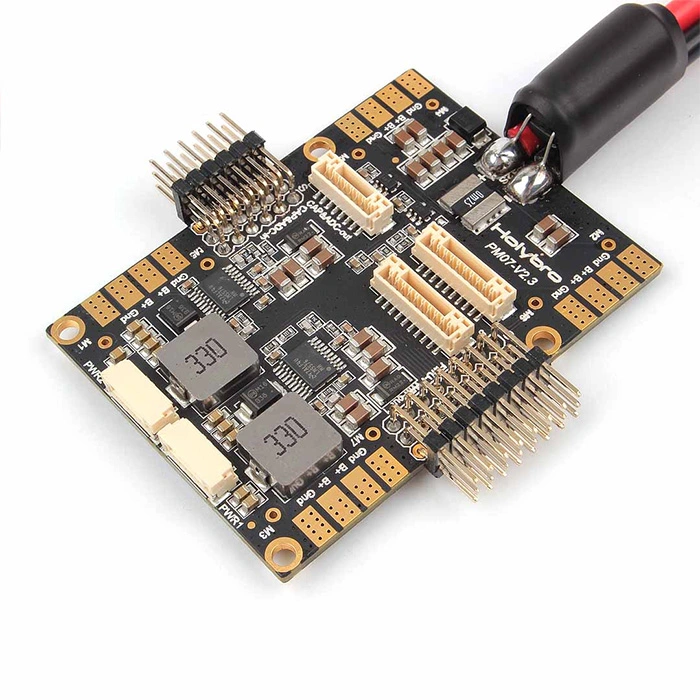

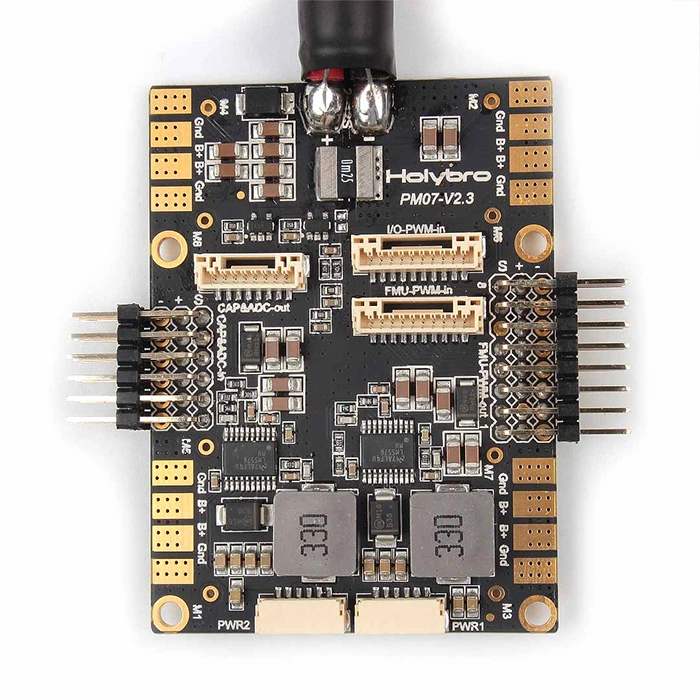

The Power Management Board (PM Board) serves the purpose of a Power Module as well as a Power Distribution Board. In addition to providing regulated power to Pixhawk 4 and the ESCs, it sends information to the autopilot about battery’s voltage and current supplied to the flight controller and the motors.

Specifications:
PCB Current: total 120A outputs (MAX)
UBEC 5v output current :3A
UBEC input voltage : 7~51v (2~12s LiPo)
Dimensions:68*50*10 mm
Mounting Holes:45*45mm
Weight: 47.5g

Package Include:
1x   Holybro PM07 board
1x   80mm XT60 connector wire (installed)
1x   Electrolytic capacito: 220uF 63V (installed)
2x   JST GH 10P Cable
1x   JST GH 8P Cable
2x   JST GH 6P Cable
