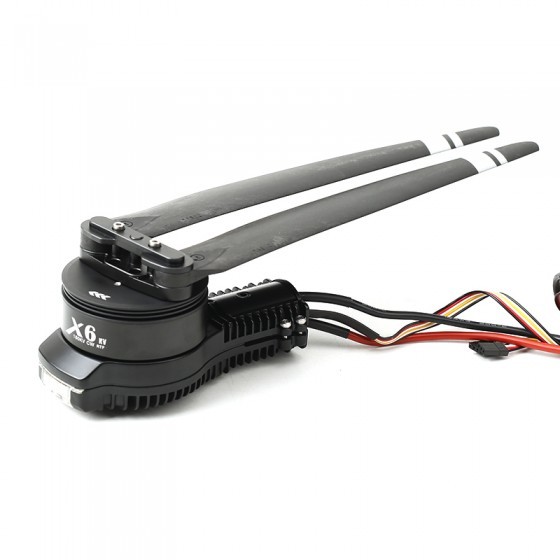

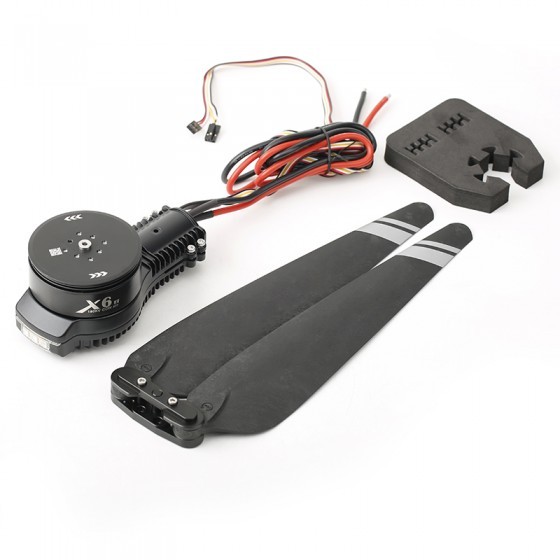

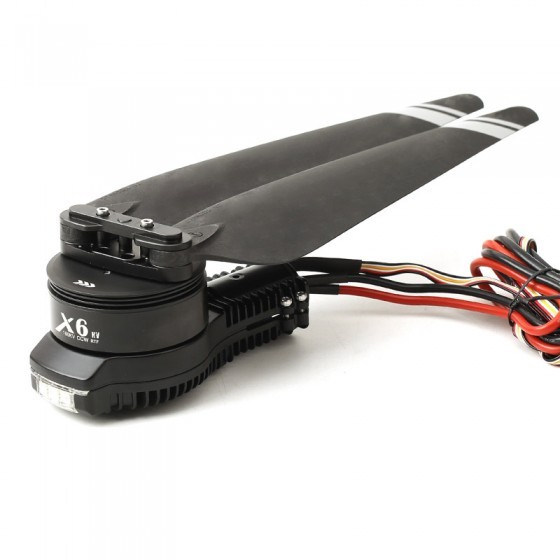

Hobbywing Xrotor X6 plus power system is the upgrade version of the X6. Compared with X6, the X6 Plus prolonged flight time (8% increased in efficiency increases battery lifespan) and and drone can fly more stable due to the double throttle signal.
Specifications:
Item Brand: Hobbywing
Item Model: X6 Plus
Max. Thrust: 11.8kg/Axis (46V, Sea Level )
Recommended LiPo Battery: 12S-14S LiPo
Recommended Takeoff Weight: 3.5-5.5 kg/Axis(46V,Sea Level)
Combo Weight: 790g
Waterproof Rating: IPX6
Operating Temperature: -20℃~50℃
Motor
KV Rating: 150KV
Stator Size: 62*18mm
powertrain arm tube outer diamter: 30mm
Bearing: Imported Bearing from Japan
ESC
Recommended LiPo Battery: 12-14S LiPo
PWM Input Signal Level: 3.3v/5v
Throttle Signal Frequency: 50-500Hz
Operating Pulse Width: 1100~1940μs (Fixed or cannot be Programmed )
Max. Input Voltage: 61V
Max. Peak Current (10s): 100 A (w/ Good Heat Dissipation )
BEC: No
Propeller:
Diameter×Thread Pitch: 24*80
Main Features:

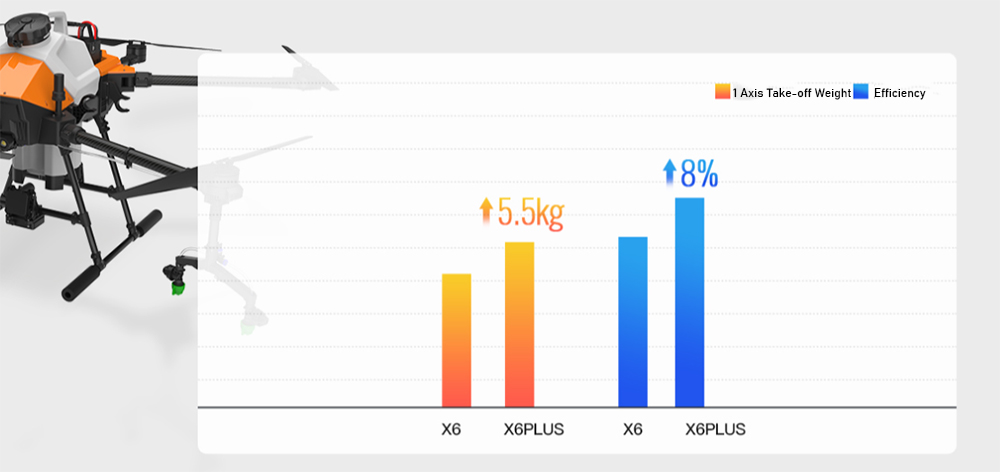

More thrust & Higher efficiency
Based on the X6, the thrust has improved. Compared with the same type of drone, it has more power redundancy and easier flight. Equipped with 2480 carbon-plastic propellers, recommend take-off weight 3.5-5.5kg/rotor. Comparing it with the X6, the system power efficiency has increased by 8% to prolong the flight time under the same working conditions.
Good heat dissipation
The heat dissipation structure of the motor has been upgraded to bring more powerful active heat dissipation.
Under the same working conditions, the heat dissipation effect is better than the X6.

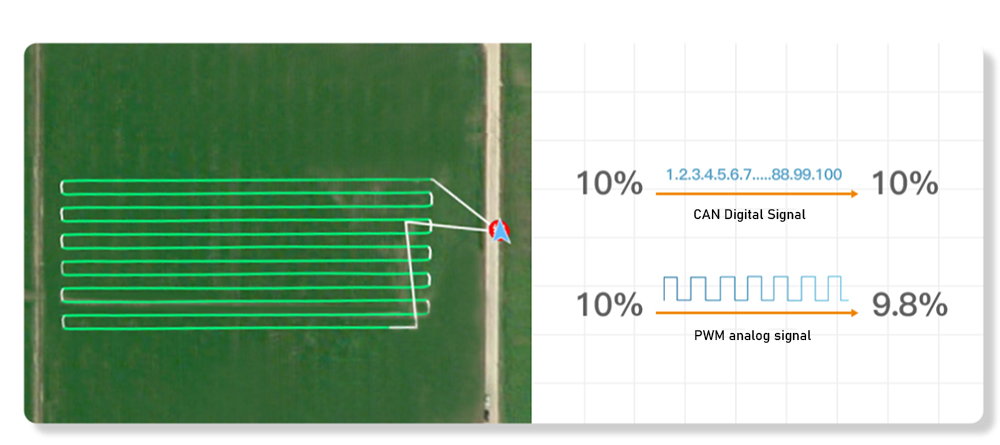

Dual throttle signal & CAN+PWM
PWM analog signal + CAN digital signal , precise throttle control, more stable flight.
Even in the state of single GPS without RTK, "fixed" flight.
FOC
Precise and linear throttle control, efficiency increased by 10%(compared to the square wave control with the same power), and a reduction in the overall temperature by 10°C.
Fault storage
Built-in fault storage function. Use the DATALINK data box to download and view, and convert the fault into data, which helps the UAV to quickly locate problems and analyze faults.
IPX6 Protection
The ESC is fully sealed and protected, further improving anti-corrosion and anti-rust level of the motor
Multiple Protection Mechanisms
Throttle signal loss protection, over-current protection, stall protection,
voltage protection, etc., to ensure flight safety.
Communication & Upgrade
The default CAN communication (serial port is optional), real-time transmission of power system working condition data, real-time detection of system working status, making flight more at ease. Use the Hobbywing DATALINK Data box to upgrade the ESC firmware online, and also support remote upgrade through the flight controller, synchronization of Hobbywing’s latest technology .
Techenical Parameters:
Voltage(V)
|
Propeller
|
Throttle(%)
|
Thrust(g)
|
Current(A)
|
Power(W)
|
Speed(RPM)
|
Efficiency(g/W)
|
46V
(12S LiPo)
|
HW
24*8.0 Inch
Foldable Propeller
|
40%
|
2416
|
4.6
|
212.2
|
2455
|
11.3
|
42%
|
2732
|
5.5
|
253.5
|
2605
|
10.6
|
44%
|
3058
|
6.4
|
296.6/p>
|
2754
|
10.3
|
46%
|
3377
|
7.4
|
343.8
|
2900
|
9.7
|
48%
|
3746
|
8.7
|
401.8
|
3047
|
9.2
|
50%
|
4106
|
9.9
|
460.2
|
3184
|
8.9
|
52%
|
4419
|
11.2
|
519.9
|
3325
|
8.4
|
54%
|
4822
|
12.5
|
580.2
|
3456
|
8.3
|
56%
|
5209
|
14.1
|
653.4
|
3589
|
8.0
|
58%
|
5476
|
15.6
|
724.6
|
3716
|
7.6
|
60%
|
5947
|
17.3
|
800.2
|
3841
|
7.4
|
62%
|
6370
|
19.1
|
886.2
|
3959
|
7.2
|
64%
|
6709
|
20.7
|
958.4
|
4080
|
7.0
|
66%
|
7086
|
22.6
|
1048.2
|
4194
|
6.7
|
68%
|
7501
|
24.9
|
1153.8
|
4307
|
6.5
|
70%
|
7779
|
26.6
|
1230.2
|
4415
|
6.3
|
72%
|
8238
|
28.8
|
1332.1
|
4519
|
6.2
|
74%
|
8654
|
31.0
|
1435.8
|
4627
|
6.0
|
76%
|
9016
|
32.7
|
1514.0
|
4723
|
5.9
|
78%
|
9294
|
35.1
|
1626.5
|
4821
|
5.7
|
80%
|
9782
|
37.6
|
1742.3
|
4912
|
5.6
|
90%
|
10731
|
43.6
|
2005.6
|
5142
|
5.3
|
100%
|
11822
|
51.8
|
2398.6
|
5442
|
4.9
|
The above data is measured by changing the throttle input to adjust the tension under the environment of 25°C and sea level.
