The 8A-UBEC is a switching-mode DC-DC regulator supplied with a 2-3 cells lithium battery pack and it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for nitro powered RC helicopter (bigger than 30 class) and big fixed-wing aircraft.
Compared with the linear mode UBEC, the overall efficiency of the switching-mode BEC is much higher, so it can extend the working time of the receiver battery pack, and because a switch mode UBEC can significantly reduce the heat emission, it can avoid the loss of control caused by the over-heat problem which is frequently happened with the linear mode UBEC.
Features:
1.Designed with an advanced switching-mode DC-DC regulator IC.
2.The output current is very large.
3.With the output short-circuit protection function.
4.A metal shield covers almost all the electronic components, and a filter ring is attached to the output wires to significantly reduce the electromagnetic interference.
5.Automatically detects the number of the lithium battery pack (2 cells or 3 cells).
6.Shows the battery capacity with 4 indicators (LEDs).
7.Shows the working status with an indicator (LED), lights when the output is in a normal range.
8.There is 2 output leads to reduce the resistance when connecting the UEBC to the receiver.
Specification:
Output Voltage: 5V or 6V (Changeable with an output-voltage select switch )
Continuous output current: 8 Amps
Burst output current: 15 Amps
Input: 6V-12.6V (2-3 cells lithium battery pack)
Quiescent current: 60mA
Size: 42mm*39mm*9mm (length*width*height)
Weight: 36g
Package Includes:

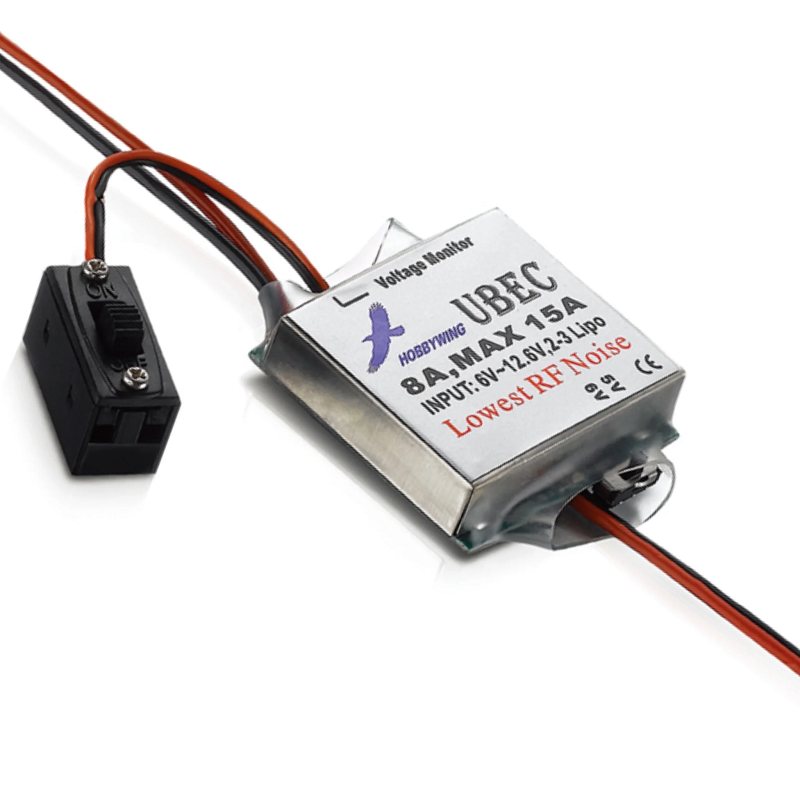

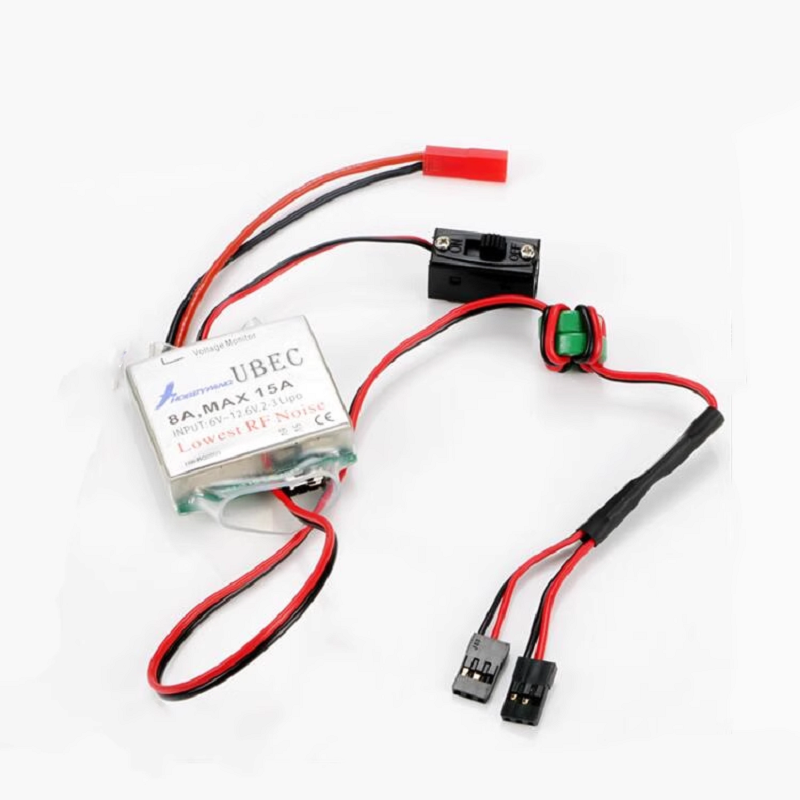

1x HobbyWing UBEC 8A Large Current BEC( 2-3S)
