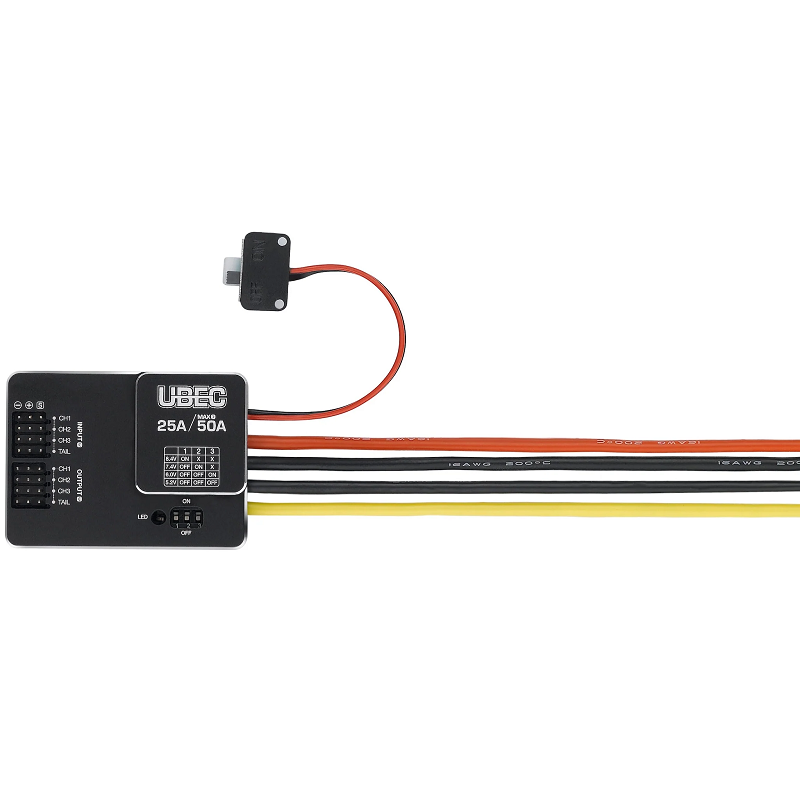

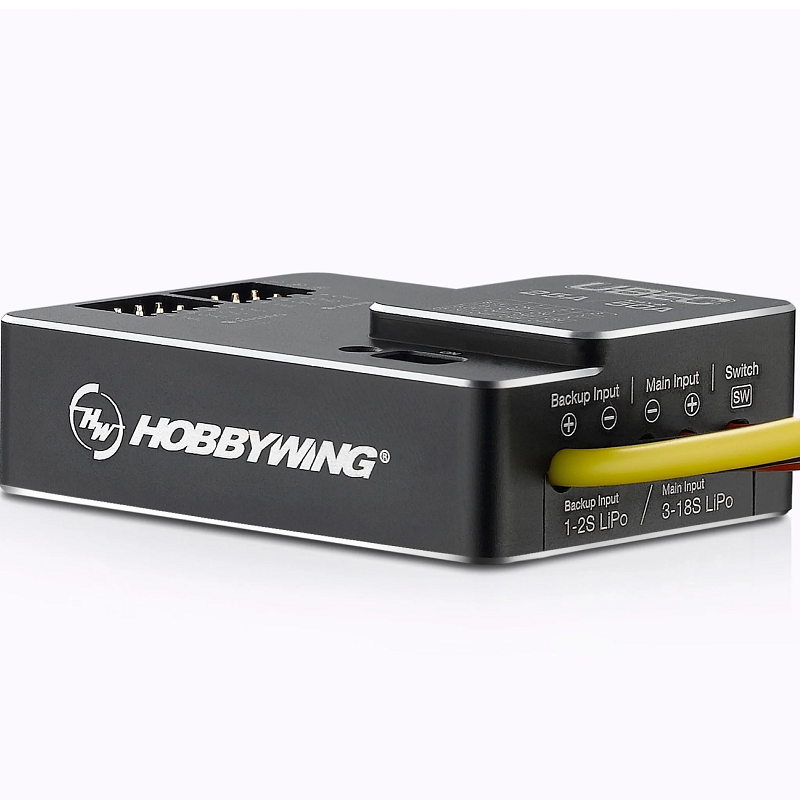

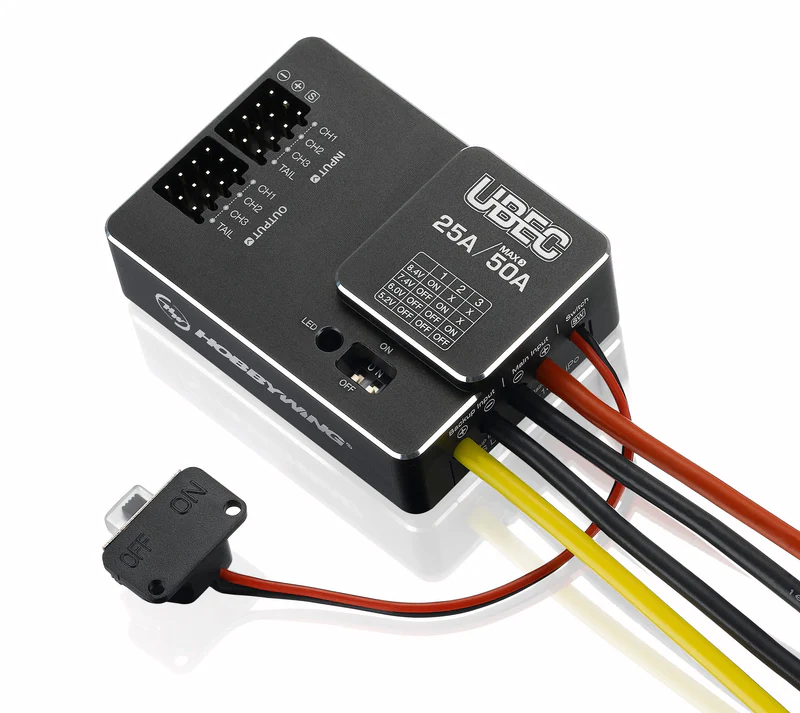

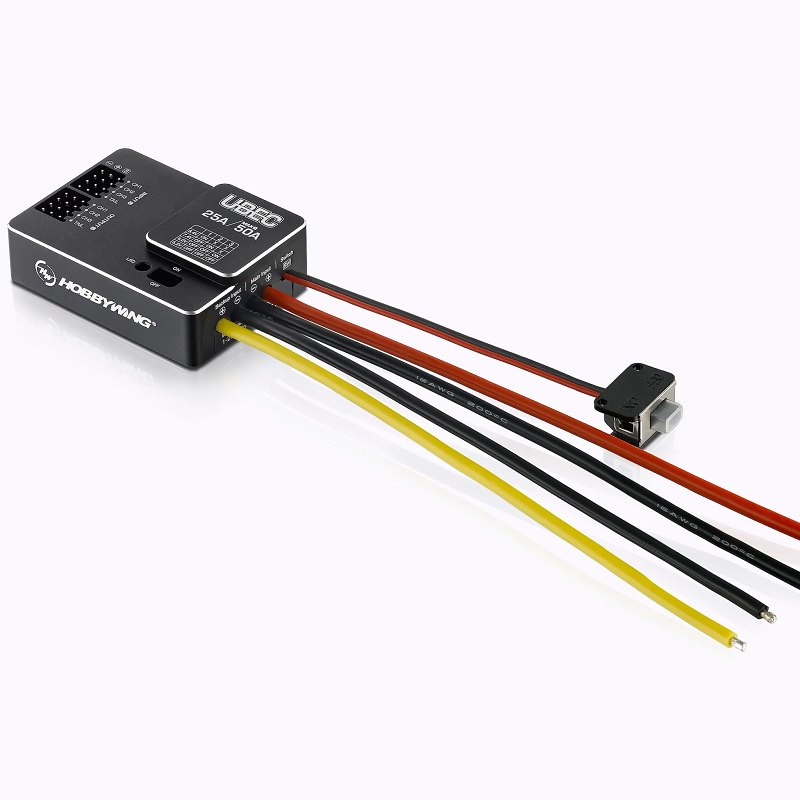

HobbyWing UBEC 25A HV
Specification:
Linear Mode/Switch Mode:Switch mode
High Voltage/Regular:HV
Cont./Peak Current:25A/50A
Input Voltage (of the Main Power Supply):3S~18S LiPo (9V~80V)
Input Voltage (of the Backup Power Supply):1S~2S LiPo (/3-9V)
Output Voltage:5.2V/6.0V/7.4V/8.4V Adjustable
Input Wires:Main Power Supply: Red-16AWG-270mm*1/Black-16AWG-270mm*1
Output Wires:3P Vertical Pin Header(60-strand PVC Wire with Two 3P-JR Male Connectors-100mm*4 included)
Input Connectors:No
Output Connectors:No
Size/Weight:55*40.2*17.6mm/74g
Package Includes:
1x HobbyWing UBEC 25A HV
