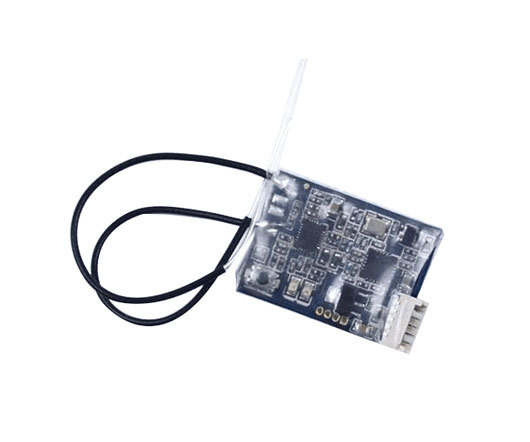

FrSky XSR Telemetry Mini Receiver, S.Port, CPPM and SBUS enabled
Features:
Smart Port enabled,realizing two-way full duplex transmission.
S-BUS output.
CPPM output.
Lighter weight and physically smaller than X4R.
More number of channels:1~16ch from SBUS channel,1~8ch from CPPM Channel.
Specifications:
Dimension: 26*19.2*5mm(L x W x H)
Weight: 3.8g
Operating Voltage Range: 4.0~10V
Operating Current: 100mA@5V
Number of Channels: XSR - 16Ch(1~16ch from SBUS Channel,1~8ch from CPPM Channal)
Compatibility: FrSky X-series Module,X9D,X9DP,X9E, X12S in D16 mode.
（XSR is not work with D-series Module）
The LBT version of XSR receiver is only work with FrSky D16-LBT Mode.
Package Included:
XSR FrSky telemetry mini receiver x 1
