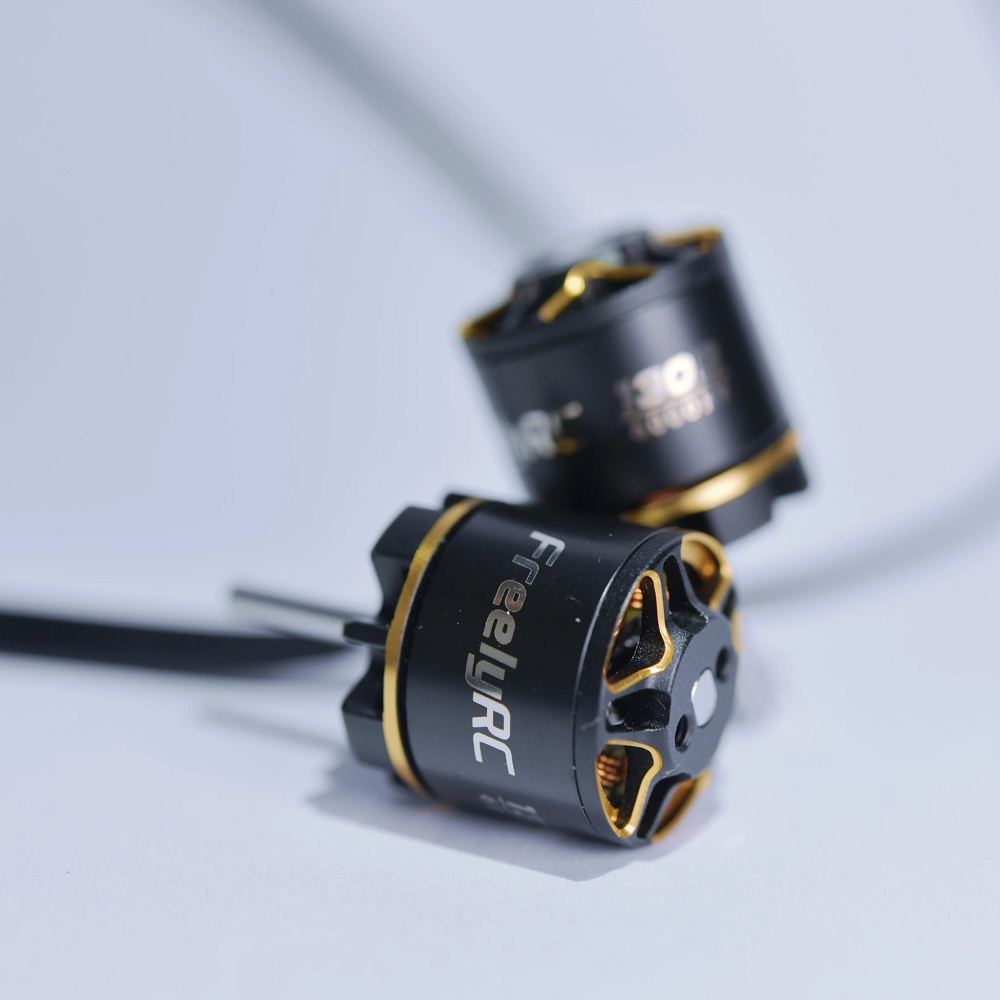

FreelyRC External Rotor 1308 6000KV Brushless Motor+ ESC for 1/24 RC Drift Mini Car
Note:The FreelyRC 1308 6000KV Brushless Motor+ ESC set is free of charge for soldering them.A PH2.0 (battery) and ZH1.5 (signal cable) are provided by default.If you need it, please leave a message when you place the order.
Speification:
KV: 6000KV
Stator Specification: 9S12P
Phase-to-Phase Internal Resistance: 100mΩ
Output Shaft Length: 10mm
Rated Voltage: 2/3S (8/12V)
Peak Current: 18A (2S) / 22A (3S)
No-Load Current (7.4V): 1.3A
Magnet: N52SHarc

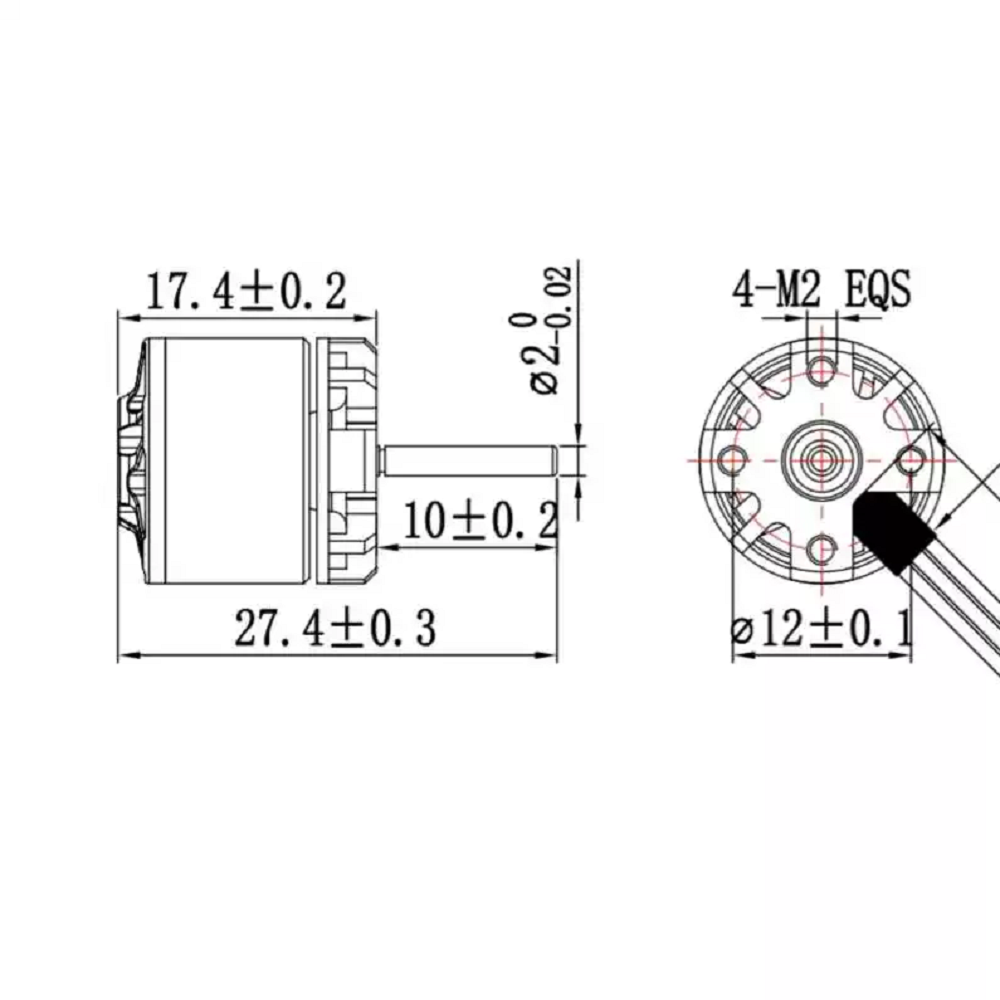

Stator Dimensions: 013*L8mm
External Dimensions: 016.5*17.4Lmm
Output Shaft Diameter: φ2
Silicone Wire: 24AWG 150mm
Instantaneous Maximum Power: 144W (2S) / 264W (3S)
Weight (including wire): 13.45g
Package Includes:
1xFreelyRC External Rotor 1308 6000KV Brushless Motor

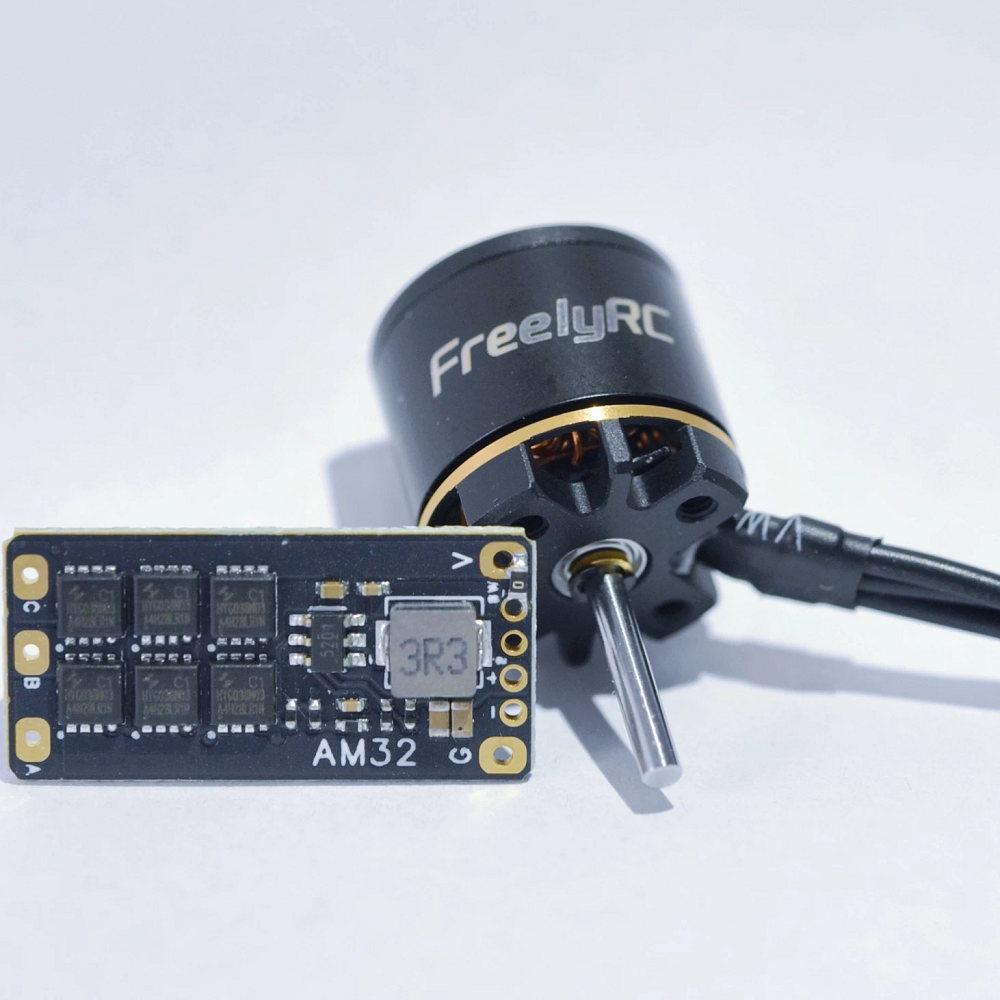

1x Mono ESC AM32
