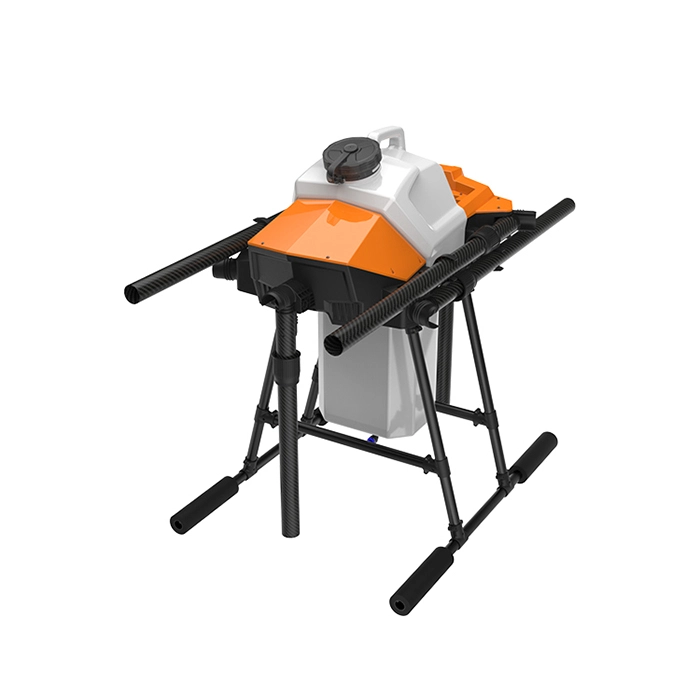

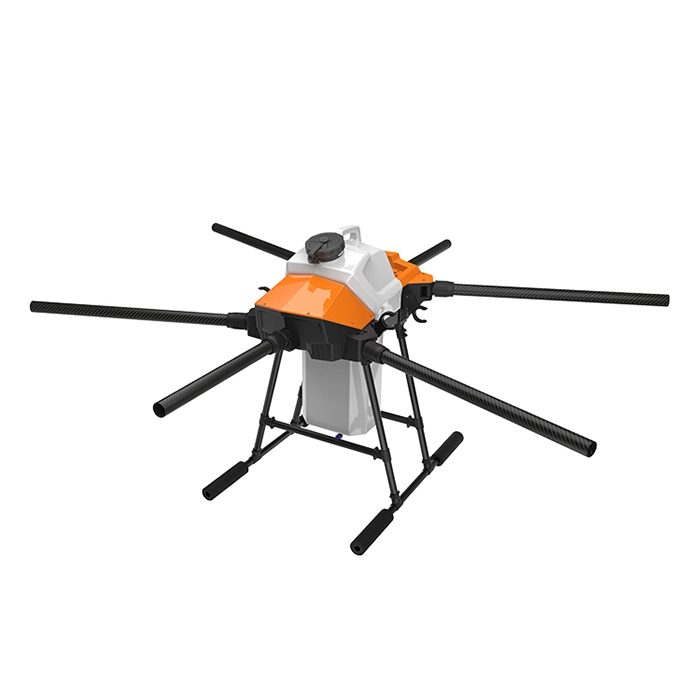

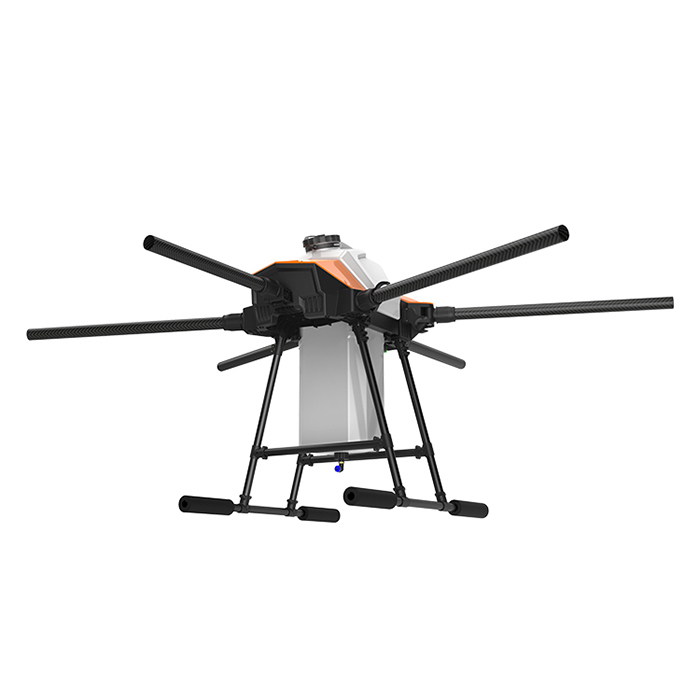

EFT G630 is one 30L high capacity platform specially designed for agriculture applications. The effective capacity of the drone is 30L. The drone adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold.
Specifications:
Item Model: G630
Wheelbase: 2028mm
Frame Weight: 11.5kg
Size (Unfolded): 2692 x 2619 x 885mm
Size (Folded): 1192 x 623 x 885mm
Tank Capacty: 30L
Frame+Spraying system weight: 13kg
Frame+Power System Weight: 23.8kg
G63+Tattu 3.0 25000mah battery weight: 32.2kg
Full take-off Weight: 62.2kg
Flying time test:
AB Point Flying Time: 7 minutes 10 seconds
Non-Load Flying Time: 20 minutes 27 seconds (48V)
Full-load Flying Time: 6 minutes (48V)
Note: During the test, we use the Tattu V3.0 12S 22000mah battery, hobbywing X9 Plus power combo.
Main Features:
Integral Frame
The frame is integrally formed, with a simplified structure, strong strength, and good durability and reliability.
Crossfolding Method
The arms of the G616 are folded in a staggered way, minisize the folding size, more convenient for transportation.
Dustproof and Waterproof
The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.
Two battery solutions
There are two power plugs reserved for the drone. One is with the QS9L plug for the normal smart battery. And the other is specially designed for Tattu V3.0 Quick-remove batteries.
Multiple Uses (Spraying + Spreading)
The spreading system and spraying system can be quickly replaced to meet the operation requirements of the two different scenarios.
Frame Kit Included:
EFT G630 6 Axis 30L Drone frame kit x 1
30L tank x 1
Combo 1 Included:
EFT G630 6 Axis 30L Drone Frame Kit x 1
30L tank x 1
Brushless Spraying system x 1
Hobbywint X9 Plus Power system with 36" Propeller x 6
Multiple Uses (Spraying + Spreading)
