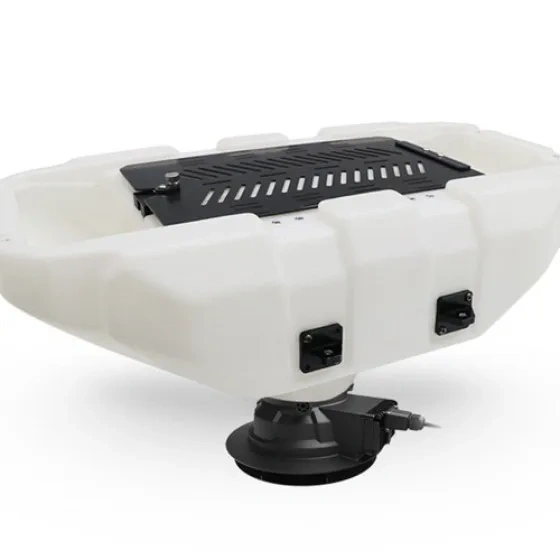

EFT EPS200pro Granule Spreader + 22L Tank Set Pesticide Spraying Drone Fertilizer Spreader

Notice: The production of the old version of the granule spreader has been discontinued, so from June 2023, the granule spreader will be replaced with the 2023 improved version of the new version of EPS200PRO. The 22L tank is also a new version.

The 2023 improved version of the granule spreader will be released from June 2023.

Download instructions on how to change from granular to liquid spraying from the link below : https://www.dropbox.com/s/c94xnvatpqcb5em/Tutorial%20on%20Quick%20Switching%20-0415.pdf ?dl=0

When converting a pesticide spraying drone's liquid tank to a granule spreader, the drone's original skid pipe will also need to be extended. The extension pipe is sold separately. For example, for the E616S aircraft, please order and use the UF0084 carbon pipe. When using it on the new version E616P aircraft, you cannot use a carbon extension skid pipe, please order and use the UF0075-D one.

This 22L granule spraying equipment is also the same as the 10KG, and can spray 0.5-6 mm granular pesticides, fertilizers, seeds, feeds, etc. The payload is 22 kg, which increases capacity and efficiency. The impeller rotation speed (rotational speed) and shutter opening degree can also be adjusted to enable uniform spraying without covering the granules.

After using the granule spreader, the granules may adhere to it and cause corrosion or rust, which may even cause the spreader to malfunction, so regular maintenance is very important.

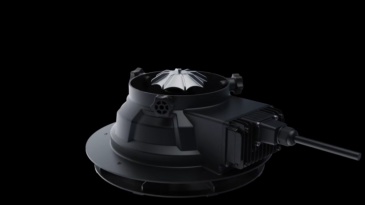

EPS200PRO Granule Spreader Single Item:

Granule spreader specifications:
Weight: 1.6KG
Voltage: DC24V-60V
Waterproof level: IP67
Particle size that can be sprayed: 0.5-6MM
Maximum granule outlet area is 43㎠
Valve angle: 0-60°
Impeller maximum rotation speed: 1100r/min
Spreading width: 12M
Granule sensor signal: No granules/0V, With granules/5V
Maximum output: 120W
Working temperature: 0-40℃
Size: 300*250*145MM
Application: Spraying of granular pesticides, fertilizers, seeds, feed, etc. can be carried out.

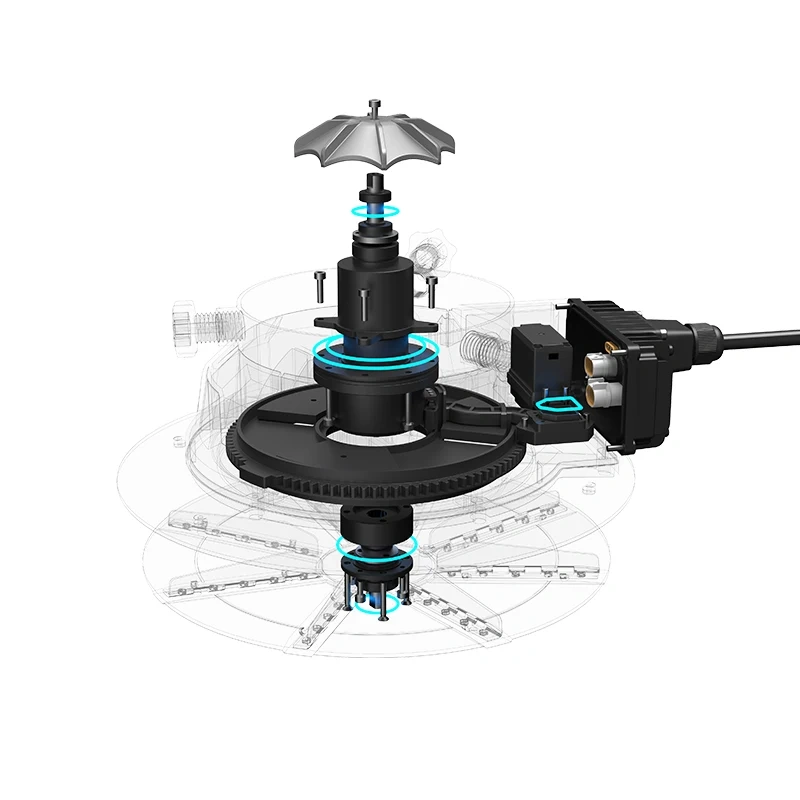

New version improvements:

• Improvement of stirring plate
• 360 degree jagged stirring board

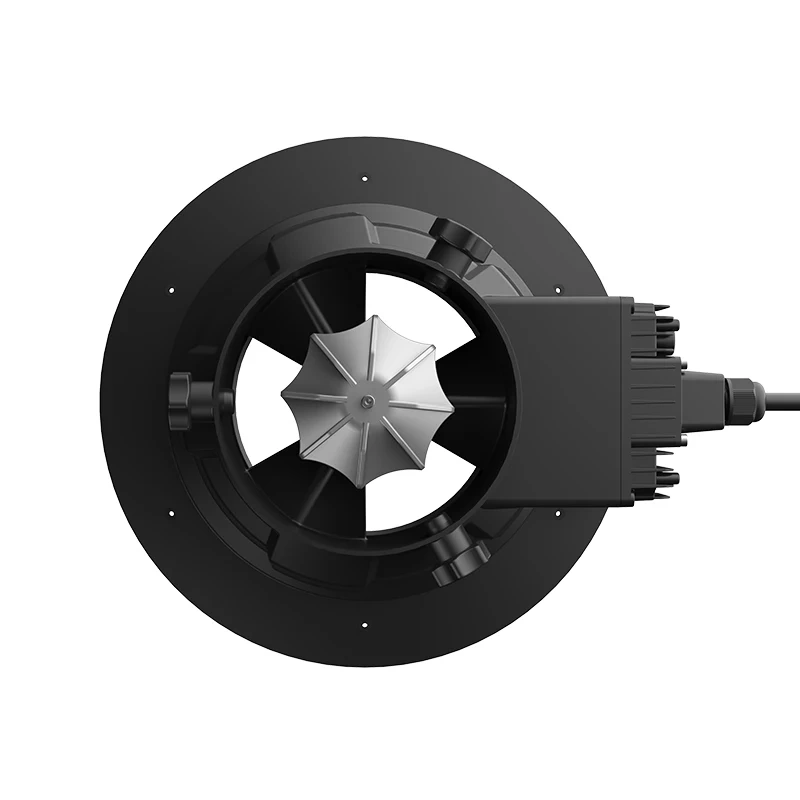

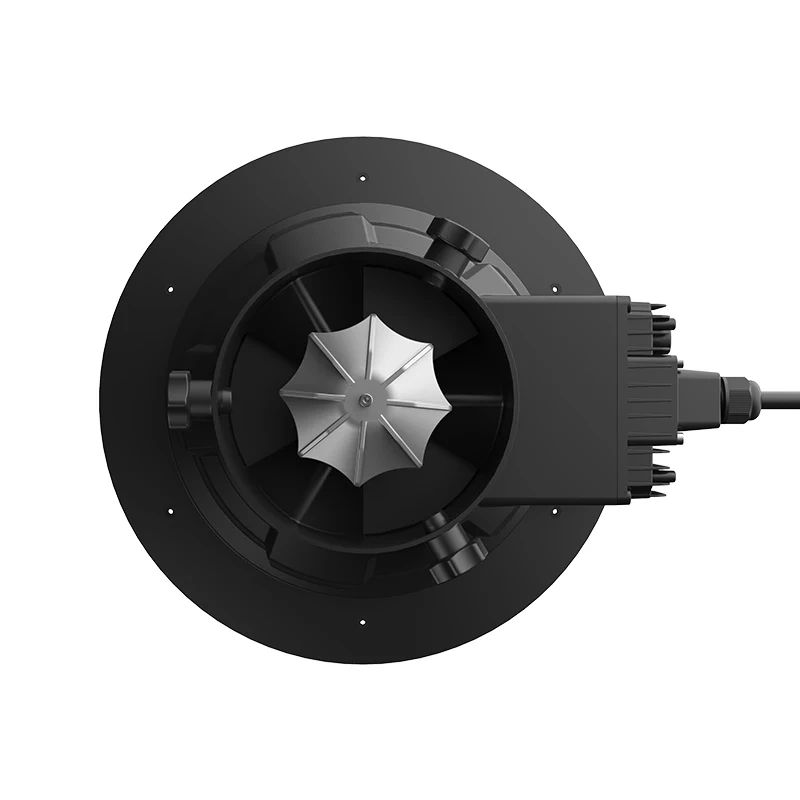

• The umbrella-shaped stainless steel structure has a wide receiving area and can be sprayed evenly without clogging.

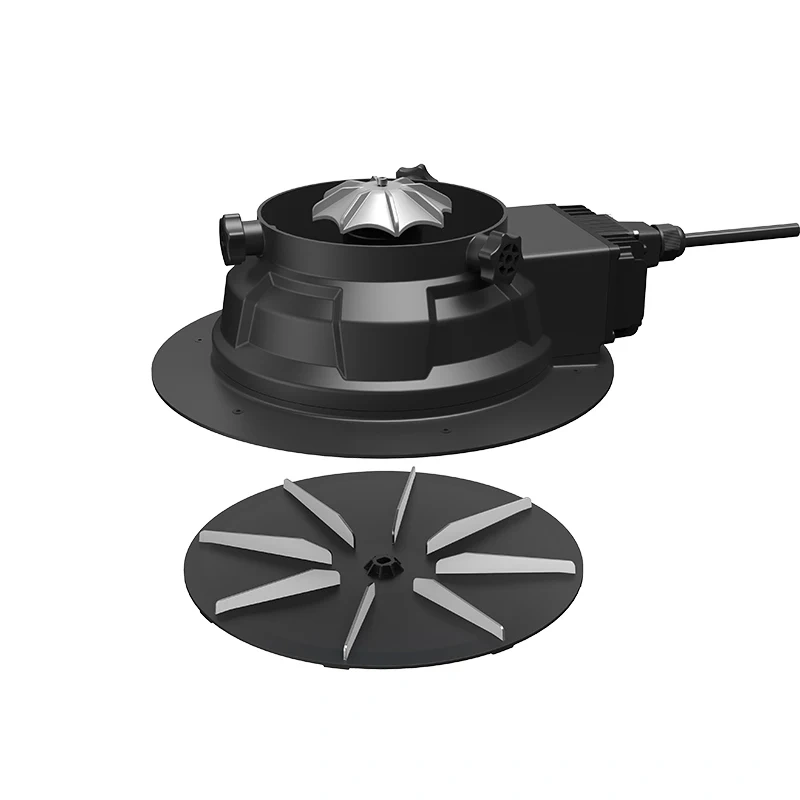

• The impeller has been changed to metal and has excellent durability and wear resistance.
• The control module wire has been upgraded, which can effectively prevent module burnout due to abnormal operations such as power reverse connection, signal wire wrong connection, overvoltage, overcurrent, etc.
• Completely sealed harness connection and sealed servo prevent internal rust and extend the life of the servo.
• Upgraded quick plug interface, use of thicker contact pins enhances conductivity and improves durability.
• There are additional fault alarm functions such as real-time monitoring of working status, rotation speed feedback, shutter angle feedback, lock-up alarm, shutter failure alarm, spreader overheat alarm, and excess power alarm.

*The above functions must be realized via CAN.

22L granule tank:
