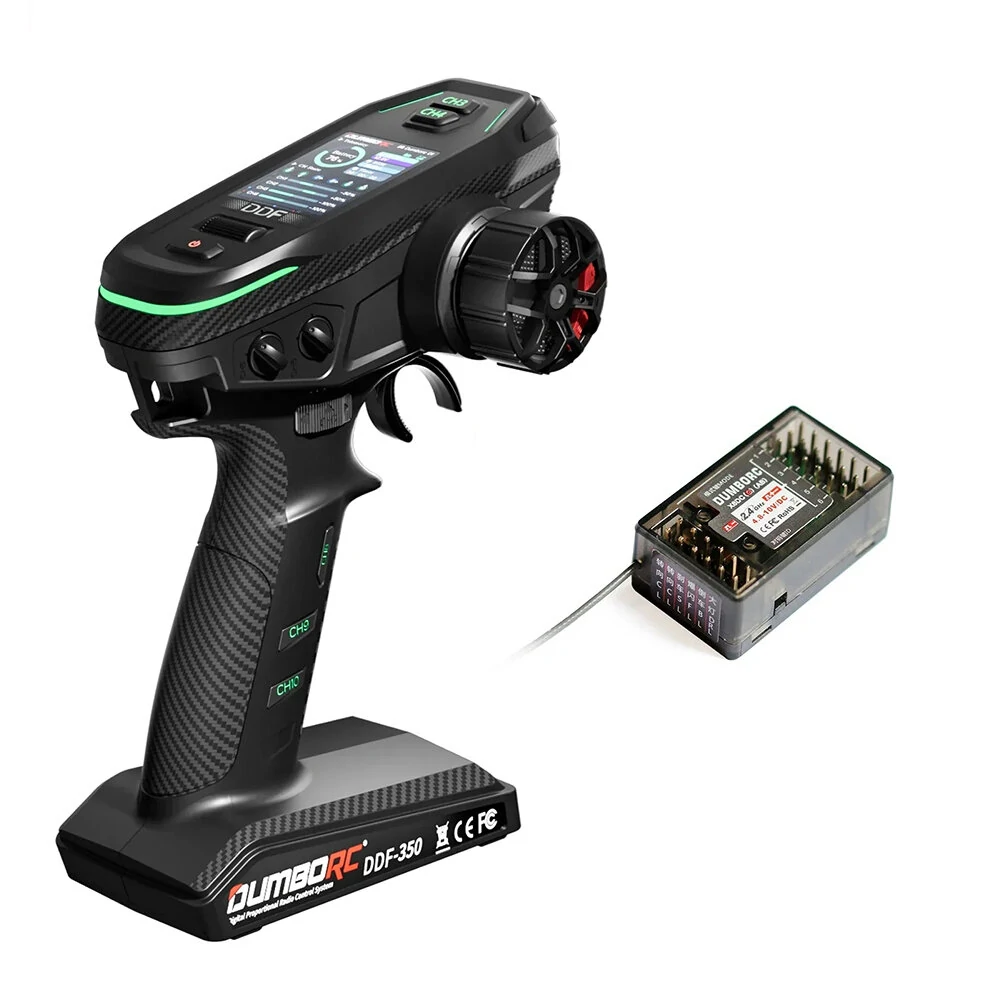

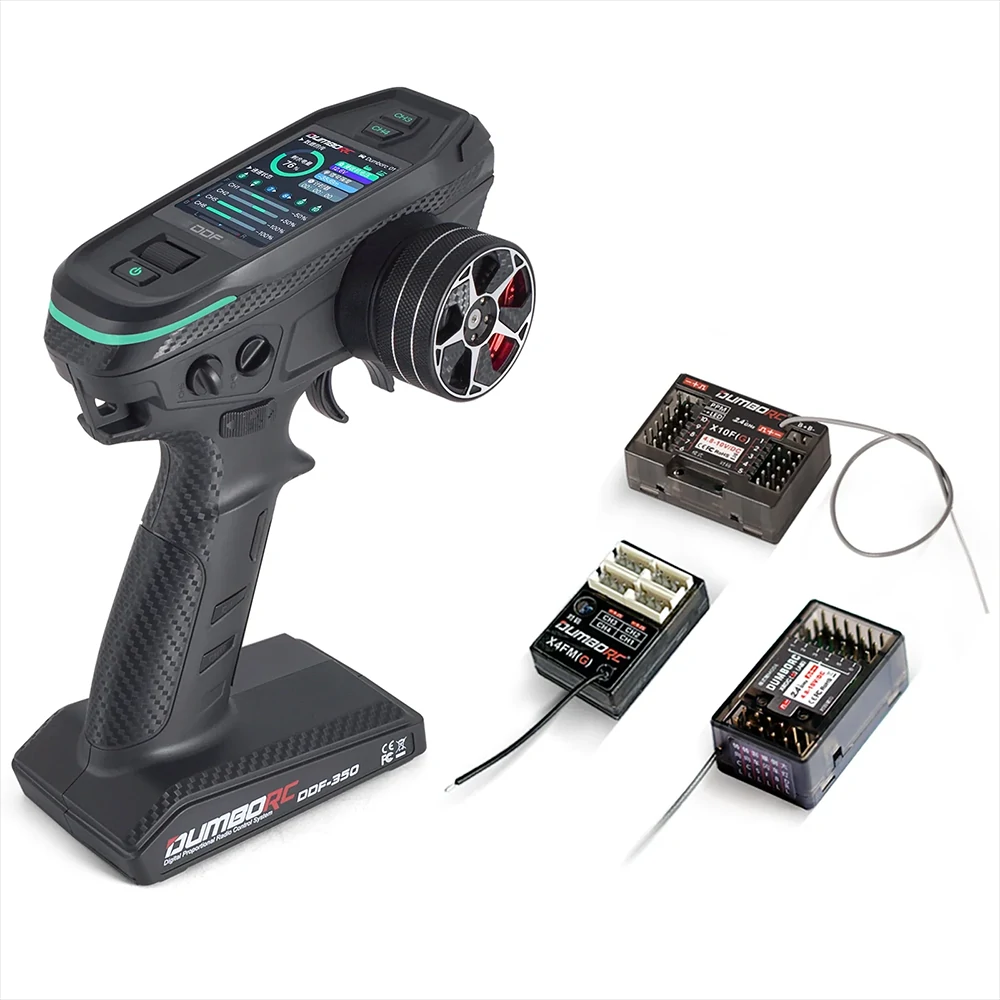

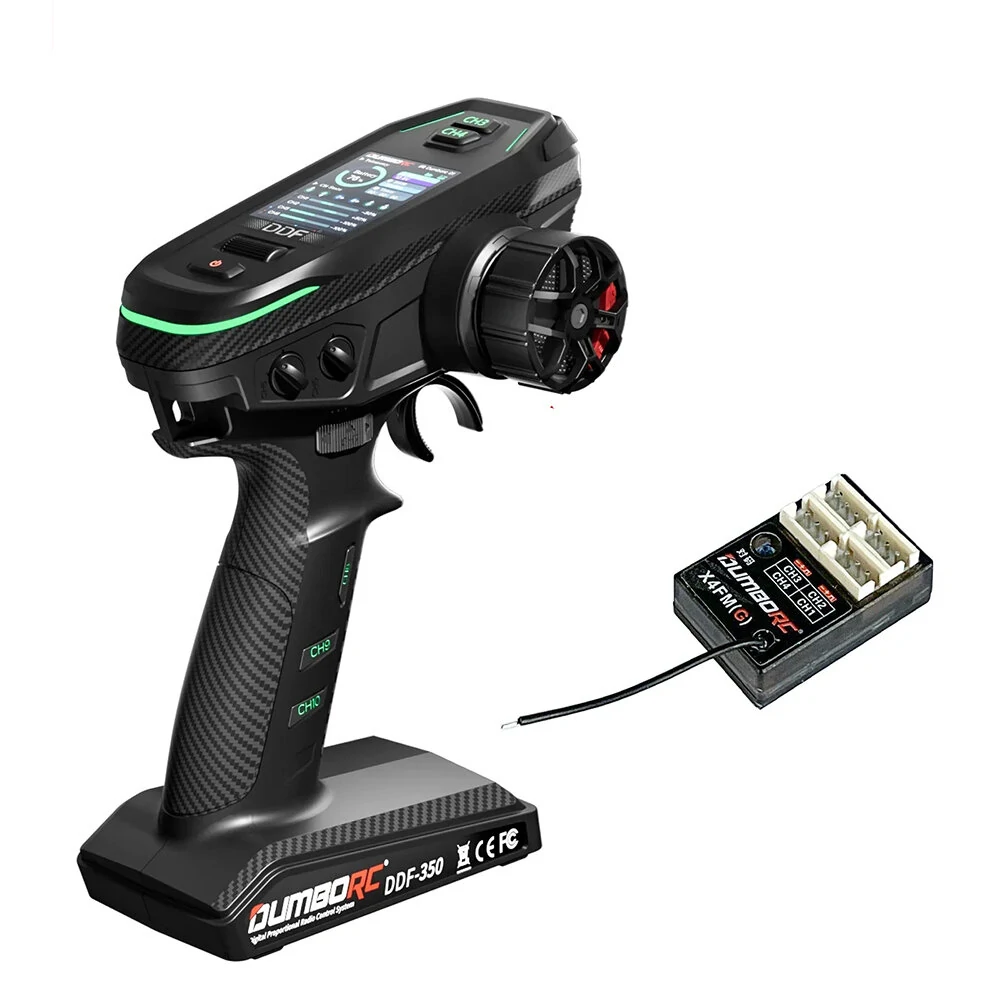

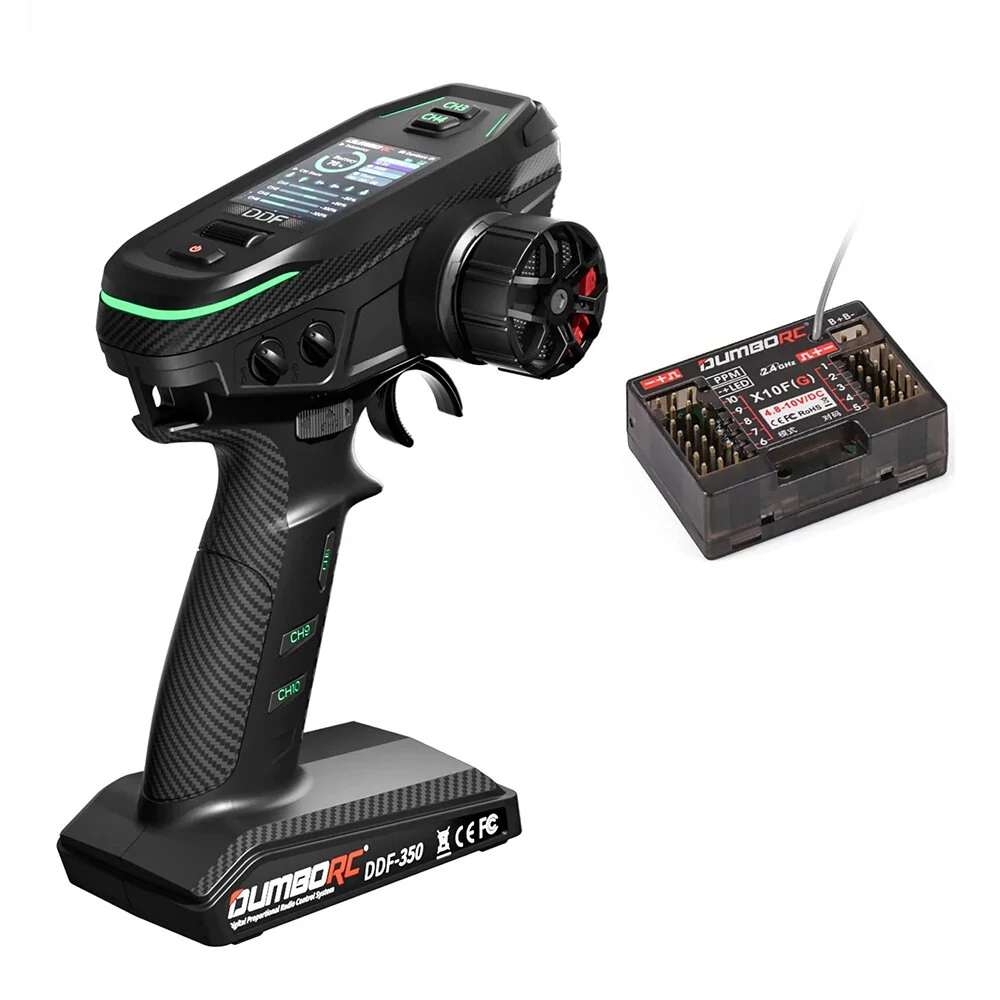

DUMBORC DDF-350 10CH cv 10 Channel 2.4Ghz Transmitter with M1 Handwheel
Features:
1.New frequency hopping communication technology;
2.Support tank mixing control and program custom mix
3.Support head tracking,wireless coash,simulator ports;
4.Independent setting of serveo direction and travel for all channels.
5.Direction and throttle curve can be customized;
6.Real-time model battery voltage,RSSI telemetry;
7.10 sets of model data stores;
8.350 Meters ground control distance(conventional receiver with signal (return is 40 meters away);
9.With dial adjustment parameters, it's easy to control and friendly for beginner.
10.Support USB upgrade
11.All receivers of dumbo are supported.
Specification:
Name:DUMBORC DDF-350 Remote Controller
Channel:10CH
Frequency:2.4G
M1 Handwheel:Metal handwheel with sponge outer ring
Application:RC car/boat/tank
Built-in Groscope:Yes
Protocol:PPM and PWM
Control Range:350 meters
Receiver: P10FG/(P6DCG
Receiver Specification:
Model: P4FM/P4FMG
Channel: 4CH
Voltage range: 3V-10V DC
Operating current: 30 mA@5V
Signal: PWM
Spreading mode: FHSS (67 channel pseudo-random frequency hopping)
Compatible remote control: X4 X6 series/X5P series/X6PM series remote control
Weight: 2.3g
Model: P6DC/P6DCG
Channel: 6CH
Receiver Voltage Range: 3.3-10V
Receiver Operating Current: 30mA
Modulation Mode: GFSK
Spread Spectrum: FHSS
Control Distance: More than 400 meters
Support HV servo, and maximum servo voltage is 10V.
With LED lamp control interface
This receiver integrates the lamp group, and not using Y wires getting singals of CH1 and CH2 as traditional wiring method.
Support Transmitter: X4 X5 X6 X6P
Weight: 9g
Model: P10F/P10FG
Channel: 10CH
Receiver Voltage Range: 4.8-10V
Receiver Operating Current: 30mA
Modulation Mode: GFSK
Spreading Mode: FHSS 67 channel pseudo-random frequency hopping
Package Includes:
1x DUMBORC DDF-350 10CH RC Remote Controller with a receiver
