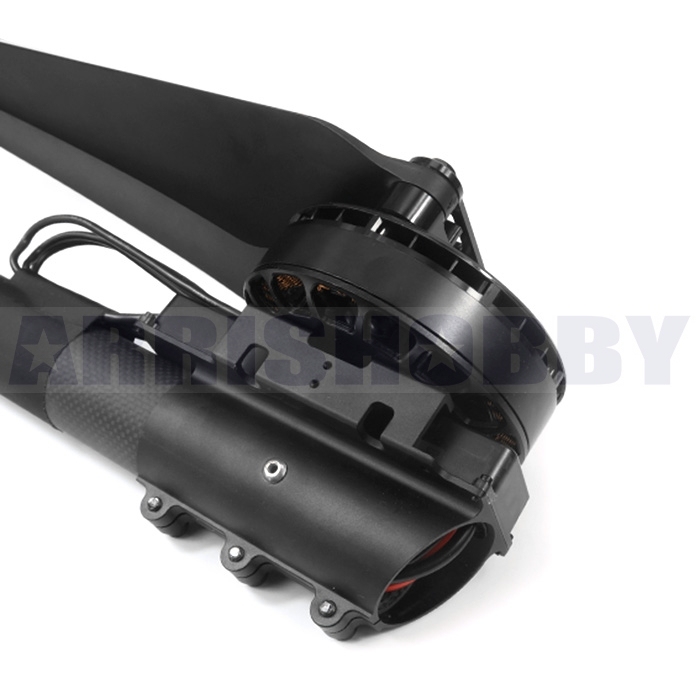

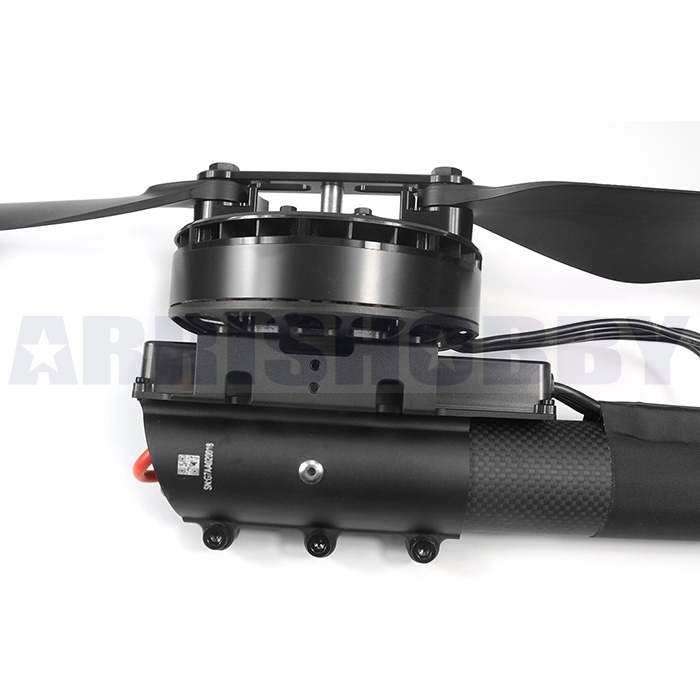

DJI E5000 is a tuned propulsion system designed for use in industrial multirotor applications. The E5000 Advanced features an integrated propulsion system and aircraft arms. It is compatible with 40mm carbon arm tubes, offers arms of different length, and is easy to install.It can provide 10lbs (4.5kg) to 15lbs (7kg) per axis of rated load capacity. Combined with weather sealing, it is ideal for heavy loads in harsh environments.
Specifications:
Max Thrust: 14 kg/rotor (44.4 V, Sea Level)
Recommended Battery: 12S LiPo
Recommended Takeoff Weight: 4.5 - 7.0 kg/rotor (Sea Level)
Operating Temperature: -10° C to 50° C
Stator size of Motor: 100×10 mm
Motor KV: 120RPM/V
Motor weight: 520g
ESC Max Allowable Voltage: 52.2 V
ESC Max Allowable Current (Continuous): 80 A
ESC Max Peak Current (< 3 sec): 120 A
ESC PWM Input Signal Level: 3.3 V / 5 V Compatible
ESC Operating Pulse Width: 1120 to 1920 μs
ESC Signal Frequency: 30 Hz to 500 Hz
Battery: 12S LiPo
Diameter × Thread Pitch:28 × 8 inch (711 × 203 mm)
Weight (Single Propeller): 161 g
Main Features:
Weather-Proofing
The E5000 are designed to be weather-proof. The motor’s bearing system and ESCs are weather-sealed, with an additional coating on the motor stator and ESC circuit board to prevent corrosion caused by rain, pesticides and even salt spray. In agricultural applications, weather-proofing allows the system to be washed without worrying about corrosion.
Effective Cooling
A centrifugal cooling system and a circle of cooling fins are used within the M10 motor. ESC cooling fins placed under the propeller airflow further improves cooling efficiency, allowing the 1280 ESC to withstand continuous currents as high as 80A.
In continuous 60 minute 6kg/axis load tests, the motor surface temperature increased by only 31°F (17°C), while the ESC surface temperature increased by only 36°F (20°C)*.
Effective cooling adds reliability and enables continuous operation even in hot weather.
Powerful and Efficient

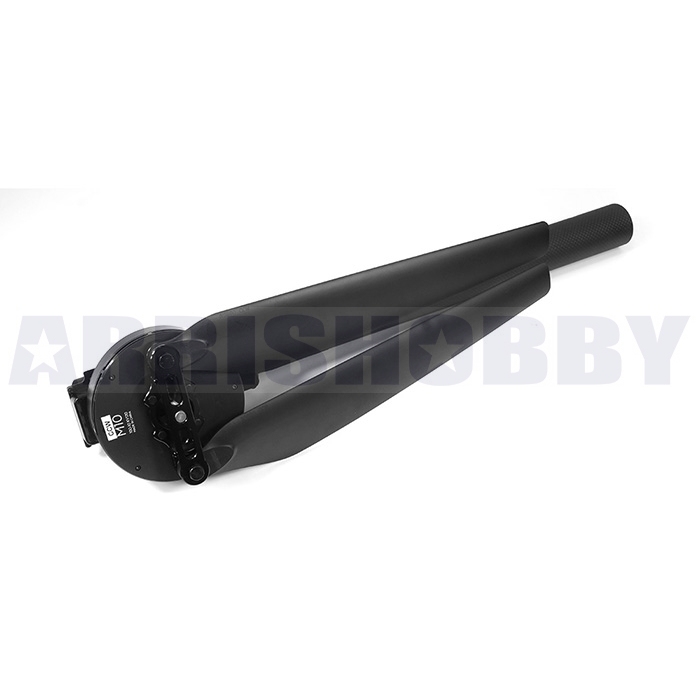

The 28-inch propeller is made of Ultra Carbon Pro, an advanced composite
material created for a high strength and stiffness to weight ratio, with a patented
geometry that provides outstanding aerodynamic efficiency. When working with
the M10 motor and the 1280 FOC ESC, they generate a maximum thrust of 31lbs
(14kg) at sea level with only 44V of input.
The field oriented control (FOC) algorithm also makes the system more responsive
and more efficient, giving the E5000 a longer operation time.
Intelligent and Reliable
The 1280 ESC uses multicolored LEDs as a real-time indicator of system status. It is also equipped with a full suite of protection mechanisms that react differently depending on whether the aircraft is in flight or on the ground. Built-in spark-proof circuitry extends the life of connectors and makes them more reliable.
The 1280 ESC is optimized for the DJI A3 and N3 flight controllers. The ESC and the flight controllers communicate in real time, making instant intervention possible in the event of an abnormality. A back up throttle system* can automatically kick in if the primary throttle line is interrupted, minimizing accidents and increasing safety.
*DJI A3/N3 required.
Light Weight
The M10 Air motor shares the same electro-magnetic design as the M10,but its weight has been extensively optimized to reduce its total weight by 20% while maintaining strength and cooling capabilities.
The M10 Air operates between 14°F (-10°C) and 122°F (50°C), giving users a wide range of usage options.
Package Included:

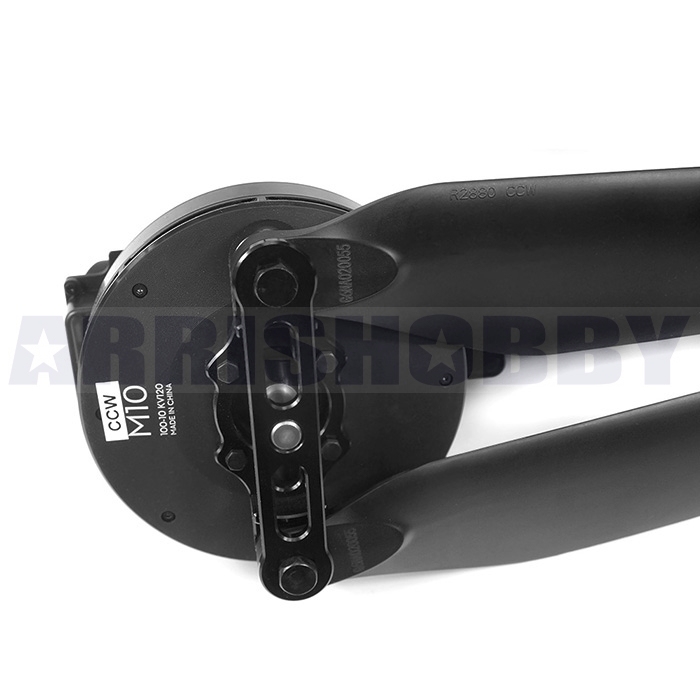

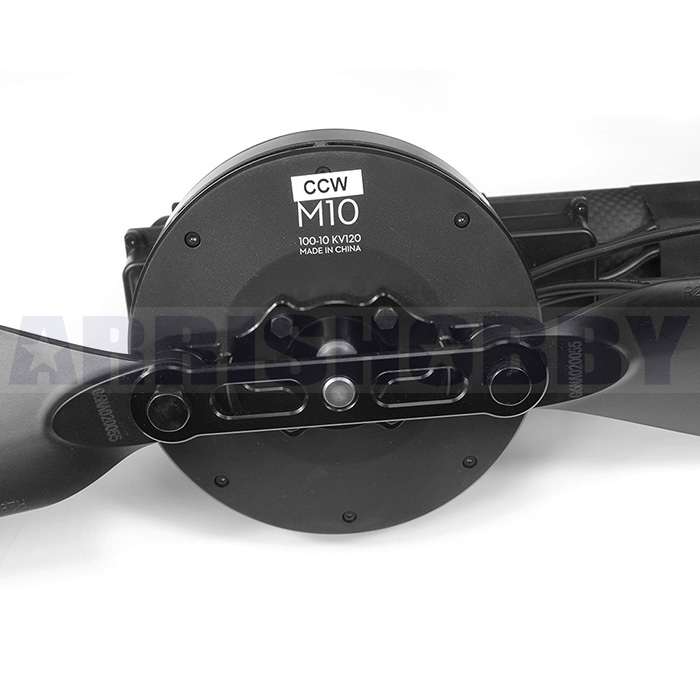

DJI M10 Brushless Motor x 1
DJI 1280A Brushless ESC X 1
DJI R2880 propeller x 1
