ARRIS X220 V2 Parts
Note: The fight controller has been upgraded to MAMBA F405 MK2.
What's new with the ARRIS X220 PRO V2 Version?
1. The fight controller is upgrade from F3 to X-Tower F4 flight controller.and arris RS2306 2400KV motor replace to Rcinpower SmooX 2306 Plus 2580kv Motor.
2. The ESC is upgrade from the 30A 4IN1 ESC to 40A 4IN1 ESC with BLHELI-S firmware, which supports Oneshot125 , Oneshot42 and Multishot,Dshot150, Dshot300 and Dshot600
3. The VTX is upgrade to ARRIS VT5804 48CH 0mw/25mw/100mw/200mw/400mw/600mw Switchable Video Transmitter with better signal and longer range.
4. Add the LED on the tear of the quad.
5. Antenna is upgrade from 4-leaf antenna to Pagoda one.

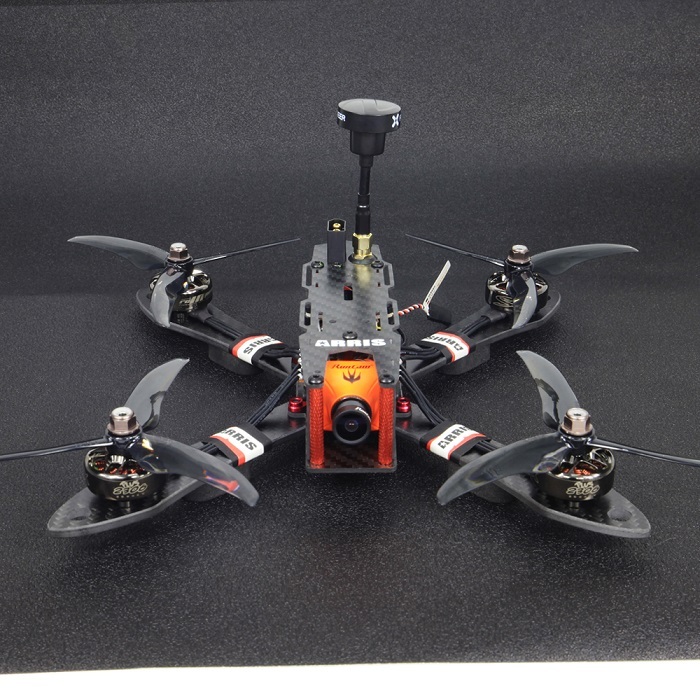

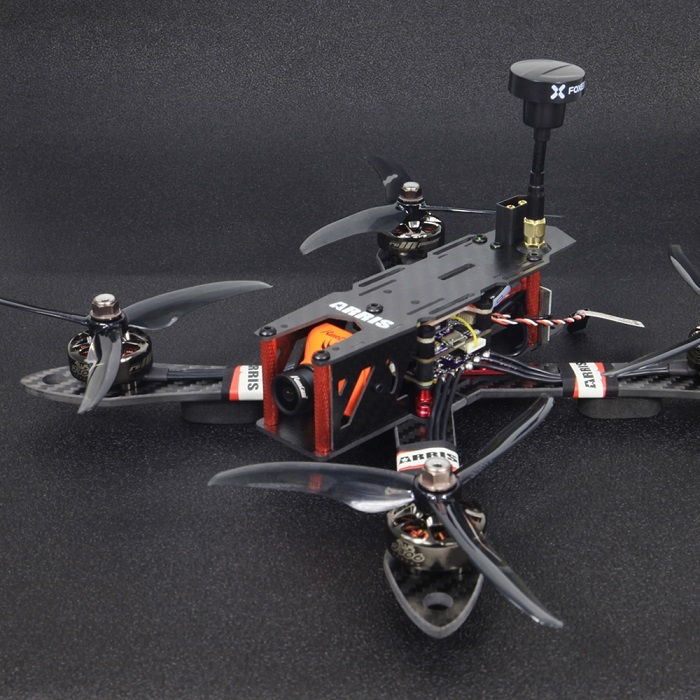

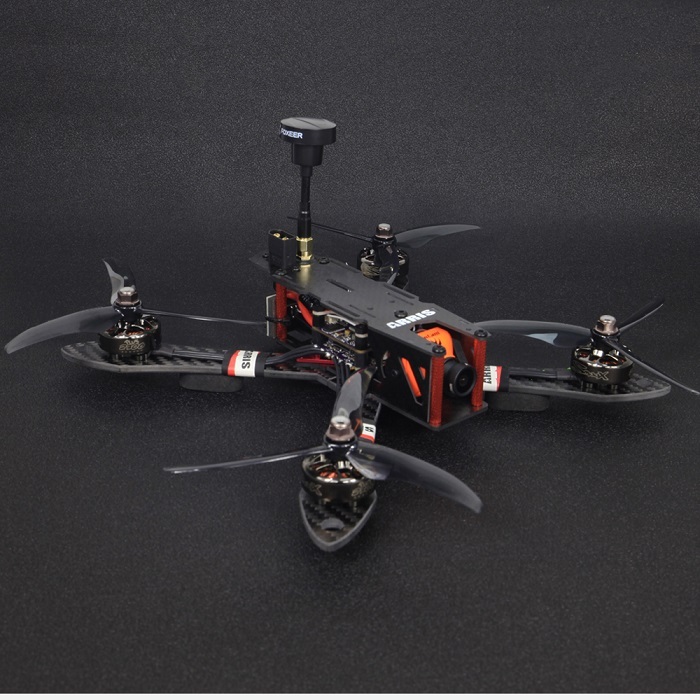

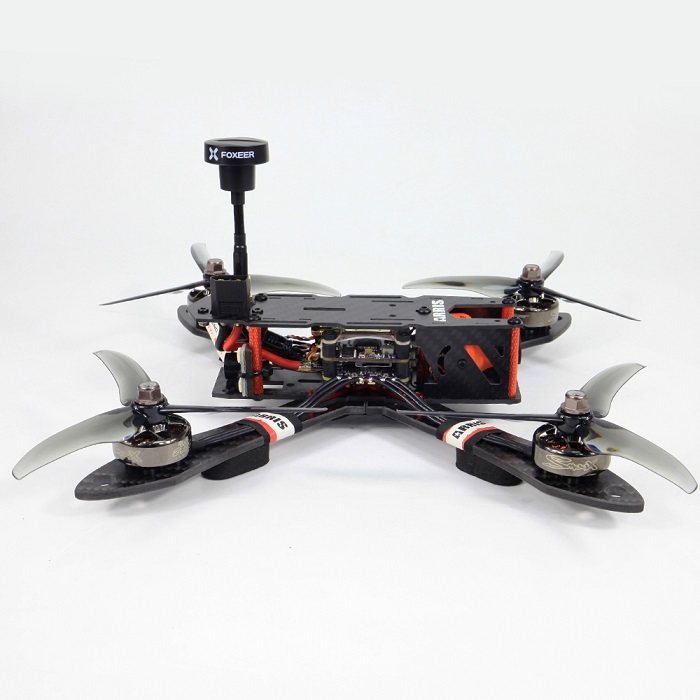

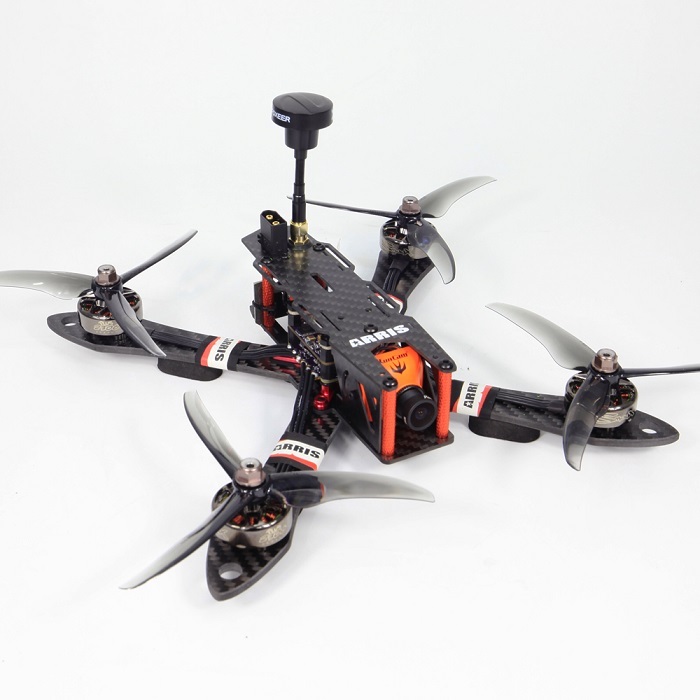

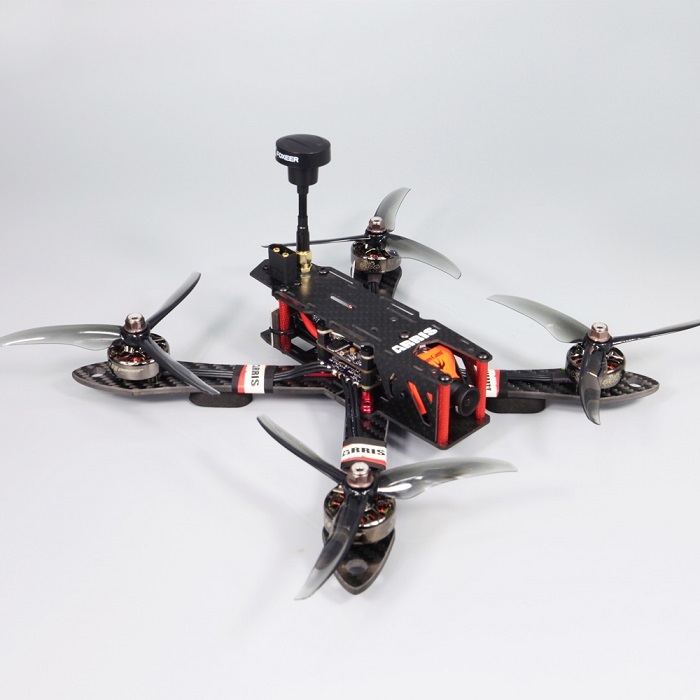

For ARRIS X220 220mm FPV racing drone BNF (professional version), it comes with Rcinpower SmooX 2306 Plus 2580kv Motor,X-Tower F4 Flight Controller 40A ESC + F4 Flight Controller+ PDB + OSD board,5045C high efficiency propeller,Runcam swift 2 mini camera， ARRIS VT5804 48CH 0mw/25mw/100mw/200mw/400mw/600mw Switchable Video Transmitter and Foxeer pagoda antenna . It is assembled and tested before leaving the factory. When you receive it, you need to install your own receiver (ARF)on it or bind with your own radio(BNF) and do some settings in Betaflight, then you can fly.
Specifications:
Diagonal Wheelbase: 220mm
Flight Controller: F4 flight Controller
Frame Material: Pure Carbon Fiber
BNF weight: About 356g
Camera: Runcam Swift 2 FPV camera
FPV TX: 5.8G 48CH (0mw/25mw/100mw/200mw/400mw/600mw Switchable)
Antenna: 5.8G pagoda Antenna
Flying Time:about 10 minutes hovering
The main feature of the ARRIS X220 is the "X" symmetrical design,light weight,simple structure,durable and agile. And for the professional version, we just choose the best equipment for it. The ARRIS X220 comes with the chamfered edge design on the arm, which gives the quad a sleek look.It comes with 4mm pure carbon fiber plate arm, make the frame super strong.The ARRIS X220 is made of pure carbon fiber with alloy pats, the weight is quite light.The structure of the X220 is simple, it is easy to maintain.

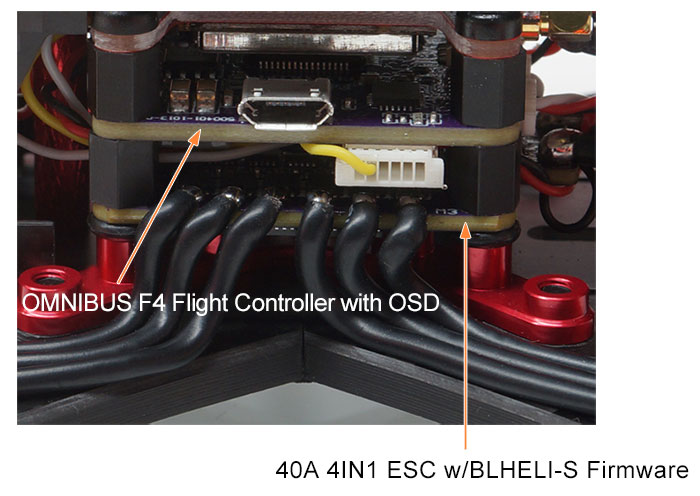

Flycolor X-Tower F4 Tower comes with BLHei-S 4-in-1 40A ESC and F4,PDB and OSD. The ESC comes with EFM8BB21F16G MCU, support Dshot / Multishot / Oneshot,support high KV motor, can support at most 500k eRPM.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.
The default firmware of the F4 is Betaflight_OMNIBUSF4SD,it supports ?PPM,SBUS,SPEKTRUM 1024/2048 etc. remote control / receiving mode. Built-in current meter, OSD directly display the real-time current without any additional connection.
With the tower on the ARRIS X220, the wires are tidy and concise. And it is more convenient to maintain in the future.
Rcinpower SmooX 2306 Plus 2580kv Motor-With the 1.8mm arc magnets, it shortens the motor start time, accelerates faster...
ARRIS 5045c propeller--It has bigger windward area, well balance and strengthen root, and the efficiency is 10% higher than normal propeller.

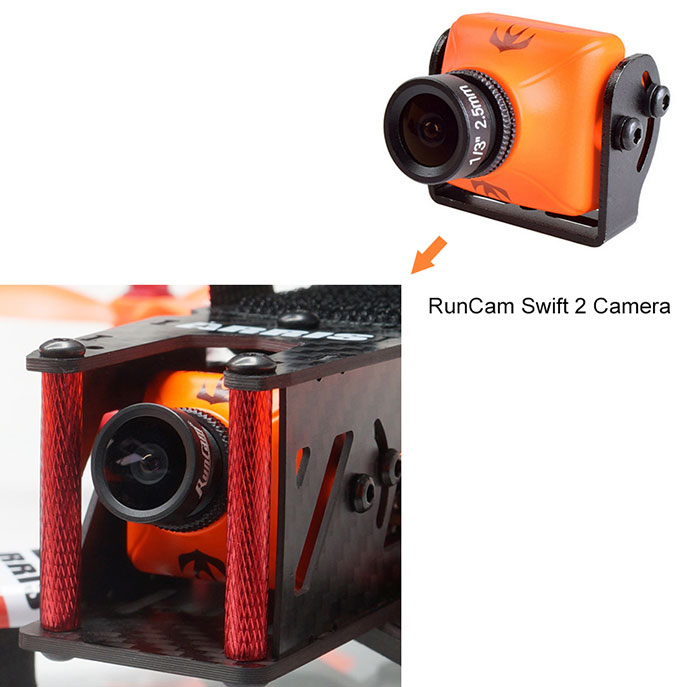

RunCam Swift 2 micro camera is the latest fpv camera released by Runcam for FPV racing drones. One of main feature of the Runcam swift 2 camera is the integrated OSD, with this, it can displays the input voltage of the camera or the battery voltage.And the angle is adjustable here.

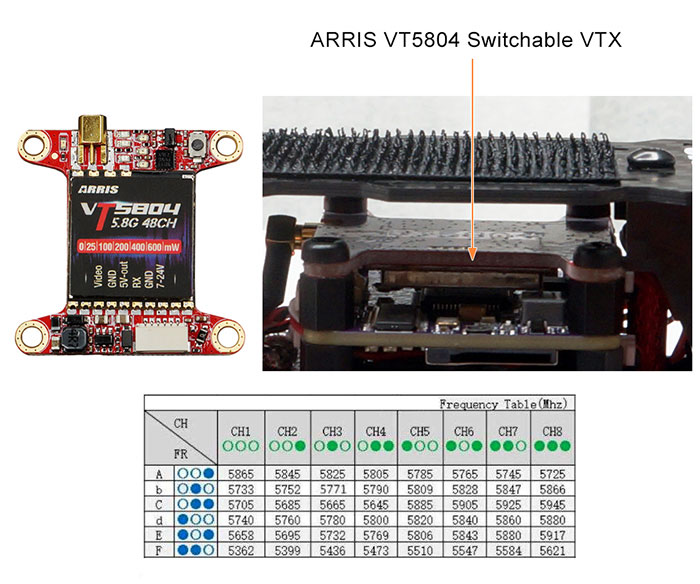

ARRIS VT5804 48CH 0mw/25mw/100mw/200mw/400mw/600mw Switchable Video Transmitter.It has stable output power, long transmission range (0.5KM+@25mW; 1KM@200mW; 2KM+@600mW with stock antenna), 6 power switchable,Output power and frequency setting can be done in OSD interface through remote controller and it weighs only 6g, perfect for fpv racing quads.
Below is the video to show how to adjust the vtx through your radio

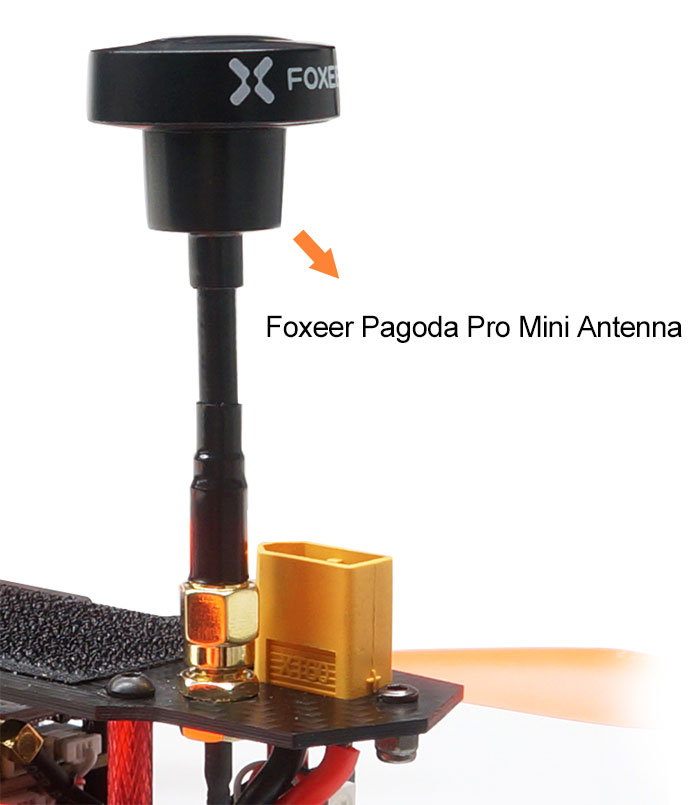

Foxeer Pagoda Pro 5.8G mini antenna. The body adopts imported PC+ABS material, can withstand high strenghth impact. Double-jacket semi-rigid cable for heavy impact resistance. Lower feeder loss, easy to install, can be bent at any angle and maintain.

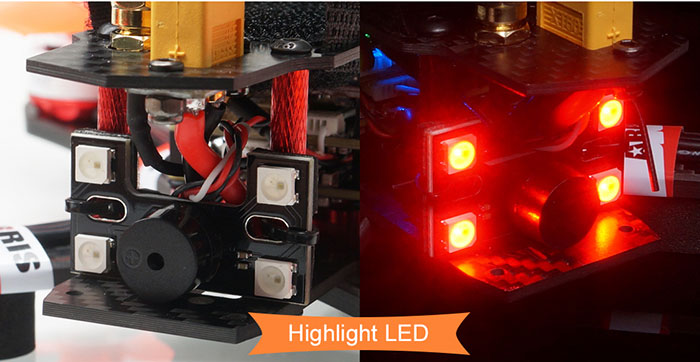

Highlight LED on the rear of the drone.
GoPro and Sports fpv camera can mount on the ARRIS X220, the mounting set is sold separately.You can check here. If you mount the GoPro or FPV camera on it, the XT60 plug for the battery need to install on the bottom plate.
Package Include:
1 x ARRIS X220 FPV Racing Quad Frame
4 x Rcinpower SmooX 2306 Plus 2580kv Motor
1 x Flycolor X-Tower F4 Flight Controlle BHeli-S 2-4S 4-in-1 40A ESC + F4 + PDB + OSD
4 x ARRIS 5045C 3-blade Propeller
1 x Runcam Swift 2 FPV Mini Camera
1 x ARRIS VT5804 Switchable VTX
1 x Foxeer 5.8G pagoda pro antenna
1 x ARRIS Buzzer
2 x Battery straps
Note: Remote Controller,Battery and Battery Charger are sold separately.
