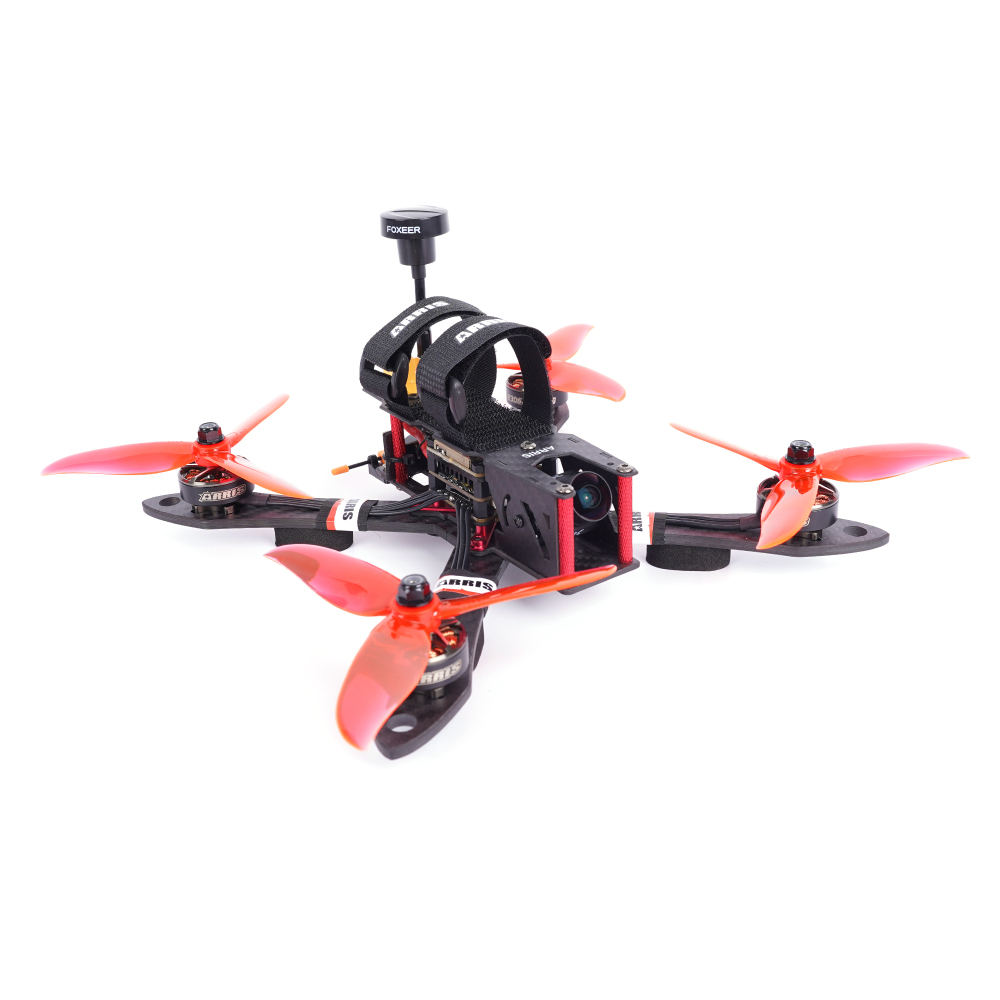

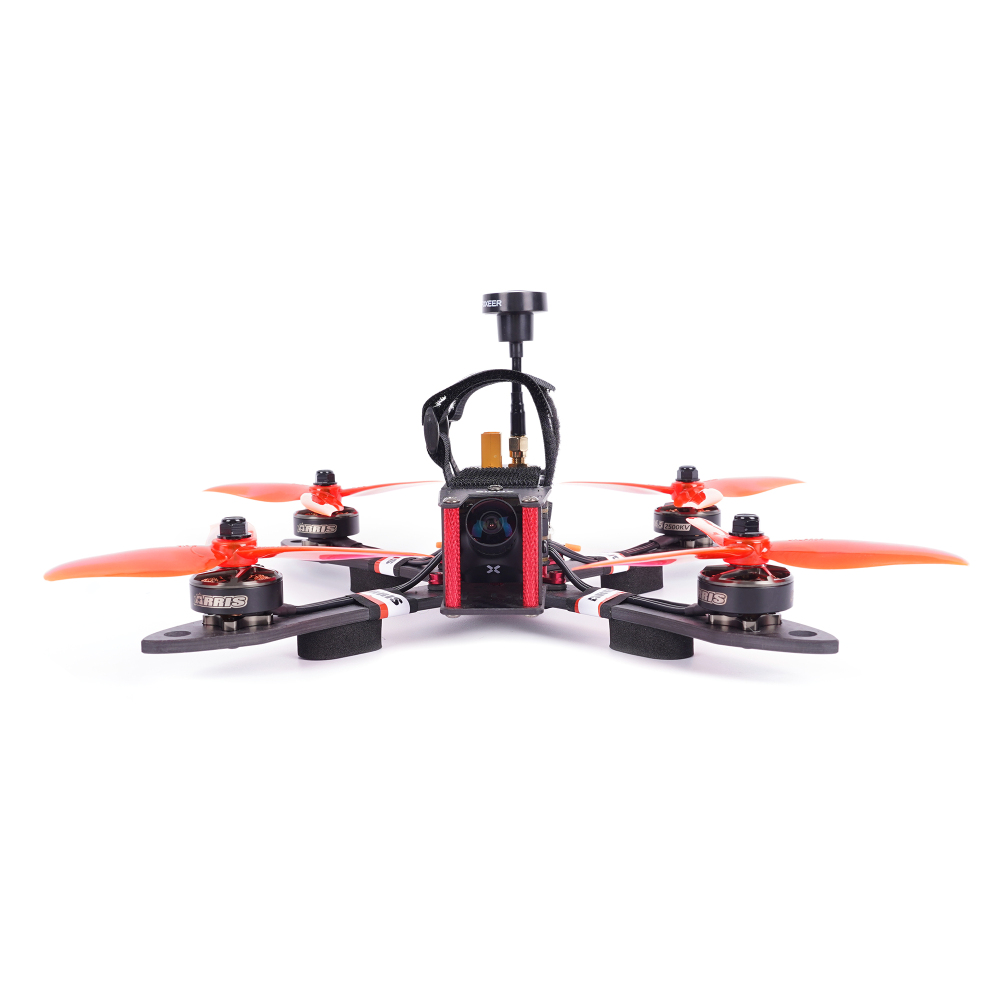

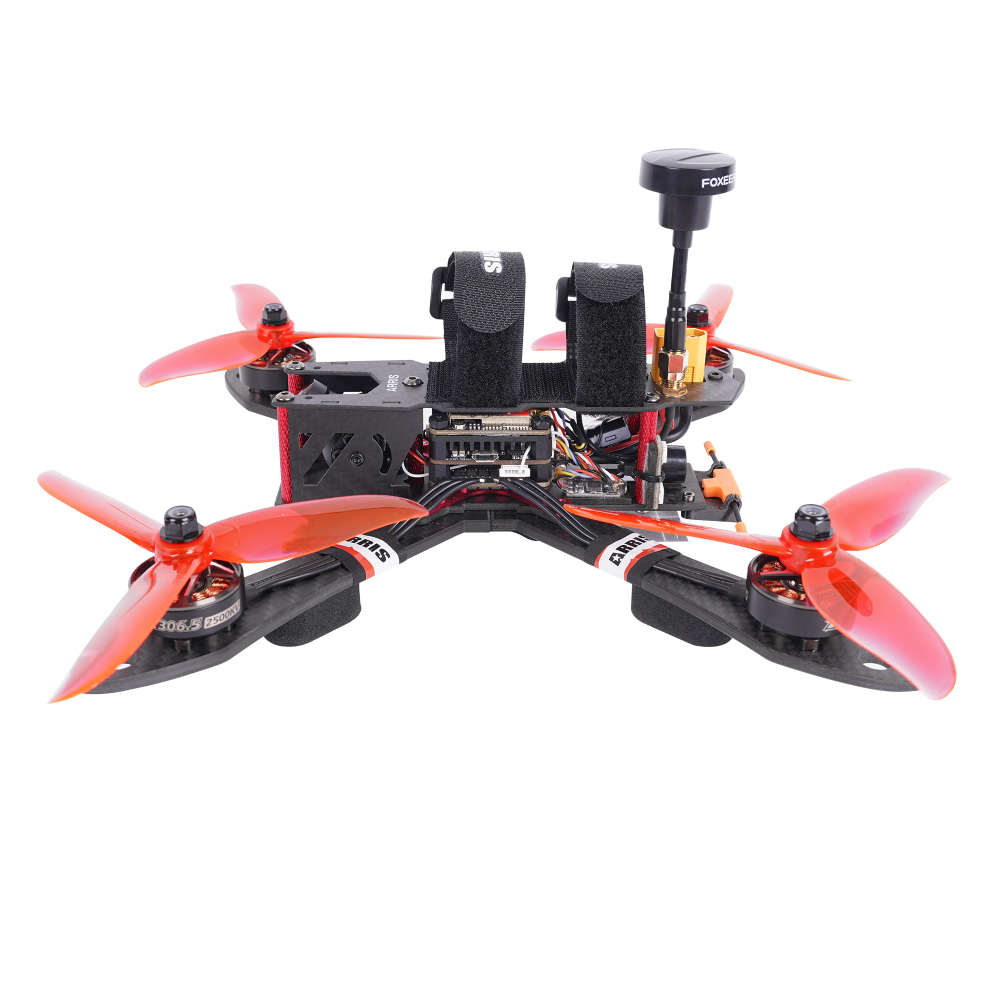

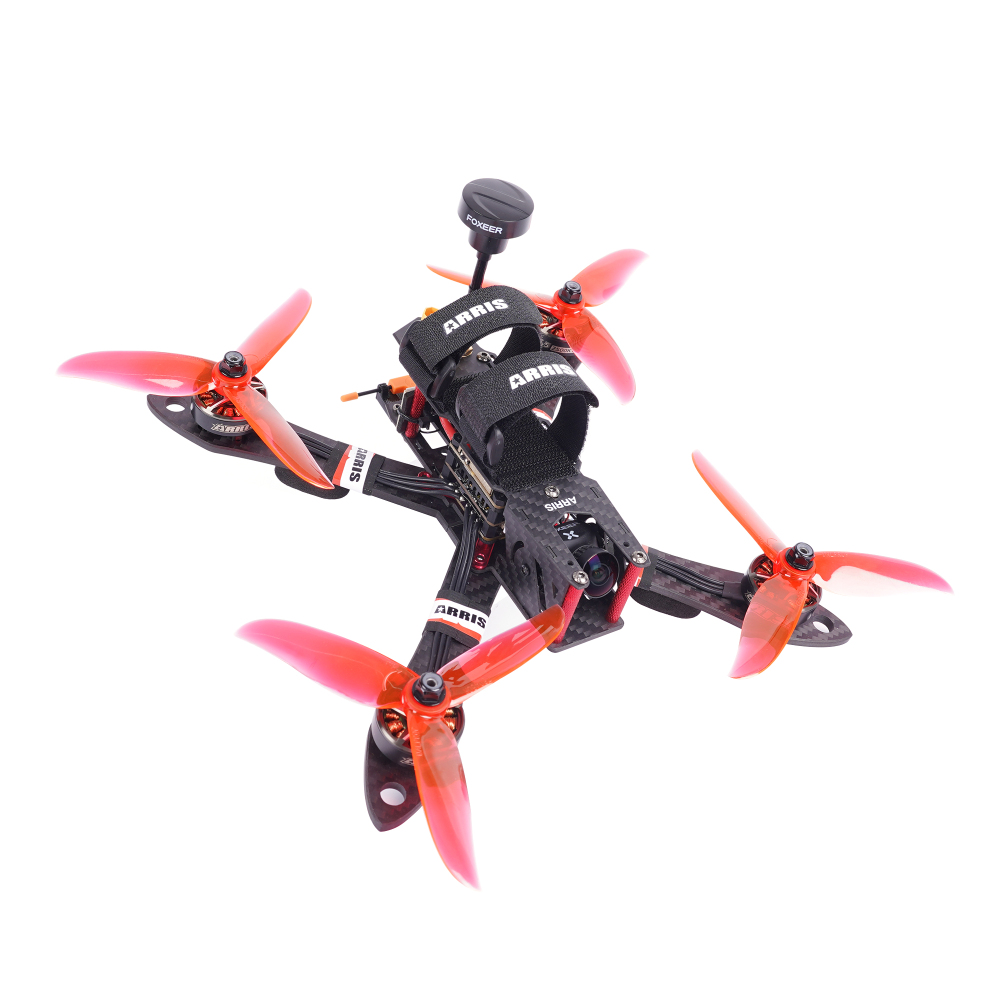

ARRIS X220 V2 5" FPV Racing Drone BNF (Standard Version)

SKU: CA0126N
4.0 (1)
$179.99 $199.99
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
    USA WAREHOUSE
  • Receiver:
    No
    Frsky RX
    Flysky RX
    Radiolink R12DSM
    TBS
    Please select the information you wantX
Quantity:
  • ARRIS X220 V2 5" FPV Racing Drone BNF (Standard Version)
Frequently Bought Together
more
Frequently Bought Together
  • Description
  • Replacement Parts
ARRIS X220 V2 Parts

This is BNF version. For the RTF with Radiolink AT9S, you can check here. For the RTF with Frsky QX7 radio, you can check here.

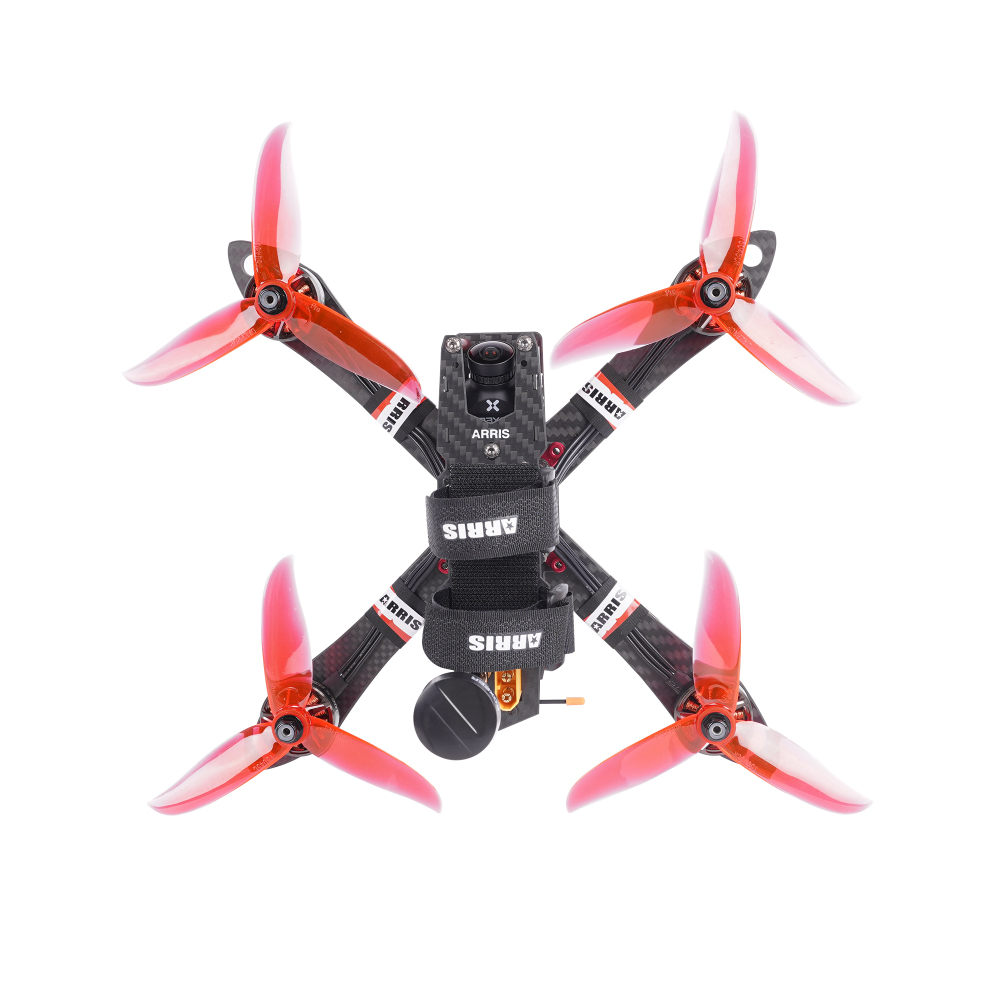

ARRIS X220 V2 220mm FPV racig drone BNF is one of the best racing quad for freestyling. ARRIS X220 BNF comes with ARRIS X2205 2300kv high quality brushless motor,Flycolor Raptor S-Tower BHeli-S 2-4S 4-in-1 40A ESC + F4 + PDB + OSD board,Dalprop T5045C high efficiency propeller, FOXEER Razer MINI 1200TVL FPV Camera ,5.8G 48CH long range mini video TX.The receiver is optional. Before leaving the factory, the BNF is tuned and tested by the technician.

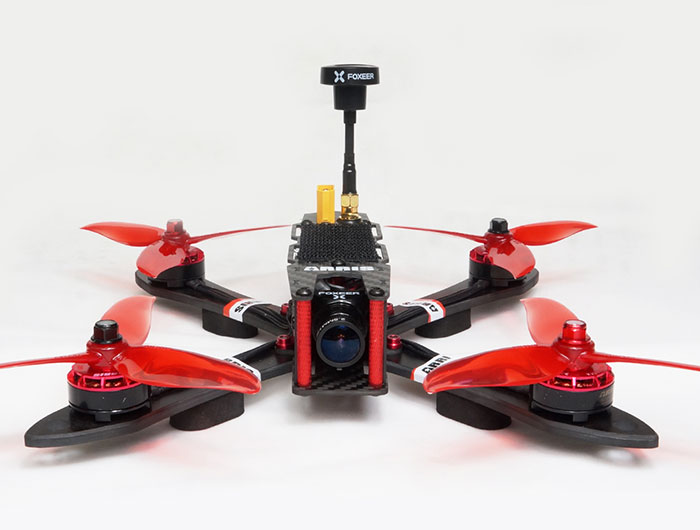

ARRIS X220 V2 RTF

Specifications:
Diagonal Wheelbase: 220mm
Flight Controller: F4 flight Controller
Frame Material: Pure Carbon Fiber
BNF weight:329.5g
Camera:  FOXEER Razer MINI 1200TVL FPV Camera
FPV TX: 5.8G 48CH switchable VTX
Antenna: Foxeer Pagoda Pro antennaa
Flying Time: About 12 minutes (hovering)

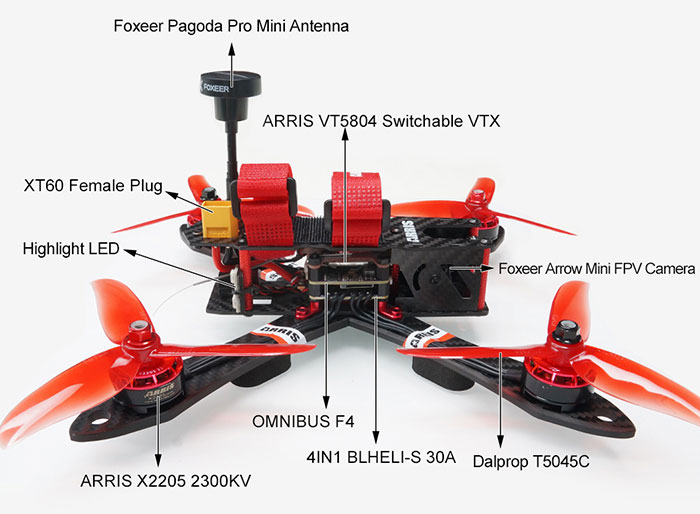

X220 V2

The main feature of the ARRIS X220 is the "X" symmetrical design,light weight,simple structure,durable and agile.The ARRIS X220 comes with the chamfered edge design on the arm, which gives the quad a sleek look.It comes with 4mm pure carbon fiber plate arm, make the frame super strong.The ARRIS X220 is made of pure carbon fiber with alloy pats, the weight is quite light.The structure of the X220 is simple, it is easy to maintain.

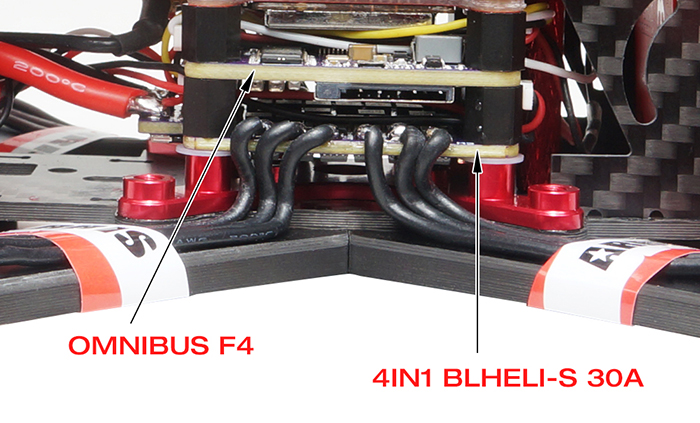

Flycolor Raptor S-Tower comes with BLHei-S 4-in-1 40A ESC and F4,PDB and OSD. The ESC comes with EFM8BB21F16G MCU, support Dshot / Multishot / Oneshot,support high KV motor, can support at most 500k eRPM.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.
The default firmware of the F4 is Betaflight_OMNIBUSF4SD,it supports ?PPM,SBUS,SPEKTRUM 1024/2048 etc. remote control / receiving mode. Built-in current meter, OSD directly display the real-time current without any additional connection.
With the tower on the ARRIS X220, the wires are tidy and concise. And it is more convenient to maintain in the future.

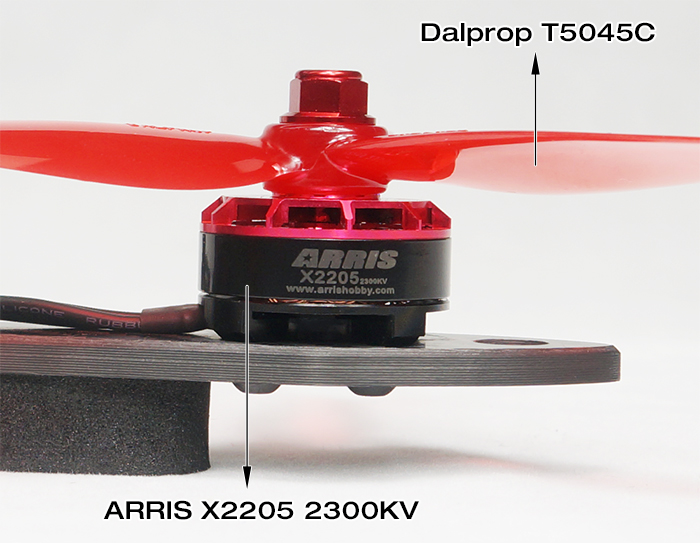

ARRIS X2205 V2 2300KV brsushless motor is upgrade to ARRIS X2206 2450KV Brushless now. It is high end brushless motor specially designed for high performance fpv racing drones.It adopts brand new M5 steel shaft, improving the structure strength. It had been upgraded to centrifugal fan design, optimizing the heat dissipation.It also adopts original Japan NSK bearing and N52 tile-shape magnets to ensure the power and quality of the motor.


DALPROP cyclones T5045C series propeller is newly released high end dynamic balanced prop for fpv racing drones.
The propeller is made of imported PC,the strength is high, and the root is thickened,which make the propeller is not easily broken. The smooth surface design on the prop decreased the windage resistance,increasing the efficiency of the propeller.

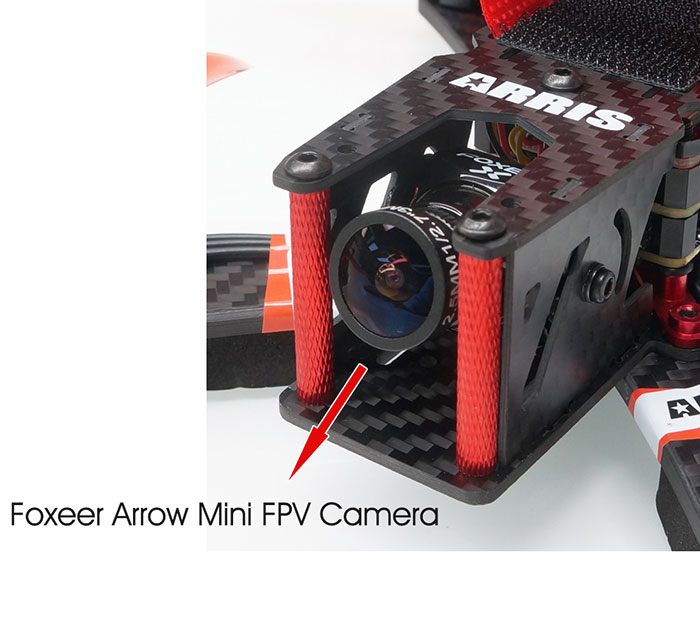

FOXEER Razer MINI 1200TVL FPV Camera replaced the ARROW mini fpv camera now. It comes with excellent WDR, which works well in the fast change of the dark and bright environment, support 5-35V super wide voltage, and built-in microphone and FPV OSD.The angle of the camera is adjustable on the ARRIS X220.

GoPro and Sports fpv camera can mount on the ARRIS X220, the mounting set is sold separately.You can check here. If you mount the GoPro or FPV camera on it, the XT60 plug for the battery need to install on the bottom plate.

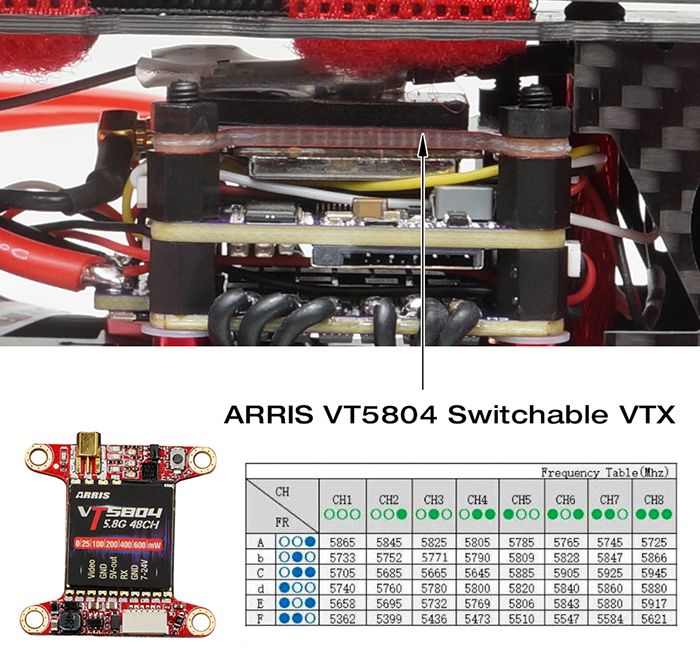

ARRIS VT5804 48CH 0mw/25mw/100mw/200mw/400mw/600mw Switchable Video Transmitter.It has stable output power, long transmission range (0.5KM+@25mW; 1KM@200mW; 2KM+@600mW with stock antenna), 6 power switchable,Output power and frequency setting can be done in OSD interface through remote controller and it weighs only 6g, perfect for fpv racing quads.

Below is the video to show how to adjust the vtx through your radio

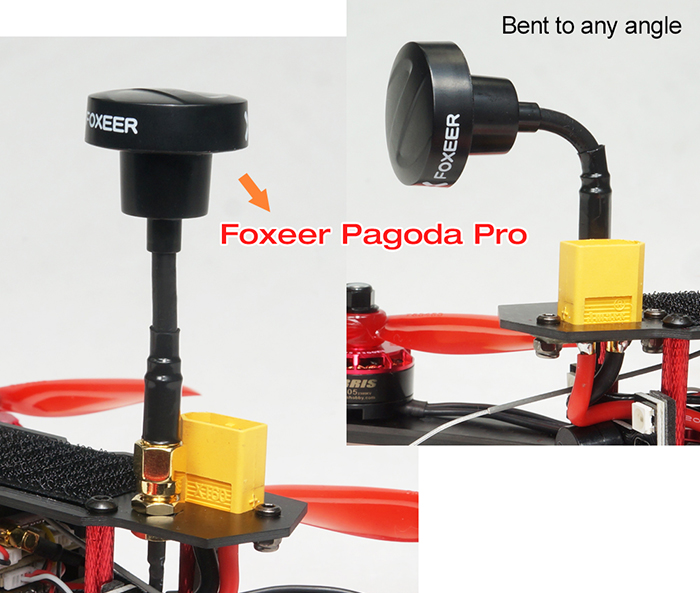

Foxeer Pagoda Pro 5.8G mini antenna. The body adopts imported PC+ABS material, can withstand high strenghth impact. Double-jacket semi-rigid cable for heavy impact resistance. Lower feeder loss, easy to install, can be bent at any angle and maintain.

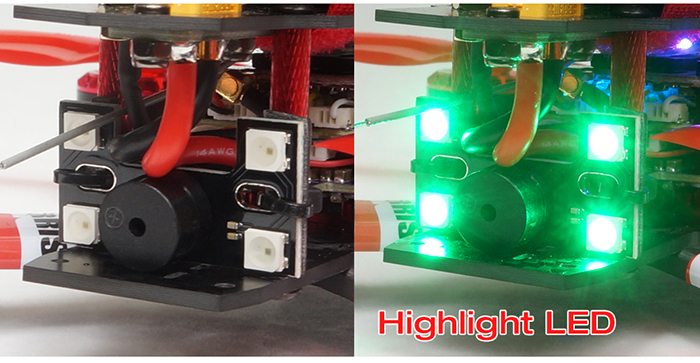

Highlight LED on the rear of the drone.

Package Include:
1xARRIS X220 FPV Racing Quad Frame
4xARRIS X2206 2450KV V2 Brushless Motors (2CW+2CCW)
1xFlycolor Raptor S-Tower BHeli-S 2-4S 4-in-1 40A ESC + F4 + PDB + OSD
4xDalprop T5045C High Effiency Propeller
1xFOXEER Razer MINI 1200TVL FPV Camera
1xARRIS VT5804 48CH VTX
1xFoxeer Pagoda pro mini antenna
1xBattery straps



Note: Radio, receiver, battery and Battery Charger is sold separately.
