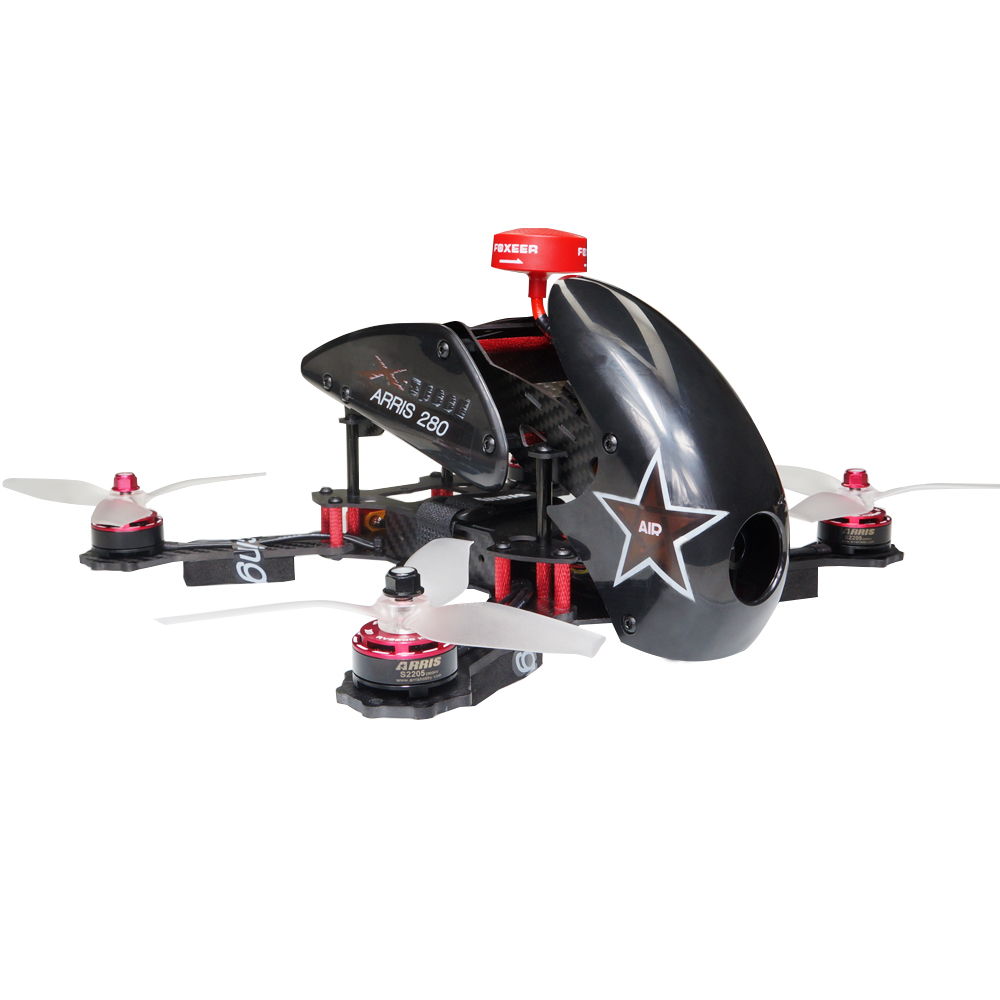

ARRIS Robocat 280 V2 RTF with EV800D FPV Goggle

SKU: CA0025-BLK+BA0054
5.0 (1)
$339.00 $359.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
    USA WAREHOUSE
  • Mode:
    Mode 2 (Left Hand Throttle)
  • color:
    Black
    white
    Please select the information you wantX
Quantity:
  • ARRIS Robocat 280 V2 RTF with EV800D FPV Goggle
  • ARRIS Robocat 280 V2 RTF with EV800D FPV Goggle
  • ARRIS Robocat 280 V2 RTF with EV800D FPV Goggle
  • ARRIS Robocat 280 V2 RTF with EV800D FPV Goggle
  • ARRIS Robocat 280 V2 RTF with EV800D FPV Goggle
  • ARRIS Robocat 280 V2 RTF with EV800D FPV Goggle
  • ARRIS Robocat 280 V2 RTF with EV800D FPV Goggle
  • ARRIS Robocat 280 V2 RTF with EV800D FPV Goggle
Frequently Bought Together
  • Robocat 280
more
Frequently Bought Together
Robocat 280
Total: $ 435.00
Save $36.97 for buying together
  • Description
  • Replacement Parts

ARRIS Robocat 280 Parts

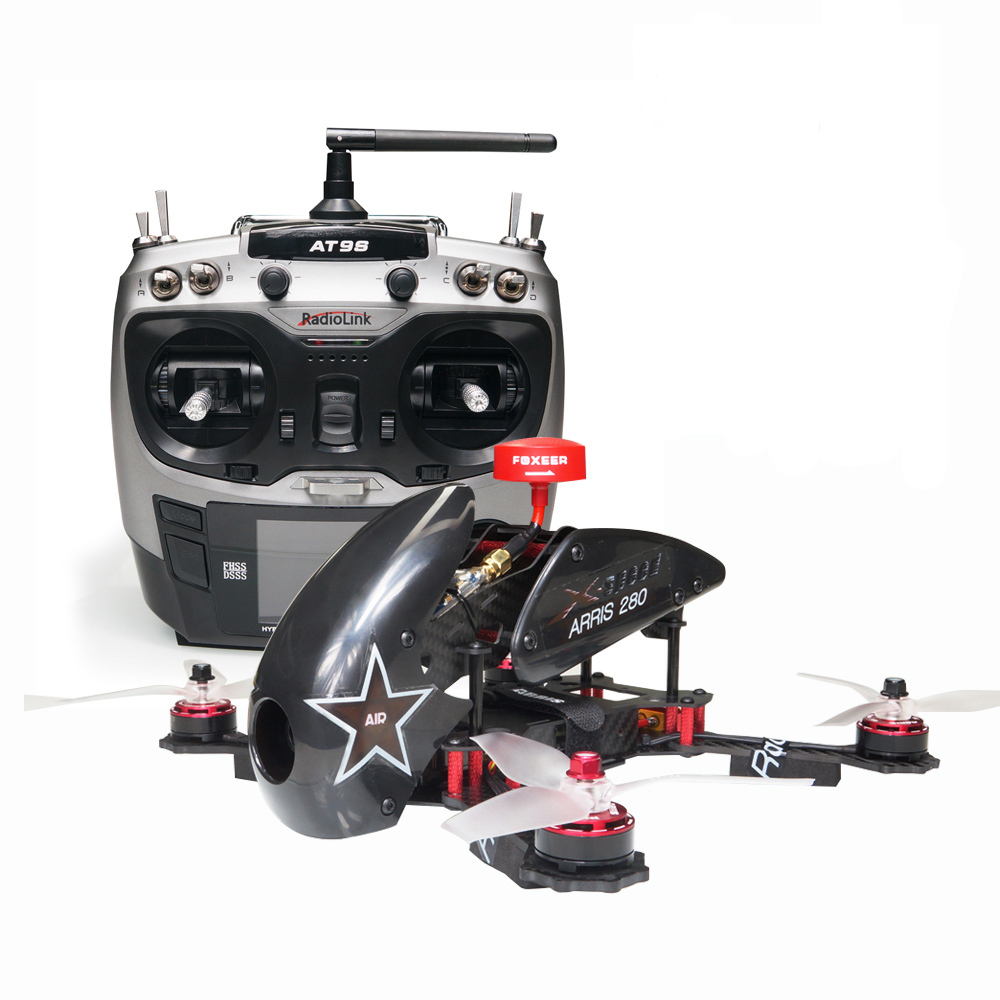

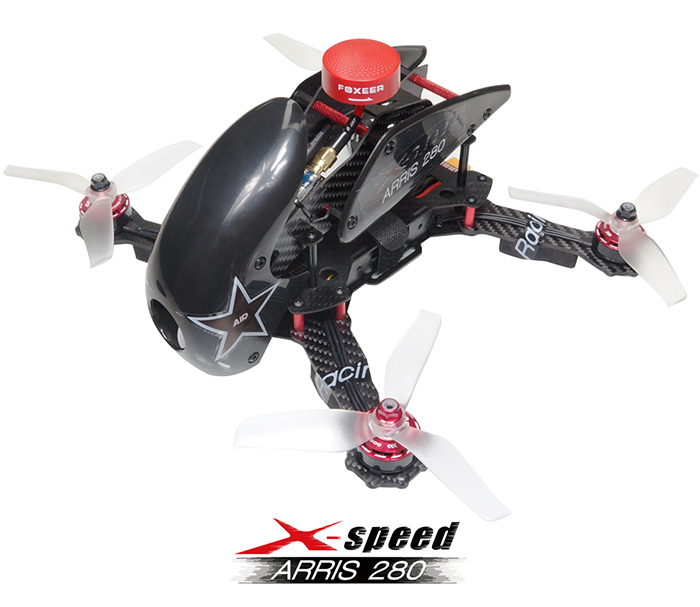

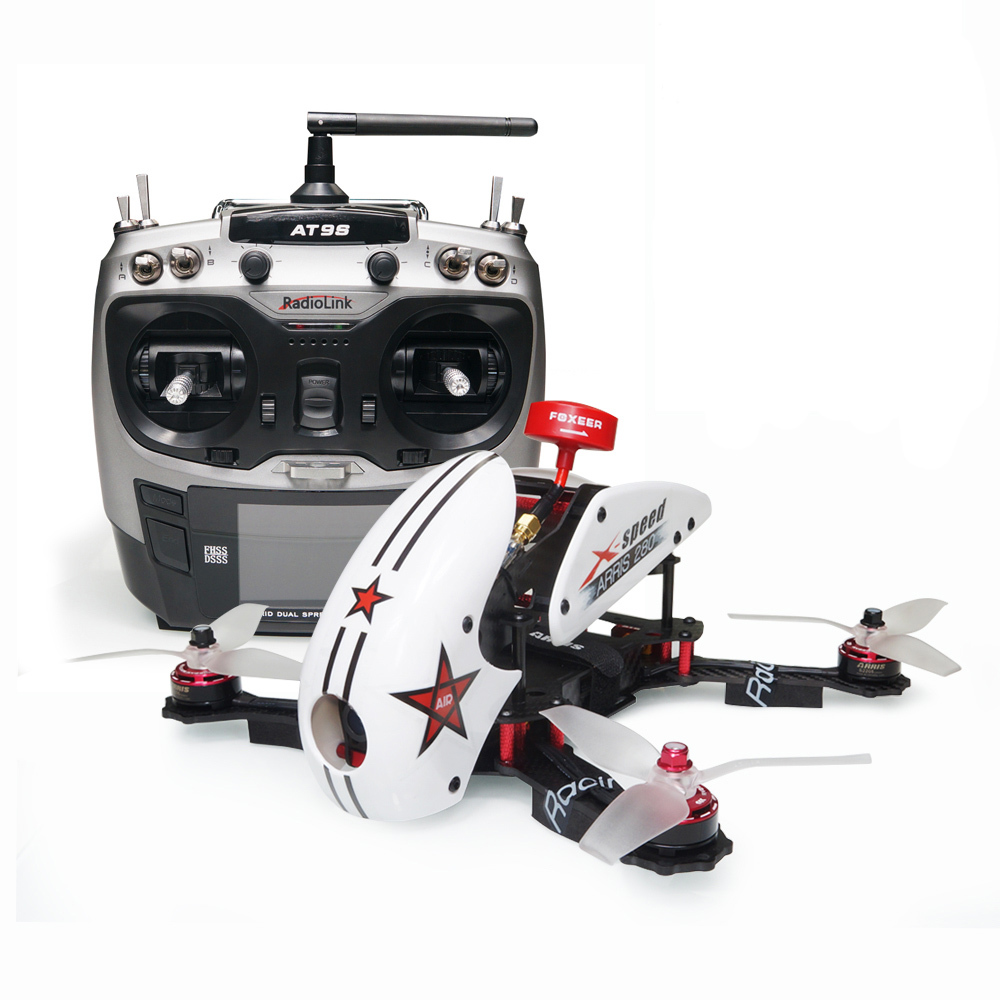

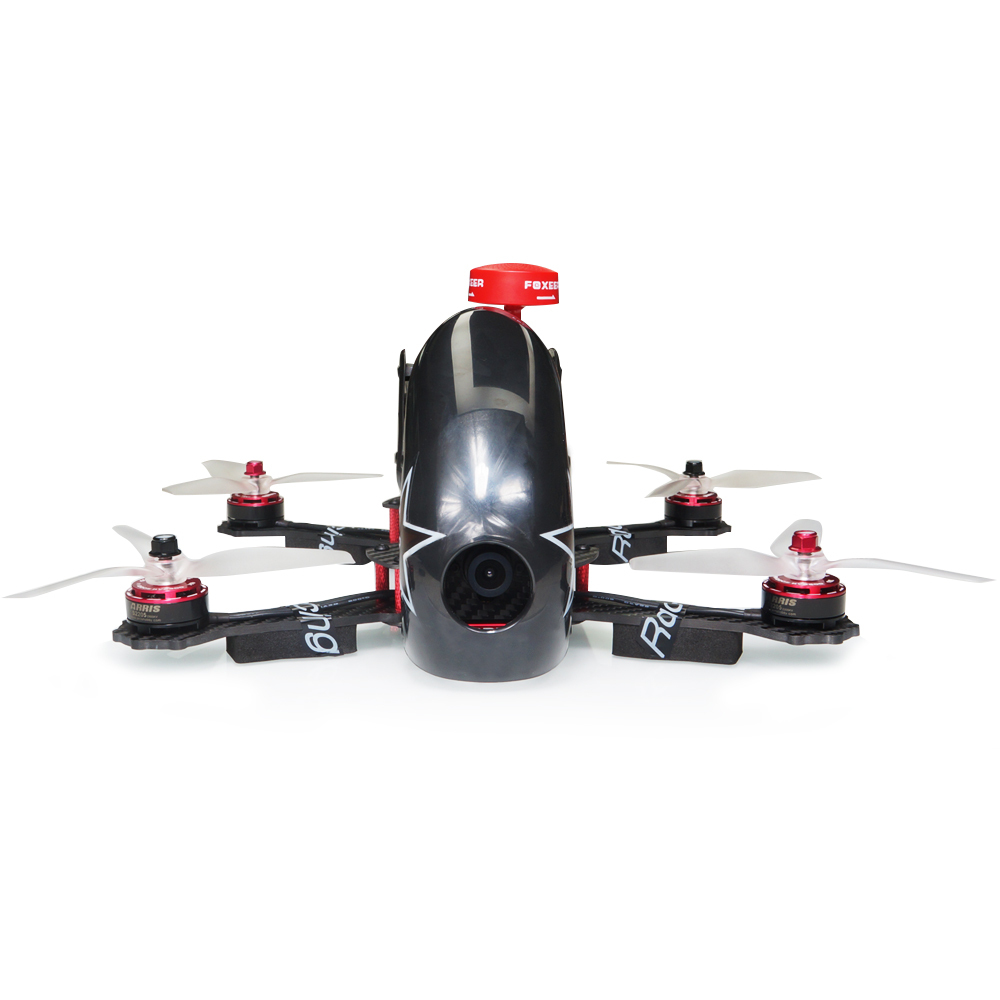

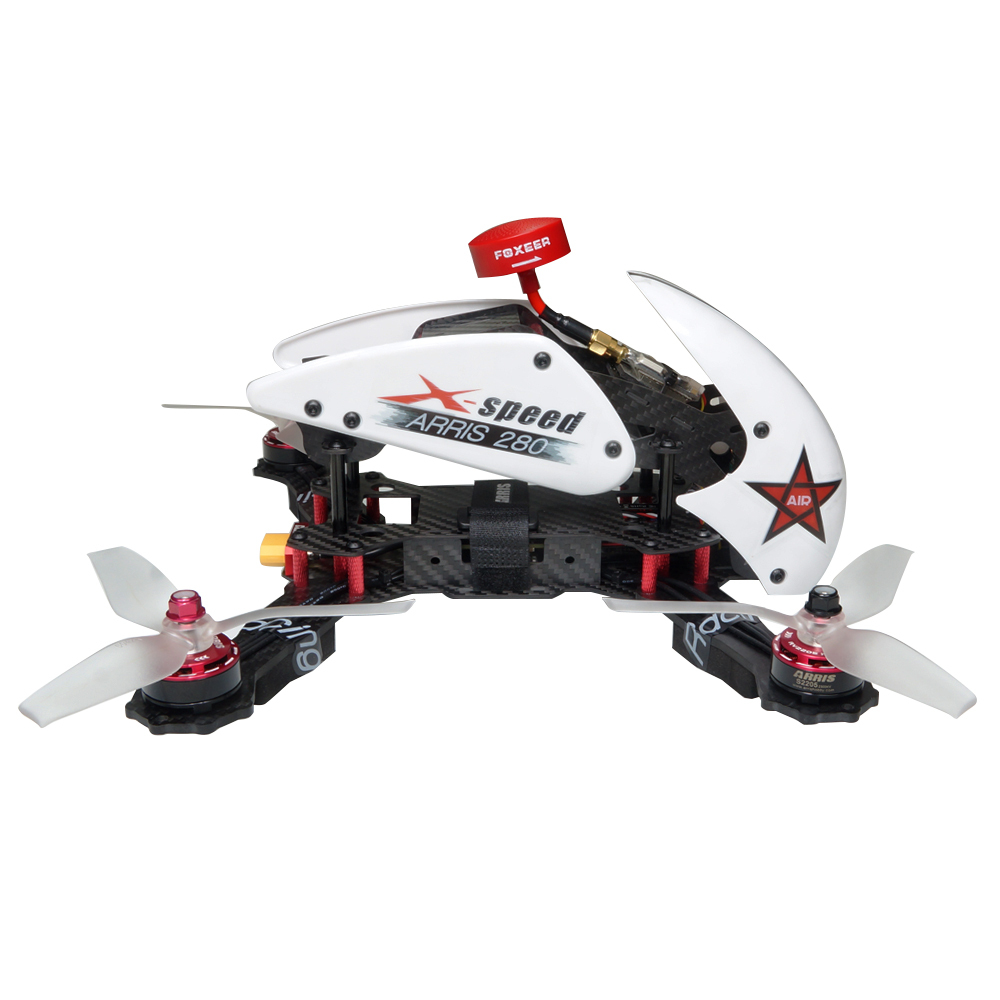

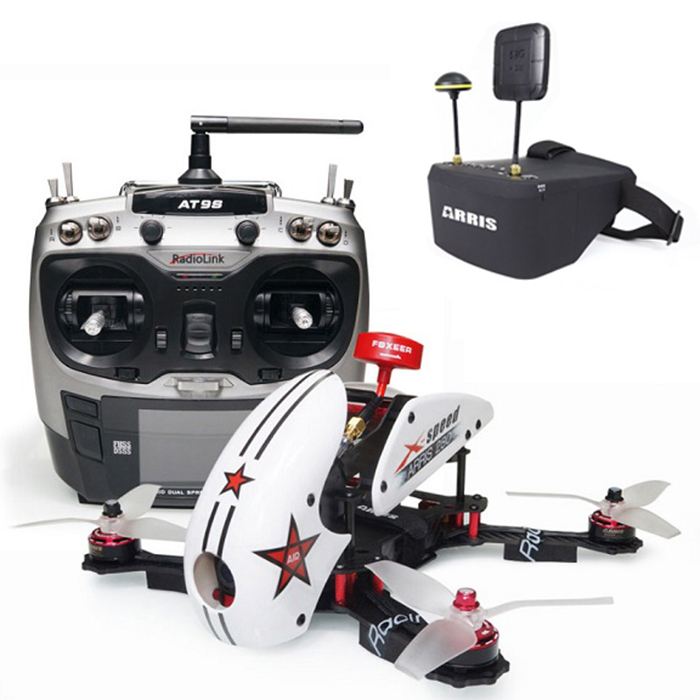

ARRIS X-Speed 280 V2 is the upgrade version of X-Speed 280. ARRIS X-Speed 280 V2 with Eachine EV800 Goggle combo comes with ARRIS X-Speed 280 v2 RTF, eachine EV800 goggle. Plug the battery, click the search channel and pair the goggle with the robocat 280, you can start your FPV journey!

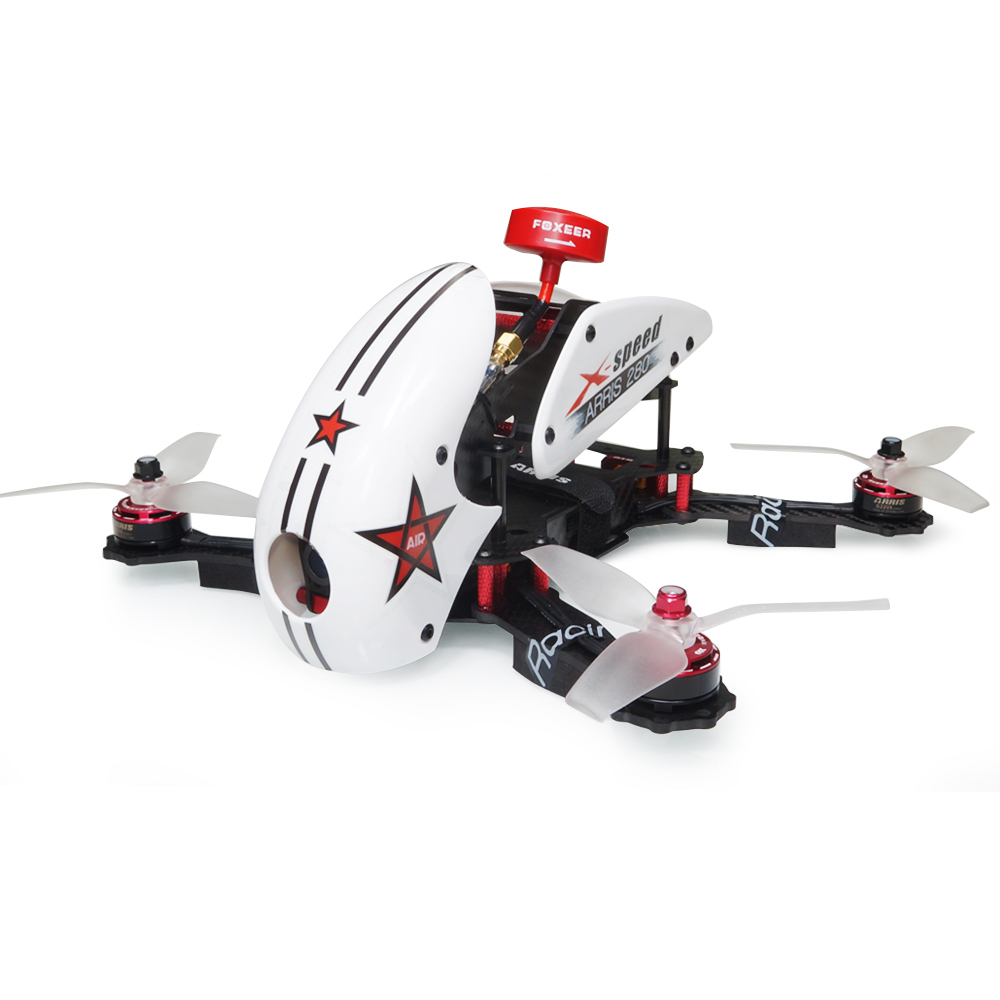

For the canopy, the default canopy is white. Black, Orange and transparent is available here.


Specifications:
Motor: ARRIS S2205 2300KV Brushless Motor
ESC: Flycolor 30A BLheli-s 4 in 1 ESC
FC: F4
Propeller: ARRIS 5045 3 blade propeller
Radio: Radiolink AT9S 10CH radio with receiver
Battery: ARRIS 4S 1500mah lipo battery
Video TX: ARRIS TS5823S 5.8G 40CH video tx
Antenna: Foxeer 50cm Circular Polarized Omni Antenna
Goggle: ARRIS EV800D FPV Goggle

As all we know, due to the nice looking structure, the maintainance of the Robocat 280 is quite complicated. Therefore, the structure of the X-speed 280 is simplified, the tower with 4in1 ESC, FC and PDB is adopted to sustitute separate esc and flight controller. The tower structure high integrated item has following merits:

1. The two layers tower structure ESC is highly integrated design products,decreasing the interference caused by signal transmission.

2. The Tower structure design could protect the ESC well during the flight.

3. The tower makes the assembling of the fpv racing drones more and more convenient,the wires tidy and concise.The maintainance in the future is easy too, if you need to change it, the upper board of flight controller and lower board 4in1 ESC is sold separately.

ARRIS S2205 2300KV brushless motor is the upgrade version of ARRIS 2205 2300KV motor.The motor is smooth and strong, it has high effiency and long working life. It adopts knul design, cooling systems, hollowed steel prop shaft and lowe center design, plus the high quality magnets and NSK bearing, the ARRIS S2205 will bring you amazing flying experience.

The propeller on ARRIS X-Speed 280 V2 is 5042 3-blade propeller. The propeller is very powerful and well ballanced. It has 10% higher effeciency than normal propellers. Pefectly suitable for FPV racing.

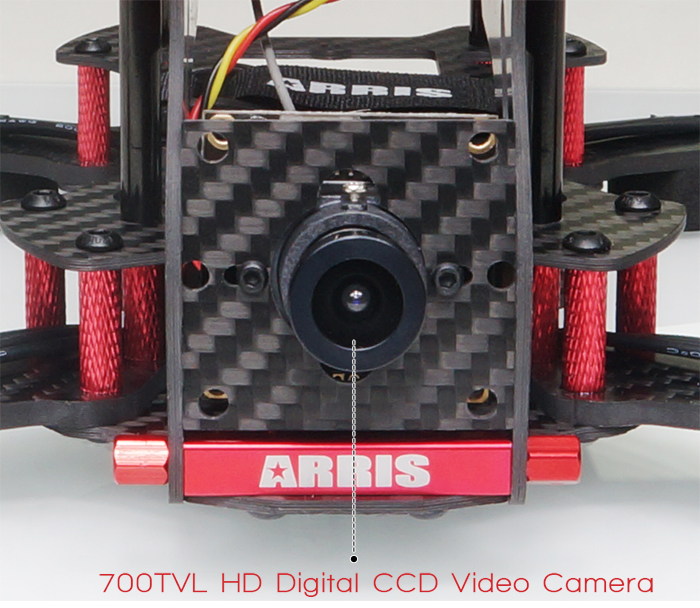

ARRIS FPV HD Ultralight 700TVL 2.8mm Lens Digital CCD Video Camera--This camera installed on all kinds of the fpv racing drones. The performance is super stable,and the picture from it is of high quality.

ARRIS 5.8g 200mW 40-CH video TX with Foxeer antenna is pre-assembled. The ARRIS TS5823S transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must for those looking save size and weight while still getting good performance.With the Foxeer antenna, you can get longer range.

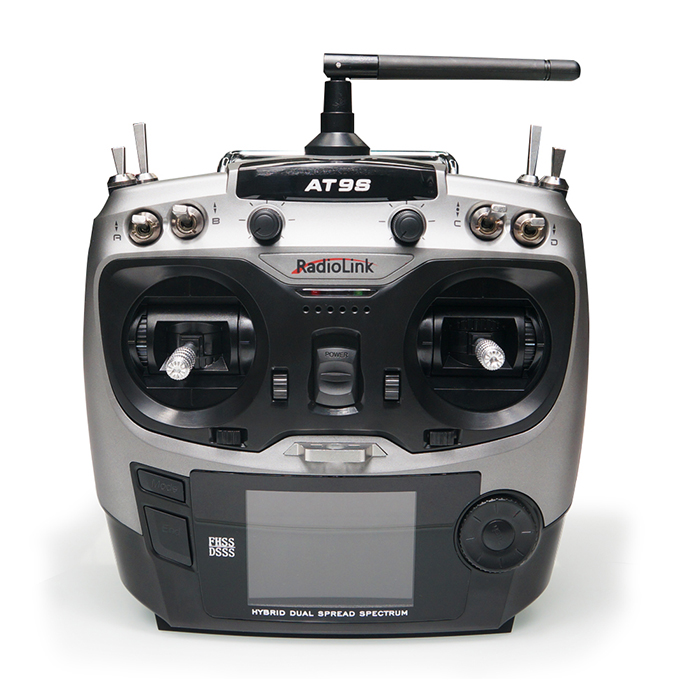

Radiolink AT9S 10 Channel radio is a newly released radio from Radiolink. It can support SBUS, PPM and PWM signal. The controllable range of the radio is about 900 meters ground and 1500 meters air. The radiolink AT9S can be used to control the multirotors, helicopters,airplanes, fixed wing,RC car and RC boat. One of the main feature is the multilanguage menu: English, Spanish, German, Italian, French, Turkish, Russian, Korean and Chinese are available in the menu.

Specification
Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
Modulation mode: QPSK
Channel bandwidth: 5.0 MHz and 250Kbps
Spread spectrum: DSSS&FHSS
Adjacent channel rejection: >38dbm
Transmitter power: less than 100mW (20dbm )
Operating current: 90mA@12V
Operating voltage: 7.4~18.0V
Control distance: More than 900 meters ground, 1500 meters air (the actual controldistance depends on the flying environment)
Channel: 10 channels,5-10 channels are customized
Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
Simulator model: under the simulator model the transmitter action turn off, change to power saving model
Screen: 2.8 inches 16 colorful screen, 240*320 pixels
Support receivers: R9DS(S-BUS&PWM), R10DS and R6DS
Size: AT9S- 183 x 100 x 193mm, R9DS- 41 x 23 x 14mm
Weight: 0.88kg

ARRIS X-Speed 280 V2 has integrated with a remote controller battery warning buzzer, pilot can set the threshold (adjustable) according to CF parameter-adjustment software. In addition, you can also locate your racing drone through triggering the buzzer with the switch D on the transmitter.

Self-level mode is the easiest to fly, because when you leave the stick at the centre and not controlling it, your drone just level itself and stays there. But when you are familiar, you will like to fly in Acro Mode (Manual Mode).

Manual mode is useful for acrobatics such as flips or rolls, or FPV when smooth and fast control is desired. The picture below is what we set on Radiolink AT9 Radio.

EV800D Feature:
-With DVR,you can record videos anytime and anywhere;
- Low power consumption;
- Double antenna reception to make the signal more stable;
-Auto-Searching,support a key search frequency;
- Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
- Built-in 3.7V/2000mAh battery, each full charge revive around 3.5hours working time for DVR OFF and 2.5 hours for DVR ON;
- Wide range re-charge voltage 5-12V, power banks or 2S/3S batteries can be used as back-up power source, to prolong the working time;
- Ergonomic design fit your faces;
- Super-wide visible angle up to 82 degree;
- 92% transparent lens adopted, no distort, no blur on the adage of screen;
- Light weight 375g with 3.5hr 2000mAh battery, RTF for any scale racing game.
- 5 inch 800*480px HD high brightness LCD screen
-Universal USB charging interference;
-Real-time video return,very low time-delay;
-Support external video signal input;
-Support Audio signal output;



Specification
Item No. 5.8G EV800D Goggles with DVR
DVR
REC size:VGA/D1/HD
REC sound: ON/OFF
REC time:OFF/3min/5min/10min
Frame rate:30 frames
Compress format:MJPEG
Record flie format:AVI
Screen

Screen size: 5.0 inch
Screen resolution: 800*480 (No blur after enlarge by the lens)
Display Ratio:16:9
Screen brightness: 300cd/m2 with special high brightness backlight LED for outdoor FPV
View Angle: 140/120 degree(Horizontal/Vertical)

Lens 2.8xfresnel lens;
92% transparent rate no distort of light;
Battery and recharge Built-in 3.7V/2000mAh battery;
Each battery circle offer around 2.5-3.5hr working time;
5-12V wide recharging voltage range, typical recharging voltage is 5V
Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time
Interface Antenna:2xRP-SMA antenna
USB:To charge the battery
AV jack:External video signal input or internal Audio signal output
Card slot: TF-card,support up to 32G(C10 recommend)
Receiver

Build in 5.8G 40CH Raceband receiver

Frequency Table
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5771 5790 5805 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 588 5917
Body Dimension: 180x140x84mm
Weight: 393g (with headbrand,not include antennas)







EV800 goggles

DVR goggles

EV800 goggles with EVR

E800D goggles





FPV goggles





This package includes :
1 X ARRIS X-SPEED 280 V2 Racing Drone Kit w/ Canopy
1 X Flycolor Raptor 390 Tower w/ F390 30A 4 in 1 ESC + F3 + OSD
4 X ARRIS S2205 2300KV Brushless Motor
4 X 5045 3-blade propellers
1 X Sony 700 line camera
1 X RadioLink AT9S 10CH radio
1 X Radiolink R9DS Mini Receiver
1 X X-SPEED 280 Stickers
1 X ARRIS TS5832 5.8G 40CH video TX
1 X Foxeer 5.8g antenna
1 X ARRIS 4S 1500mah Lipo Battery
1 X Eachine EV800D FPV Goggle



Note: Battery charger is sold separately.
