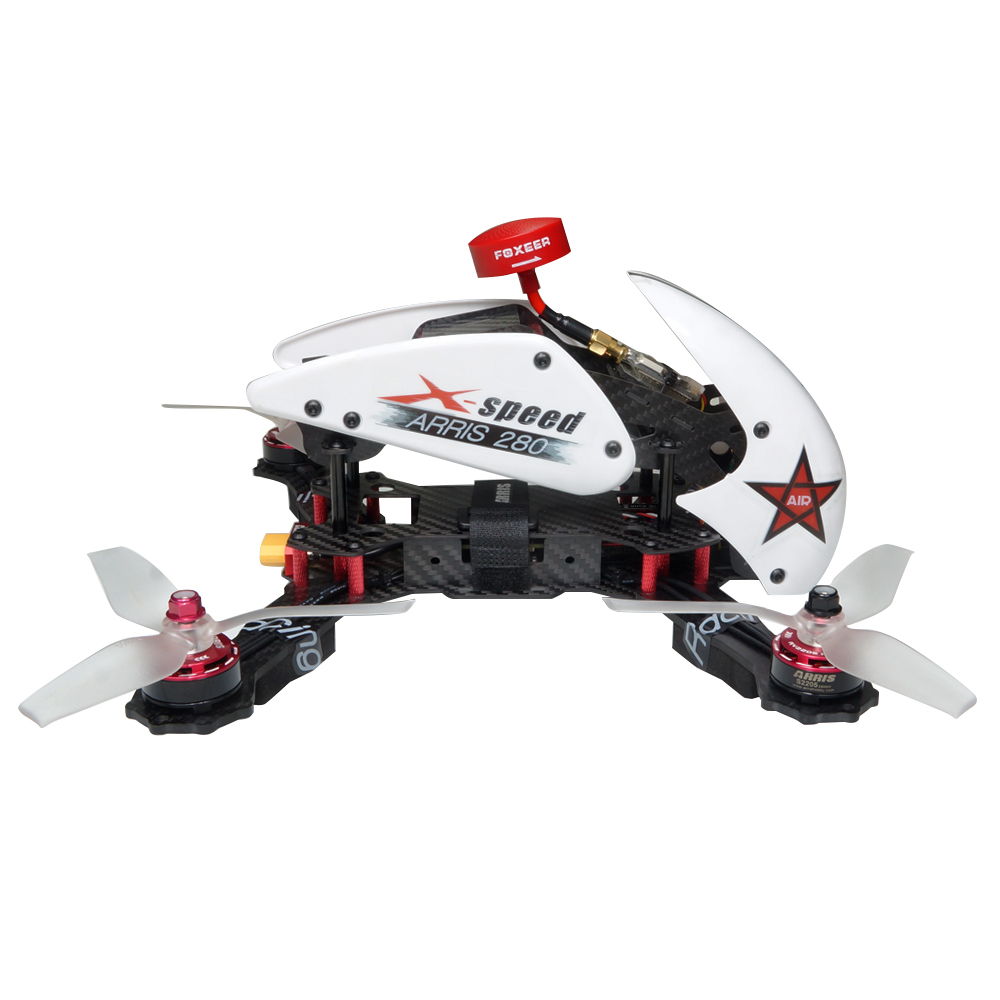

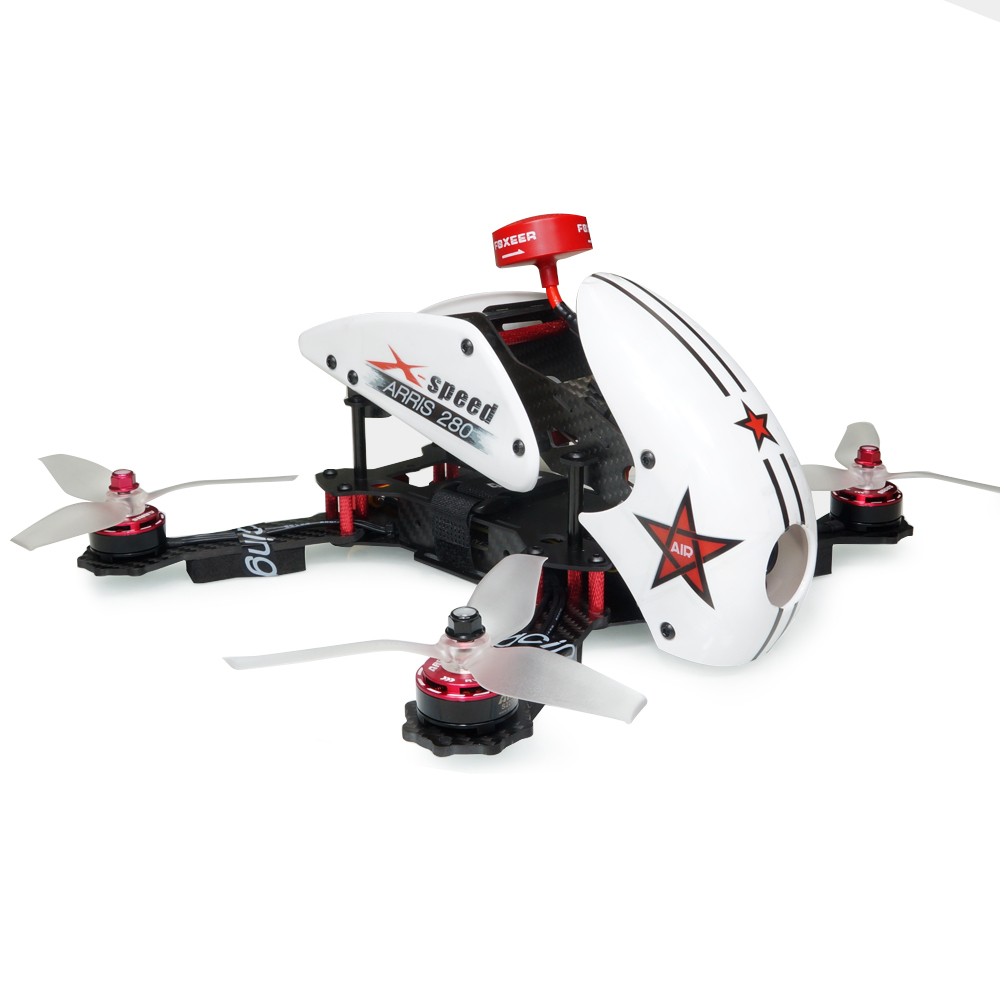

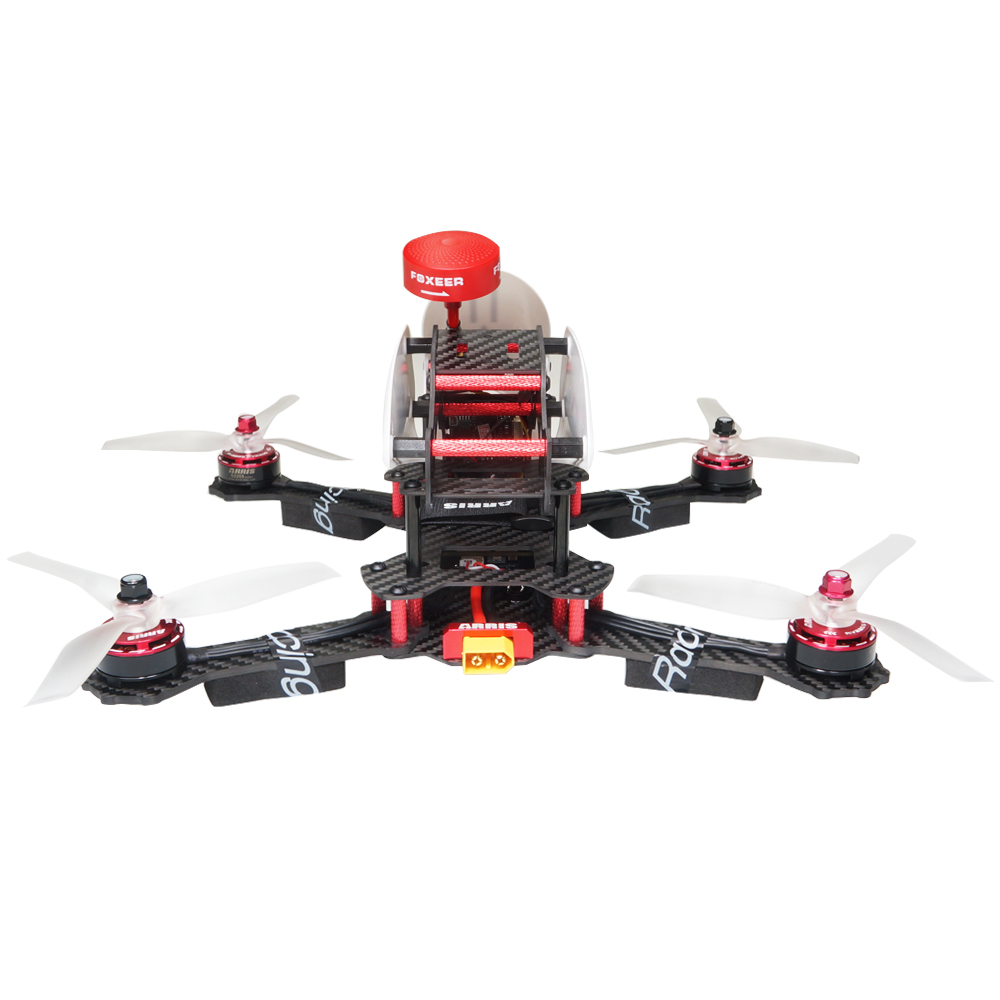

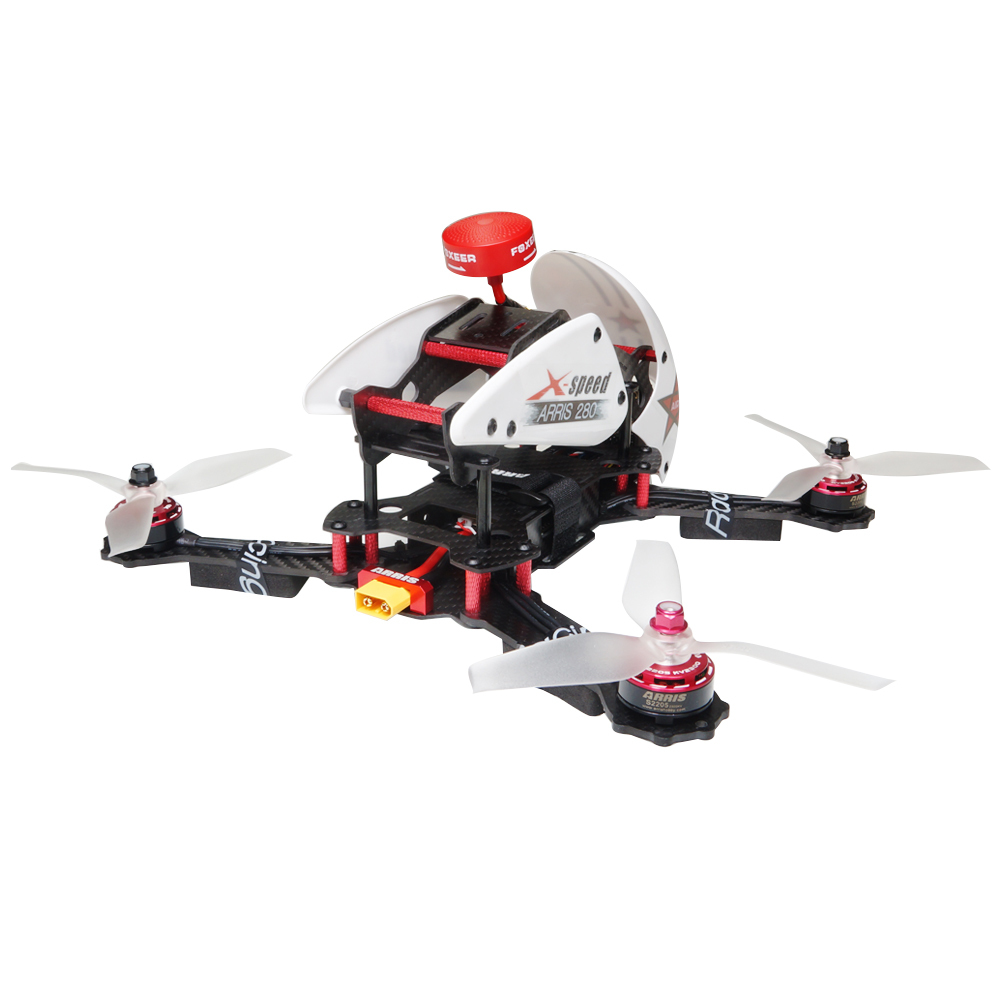

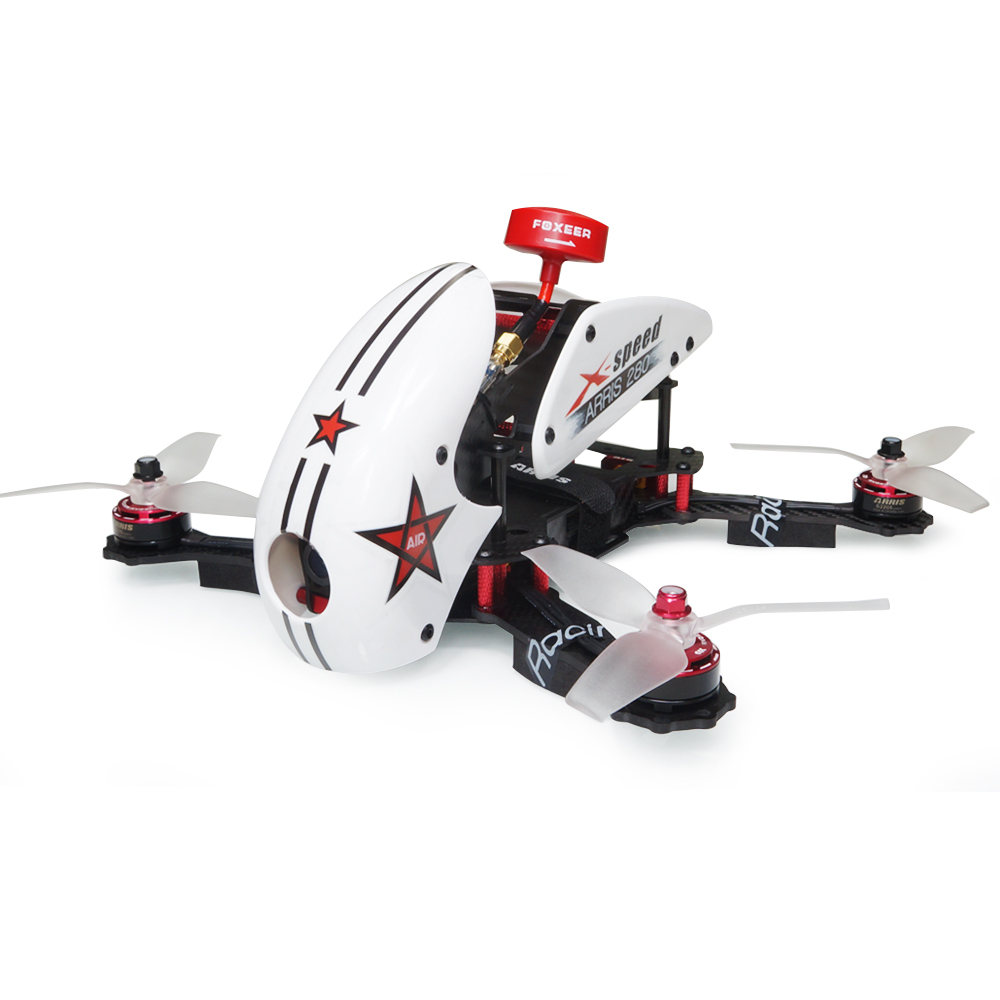

ARRIS Robocat 280 Parts
ARRIS Robocat 280 V2 is the upgrade version of X-Speed 280.ARRIS X-Speed 280 V2 ARF is fully assembled and tested before leaving the factory. It comes with ARRIS S2205 2300KV,Flycolor Raptor 390 Tower w/ F390 30A 4 in 1 ESC + F3 + OSD,5042 high efficiency propeller, 700TVL HD camera, 5.8G 40CH video tx and antenna. You just need to install the receiver on it and do some settings, it will fly.
Specifications:
Motor: ARRIS S2205 2300KV Brushless Motor
ESC: Flycolor 40A BLheli-s 4 in 1 ESC
FC: F4
Propeller: ARRIS 5045 3 blade propeller
Video TX: ARRIS TS5823S 5.8G 40CH video tx
Antenna: Foxeer 50cm Circular Polarized Omni Antenna
As all we know, due to the nice looking structure, the maintainance of the Robocat 280 is quite complicated. Therefore, the structure of the X-speed 280 is simplified, the tower with 4in1 ESC, FC and PDB is adopted to sustitute separate esc and flight controller. The tower structure high integrated item has following merits:
1. The two layers tower structure ESC is highly integrated design products,decreasing the interference caused by signal transmission.
2. The Tower structure design could protect the ESC well during the flight.
3. The tower makes the assembling of the fpv racing drones more and more convenient,the wires tidy and concise.The maintainance in the future is easy too, if you need to change it, the upper board of flight controller and lower board 4in1 ESC is sold separately.
ARRIS S2205 2300KV brushless motor is the upgrade version of ARRIS 2205 2300KV motor.The motor is smooth and strong, it has high effiency and long working life. It adopts knul design, cooling systems, hollowed steel prop shaft and lowe center design, plus the high quality magnets and NSK bearing, the ARRIS S2205 will bring you amazing flying experience.
The propeller on ARRIS X-Speed 280 V2 is 5042 3-blade propeller. The propeller is very powerful and well ballanced. It has 10% higher effeciency than normal propellers. Pefectly suitable for FPV racing.
ARRIS FPV HD Ultralight 700TVL 2.8mm Lens Digital CCD Video Camera--This camera installed on all kinds of the fpv racing drones. The performance is super stable,and the picture from it is of high quality.
ARRIS 5.8g 200mW 40-CH video TX with Foxeer antenna is pre-assembled. The ARRIS TS5823S transmitter packs 200mW of ultra clean 5.8GHz power in a micro sized video/audio transmitter! A must for those looking save size and weight while still getting good performance.With the Foxeer antenna, you can get longer range.
This package includes :
1 X ARRIS Robocat 280 V2 Racing Drone Kit w/ Canopy
1 X Flycolor Raptor 390 Tower w/ F390 30A 4 in 1 ESC + F3 + OSD
4 X ARRIS S2205 2300KV Brushless Motor
4 X 5042 3-blade propellers
1 X Sony 700 line camera
1 X X-SPEED 280 Stickers
1 X ARRIS TS5832 5.8G 40CH video TX
1 X Foxeer 5.8g antenna
Note: Remote Controller, Battery and Battery charger are sold separately.
