Update 2024-01-09: The power plug changed from AS150 to XT90-S.

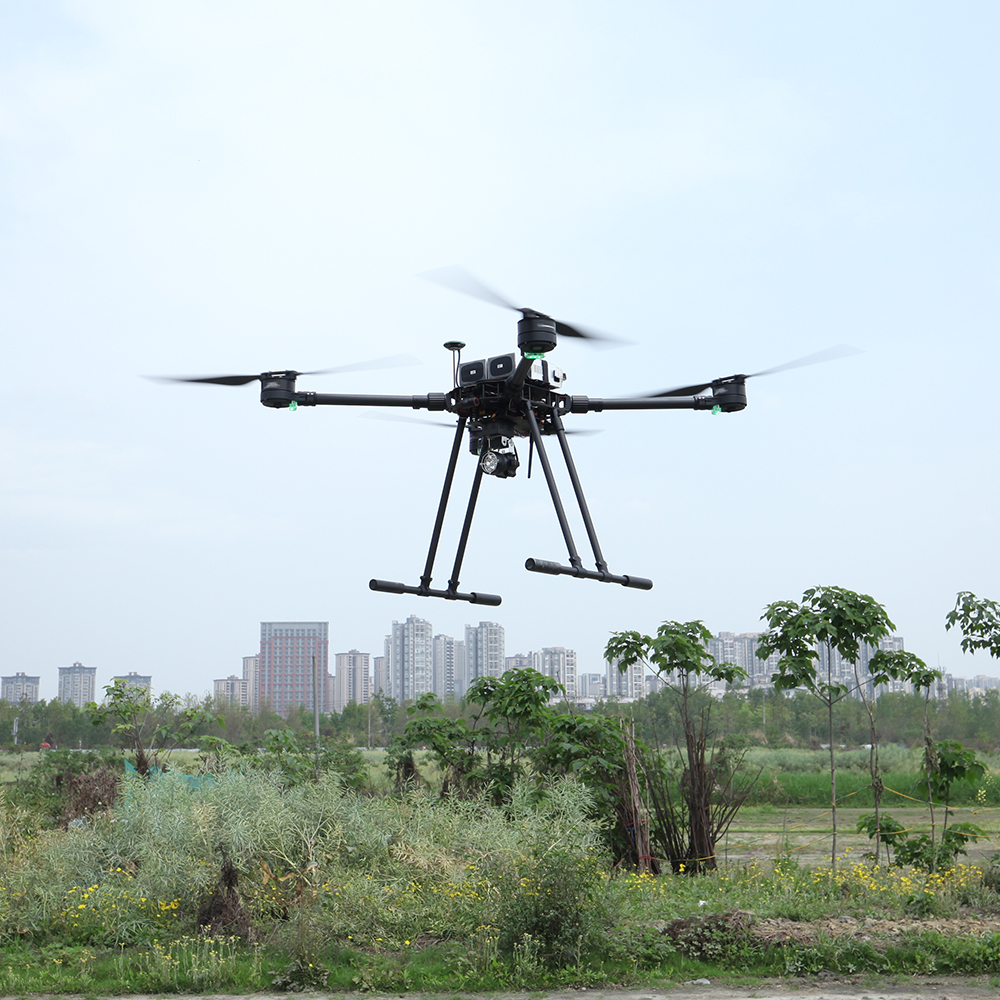

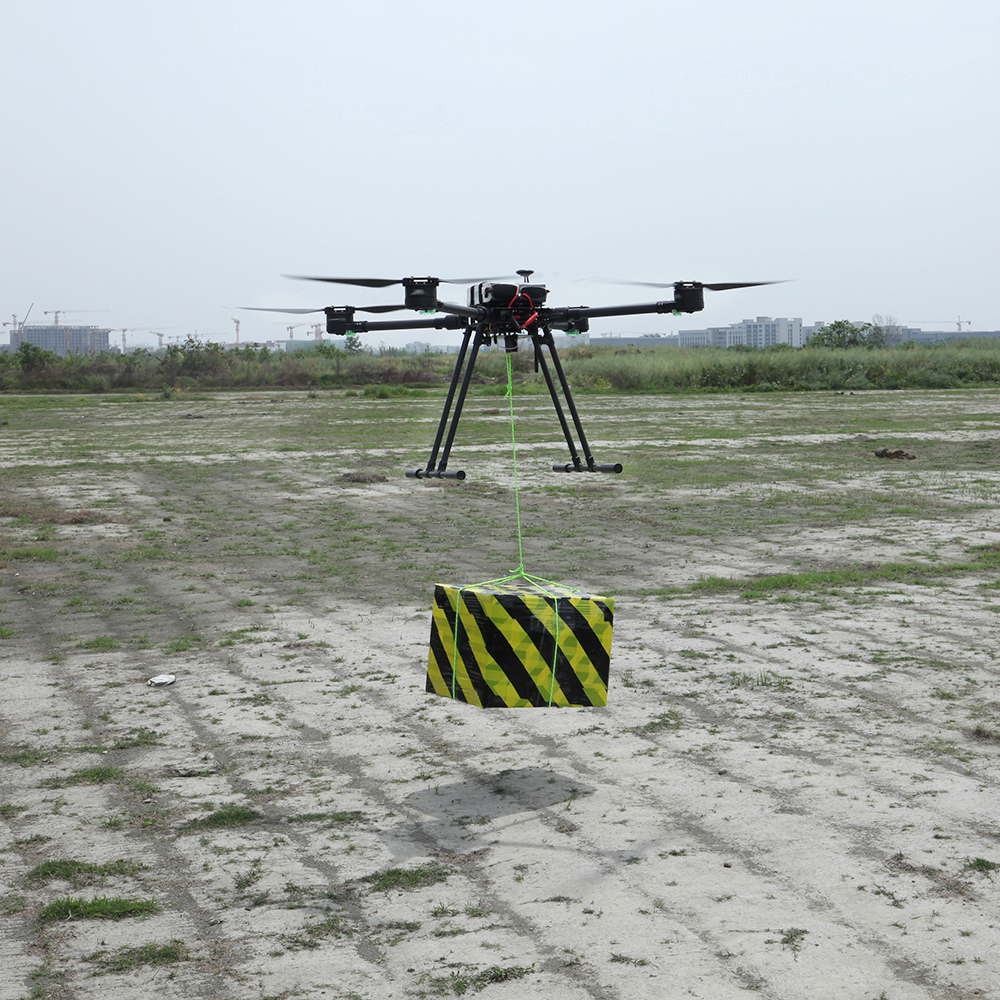

ARRIS M1200 is a 4 Axis UAV Industrial drone, which is specially designed for heavy payload, long flight time and long range industrial applications.The maximum payload of the ARRIS M1200 is 5kg, the hovering time can reach 20 minutes with 5kg payload. With expand plate, it can carry all kinds of equipement, such as thermal imaging cameras, life buoy, fire extinguisher, payload delivery systems. So it is great for power line inspections, wildlife tracking, bridge inspections, search and rescue operations, surveying, mapping, traffic monitoring and delivering parcels.
Speicifications:
Item Brand: ARRIS
Item Model: M1200
Dignotal wheelbase: 1200mm
Folding Size: 60cm×58cm×55cm
Expanded Size: 96cm×96cm×55cm
Power Supply Voltage: 12S
Motor: 8120 100KV
ESC: 80A ESC
Propeller: 30" Propeller
Battery: 6S 22000mah x 2
Power plug: XT90-S
Remote Controlelr: Optional

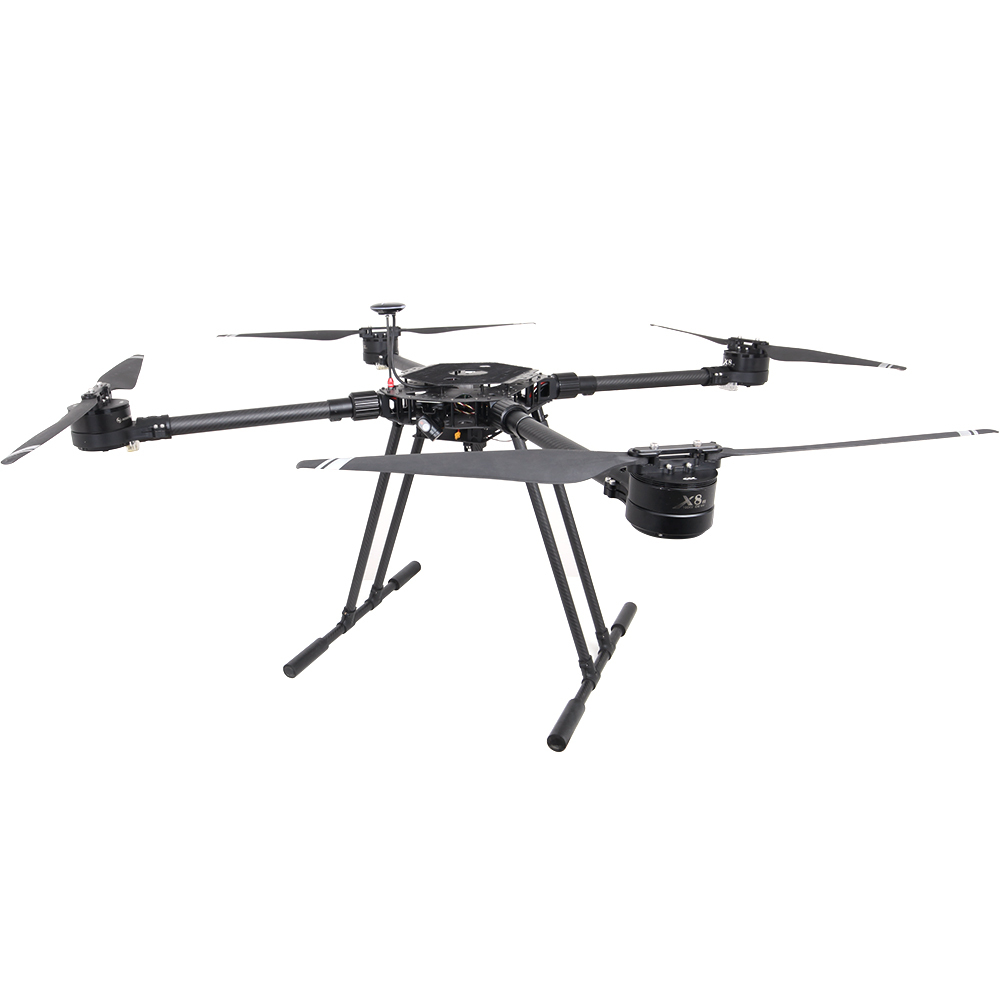

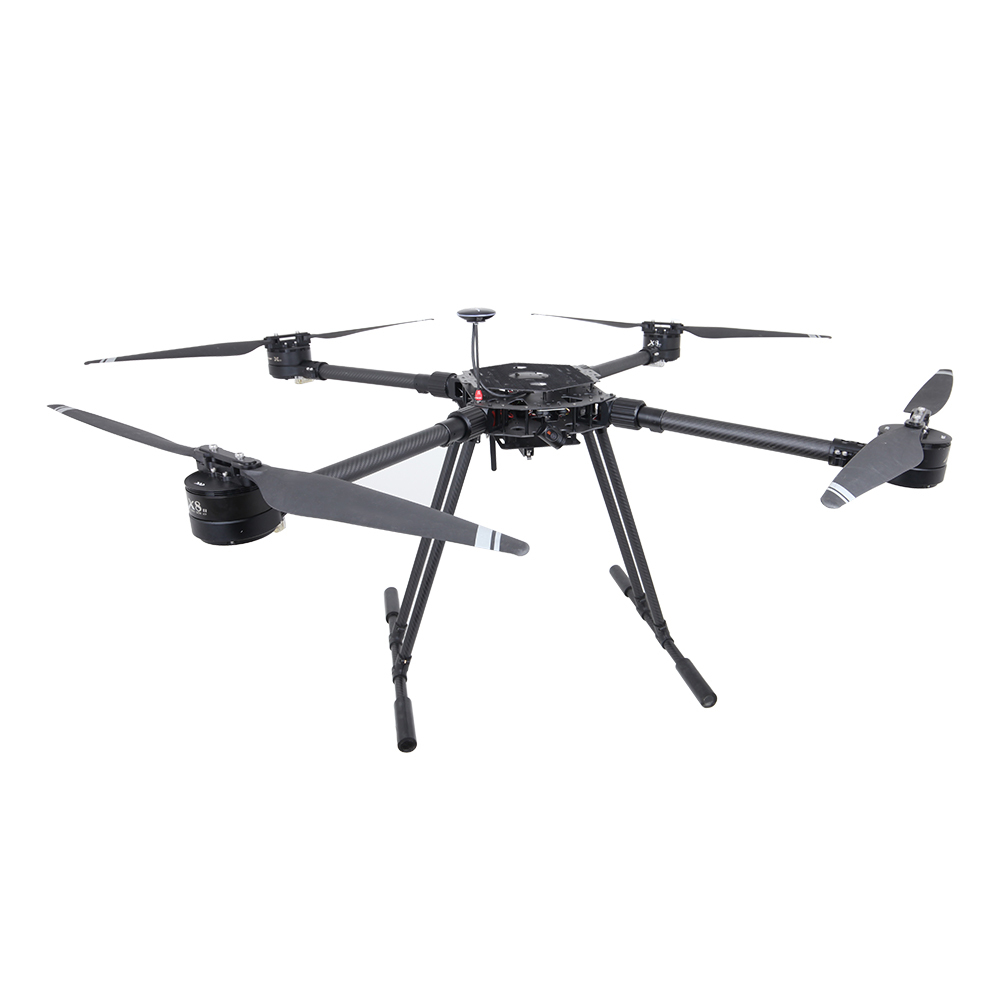

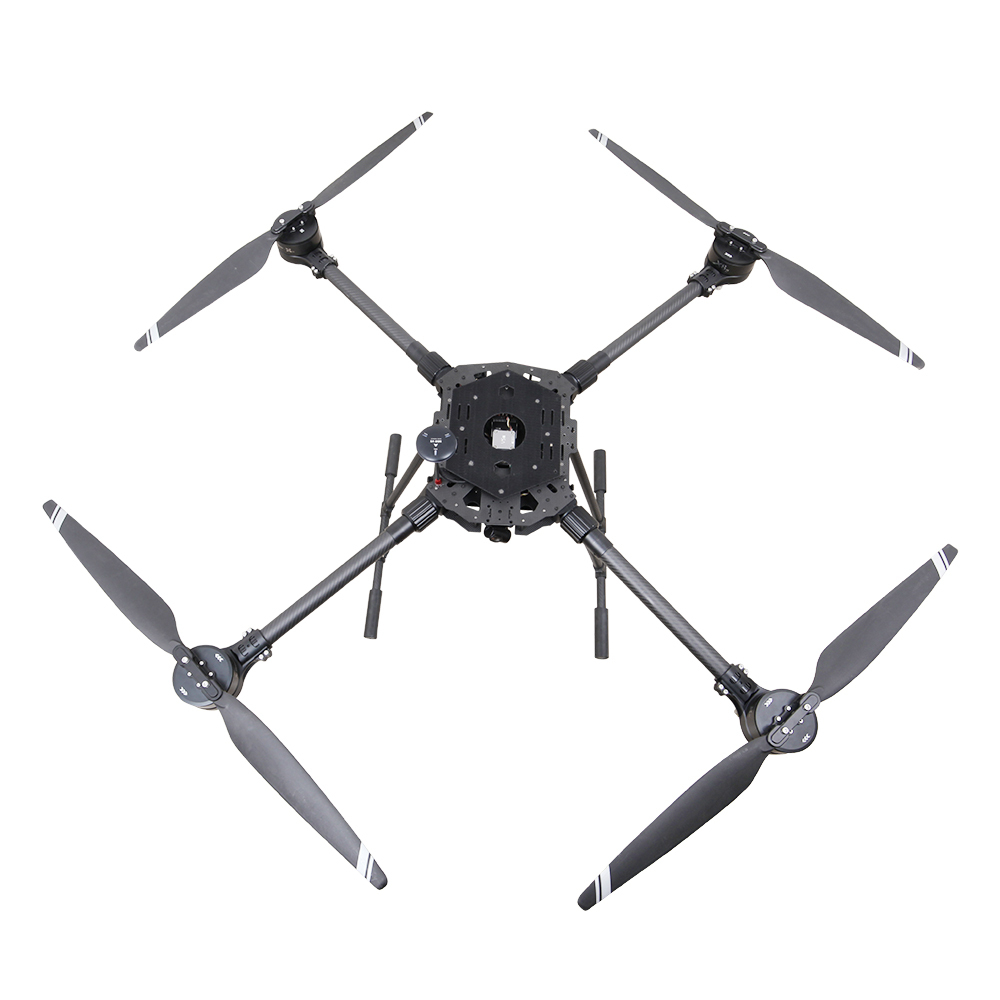

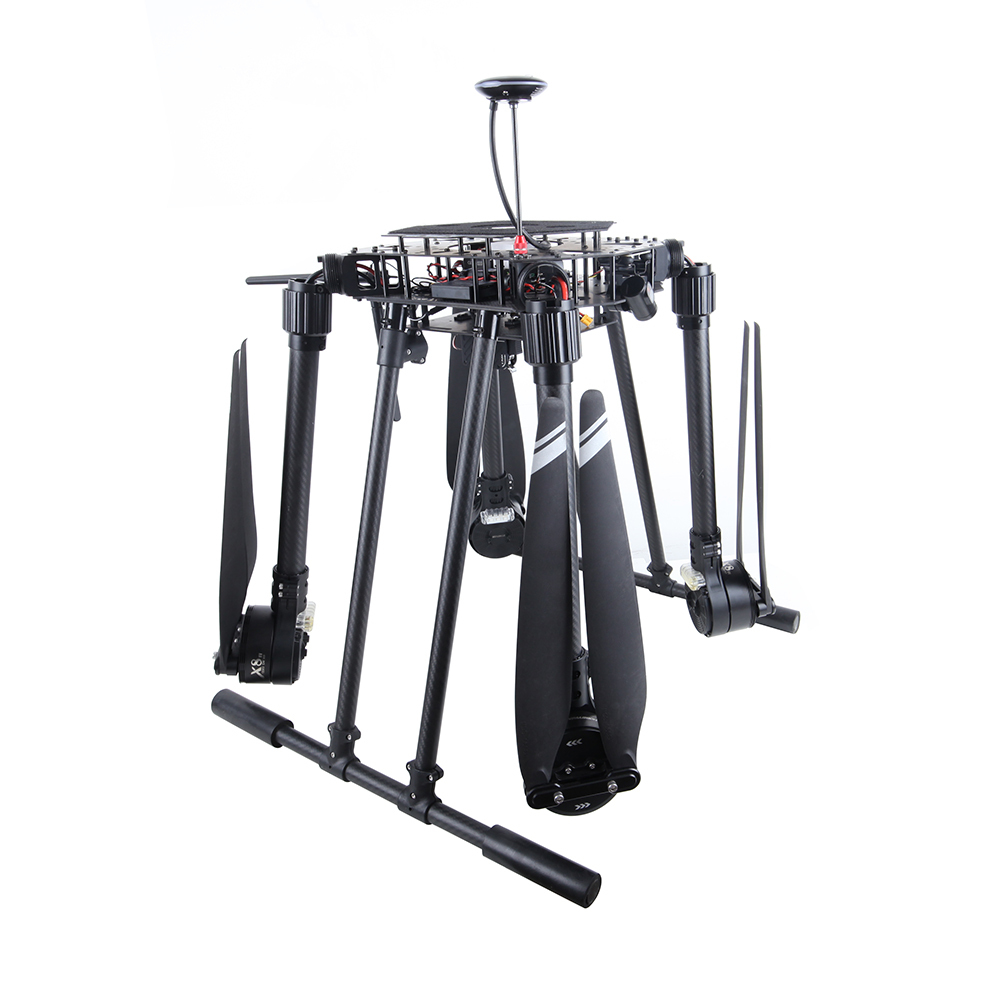

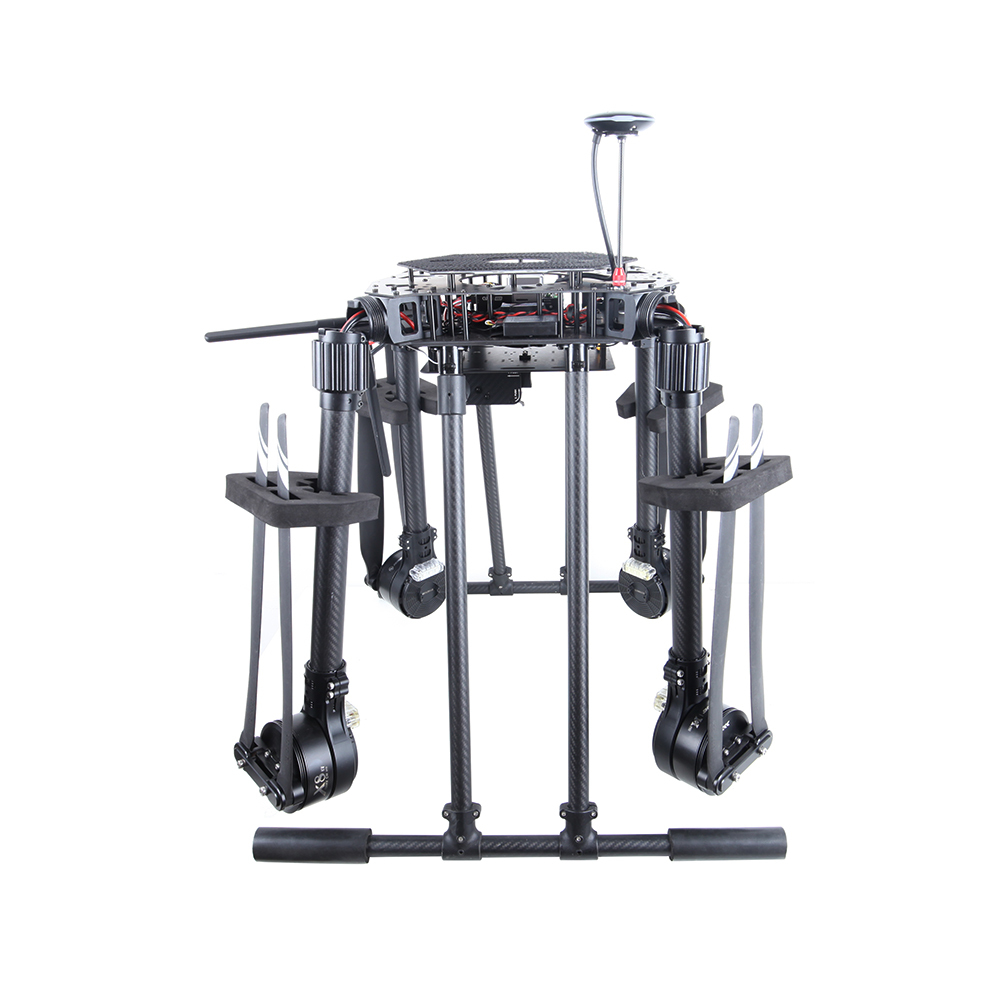

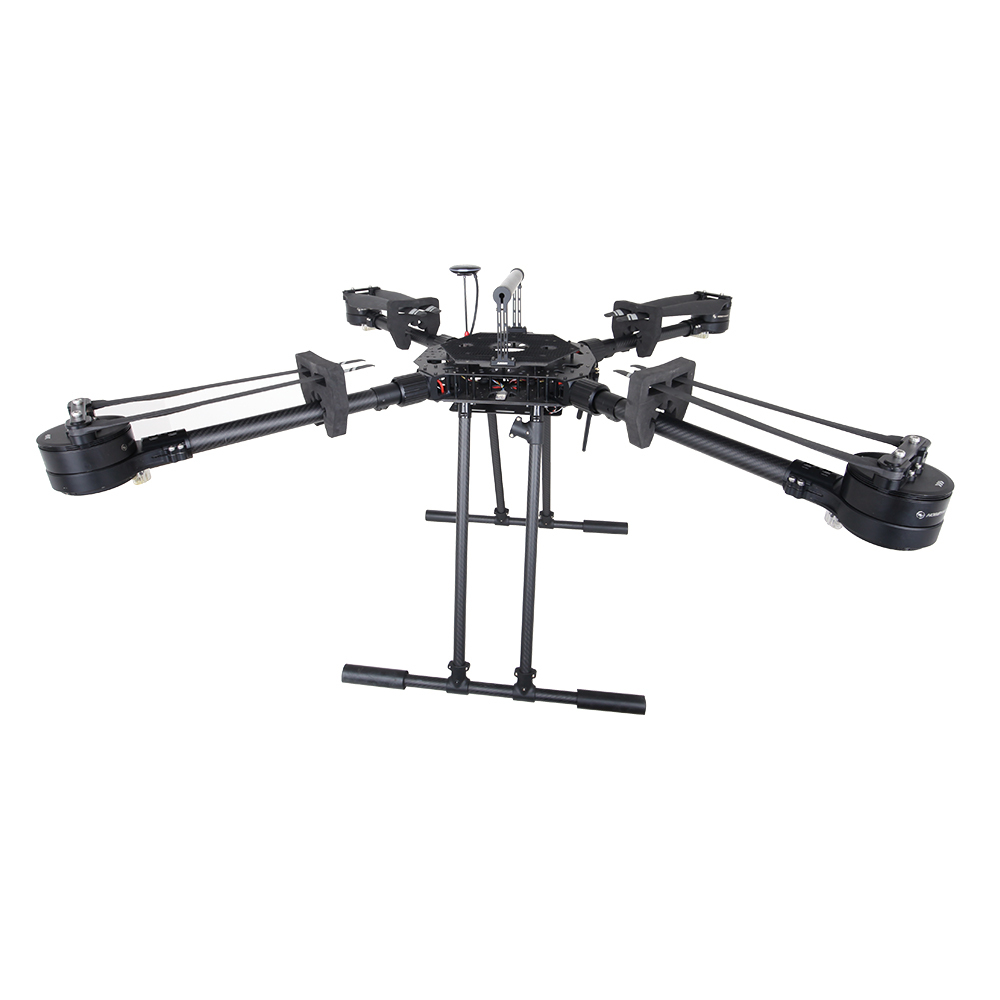

ARRIS M1200 is designed to be rugged and durable, with a strong and lightweight frame made of high strength carbon fiber and aluminum parts. It adopts classic umbrella folding method, which minimizes the size of the drone after folding, more convenient to storage or carry out.
Expanded Mounting Platform

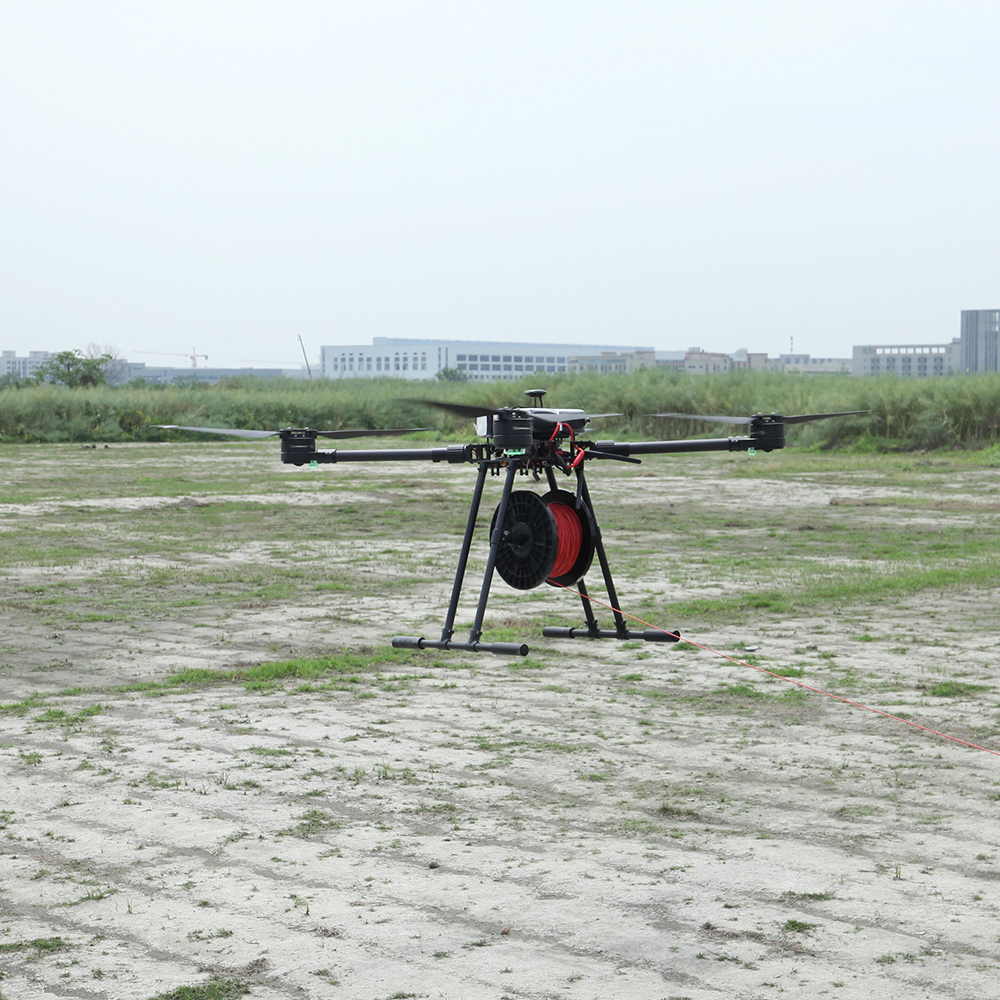

ARRIS M1200 extended the landing skid ,and it is capable of different mounting platforms, such as the thermal imaging camera, lidars, gimbal, Pod, magaphone, releasing devices and etc.
Long Range Remote Controller
Skydroid H12 2.4Ghz long range radio with 5.5 inch high brightness screen is great for rc drones, rc robots, industrial applications equipements. With the FHSS spread spectrum technology, the full range of the Skydroid H12 can reach a long range. It has clear image, low delay, long range, strong anti-interference and other features. So it can be widely used on agriculture drones, FPV sevurity, fire protection, electric power, surveying and mapping robots, border defense, etc.
Real-time Data Transmission

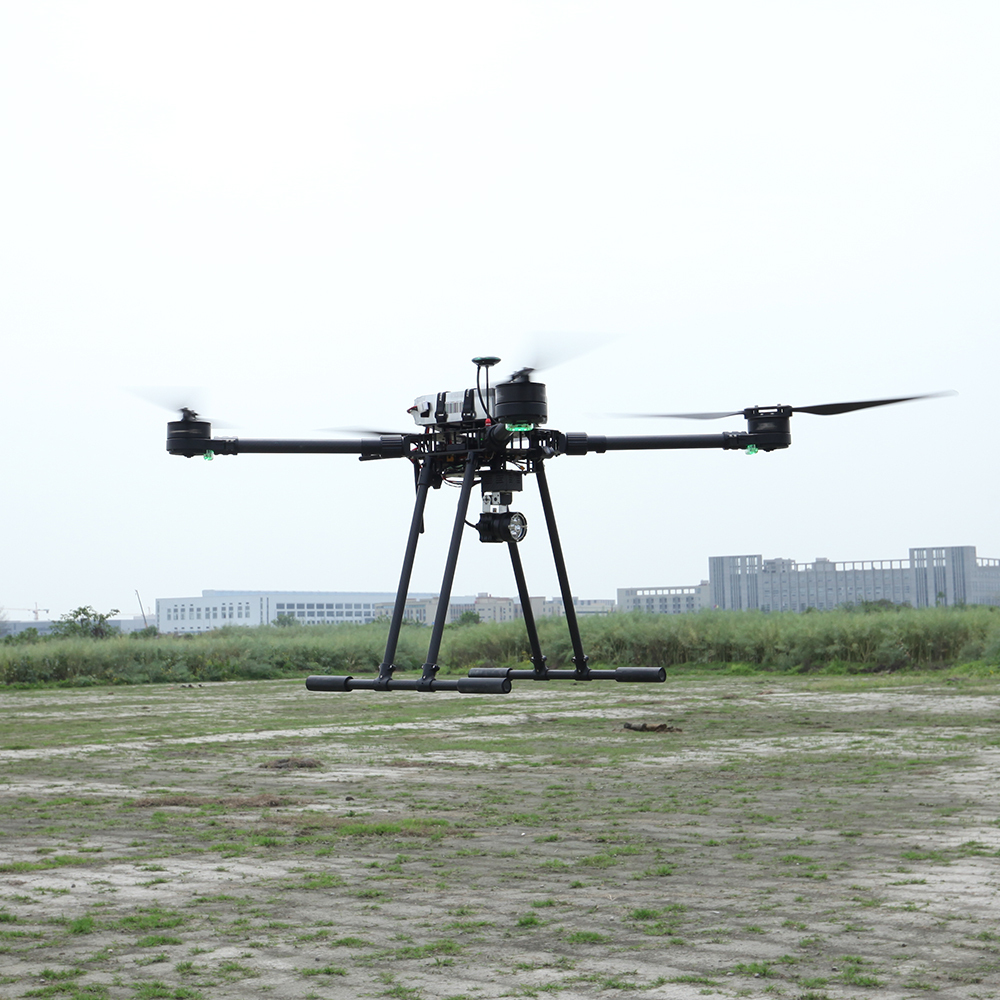

With the Gimbal camera in front of the ARRIS M1200, real-time date transmission can transmit to the FPV window in gound station. The pitch of the gimbal camera is ajustable. Operators can adjust the gimbal to check the view in front or under the drone according to your requirements. From those informaton, operators can monitor the drone's process and make adjustments if necessary, ensuring that the drone is capturing the necessary data and operating safely and efficiently.
Package Included:
ARRIS M1200 Drone frame kit x 1
X8 Power system for M1200 Drone x 4 (2CW+2CCW)
Remote Controller with Radio x 1 (optional)
Carry Case x 1
Other Parts Recommended:
Tattu HV 6S 22000mah battery x 2
SKYRC PC1080 Battery charger x 1
Note: 1. 2 pieces of the 6S battery and charger need to purchase seperately.
2. Due to the built-in battery in the radio, it will send out in a seperate parcel and the shipping time is longer than usual.
3. If you have other requirements on this drone, please send email to service@arrishobby.com.
