Your position: Home / FPV Racing Drone / FPV Racing Drone RTF

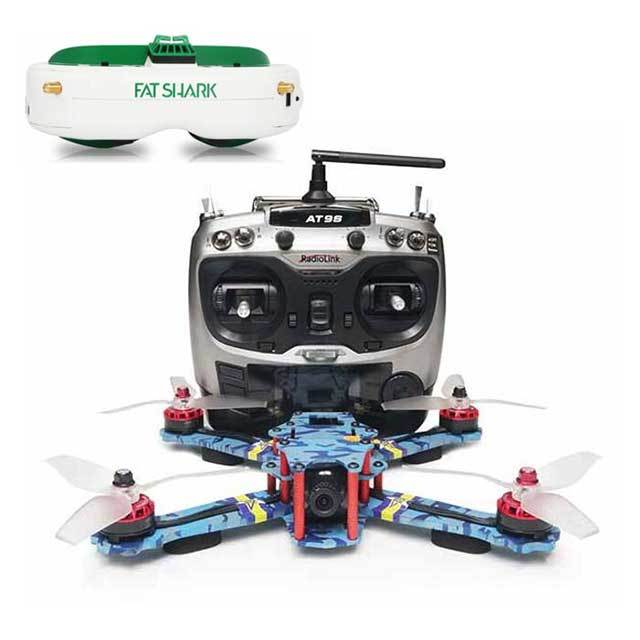

Free Shipping!!! ARRIS C250 V2 RTF with Fatshark Attitude V6 Goggle FPV in All Version

CA0045
FPV racing drone rtf with goggle combo
fatshark attitude V6 goggle
Ready to fly
Price:
$699.00
    Please select the information you wantX
  • Mode:
    Mode 2 (Left Hand Throttle)
Quantity:
-
+
(50 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)
Note:  This combo is only avaialble in US warehouse. We could only ship to US-based address. Free Shipping!!

ARRIS C250 V2 FPV in all version comes with ARRIS C250 V2 RTF, Skyrc B6AC V2 battery charger, Fatshark Attitude V6 fpv goggle.It is fully assembled, tuned and tested before leaving the factory. This FPV combo comes with everything you needed for FPV.

ARRIS C250 V2 is one more professional 250 fpv racing drone produced by ARRIS on the basis of the ARRIS C250. The same as the ARRIS C250, the C250 V2 has the advantage of simple structure and high strength. In the meanwhile, ARRIS C250 V2 adopts 4in1 40A tower for the first time, improve the performance of the drone much.Take it to start your FPV journey.



Main Features:
1. Simple structure frame installed with tower structure ESC/PDB, easy to assemble and easy to repair.
2. High quality 3K Carbon fiber frame, the material is imported from Janpan
3. 4mm thick arms, super strong and durable
4. Super Light frame, only $136g
5. The tower ESC/FC comes with integrated OSD, no need to install it separately
6. The angle of the FPV camera is adjustable
7. 4mm thick arms, super strong and durable
8. High efficiency X2205 2300KV motor provides you better performance and longer working life
9. High quality 5045 3 blade propeller, 10% higher efficiency than normal propellers
10. High safety 4S 1500mah 50C lipo battery

Specifications:
Dimension:195mm x 230mm x 42mm (Propellers not included)
Diagonal Wheelbase: 250mm
Flight Controller: F4 flight Controller
Frame Material: Pure Carbon fiber
BNF weight:350g
Radio System: Radiolink AT9S with R6DSM receiver
Camera: ARRISHobby Cat Mini Camera
FPV TX: 5.8G 200mw 40CH
Antenna: 5.8G Antenna
Flying Time: 10min hovering
Battery: ARRIS 4S 1500mah 50C Lipo
Charger: Skyrc Imax B6AC V2 Mini Charger
Goggle: Fatshark Attitude V6 OLED FPV Goggle

ARRIS C250 V2 is made of pure carbon fiber material. The upper plate and side plate adopts 1.5mm pure carbon fiber material, decrease the weight of the whole frame. Meanwhile, the motor arm adopts 4mm carbon fiber material, ensure the strength of the frame. The total weight of the frame is about 137g.With the simplify one-piece design and lower gravity center design, all kinds of flight actions can be done with facility.The layout design of the C250 V2 is reasonable, the standard flight controller and PDB board can install there.On the frame, there is reserved space for the XT60 female battery connector.The motor arm has holes for 220x series motors, and both 5 inches and 6 inches propellers can install on the C250 V2 frame.

F4 with 40A ESC stack now upgrade to Flycolor Raptor S-Tower comes with BLHei-S 4-in-1 40A ESC and F4,PDB and OSD. The ESC comes with EFM8BB21F16G MCU, support Dshot / Multishot / Oneshot,support high KV motor, can support at most 500k eRPM.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.
The default firmware of the F4 is Betaflight_OMNIBUSF4SD,it supports PPM,SBUS,SPEKTRUM 1024/2048 etc. remote control / receiving mode. Built-in current meter, OSD directly display the real-time current without any additional connection.

With the high performance ARRIS X2205 2300KV brushless motor, the ARRIS C250 V2 has outstanding power.
Main Features:
1. Adopts the brand new M5 steel shaft, improving the structure strength.
2. Anti-slip pro design.
3. Upgrade to centrifugal fan design, optimizing the heat dissipation.
4. Adopts original Japan NSK bearing, improving the performance of the motor.
5. Adopts N52 tile-shaped magnets.
6. The motor passed more than 20 kinds of tests before leaving the factory, ensure the quality of the motor.


The ARRIS C250 V2 adopts with the latest 5045 propeller, it has bigger windward area, well balance and strengthen root, and the efficiency is 10% higher than normal propeller. This propeller is the first choice of FPV racing drones.

ARRIS FPV Mini Camera for FPV Racing Drones--ARRIS cat fpv mini camera is specially designed for FPV. This camera performs well in both bright and dark condition with high quality image. And the camera angle on the drone is adjustable.

ARRIS 5.8g 200mW 40-CH video TX and antenna pre-assembled.The ARRIS TS5823L with LED is transmitting a full range of 40 channels and only weighs 10g. It's perfect for a wide range of aircraft!With a goggle or monitor in hand, you can begin your FPV journey.

ARRIS X-Speed C250 V2 has integrated with a remote controller battery warning buzzer, pilot can set the threshold (adjustable) according to CF parameter-adjustment software. In addition, you can also locate your racing drone through triggering the buzzer with the switch D on the transmitter.

Self-level mode is the easiest to fly, because when you leave the stick at the center and not controlling it, your drone just level itself and stays there.This mode is good for beginners.
Manual mode is useful for acrobatics such as flips or rolls, or FPV when smooth and fast control is desired. The picture below is what we set on our own Radiolink AT9 Radio.

Radiolink AT9S 10 Channel 2.4GHz Radio
Specification:
Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
Modulation mode: QPSK
Channel bandwidth: 5.0 MHz and 250Kbps
Spread spectrum: DSSS&FHSS
Adjacent channel rejection: >38dbm
Transmitter power: less than 100mW (20dbm )
Operating current: 90mA@12V
Operating voltage: 7.4~18.0V
Control distance: More than 900 meters ground, 1500 meters air (the actual controldistance depends on the flying environment)
Channel: 10 channels,5-10 channels are customized
Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
Simulator model: under the simulator model the transmitter action turn off, change to power saving model
Screen: 2.8 inches 16 colorful screen, 240*320 pixels
Support receivers: R9DS(S-BUS&PWM), R10DS and R6DS
Size: AT9S- 183 x 100 x 193mm, R9DS- 41 x 23 x 14mm
Weight: 0.88kg



High safety ARRIS 4S 1500mah Lipo Battery

ARRIS 4S 1500mAh 50C lipo battery is specially designed for FPV racer. The price of this battery is much higher than the similar batteries in the market, because we only sell top-quality batteries. As we all know, the low quality battery might have potential safety hazard, we will never tolerate such products.For ARRIS 4S 1500mah lipo battery, we have done UN38.3 test,1.2M Drop test,MDS report for it, for the test report, you can check here.

SKYRC IMAX B6AC V2 Professional Balance Charger/Discharger

SKYRC IMAX B6AC V2 is the upgraded version for well-known IMAX B6AC. Compared with B6AC V2, it is more accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What's more, users could also use it as Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limit, Capacity Limit, Temperature Threshold and Processing Time Limit which makes the charger safer than V1.
SKYRC B6AC V2 is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium iron phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 50W charge power.

Specifications:
AC Input Voltage: 100-240V
DC Input Voltage: 11-18V
Circuit Power: Max Charge: 50W /Max Dischage: 5W
Charge Current Range: 0.1-6.0A
Discharge Current Range: 0.1-2.0A
LiPo/LiFe/LiIon Cells: 1-6S
NiMH/NiCd Cells:1-15S
Pb(Lead Acid) battery Voltage:2-20V
Net Weight: 632g
Dimension: 135 x 144 x 36mm

skyrc b6 charger

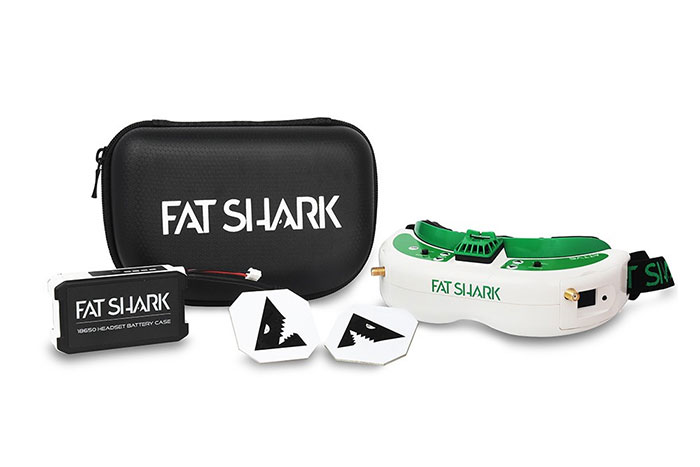

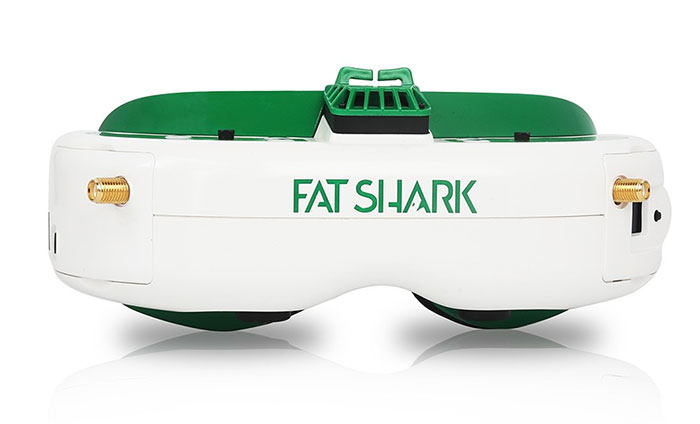

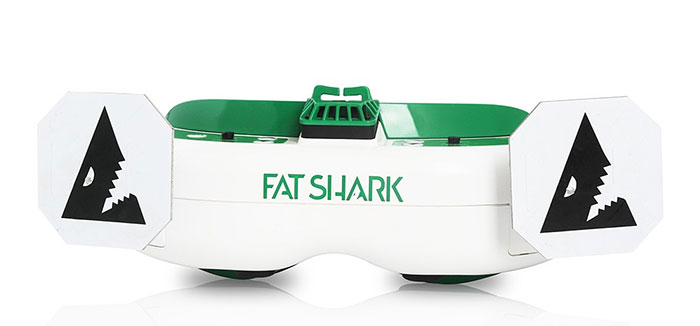

Fat Shark Attitude V6 modular UVGA LCOS FPV goggles with integrated DVR for analog recording is for Pre-Order now. We could only ship to US  based address only.

Specification:
Optics:
FOV (field of view):  39 degrees diagonal
IPD (interpupillary distance):  54 to 74 mm (adjustable)
Focus:   +2 to -6 diopters (adjustable)

Display:
Two 0.4” LCOS displays
Resolution 1280 X 960
NTCS/PAL auto selecting
AV Mode 4:3
AV Mode 16:9
HDMI Mode 16:9

Audio: Stereo

Electrical:
Power Supply:   7 – 13V input voltage (2S – 3S Supply)
Power Consumption:
320mA @ 7.5V input power (no RX module)
770mA @ 7.5V input power (Rapid

User Controls:
Channel Selection
Volume Control
Mode Selection
Display Control (Brightness and Contrast)
DVR Control
Power Button / Fan Control

Analog DVR:
MicroSD support to 32 GB
Record Rate:  6Mbps (MJPG compression, 30 fps, AVI)
File playback (native recording, no codec support)
Upgradeable via SD card

Interface:
3.5mm AV in/out port
Power input port
3.5mm 3p earphone port
MicroSD
RF Module Bay
HT connector 3 pin internal connection
Power Button

Mechanical: Ergonomic molded headset w/ adjustable headband
Dimensions:  169.2 x 80 x 45.5 mm
Weight: 199g
Battery:  7.4V, 1.8A 18650 Battery Case



Package Include:
1 x ARRIS C250 V2 Racing Quad Frame
4 x ARRIS X2205 V2 2300KV Brushless Motors
1 x Flycolor S-Tower Omnibus F4 with 4in1 40A BLHeli-S ESC+PDB+OSD
4 x ARRIS 5045 3-blade Propeller
1 x ARRIS FPV camera
1 x 5.8G 200mw 32CH FPV TX
1 x FPV Transmitter Antenna
1 x Radiolink AT9S Transmitter with receiver
1 x ARRIS Buzzer
1 x ARRIS 4S 1500mah Lipo Battery
1 x Skyrc B6AC V2 Professional Balance Charger
1 x Fatshark Attitude V6 OLED FPV Goggle


Note: You will receive two to 2 parcels, one with the goggle, and the other with the rest of the items.
