Note: Make sure all the batteries are around the same voltage when starting your charge. Also, either charge one type of battery or the other. Do not mix and match types or MAH ratings.

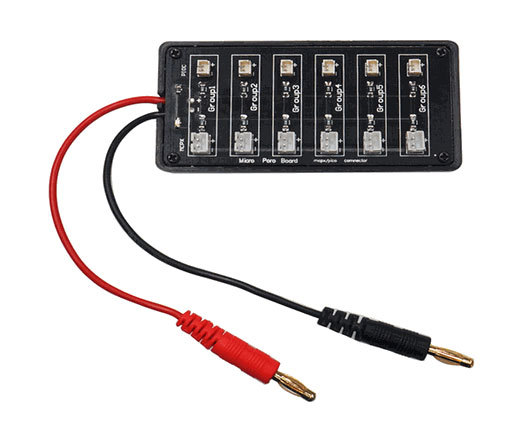

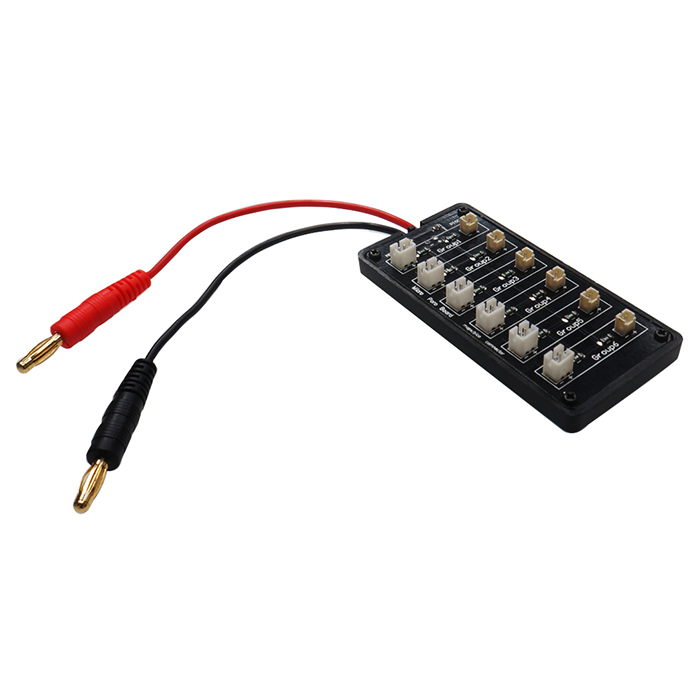

The Micro ParaBoard is designed for charging multiple small 3.7V Lithium Polymer batteries safely. This board has six sets of Pico (Micro JST) connectors for batteries popular in micro helicopters and planes as well as other ultra micro R/C models. It also has six 2 pin JST-PH connectors for batteries used in other E-flite/Parkzone Micros.
Specifications:
Built-in fuses for safe charging
Fuse Rating: 1.5A
Input Charge Connector: Male 4mm Banana Plug
Output Connector: 6* Molex1.25(Micro JST), 6* JST-PH
Wire Type: 18 AWG Silicone Charge Lead
Max Charge Rating: 1.5A per battery
Wire Length: 11mm
Dimension: 87*43*13mm(3.4*1.7*0.5inches)
Weight: 30g (1 ounces)
6 x Pico (also called Micro JST) connectors for batteries used in models such as the FP100 Heli and other ultra micro drones.
6 x JST-PH connectors for batteries used in mCPX, E-flight Micros and Walkera Helicopters.
Features:
This Micro ParaBoard is designed for charging multiple small Lithium Polymer batteries safely.
Built-in self-resetting fuses to prevent any battery short circuit while charging.
The melting current of each resettable fuse is 1.5amps. Maximum total charge current equals 1.5amps multiplied by the number of batteries.
Suitable for Blade Inductrix, Tiny Whoop, Blade Glimpse, MCP X, Nano QX 3D, Nano CP X, Nano QX etc
Charges in parallel so you can charge as few as one or as many as six batteries of varying capacities at once. You just need a standard LiPo charger.
Package Includes:

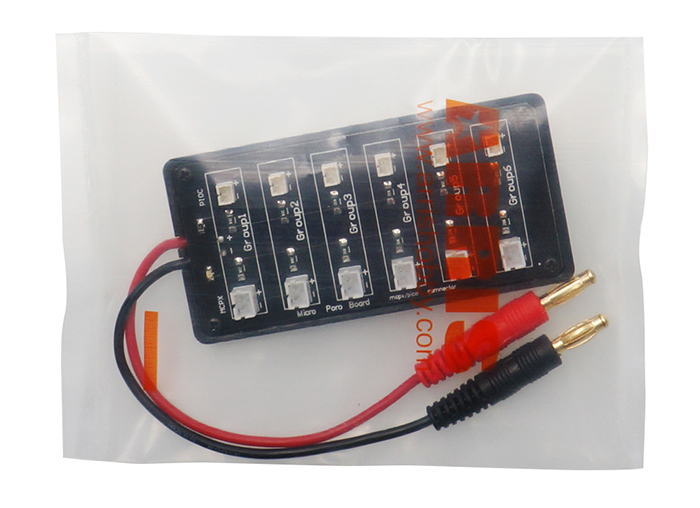

1 x 1S Lipo Battery Balance Charging Board (The picture showed battery and charger not include)
