Main Features:
1. Simple structure frame installed with tower structure ESC/PDB, easy to assemble and easy to repair.
2. High quality 3K Carbon fiber frame, the material is imported from Janpan
3. 4mm thick arms, super strong and durable
4. Super Light frame, only $136g
5. The tower ESC/FC comes with integrated OSD, no need to install it separately
6. The angle of the FPV camera is adjustable
7. 4mm thick arms, super strong and durable
8. High efficiency X2205 2300KV motor provides you better performance and longer working life
9. High quality 5045 3 blade propeller, 10% higher efficiency than normal propellers
10. High safety 4S 1500mah 50C lipo battery
Specifications:
Dimension:195mm x 230mm x 42mm (Propellers not included)
Diagonal Wheelbase: 250mm
Flight Controller: F4 flight Controller
Frame Material: Pure Carbon fiber
BNF weight:350g
Radio System: Radiolink AT9 with R6DSM receiver
Camera: Arrishobby Cat FPV Mini Camera
FPV TX: 5.8G 200mw 40CH
Antenna: 5.8G Antenna
Flying Time: 10min hovering

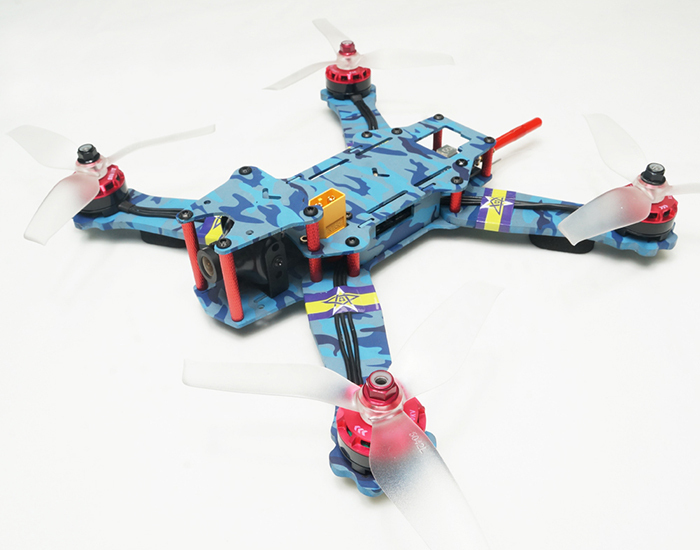

ARRIS C250 V2 is made of pure carbon fiber material. With water transfer painting technology,it look so charming. The upper plate and side plate adopts 1.5mm pure carbon fiber material, decrease the weight of the whole frame. Meanwhile, the motor arm adopts 4mm carbon fiber material, ensure the strength of the frame. The total weight of the frame is about 137g.With the simplify one-piece design and lower gravity center design, all kinds of flight actions can be done with facility.The layout design of the C250 V2 is reasonable, the standard flight controller and PDB board can install there.On the frame, there is reserved space for the XT60 female battery connector.The motor arm has holes for 220x series motors, and both 5 inches and 6 inches propellers can install on the C250 V2 frame.
F3 with 30A ESC stack now upgrade to Flycolor Raptor S-Tower comes with BLHei-S 4-in-1 40A ESC and F4,PDB and OSD. The ESC comes with EFM8BB21F16G MCU, support Dshot / Multishot / Oneshot,support high KV motor, can support at most 500k eRPM.Dshot is digital signal, anti-interference ability is stronger, and do not need throttle calibration.
The default firmware of the F4 is Betaflight_OMNIBUSF4SD,it supports PPM,SBUS,SPEKTRUM 1024/2048 etc. remote control / receiving mode. Built-in current meter, OSD directly display the real-time current without any additional connection.
With the high performance ARRIS X2205 2300KV brushless motor, the ARRIS C250 V2 has outstanding power.
Main Features:
1. Adopts the brand new M5 steel shaft, improving the structure strength.
2. Anti-slip pro design.
3. Upgrade to centrifugal fan design, optimizing the heat dissipation.
4. Adopts original Japan NSK bearing, improving the performance of the motor.
5. Adopts N52 tile-shaped magnets.
6. The motor passed more than 20 kinds of tests before leaving the factory, ensure the quality of the motor.
The ARRIS C250 V2 adopts with the latest 5045 propeller, it has bigger windward area, well balance and strengthen root, and the efficiency is 10% higher than normal propeller. This propeller is the first choice of FPV racing drones.
ARRIS CAT FPV Mini Camera for FPV Racing Drones--ARRIS cat fpv mini camera is specially designed for FPV. This camera performs well in both bright and dark condition with high quality image. And the camera angle on the drone is adjustable.
ARRIS 5.8g 200mW 40-CH video TX and antenna pre-assembled.The ARRIS TS5823L with LED is transmitting a full range of 40 channels and only weighs 10g. It's perfect for a wide range of aircraft!With a goggle or monitor in hand, you can begin your FPV journey.
Package Include:
1 x ARRIS C250 V2 Racing Quad Frame
4 x ARRIS X2205 V2 2300KV Brushless Motors
1 x Flycolor Tower w/ F4 30A 4 in 1 ESC + F4 + OSD + PDB
4 x ARRIS 5045 3-blade Propeller
1 x ARRISHOBBY Cat FPV camera
1 x 5.8G 200mw 32CH FPV TX
1 x FPV Transmitter Antenna
1 x ARRIS Buzzer
Radio, receiver, battery and charger need to buy seperately.
