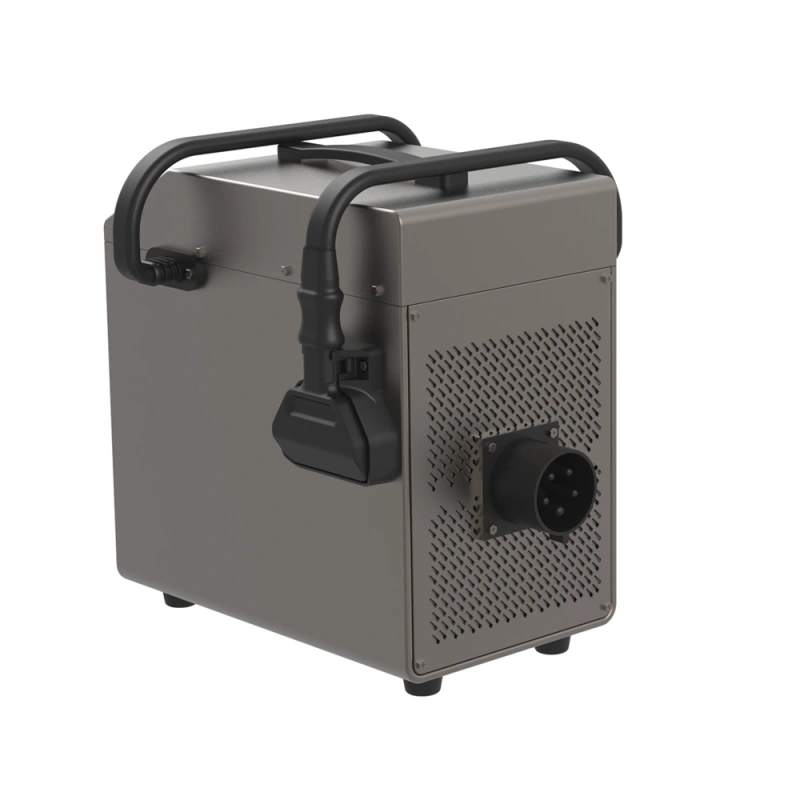

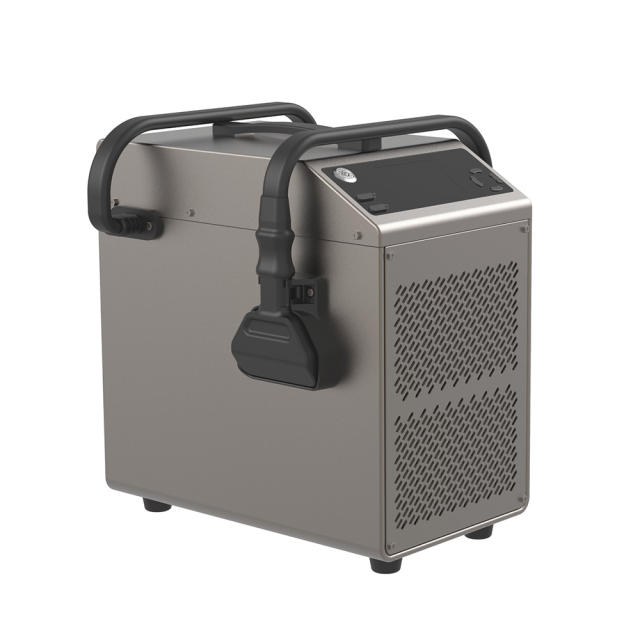

ZA C1890 smart battery charger is designed for ZA smart batteries. This smart charger can automatically recognize the smart battery. The specially developed intelligent charging mode can dynamically adjust the best charging strategy according to the health status of our smart battery, so as to achieve the best charging effect of safe and fast charging, and make the battery reach the best working and storage status, prolonging the battery life.
Main Features:
1. Charging power: ZA 18S battery corresponds to a maximum power output of 7kw, and ZA 24S battery corresponds to a maximum power output of 9kw
2. The maximum charging current is 90A (the charging request current of the adaptive intelligent battery, the maximum does not exceed 90A)
3. Can intelligently identify the special intelligent battery
4. Smart fast charging mode for dedicated smart battery
5. Support intelligent charging management for single or multiple batteries
6. With CAN external communication interface
7. With USB upgrade function
8. With data recording function
Specifications:
Item Brand: ZA
Item Model: C1890 18S 24S Battery charger
Input Voltage: 100-380V
Input Frequency: 47-63Hz
Input Current: 60A
Power start-up maximum peak input current: 90A
Output Channel: 2
Output Voltage: 78.3V for 18S Battery
104.4V for 24S Battery
Output Current: 90A (AC Input 176V～290V)
45A (AC Input 90V～176V)
Rated Power: 7KW for 18S battery
9KW for 24S battery
Size: 505 x 360 x 430mm
Weight: 19kg
Other Functions: Overvoltage protection, overcurrent protection, Short circuit protection, Current anti-backflow, Start delay, Turn off delay
Intelligent Function:
Support communication with battery
Support smart charging mode with battery
Support USB upgrade
Support data logging
Package Included:
ZA C1890 18S 24S Battery Charger X 1
10A Input cable x 1
50A Input cable x 1
