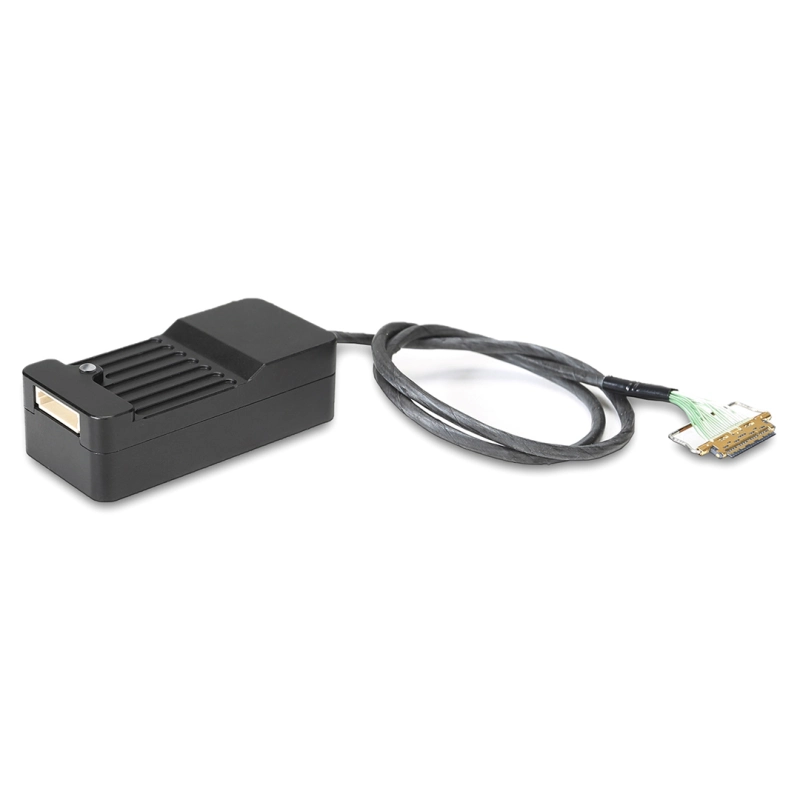

TAROT 1080P HD HDMI to AV Analog Signal Module is a video signal conversion accessory specifically designed for RC drones. Equipped with a high-performance chip, it ensures consistently clear and smooth video output. The module is compact and lightweight, weighing only 17g.
Product Specifications:
- Product Name: HDMI to AV Module
- Input Voltage: 10-30V
- Latency: 60 milliseconds
- HDMI Cable Length: 300mm
- Operating Temperature: -20°C to 50°C
- Dimensions: 40.5mm x 19.4mm x 12.2mm
- Weight: 17g
Important Notes:
- Supports one-way conversion from HDMI to AV only.
- If the HDMI video source has its own battery, follow this power sequence:
- Power On: First power the module, then the video source.
- Power Off: First power off the video source, then the module.
- The default cable length is 300mm. It can be replaced with a 500mm cable or customized to other lengths. Compatible with our TL10A11 series adapters.
Package Contents:
- HDMI to AV Module (300mm cable) ×1
- 1.0-8P Single Head Cable (150mm) ×1
- Cup Head Screws (M2*6mm) ×2
